Settings for alarms are under Administration > System Settings: Alarms. Enabling alarms is optional.

RiOS uses a hierarchical alarm system, where related alarms are grouped under top-level categories. For example, the System Disk Full alarm is a parent alarm that monitors multiple disk partitions. If one partition becomes full, the parent alarm is triggered, and the Alarm Status report shows which specific partition caused it.

Disabling a parent alarm automatically disables all of its child alarms. You can enable a parent alarm and selectively disable any of its children. However, you cannot enable a child alarm unless its parent is enabled first. On the Alarm Status report, child alarms of a disabled parent will show a suppressed status, while disabled children of an enabled parent will show a disabled status.For more details about alarm status, see Viewing the Alarm Status report.

The Admission Control setting enables an alarm and sends an email notification if the SteelHead enters admission control. When this occurs, the SteelHead optimizes traffic beyond its rated capability and is unable to handle the amount of traffic passing through the WAN link. During this event, the SteelHead continues to optimize existing connections, but new connections are passed through without optimization.

Indicates the system connection limit has been reached. Additional connections are passed through unoptimized. The alarm clears when the SteelHead moves out of this condition.

Indicates the appliance has entered admission control due to high CPU use. During this event, the appliance continues to optimize existing connections, but new connections are passed through without optimization. The alarm automatically clears when the CPU usage has decreased.

Indicates that the number of optimized MAPI connections has exceeded the maximum threshold set by admission control. By default, this threshold is set at 85% of the maximum optimized connection capacity on the client-side SteelHead. The remaining 15% is reserved to ensure that MAPI traffic does not interfere with other protocols. This 85% limit applies only to MAPI connections.

When the threshold is exceeded, RiOS starts passing through MAPI connections from new clients, meaning these are not optimized. However, it continues to intercept and optimize MAPI connections from existing clients, including any new MAPI connections they initiate. Non-MAPI connections from all clients continue to be optimized as usual.

To manage this, RiOS may proactively close some MAPI sessions to reduce the number of active connections and bring the count below the 85% threshold. The alarm will automatically clear once MAPI traffic decreases, but it may take up to one minute for this to happen. RiOS closes the MAPI sessions in this order:

Indicates the appliance has entered admission control due to memory consumption. The appliance is optimizing traffic beyond its rated capability and is unable to handle the amount of traffic passing through the WAN link. During this event, the appliance continues to optimize existing connections, but new connections are passed through without optimization. No other action is necessary; the alarm automatically clears when the traffic has decreased.

Indicates the appliance has entered admission control due to high TCP memory use. During this event, the appliance continues to optimize existing connections, but new connections are passed through without optimization. The alarm automatically clears when the TCP memory pressure has decreased.

By default, this alarm is enabled.

The Asymmetric Routing setting enables an alarm if asymmetric routing is detected on the network. Asymmetric routing is usually due to a failover event of an inner router or VPN.

By default, this alarm is enabled.

The Connection Forwarding setting enables an alarm if the system detects a problem with a connection-forwarding neighbor. The connection-forwarding alarms are inclusive of all connection-forwarding neighbors. For example, if a SteelHead has three neighbors, the alarm triggers if any one of the neighbors are in error. In the same way, the alarm clears only when all three neighbors are no longer in error.

Enables an alarm and sends an email notification if a connection-forwarding neighbor in a Interceptor cluster has path selection enabled while path selection isn’t enabled on another appliance in the cluster.

This alarm is also raised when a connection-forwarding neighbor is running a RiOS version that is incompatible with IPv6, or if the IP address configuration between neighbors doesn’t match. Neighbors must be running RiOS 8.5 or later.

Enables an alarm and sends an email notification if the connection to an appliance in a connection forwarding cluster is lost or is disconnected due to a configuration incompatibility.

Enables an alarm and sends an email notification if the connection to a SteelHead connection-forwarding neighbor is lost.

By default, this alarm is enabled.

The CPU Utilization setting enables an alarm and sends an email notification if the average and peak threshold for the CPU utilization is exceeded. When an alarm reaches the rising threshold, it is activated; when it reaches the lowest or reset threshold, it is reset. After an alarm is triggered, it isn’t triggered again until it has fallen below the reset threshold.

By default, this alarm is enabled.

Specifies the rising threshold. When an alarm reaches the rising threshold, it is activated. The default value is 90 percent.

Specifies the reset threshold. When an alarm reaches the lowest or reset threshold, it is reset. After an alarm is triggered, it isn’t triggered again until it has fallen below the reset threshold. The default value is 70 percent.

If the alarm was caused by an unintended change to the configuration, the configuration can be changed to match the old data store settings again and then a service restart (without clearing) will clear the alarm. Typical configuration changes that require a restart clear are changes to the data store encryption (choose Optimization > Data Replication: Data Store) or enabling extended peer table (choose Optimization > Network Services: Peering Rules).

Enables an alarm and sends an email notification if the RiOS data store is corrupt or has become incompatible with the current configuration. To clear the RiOS data store of data, restart the optimization service and click Clear the Data Store.

Enables an alarm and sends an email notification if you need to clear the RiOS data store.

Enables an alarm and sends an email notification if a data store error such as an encryption, header, or format error occurs.

Enables an alarm if RiOS data store synchronization has failed. The RiOS data store synchronization between two SteelHeads has been disrupted and the RiOS data stores are no longer synchronized.

By default, this alarm is enabled.

The Disk Full setting enables an alarm if the system partitions (not the RiOS data store) are full or almost full. For example, RiOS monitors the available space on /var, which is used to hold logs, statistics, system dumps, TCP dumps, and so on.

By default, this alarm is enabled.

The Domain Authentication Alert setting enables an alarm when the system is either unable to communicate with the domain controller, or has detected an SMB signing error, or that delegation has failed. CIFS-signed and Encrypted-MAPI traffic is passed through without optimization.

By default, this alarm is enabled.

The Domain Join Error setting enables an alarm if an attempt to join a Windows domain has failed. The number one cause of failing to join a domain is a significant difference in the system time on the Windows domain controller and the SteelHead. A domain join can also fail when the DNS server returns an invalid IP address for the domain controller.

By default, this alarm is enabled.

Enables an alarm when one or more disks is offline. To see which disk is offline, enter the show raid diagram CLI command from the system prompt. By default, this alarm is enabled. This alarm applies only to the SteelHead RAID Series 3000, 5000, and 6000.

Enables an alarm and sends an email notification if a fan is failing or has failed and needs to be replaced. By default, this alarm is enabled.

Enables an alarm when the system detects an error with the flash drive hardware. By default, this alarm is enabled.

Enables an alarm and sends an email notification if an Intelligent Platform Management Interface (IPMI) event is detected. (This option is not supported on all appliance models.)

This alarm triggers when there has been a physical security intrusion. These events trigger this alarm:

By default, this alarm is enabled.

Enables an alarm and sends an email notification if a memory error is detected, for example, when a system memory stick fails.

Enables an alarm if a hardware error is detected. These issues trigger the hardware error alarm:

The SteelHead doesn’t have enough disk, memory, CPU cores, or NIC cards to support the current configuration.

The SteelHead is using a memory Dual In-line Memory Module (DIMM), a hard disk, or a NIC that isn’t qualified by Riverbed.

DIMMs are plugged into the SteelHead but RiOS can’t recognize them because:

—or—

Triggers an alarm when the SteelHead experiences increased disk access times and activates the safety valve disk bypass mechanism. When this happens, the system switches connections to SDR-A, which performs data reduction in memory instead of using the disk. This continues until disk access latency drops below the safety valve threshold.

High disk access times can occur for several reasons: the SteelHead may be undersized for the current traffic load, there may be a temporary spike in traffic, or the disk may be experiencing hardware issues such as sector errors, mechanical failure, or RAID rebuilding.

You configure the safety valve activation threshold and timeout using CLI commands:

For details, see the Riverbed Command-Line Interface Reference Guide.

By default, this alarm is enabled.

Enables an alarm and sends an email notification if an inserted power supply cord doesn’t have power, as opposed to a power supply slot with no power supply cord inserted. By default, this alarm is enabled.

By default, this alarm is enabled.

The Licensing setting enables an alarm and sends an email notification if a license on the SteelHead is removed, is about to expire, has expired, or is invalid.

This alarm triggers if the SteelHead does not have a license installed for its currently configured model. For details about updating licenses, see Viewing system permissions.

This alarm triggers on a SteelHead appliance when the Riverbed Licensing Portal can’t respond to a license request with valid licenses. The Licensing Portal can’t issue a valid license for one of these reasons:

This alarm triggers if the Riverbed Licensing Portal has information regarding the licenses for a SteelHead appliance. For example, the SteelHead appliance displays this alarm when the portal returns licenses that are associated with a token that has been used on a different SteelHead appliance.

This alarm triggers if one or more features has at least one license installed, but all of them are expired.

This alarm triggers if the license for one or more features is going to expire within two weeks.

The licenses expiring and licenses expired alarms are triggered per feature. For example: if you install two license keys for a feature, LK1-FOO-xxx (expired) and LK1-FOO-yyy (not expired), the alarms don’t trigger, because the feature has one valid license.

By default, this alarm is enabled.

The Link Duplex setting enables an alarm and sends an email notification when an interface was not configured for half-duplex negotiation but has negotiated half-duplex mode. Half-duplex significantly limits the optimization service results.

The alarm displays which interface is triggering the duplex alarm.

By default, this alarm is enabled.

You can enable or disable the alarm for a specific interface. To enable or disable an alarm, choose Administration > System Settings: Alarms and select or clear the check box next to the link name.

The Link I/O Errors setting enables an alarm and sends an email notification when the link error rate exceeds 0.1 percent while either sending or receiving packets. This threshold is based on the observation that even a small link error rate reduces TCP throughput significantly. A properly configured LAN connection experiences very few errors. The alarm clears when the rate drops below 0.05 percent.

You can change the default alarm thresholds by entering the alarm link_io_errors err-threshold <threshold-value> CLI command at the system prompt. For details, see the Riverbed Command-Line Interface Reference Guide. By default, this alarm is enabled.

You can enable or disable the alarm for a specific interface. For example, you can disable the alarm for a link after deciding to tolerate the errors. To enable or disable an alarm, choose Administration > System Settings: Alarms and select or clear the check box next to the link name.

The Link State setting enables an alarm and sends an email notification if an Ethernet link goes down, such as when a cable is unplugged or a switch port fails. Depending on which link is affected, the SteelHead may stop optimizing traffic, potentially causing a network outage.

This condition is often triggered by changes in surrounding devices, like routers or switches, or during a SteelHead service or system restart. For WAN/LAN interfaces, the alarm will only trigger if in-path support is enabled for that interface pair. By default, this alarm is turned off, but you can choose to enable or disable it for any specific interface. To enable or disable an alarm, choose Administration > System Settings: Alarms and select or clear the check box next to the link name.

The Local and Remote Logging setting enables an alarm and sends an email notification of expired and expiring remote log server certificates. You must have a log server certificate installed for secure remote logging.

This alarm triggers if there is an expired log server certificate for the secure remote logging server.

This alarm triggers if there is a log server certificate for a secure remote logging server that is expiring.

The Memory Paging setting enables an alarm and sends an email notification if memory paging is detected. If 100 pages are swapped every couple of hours, the system is functioning properly. If thousands of pages are swapped every few minutes, contact Support. By default, this alarm is enabled.

The Neighbor Incompatibility setting enables an alarm if the system has encountered an error in reaching a SteelHead configured for connection forwarding. By default, this alarm is enabled.

The Network Bypass setting enables an alarm and sends an email notification if the system is in bypass failover mode. By default, this alarm is enabled.

The NFS V2/V4 alarm setting enables an alarm and sends an email notification if the SteelHead detects that either NFSv2 or NFSv4 is in use. The SteelHead only supports NFSv3 and passes through all other versions. By default, this alarm is enabled.

Enables an alarm and sends an email notification if the RiOS optimization service encounters a condition that might degrade optimization performance. By default, this alarm is enabled. Go to the Administration > Maintenance: Services page and restart the optimization service.

Enables an alarm and sends an email notification if the RiOS optimization service encounters a service condition. By default, this alarm is enabled. The message indicates the reason for the condition. These conditions trigger this alarm:

Enables an alarm and sends an email notification if the RiOS optimization service halts due to a serious software error. By default, this alarm is enabled.

The Outbound QoS WAN Bandwidth Configuration setting enables an alarm and sends an email notification if the outbound QoS WAN bandwidth for one or more of the interfaces is set incorrectly. You must configure the WAN bandwidth to be less than or equal to the interface bandwidth link rate.

This alarm triggers when the system encounters one of these conditions:

While this alarm appears, the system puts existing connections into the default class.

The alarm clears when you configure the WAN bandwidth to be less than or equal to the bandwidth link rate or reconnect an interface configured with the correct WAN bandwidth. By default, this alarm is enabled.

The Path Selection Path Down setting enables an alarm and sends an email notification if the system detects that one of the predefined uplinks for a connection is unavailable. The uplink has exceeded either the timeout value for uplink latency or the threshold for observed packet loss.

When an uplink fails, the SteelHead directs traffic through another available uplink. When the original uplink comes back up, the SteelHead redirects the traffic back to it. By default, this alarm is enabled.

The Path Selection Path Probing Error setting enables an alarm and sends an email notification if a path selection monitoring probe for a predefined uplink has received a probe response from an unexpected relay or interface. By default, this alarm is enabled.

The Process Dump Creation Error setting enables an alarm and sends an email notification if the system detects an error while trying to create a process dump. This alarm indicates an abnormal condition where RiOS can’t collect the core file after three retries. It can be caused when the /var directory is reaching capacity or other conditions. When the alarm is raised, the directory is blacklisted. By default, this alarm is enabled.

The Secure Vault setting enables an alarm and sends an email notification if the system encounters a problem with the secure vault:

Indicates that the secure vault is locked. To optimize SSL connections or to use RiOS data store encryption, the secure vault must be unlocked. Go to Administration > Security: Secure Vault and unlock the secure vault.

Indicates that the secure vault requires a new, nondefault password. Reenter the password.

Indicates that an error has occurred while initializing the secure vault. When the vault is locked, SSL traffic isn’t optimized and you can’t encrypt the RiOS data store. For details, see Unlocking the secure vault.

The Software Compatibility setting enables an alarm and sends an email notification if the system encounters a problem with software compatibility:

Indicates that the appliance has encountered another appliance that is running an incompatible version of system software. Refer to the CLI, Management Console, or the SNMP peer table to determine which appliance is causing the conflict. Connections with that peer will not be optimized, connections with other peers running compatible RiOS versions are unaffected. To resolve the problem, upgrade your system software. No other action is required as the alarm automatically clears.

Indicates that the appliance is running an incompatible version of system software. To resolve the problem, upgrade your system software. No other action is required as the alarm automatically clears.

By default, this alarm is enabled.

The SSL setting enables an alarm if an error is detected in your SSL configuration. For details about checking your settings, see About Secure Connections.

Indicates that during a RiOS upgrade (for example, from 8.5 to 9.0), the system has detected a preexisting SSL server certificate configuration on a port other than the default SSL port 443. SSL traffic might not be optimized. To restore SSL optimization, you can add an in-path rule to the client-side SteelHead to intercept the connection and optimize the SSL traffic on the nondefault SSL server port.

After adding an in-path rule, you must clear this alarm manually by entering this CLI command:

Indicates that an SSL peering certificate has failed to reenroll automatically within the Simple Certificate Enrollment Protocol (SCEP) polling interval.

Indicates that an SSL peering certificate has failed to reenroll automatically within the SCEP polling interval.

Indicates that an SSL certificate is about to expire.

Two types of certificates can trigger this alarm: Certificate Authority certificates used to validate servers and SSL Server Certificates that the SteelHead uses when acting as a trusted man in the middle. Depending on the type of certificate, you can review the expiring certificates on the Optimization: SSL > Certificate Authorities page or the Optimization: SSL > SSL Main Settings page. (The alarm only redirects you to the Certificate Authorities page, but you might need to review the SSL Main Settings page for your certificate.)

Certificates are sorted by name and the expiring certificates might not be visible until you scroll through the list.

Indicates that an SSL certificate has failed to reenroll automatically within the SCEP polling interval.

The Storage Profile Switch Failed setting enables an alarm when an error occurs while repartitioning the disk drives during a storage profile switch. A profile switch changes the disk space allocation on the drives, clears the SteelFusion and VSP data stores, and repartitions the data stores to the appropriate sizes. By default, this alarm is enabled.

You switch a storage profile by entering the disk-config layout CLI command at the system prompt or by choosing Administration > System Settings: Disk Management on an EX or EX+SteelFusion SteelHead.

Enables an alarm if a system component has encountered a problem. By default, this alarm is disabled (RiOS 7.0.3 and later).

Enables an alarm and sends an email notification if the CPU temperature exceeds the rising threshold. When the CPU returns to the reset threshold, the critical alarm is cleared. The default value for the rising threshold temperature is 70°C; the default reset threshold temperature is 67°C.

Enables an alarm and sends an email notification if the CPU temperature approaches the rising threshold. When the CPU returns to the reset threshold, the warning alarm is cleared.

After the alarm triggers, it can’t trigger again until after the temperature falls below the reset threshold and then exceeds the rising threshold again.

Enables an alarm when an error occurs with the web proxy configuration.

Enables an alarm when an error occurs with the web proxy service.

By default, this alarm is enabled.

You can create or modify a login message or a message of the day in the Administration > System Settings: Announcements page.

The login message appears in the Management Console Login page. You can also set the local (that is, the serial interface) and remote login message through the CLI. Examples:

These configuration options are available:

Specifies a message in the text box to appear in the Login page.

Specifies a message in the text box to appear in the Dashboard.

You can set email notification parameters for events and failures in the Administration > System Settings: Email page. By default, email addresses aren’t specified for event and failure notification.

Specify the SMTP server. You must have external DNS and external access for SMTP traffic for this feature to function.

This field doesn’t support IPv6 addresses to specify an SMTP server. For sending email over IPv6, specify the hostname of the email server.

Make sure you provide a valid SMTP server to ensure that the users you specify receive email notifications for events and failures.

Specify the port number for the SMTP server. Typically, you don’t need to change the default, which is port 25.

This setting allows emails to be sent when one or more pass-through in-path rules are configured. Reminder emails are also sent every 15 days.

In addition to selecting this check box, you must also make or verify the following changes:

This field is active only if you specify a pass-through rule. You cannot create notifications for other types of rules.

To change the frequency of reminder emails, enter the email notify passthrough rule notify-timer <notification-time-in-days> command. For more information, see the Riverbed Command-Line Interface Reference Guide.

To disable reminder emails for pass-through rules, clear this check box or enter the no email notify passthrough rule command.

This setting reports alarm events through email. Specify a list of email addresses to receive the notification messages. Separate addresses by spaces, semicolons, commas, or vertical bars.

These alarms are events:

This setting reports alarm failures through email. Specify a list of email addresses for users you want to have receive notification messages. Separate addresses by spaces, semicolons, commas, or vertical bars. These alarms are failures:

You can enter a custom email address to override the default address of the notification sender. You might do this if your notification recipients are expecting the notifications to come from a specific address or domain.

This setting reports serious failures, such as system crashes, to Support. We recommend that you activate this feature so that problems are promptly corrected.

This option doesn’t automatically report a disk drive failure. In the event of a disk drive failure, contact Support.

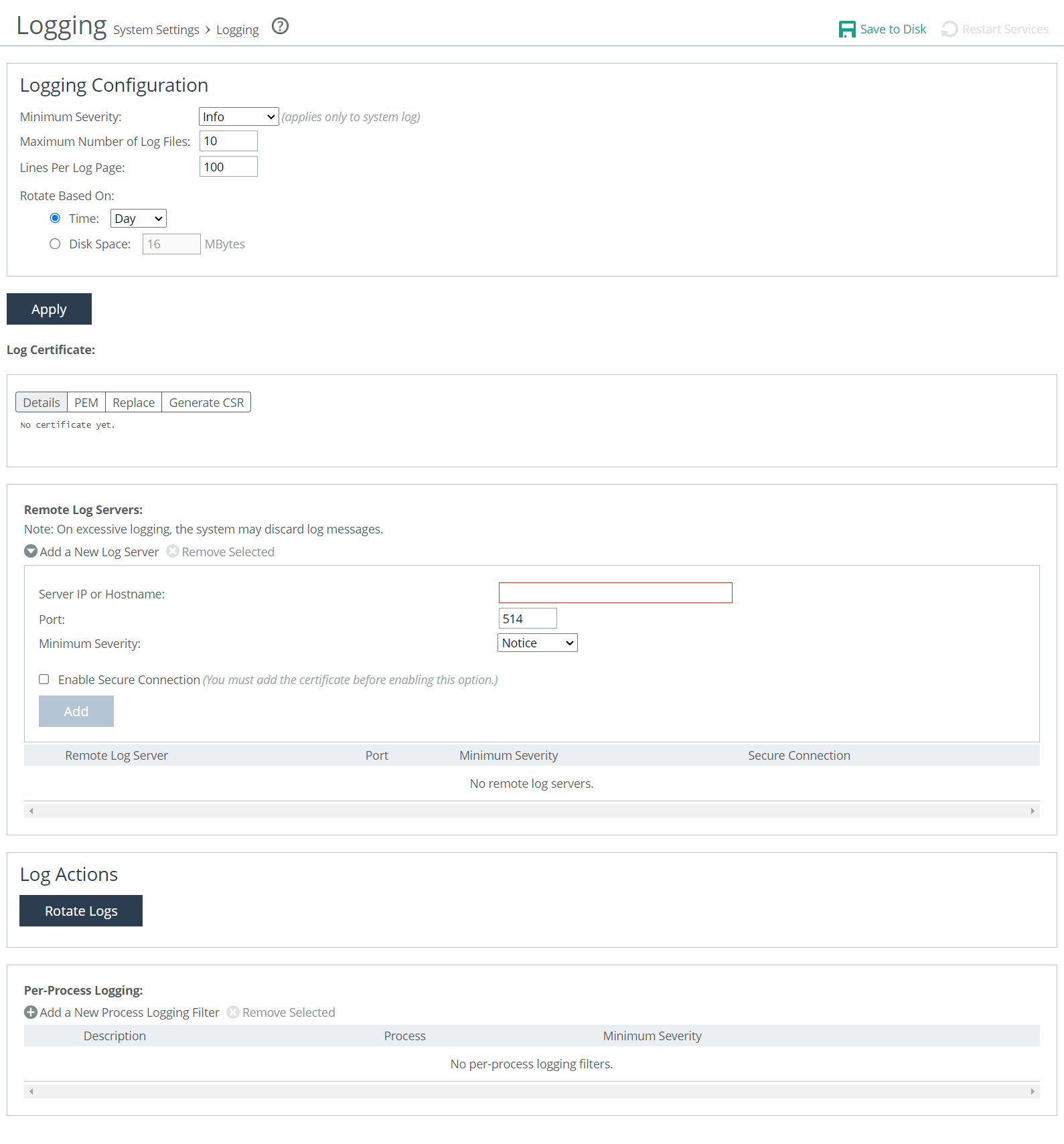

Settings for local and remote logging are under Administration > System Settings: Logging.

By default, the system rotates each log file every 24 hours or if the file size reaches 1 GB uncompressed. You can change this setting to rotate every week or month, and you can rotate the files based on file size.

The automatic rotation of system logs deletes your oldest log file, labeled as Archived log #10, pushes the current log to Archived log # 1, and starts a new current-day log file.

To rotate the logs manually, under Log Actions, click Rotate Logs. After the logs are rotated, this message appears:

When you click Rotate Logs, your archived file #1 contains data for a partial day because you are writing a new log before the current 24-hour period is complete.

Under Logging Configuration, these configuration options are available:

Sets the minimum severity level for the system log messages. The log contains all messages with this severity level or higher. Select one of these levels from the drop-down list:

This control applies to the system log only. It doesn’t apply to the user log.

Specifies the maximum number of logs to store. The default value is 10.

Specifies the number of lines per log page. The default value is 100.

Specifies the rotation option:

The log file size is checked at 10-minute intervals. If there’s an unusually large amount of logging activity, it’s possible for a log file to grow larger than the set disk space limit in that period of time.

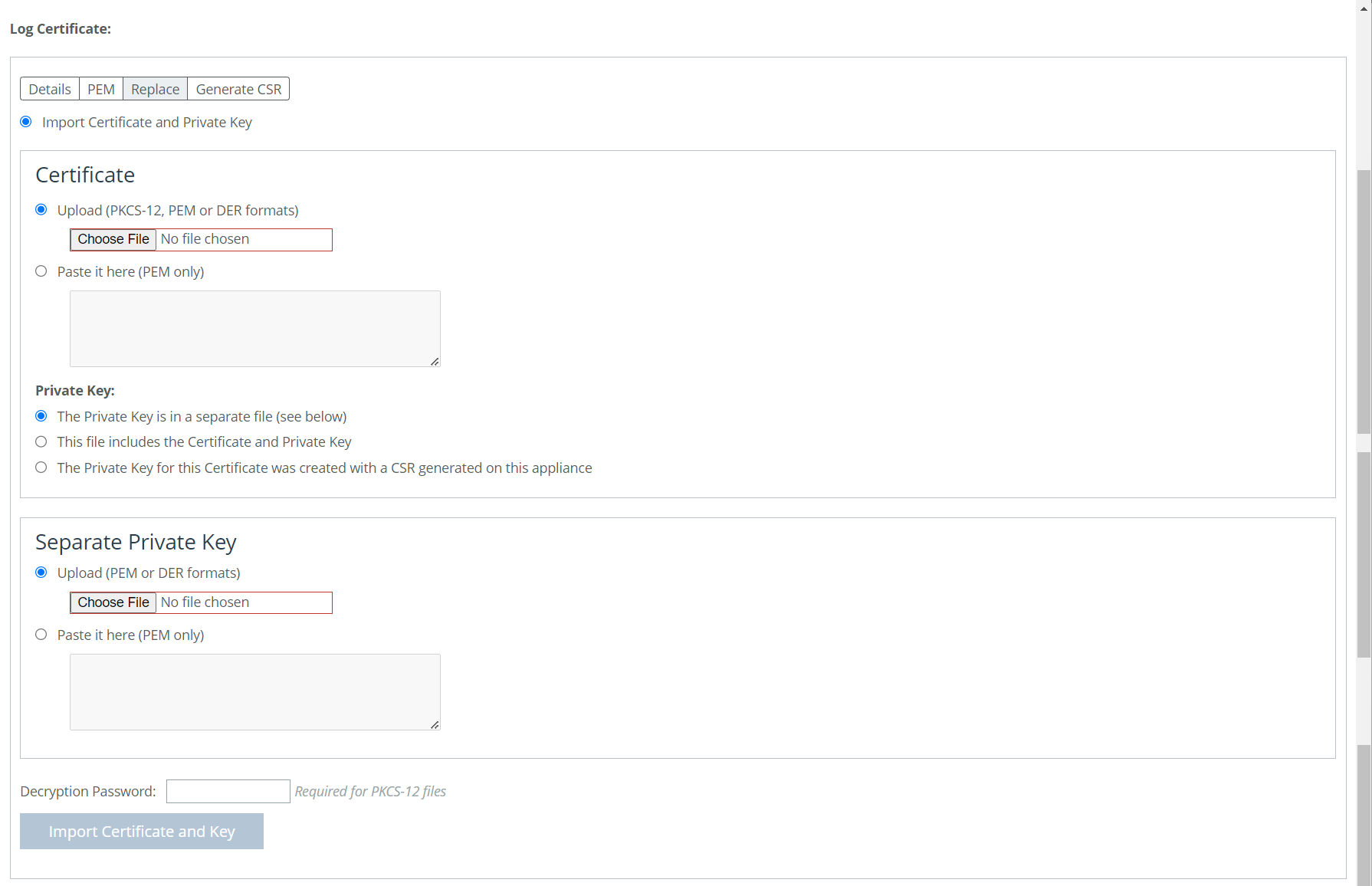

To import or replace a log certificate, under Log Certificate select the Replace tab.

Imports the certificate and key. The page displays controls for browsing to and uploading the certificate and key files. You can also use the text box to copy and paste a PEM file. The private key is required regardless of whether you are adding or updating the certificate.

Browses to the local file in PKCS-12, PEM, or DER formats.

Allows you to copy and then paste the contents of a PEM file.

Selects the private key origin. You can choose from the following private key options:

Browses to the local file in PEM or DER formats.

Pastes the contents of a PEM file.

Specifies the decryption password, if necessary. Passwords are required for PKCS-12 files, optional for PEM files, and never needed for DER files.

To generate a CSR, under Log Certificate select the Generate CSR tab. These configuration options are available:

Specifies the common name (hostname).

Specifies the organization name (for example, the company).

Specifies the organization unit name (for example, the section or department).

Specifies the city.

Specifies the state. Do not abbreviate.

Specifies the country (2-letter code only).

Specifies the email address of the contact person.

Generates the Certificate Signing Request.

Remote logging supports secured and unsecured connections to remote logging servers. Secured connections are established using TLS with Reliable Event Logging Protocol (RELP). A log server certificate must be installed before a secure remote logging server can be enabled. For secure remote logging, certificates and keys are moved to the appliance’s secure vault. Ensure that the vault is unlocked before adding certificates and keys. If it is not, they will not be stored in the vault.

The default port number for secure remote logging is 514.

Remote Log Servers

adds a new remote log server from the drop-down menu.

Server IP or Hostname

specifies the server IP address or hostname of the remote log server.

Specifies the port. If you are upgrading from a release that did not include a port number option, you’ll need to remove the remote log server and then add it back, specifying a port. The default is 514.

Specifies the minimum severity level for the log messages. The log contains all messages with this severity level or higher. Select one of these levels from the drop-down list:

Enables secure remote logging. A log server certificate must be installed before a secure remote logging server can be enabled.

You can filter a log by one or more applications or one or more processes on the Logging page. This is particularly useful when capturing data at a lower severity level where a SteelHead might not be able to sustain the flow of logging data the service is committing to disk.

Under Per-Process Logging, these configuration options are available:

Displays the controls for adding a process level logging filter.

Selects a process to include in the log from the drop-down list:

Specifies the minimum severity level for the log messages. The log contains all messages with this severity level or higher. Select a level from the drop-down list:

Adds the filter to the list. The process now logs at the selected severity and higher level.

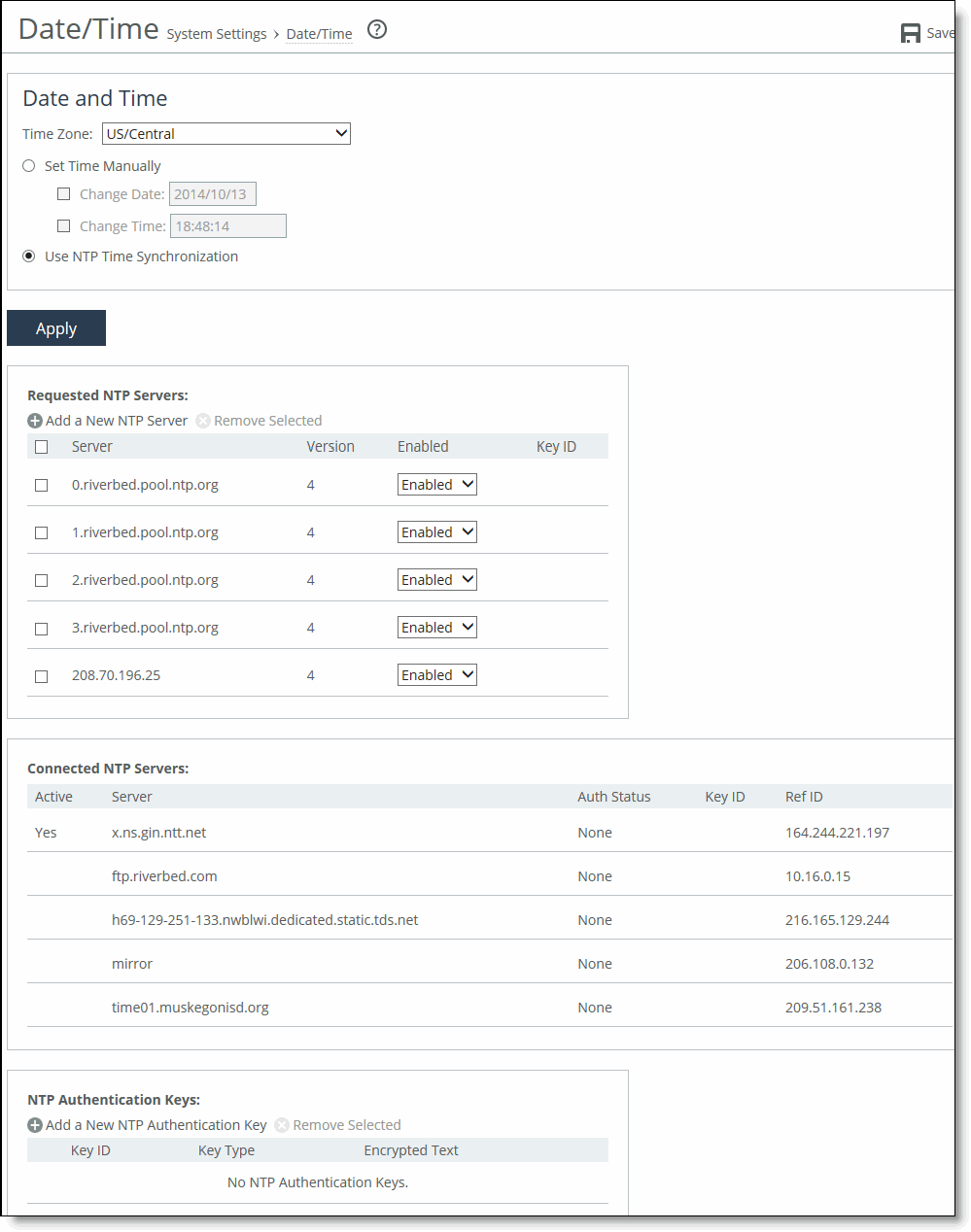

Settings for the system date and time are under Administration > System Settings: Date/Time.

You can either set the system date and time by entering it manually or assigning an NTP server to the SteelHead. By default, the appliance uses the Riverbed-provided NTP server and these public NTP servers:

Under Date and Time, click Set Time Manually. These configuration options are available:

Specifies a time zone from the drop-down list. The default value is GMT. If you change the time zone, log messages retain the previous time zone until you reboot.

Specifies the date in this format: yyyy/mm/dd

Specifies 24-hour clock time in this format: hh:mm:ss

Under Date and Time, click Use NTP Time Synchronization.

As a best practice, configure your own internal NTP servers; however, you can use the Riverbed-provided NTP server and public NTP servers. The hard-coded IP address that is preconfigured into every SteelHead is 208.70.196.25. This IP address and the public NTP servers are enabled by default and appear in the requested NTP server list.

NTP server state information appears in these server tables:

When you request a connection to an NTP server in a public NTP server pool, the server IP address doesn’t map to the actual NTP server to which the SteelHead connects. For example, if you request *.riverbed.pool.ntp.org, querying the pool address doesn’t return the IP address of the pool hostname, but instead returns the IP address of an NTP server within its pool. For example, when resolving 0.riverbed.pool.ntp.org returns the first NTP server, the connected NTP server table displays the IP address of this first NTP server.

This information appears after an NTP server name:

NTP authentication verifies the identity of the NTP server sending timing information to the SteelHead. RiOS 8.5 and later support MD5-based Message-Digest Algorithm symmetric keys and Secure Hash Algorithm (SHA1) for NTP authentication. MD5 is a widely used cryptographic hash function that produces a 128-bit (16-byte) hash value. SHA1 is a set of related cryptographic hash functions. SHA1 is considered to be the successor to MD5.

NTP authentication is optional.

Configuring NTP authentication involves these tasks that you can perform in any order:

The default NTP configuration points to the Riverbed-provided NTP server IP address 208.70.196.25 and these public NTP servers:

We recommend synchronizing the SteelHead to an NTP server of your choice.

Under Requested NTP servers on the Date/Time page, these configuration options are available:

Displays the controls to add a server.

Specifies the hostname or IP address for the NTP server. You can connect to an NTP public server pool: for example, 0.riverbed.pool.ntp.org. When you add an NTP server pool, the server is selected from a pool of time servers. Starting with RiOS 9.5, you can use IPv6 addresses.

Indicates the NTP server version from the drop-down list: 3 or 4.

Specifies Enabled from the drop-down list to connect to the NTP server. Select Disabled from the drop-down list to disconnect from the NTP server.

Specifies the MD5 or SH1 key identifier to use to authenticate the NTP server. The valid range is from 1 to 65534. The key ID must appear on the trusted keys list.

Adds the NTP server to the server list.

NTP authentication uses a key and a shared secret to verify the identity of the NTP server sending timing information to the SteelHead. RiOS encrypts the shared secret text using MD5 or SHA1, and uses the authentication key to access the secret.

In the Date/Time page, these configuration options are available:

Displays the controls to add an authentication key to the key list. Both trusted and untrusted keys appear on the list.

Specifies the secret MD5 or SHA1 key identifier for the NTP server. The valid range is from 1 to 65534.

Selects the authentication key type: MD5 or SHA1.

Specifies the shared secret. You must configure the same shared secret for both the NTP server and the NTP client.

The MD5 shared secret:

The SHA1 shared secret:

The secret appears in the key list as its MD5 or SHA1 hash value.

Adds the authentication key to the trusted keys list.

NTP keys appear in a list that includes the key ID, type, secret (displays as the MD5 or SHA1 hash value), and whether RiOS trusts the key for authentication.

You can only remove a key from the trust list using the CLI command ntp authentication trustedkeys. For details, see the Riverbed Command-Line Interface Reference Guide.

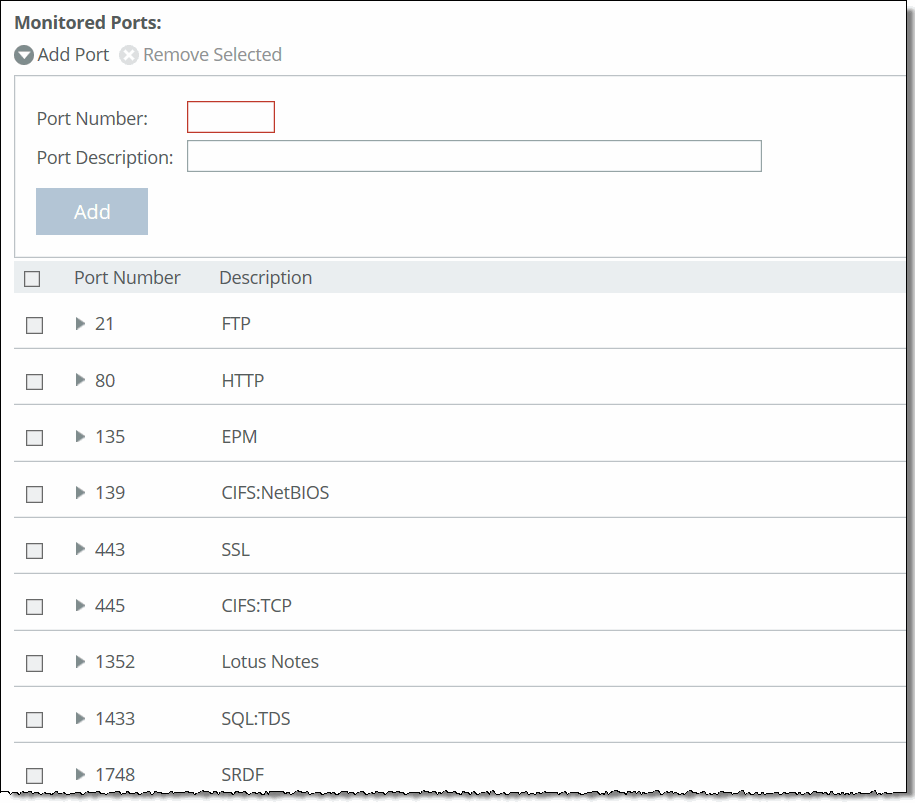

Settings for the TCP ports to monitor are under Administration > System Settings: Monitored Ports. The ports you specify appear in the Traffic Summary report. Make sure the description you specify helps you identify the type of traffic on the port.

The SteelHead automatically discovers all the ports in the system that have traffic. Discovered ports, with a label (if one exists), are added to the Traffic Summary report. If a label doesn’t exist then an unknown label is added to the discovered port. To change the unknown label to a name representing the port, you must add the port with a new label. All statistics for this new port label are preserved from the time the port was discovered.

For details, see Viewing the Traffic Summary report.

By default, traffic is monitored on ports 21 (FTP), 80 (HTTP), 135 (EPM), 139 (CIFS:NetBIOS), 443 (SSL), 445 (CIFS:TCP), 1352 (Lotus Notes), 1433 (SQL:TDS), 1748 (SRDF), 3225 (FCIP), 3226 (FCIP), 3227 (FCIP), 3228 (FCIP), 7830 (MAPI), 7919 (IP Blade), 8777 (RCU), 8778 (SMB Signed), 8779 (SMB2), 8780 (SMB2 Signed), 8781 (SMB3), 8782 (SMB3 Signed), 8783 (SMB3 Encrypted), and 10566 (SnapMirror).

These configuration options are available:

Displays the controls to add a new port.

Specifies the port to be monitored.

Specifies a description of the type of traffic on the port.

Displays the controls for adding a port.

To modify a monitored port, click the right arrow next to the port. These configuration options are available:

Specifies a description of the type of traffic on the port.

Applies your settings to the running configuration.

Settings for configuring the SNMP contact and trap receiver to allow events to be reported to an SNMP entity are under Administration > System Settings: SNMP Basic.

Traps are messages sent by an SNMP entity that indicate the occurrence of an event. The default system configuration doesn’t include SNMP traps.

RiOS provides support for these SNMP versions:

You set the default community string on the SNMP Basic page.

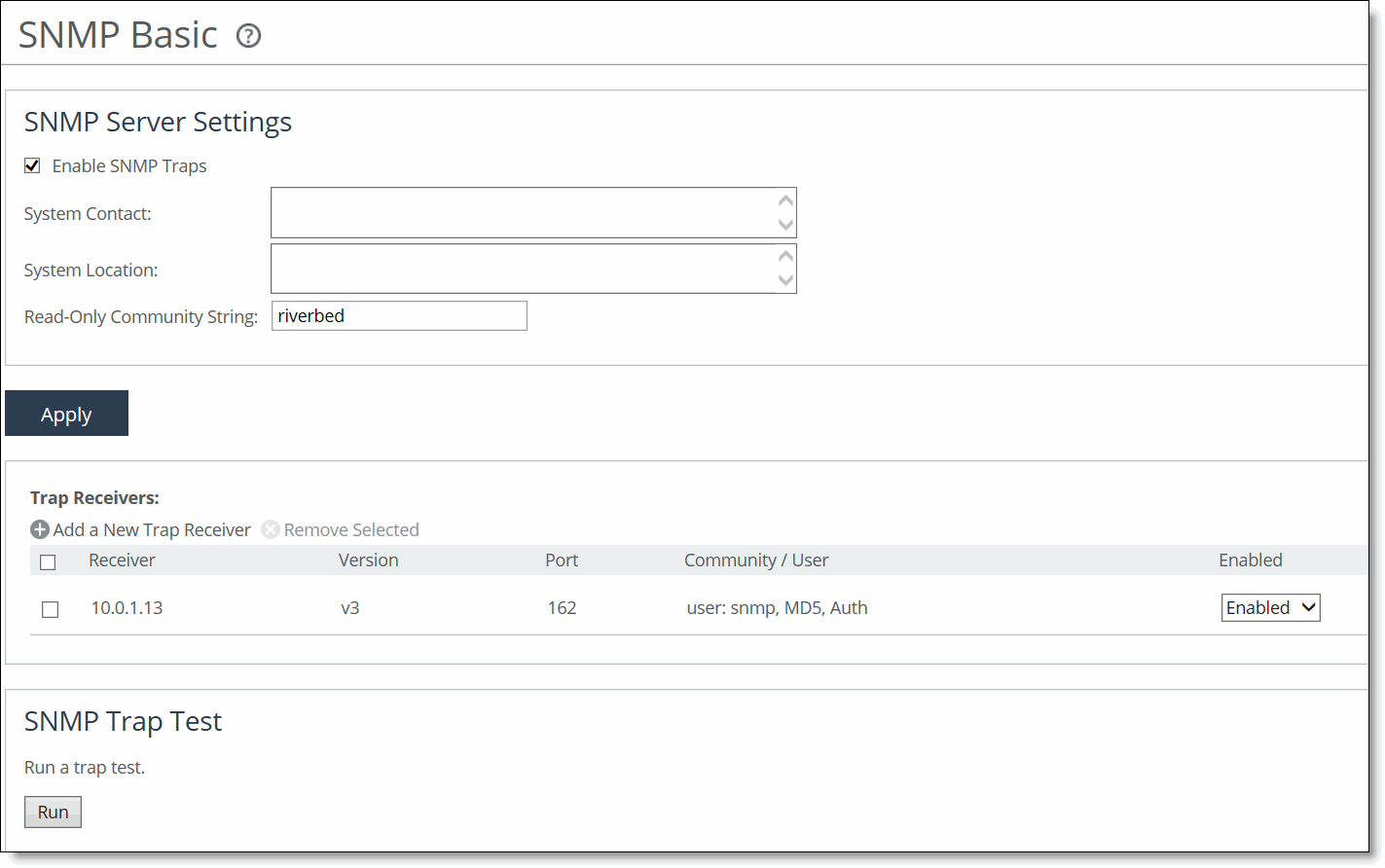

Under SNMP Server Settings, these configuration options are available:

Enables event reporting to an SNMP entity.

Specifies the username for the SNMP contact.

Specifies the physical location of the SNMP system.

Specifies a password-like string to identify the read-only community: for example, public. This community string overrides any VACM settings. Community strings can’t contain the pound sign (#).

Under Trap Receivers, these configuration options are available:

Displays the controls to add a new trap receiver.

Specifies the destination IPv4 or IPv6 address or hostname for the SNMP trap.

Specifies the destination port.

Indicates SNMP v1, v2c, or v3 (user-based security model).

(Appears only when you select v3.) Specifies a remote username.

(Appears only when you select v3.) Indicates either Supply a Password or Supply a Key to use while authenticating users.

(Appears only when you select v3.) Specifies an authentication method from the drop-down list:

(Appears only when you select v3 and Supply a Password.) Specifies a password. The password must have a minimum of eight characters. Confirm the password in the Password Confirm text box.

(Appears only when you select v3.) Determines whether a single atomic message exchange is authenticated. Select one of these levels from the drop-down list:

A security level applies to a group, not to an individual user.

(Appears only when you select v3 and AuthPriv.) Indicates either the AES or DES protocol from the drop-down list. AES uses the AES128 algorithm.

(Appears only when you select v3 and AuthPriv.) Indicates Same as Authentication Key, Supply a Password, or Supply a Key to use while authenticating users. The default setting is Same as Authentication Key.

(Appears only when you select v3 and Supply a Password.) Specifies a password. The password must have a minimum of eight characters. Confirm the password in the Privacy Password Confirm text box.

(Appears only when you select v3 and Authentication as Supply a Key.) Specifies a unique authentication key. The key is either a 32-hexadecimal digit MD5 or a 40-hexadecimal digit SHA digest created using md5sum or sha1sum.

(Appears only when you select v3 and Privacy as Supply a Key.) Specifies the privacy authentication key. The key is either a 32-hexadecimal digit MD5 or a 40-hexadecimal digit SHA digest created using md5sum or sha1sum.

(For v1 or v2 trap receivers.) Specifies the SNMP community name. For example, public or private v3 trap receivers need a remote user with an authentication protocol, a password, and a security level.

Enables the new trap receiver. Clear the check box to disable the receiver.

Adds a new trap receiver to the list.

SNMPv3 provides additional authentication and access control for message security. For example, you can verify the identity of the SNMP entity (manager or agent) sending the message.

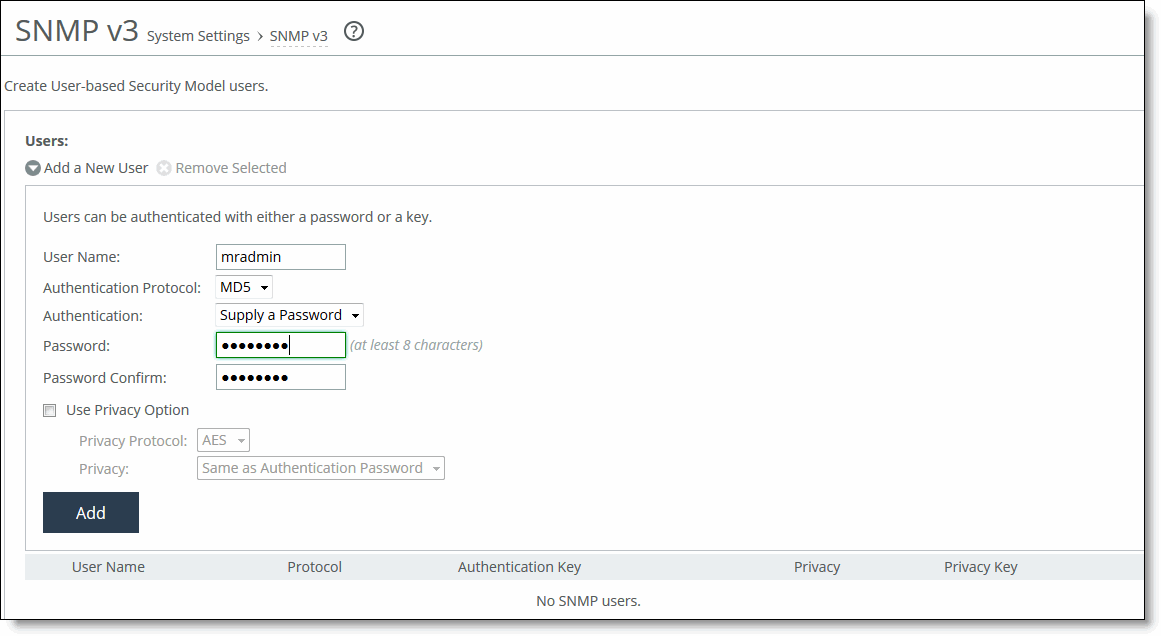

Settings for creating users for SNMPv3 are under Administration > System Settings: SNMP v3.

RiOS 7.0 and later support SNMPv3 message encryption for increased security.

Using SNMPv3 is more secure than SNMPv1 or v2; however, it requires more configuration steps to provide the additional security features.

These are the basic configuration steps:

These configuration options are available:

Displays the controls to add a new user.

Specifies the username.

Indicates an authentication method from the drop-down list:

Indicates either Supply a Password or Supply a Key to use while authenticating users.

Specifies a password. The password must have a minimum of eight characters. Confirm the password in the Password Confirm text box.

Indicates to use SNMPv3 encryption.

Indicates either the AES or DES protocol from the drop-down list. AES uses the AES128 algorithm.

Indicates Same as Authentication, Supply a Password, or Supply a Key to use while authenticating users. The default setting is Same as Authentication.

(Appears only when you select Supply a Password.) Specifies a password. The password must have a minimum of eight characters. Confirm the password in the Privacy Password Confirm text box.

(Appears only when you select Supply a Key.) Specifies a unique authentication key. The key is an MD5 or SHA-1 digest created using md5sum or sha1sum.

(Appears only when you select Supply a Key.) Specifies a unique authentication key. The key is either a 32-hexadecimal digit MD5 or a 40-hexadecimal digit SHA digest created using md5sum or sha1sum.

Adds the user.

The features in this page apply to SNMPv1, v2c, and v3 unless noted otherwise:

Identifies an individual user (v1 or v2c only).

Identifies a security-name, security model by a group, and referred to by a group-name.

Creates a custom view using the VACM that controls who can access which MIB objects under agent management by including or excluding specific OIDs. For example, some users have access to critical read-write control data, while some users have access only to read-only data.

Identifies the SNMP version associated with a user for the group in which the user resides.

Defines who gets access to which type of information. An access policy is composed of <group-name, security-model, security-level, read-view-name>.

An access policy is the configurable set of rules, based on which the entity decides how to process a given request.

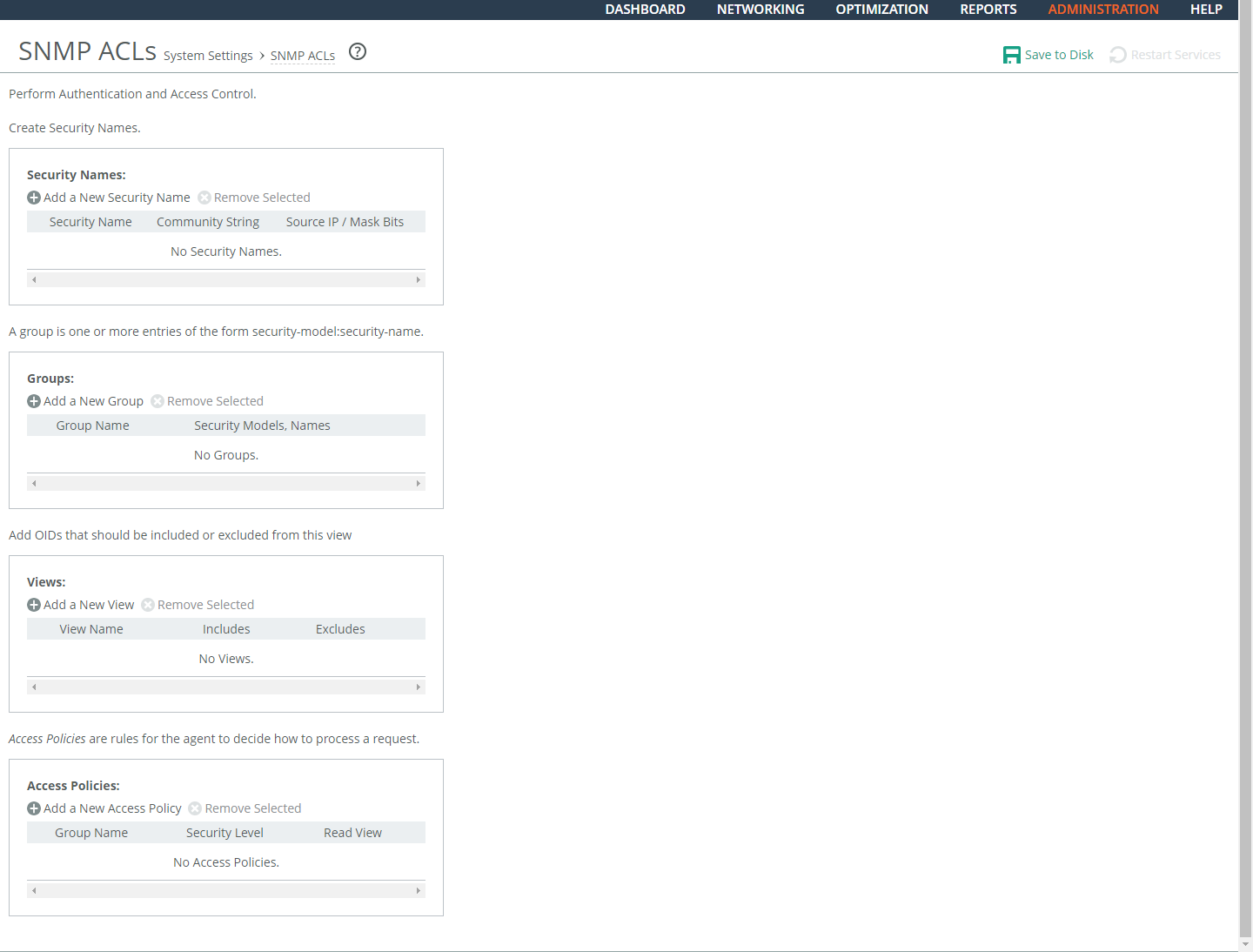

Settings for secure usernames are under Administration > System Settings: SNMP ACLs.

Under Security Names, these configuration options are available:

Displays the controls to add a security name.

Specifies a name to identify a requestor allowed to issue gets and sets (v1 and v2c only). The specified requestor can make changes to the view-based access-control model (VACM) security name configuration. This control doesn’t apply to SNMPv3 queries. To restrict v3 USM users from polling a particular subnet, use the RiOS Management ACL feature, located in the Administration > Security: Management ACL page. Traps for v1 and v2c are independent of the security name.

Specifies the password-like community string to control access. Use a combination of uppercase, lowercase, and numerical characters to reduce the chance of unauthorized access to the SteelHead. Community strings don’t allow printable 7-bit ASCII characters, except for white spaces. Also, the community strings can’t begin with a pound sign (#) or a hyphen (-). If you specify a read-only community string (located in the SNMP Basic page under SNMP Server Settings), it takes precedence over this community name and allows users to access the entire MIB tree from any source host. If this is not desired, delete the read-only community string. To create multiple SNMP community strings on a SteelHead, leave the default public community string and then create a second read-only community string with a different security name. You can also delete the default public string and create two new SNMP ACLs with unique names.

Specifies the host IPv4 or IPv6 address and mask bits to which you permit access using the security name and community string.

Adds the security name.

In the SNMP ACLS page under Groups, these configuration options are available:

Displays the controls to add a new group.

Specifies a group name.

Enables you to click the + button and select a security model from the drop-down list:

To add another Security Model and Name pair, click the plus sign (+).

Adds the group name and security model and name pairs.

In the SNMP ACLS page under Views, these configuration options are available:

Displays the controls to add a new view.

Specifies a descriptive view name to facilitate administration.

Specifies the Object Identifiers (OIDs) to include in the view, separated by commas. For example, .1.3.6.1.4.1. By default, the view excludes all OIDs. You can specify .iso or any subtree or subtree branch. You can specify an OID number or use its string form. For example, .iso.org.dod.internet.private.enterprises.rbt.products.steelhead.system.model

Specifies the OIDs to exclude in the view, separated by commas. By default, the view excludes all OIDs.

Adds the view.

In the SNMP ACLS page under Access Policies, these configuration options are available:

Displays the controls to add a new access policy.

Specifies a group name from the drop-down list.

Determines whether a single atomic message exchange is authenticated. Select one of these from the drop-down list:

A security level applies to a group, not to an individual user.

Specifies a view from the drop-down list.

Adds the policy to the policy list.
