Viewing Reports and Logs

All of the time-series reports are clear, interactive, and easy to navigate. The statistics presented in this report format are readily accessible, and all updates to the report window appear in real time. This section describes the report format in detail.

Navigating the report layout

The time-series report format not only makes data easily accessible, but also enhances your ability to explore data in context. An example of a typical report appears in A Time-Series report, with the key areas labeled. For details about individual reports, see the report description.

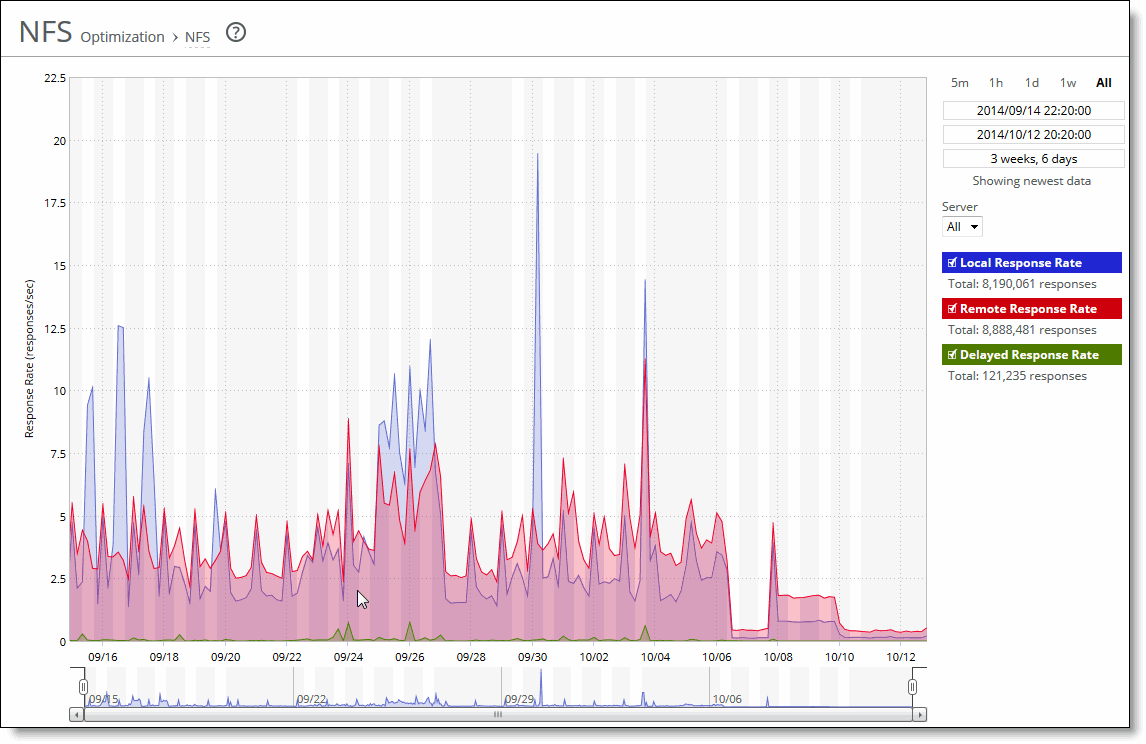

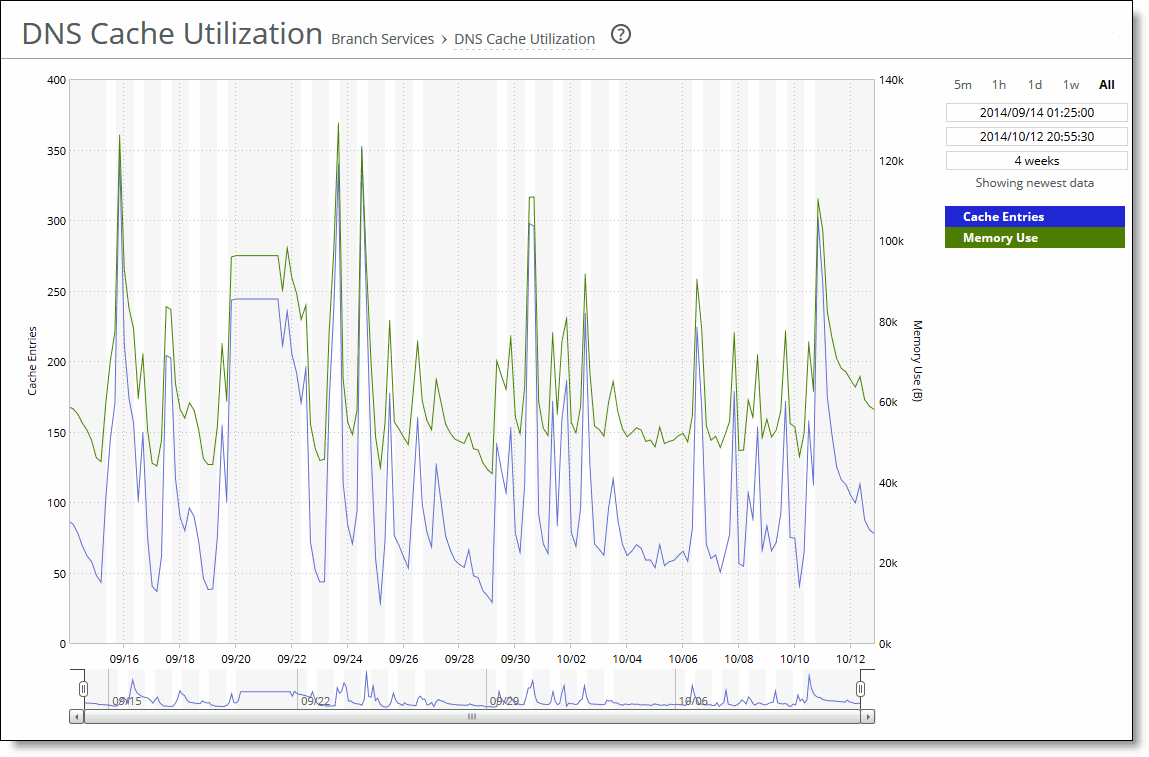

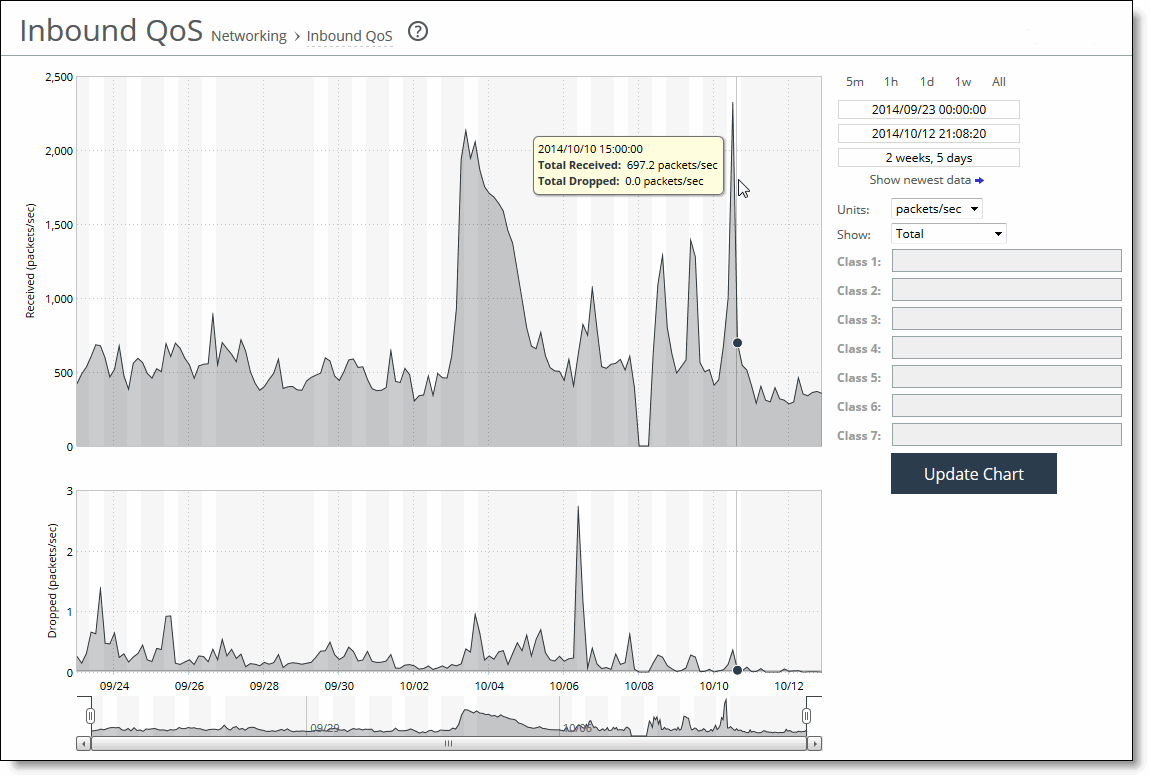

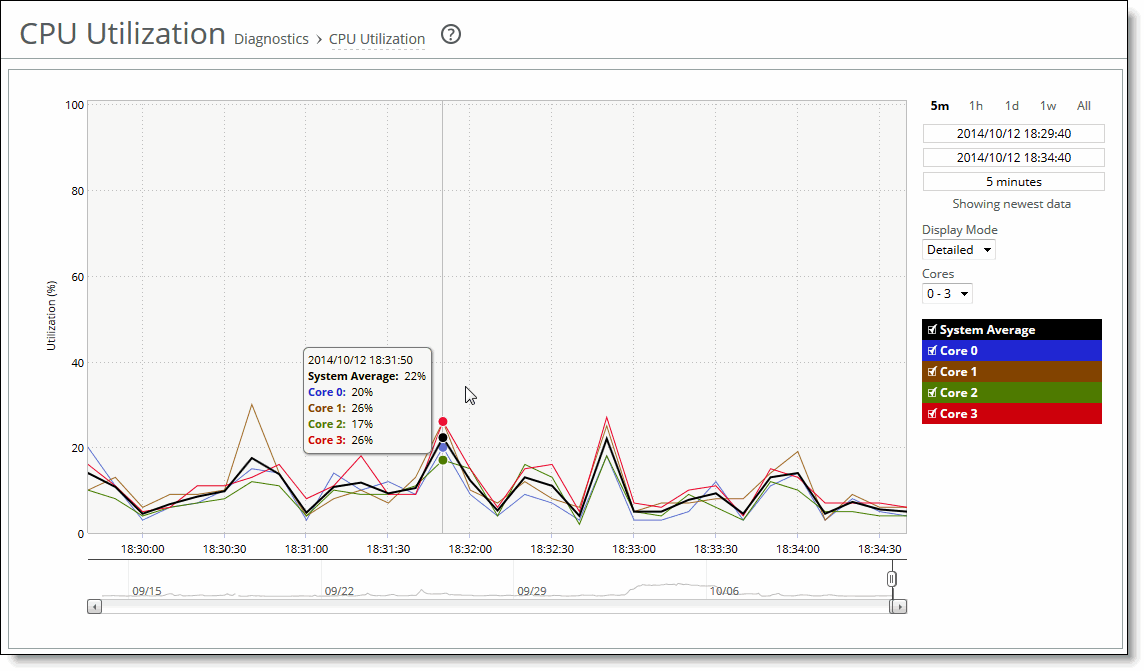

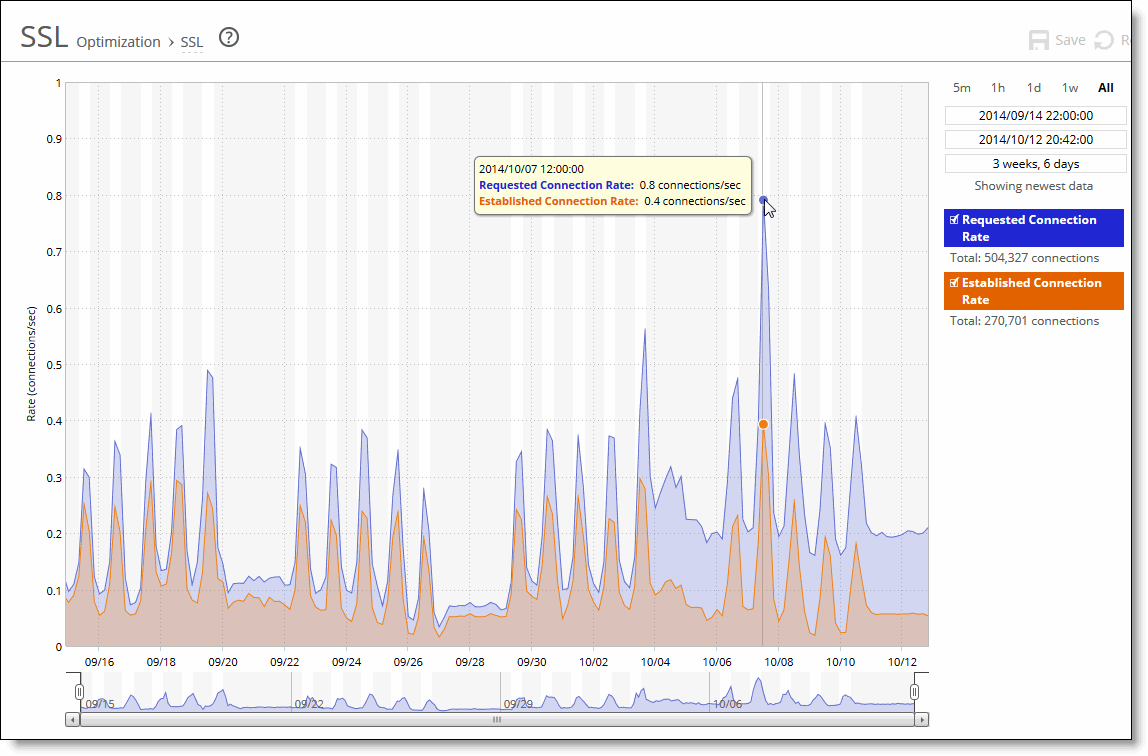

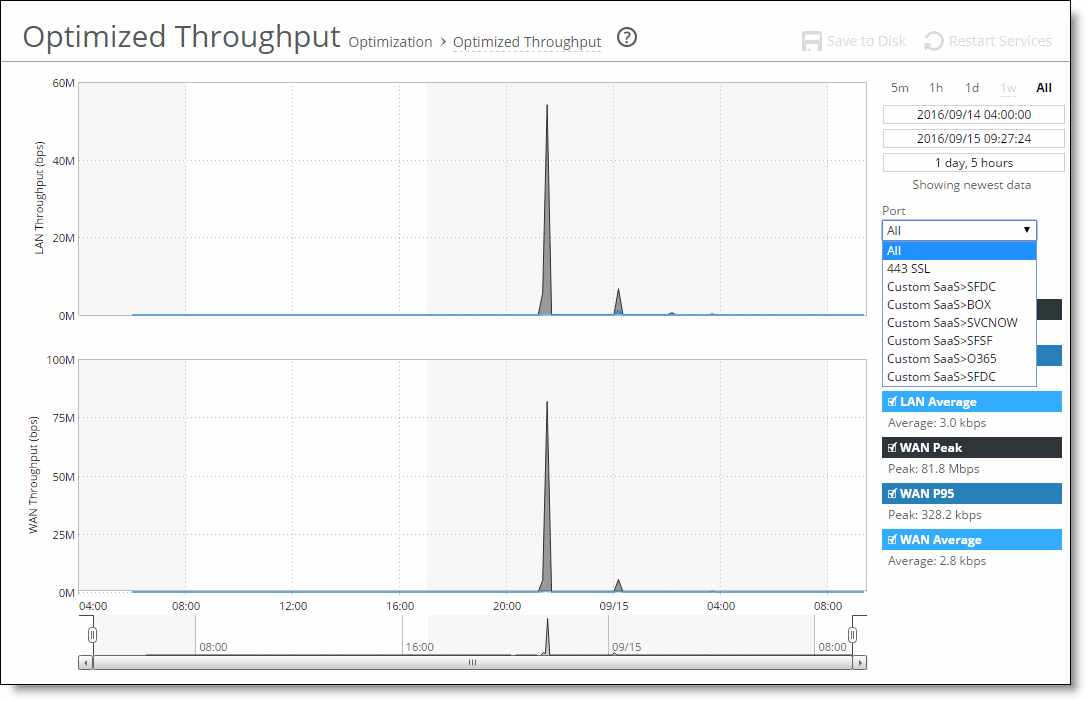

A Time-Series report

Plot area

The plot area is where the data visualization occurs. Reports can display either a single-pane or dual-pane layout. In a dual-pane layout, both panes remain synchronized with respect to the x-axis. Each pane is capable of having two y-axes (a primary one on the left and a secondary one on the right).

The reports present the majority of data series as simple line series graphs, but some reports display area series graphs where appropriate. The types of area series graphs are:

•Layered series, which appear on top of each other in the z direction. These are identified by transparent colors.

•Stacked area series, which appear on top of each other in the y direction. RiOS uses stacked area graphs to depict an aggregate broken down into its constituent parts. In this type of graph, each series is a mutually exclusive partition of some aggregate data set, identified by opaque colors. A stacked series is appropriate when the sum of all the series is meaningful.

Hover over a specific data point to see what the y values and exact time stamp are in relation to peaks.

To view the time stamp and value of each data series at that time

•Place the mouse pointer over the plot area.

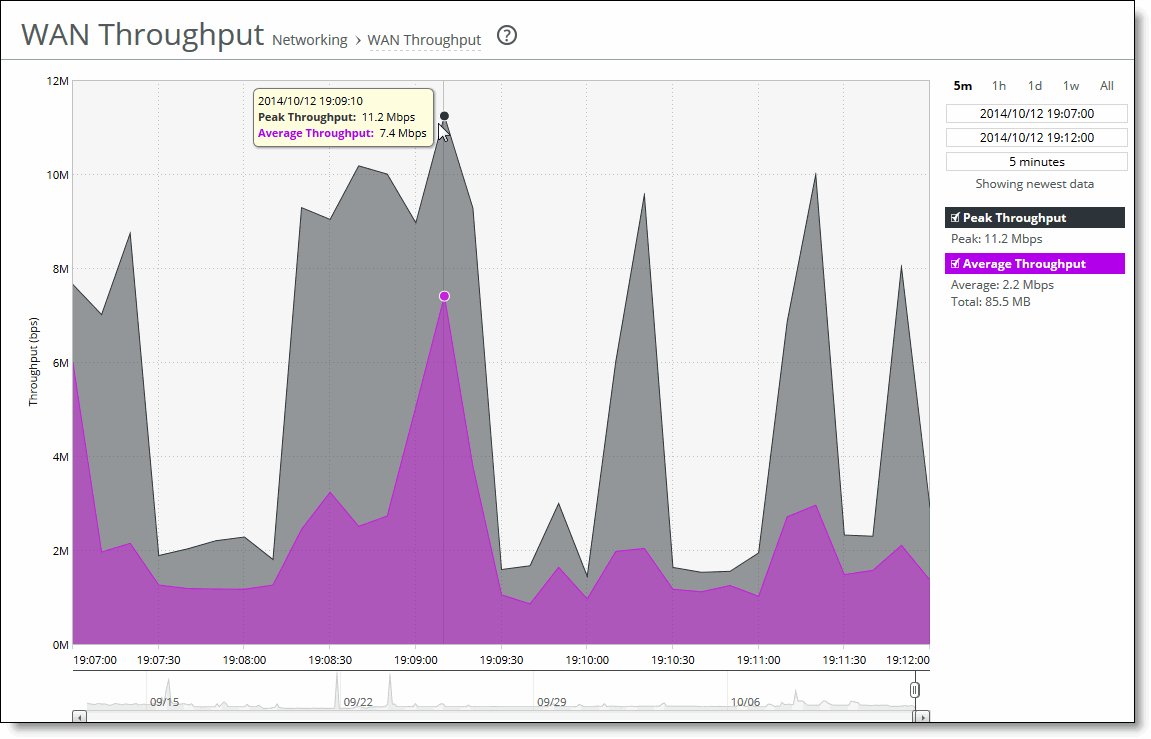

A tool tip displays the time stamp and the value of each data series at that time. The plot area colors the series names appropriately, and the data values have their associated units.

The plot area also displays subtle shading to denote work hours (white background) and nonwork hours (gray background). RiOS defines work hours as 8:00 AM to 5:00 PM (0800 to 1700) on weekdays. You can’t configure the work hours.

To zoom the plot area

1. Place the mouse pointer over the plot area, and then click and hold the left mouse button.

2. Move the mouse left or right and release the left mouse button to zoom in.

Control panel

Use the control panel to control how much data the chart displays, chart properties, and whether to view or hide the summary statistics.

To change the chart interval

•Click a link: 5m (5 minutes), 1h (1 hour), 1d (1day), 1w (1 week), or All (all data). All data includes statistics for the last 30 days.

If the current size of the chart window matches any of the links, that link appears in bold black text; the system ignores any clicks on that link. If the time duration represented by any of the links is greater than the total data range of the chart, those links are dimmed.

•Chart window controls - More window-related controls appear below the chart window interval links. These controls offer more precise control of the window and also display various window properties. From top to bottom:

–Text field containing the left edge (starting time) of the chart window.

–Text field containing the right edge (ending time) of the chart window.

–Text field containing the chart window interval. The chart window interval in this text field isn’t always exactly correct, but it is correct to two units (with the units being days, hours, minutes, and seconds). For example, if the chart window interval is exactly two days, three hours, four minutes, and five seconds, this text field displays 2 days, 3 hours.

–Link or static text that represents the chart window state of attachment to the end of the chart. When the chart window is attached, the report replaces the link with the static text Showing newest data. When the chart is showing newest data, you can see new data points as the system adds them automatically to the chart every 10 seconds. This automatic data point refresh can be powerful when you launch a new configuration and need to analyze its impact quickly. You can’t change the 10-second default.

When the chart window isn’t attached to the end of the chart, the report replaces the static text with a link that displays Showing newest data. Click this link to slide the chart window to the end of the chart range of data and attach the window.

All three text fields validate your input; if you enter text in an invalid format, an error message appears. If you enter valid text that is logically invalid (for example, an end time that comes before the current start time), an error message appears. With all three text fields, if the focus leaves the field (either because you click outside the field or press Tab), the chart window updates immediately with the new value. Pressing Enter while in one of these fields has the same effect.

Custom controls

Below the chart window controls is an optional section of custom, report-specific controls. The custom controls vary for each report. In A Time-Series report, the Bandwidth Optimization report displays Port and Direction drop-down lists.

When you change the value of a custom control, the system sends a new request for data to the server. During this time, the control panel is unavailable and an updating message appears on the chart. When the report receives a response, the system replaces the chart, populates it with the new data, and makes the control panel available again.

Chart legend

The chart legend correlates the data series names with line colors and contains a few other features.

You can hide or show individual data series. When a white check box icon appears next to the data series name, you can hide the series from the plot area.

To hide individual series from the plot area

•Clear the check box next to the data series name.

To display individual series in the plot area

•Select the check box next to the data series name.

You can’t toggle the visibility of all series, because it doesn’t always make sense to hide a series (for example, if there’s only one data series in the chart). For these series, a white check box doesn’t appear next to the series name. In A Time-Series report, you can hide the LAN Throughput and WAN Throughput series, but you can’t hide the Data Reduction series.

The legend also displays statistics. Each report defines any number of statistics for any of the data series in the chart. The system bases the statistics computation on the subset of each data series that is visible in the current chart window. The statistics display changes immediately if you change the chart window. The plot area reflects the changing chart window, as do the associated controls in the control panel.

The reports also support nonseries statistics (for example, composite statistics that incorporate the data from multiple data series); these statistics appear at the bottom of the legend, below all the series.

The three most popular statistics calculations are:

•Average - the average of all the data points

•Peak - the maximum of all the data points

•Total - the integral of the series (area under the curve). It is important to note that the total reported under each Throughput color in the chart legend displays the total amount of data transferred during the displayed time interval.

Navigator

Directly above the scroll bar is the navigator, which shows a much smaller and simpler display of the data in the plot area. The navigator displays only one data series.

Use the navigator to navigate the entire range of chart data. The scroll bar at the bottom shows you which portion of the total data range is displayed in the plot area.

The navigator display can appear very different from the plot area display when an interesting or eye-catching series in the plot area isn’t the series in the navigator.

To resize the current chart window

•Move the handles on either side of the chart window in the navigator.

The charts have a minimum chart window size of five minutes, so if you resize the chart window to something smaller, the chart window springs back to the minimum size.

You can also click the data display portion of the navigator (not the scroll bar) and the chart window moves to wherever you clicked.

Setting user preferences

You can change report default settings to match your preferred style. When you customize any report-specific settings, the system immediately writes them to disk on the SteelHead. The system saves all of your custom settings, even after you log out, clear your browsing history, or close the browser. When you view the report again, your custom settings are intact.

The system saves the chart window. Whenever you change the chart window, the next time you view any report, the chart window is set to the last chart window used.

Viewing Current Connection reports

The Current Connections report displays the connections the SteelHead detects, including the connections that are passing through unoptimized.

You can search and customize the display using filters to list connections of interest. When you click Update, the report retrieves a listing of up to 500 real-time current connections. Navigating to the report or refreshing the page automatically updates the connections display.

What this report tells you

The Current Connections report answers these questions:

•What traffic is the SteelHead optimizing?

•How many connections are established?

•What’s the data reduction on a per-connection basis?

•How many connections are closing?

•How many connections are being passed through either intentionally or unintentionally?

•How many connections are being forwarded by a connection-forwarding neighbor?

•How many connections have been denied or discarded?

•Which Office 365 users have open connections? (Available in RiOS 9.5 and later)

To view the Current Connections report

1. Choose Reports > Networking: Current Connections.

Current Connections report

Connections summary

The summary gives you an at-a-glance hierarchical overview of the traffic the SteelHead detects. It displays the total connection numbers for various types of optimization, pass-through, and forwarding. It categorizes the optimized, established connections by type and displays the portion of the total connections each connection type represents.

When you click a connection type such as established, you select it and also drive the show statement in the query area to search for established connections and exclude the other types.

The connections summary displays these connection types:

Connection type	Icon	Description
All current connections		Displays the total number of connections the SteelHead detects at the time you access the report, refresh the page, or click the Update button. It includes the connections that the SteelHead is passing through unoptimized, and connections that don’t appear in the connections table.
Established		Displays the total optimized, active connections.
		RiOS - Displays the double-ended, non-SCPS connections.
		RiOS + SCPS - Displays the total RiOS and SCPS connections established between two SteelHeads running RiOS 7.0 or later. Because both SteelHeads are SCPS compatible, this is a double-ended connection that benefits from traditional RiOS optimization (SDR and LZ).
		SCPS - Displays all current single-ended SCPS-optimized connections as a portion of the total.
		TCP proxy - Displays the total non-SCPS single-ended interception connections. An SEI connection is established between a single SteelHead running RiOS 7.0 or later paired with a third-party device running TCP-PEP (Performance Enhancing Proxy).
		Packet-mode optimized - Displays the total flows that were optimized packet-by-packet with SDR bandwidth optimization. These include TCP and UDP flows over IPv4 or IPv6. Packet-mode flows are considered to be neither single-ended nor double-ended. In RiOS 8.5, you must enable packet-mode optimization to view optimized UDP flows. To enable packet-mode optimization, choose Optimization > Network Services: General Service Settings. In RiOS 8.5.x and later, you must enable path selection and packet-mode optimization to view optimized UDP flows. To enable path selection, choose Networking > Network Services: Path Selection.
Establishing		Displays the total newly forming, initiating connections. The connection is being established but doesn’t yet have an inner channel. Establishing connections count toward the connection count limit on the SteelHead because, at any time, they might become a fully opened connection.
Opening		Displays the total half-open active connections. A half-open connection is a TCP connection in which the connection has not been fully established. Half-open connections count toward the connection count limit on the SteelHead because, at any time, they might become a fully opened connection. If you are experiencing a large number of half-open connections, consider a more appropriately sized SteelHead.
Closing		Displays the total half-closed active connections. Half-closed connections are connections that the SteelHead has intercepted and optimized but are in the process of becoming disconnected. These connections count toward the connection count limit on the SteelHead. (Half-closed connections might remain if the client or server doesn’t close its connections cleanly.) If you are experiencing a large number of half-closed connections, consider a more appropriately sized SteelHead.
Forwarded		Displays the total number of connections that were forwarded when you have configured a connection-forwarding neighbor to manage the connection. For details about connection forwarding, see Configuring connection forwarding features.
Passthrough (unoptimized)		Displays the total number of connections that were passed through unoptimized. You can view and sort these connections by intentional and unintentional pass-through in the connections table that follows this summary.
		Failed terminated - Displays the total number of terminated connections that were passed through unoptimized, because of reasons other than in-path rules.
		Failed packet-mode - Displays the total number of packet-mode flows that were passed through unoptimized, because of reasons other than in-path rules. In RiOS 8.5, you must enable packet-mode optimization to view UDP flows. To enable packet-mode optimization, choose Optimization > Network Services: General Service Settings. In RiOS 8.5.x and later, you must enable path selection or packet-mode optimization or both to view pass-through UDP flows. To enable path selection, choose Networking > Network Services: Path Selection.
		Intentional - Displays the total number of connections that were intentionally passed through unoptimized by in-path rules.
Errors		Displays all connections that have application or transport protocol errors as a portion of the total connections.

Query area

The connections summary and the connections table convey a lot of information about connections the SteelHead is detecting. The best way to narrow your search is to filter and sort the report. The query area is where you select a simple or compound connection type for your search and optionally filter the results. The Show search control defines the contents of the connection summary and the connections table.

The simple connection search uses a match against a connection type to display only that type, and excludes the others. If you want to use more advanced criteria, such as including all connections that were started after a certain date, you can add one or more filters to achieve this.

To display a simple connection type

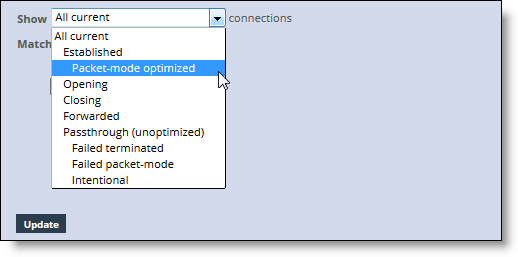

1. After Show, select a connection type from the drop-down list.

Query selection

Connection type	Description
All current	Displays the total number of connections the SteelHead detects, including the connections that are passed through unoptimized. This selection removes any previous selections or filters.
Established	Displays the total optimized, active connections.
Packet-mode optimized	Displays the total connections that were optimized packet-by-packet with SDR bandwidth optimization. These connections include TCP IPv4, TCP IPv6, UDP IPv4, and UDP IPv6 connections. In RiOS 8.5, you must enable packet-mode optimization to view UDP flows. To enable packet-mode optimization, choose Optimization > Network Services: General Service Settings. In RiOS 8.5.x and later, you must enable path selection and packet-mode optimization to view optimized UDP flows. To enable path selection, choose Networking > Network Services: Path Selection.
Opening	Displays the total half-open active connections. A half-open connection is a TCP connection in which the connection has not been fully established. Half-open connections count toward the connection count limit on the SteelHead because, at any time, they might become a fully opened connection. If you are experiencing a large number of half-open connections, consider a more appropriately sized SteelHead.
Closing	Displays the total half-closed active connections. Half-closed connections are connections that the SteelHead has intercepted and optimized but are in the process of becoming disconnected. These connections are counted toward the connection count limit on the SteelHead. (Half-closed connections might remain if the client or server doesn’t close its connections cleanly.) If you are experiencing a large number of half-closed connections, consider a more appropriately sized SteelHead.
Forwarded	Displays the total number of connections forwarded by the connection-forwarding neighbor managing the connection.
Passthrough (unoptimized)	Displays the total number of connections that were passed through unoptimized. You can view and sort these connections by intentional and unintentional pass-through in the individual connections table that follows the connections summary.
Failed terminated	Displays the total number of terminated connections that were passed through unoptimized.
Failed packet-mode	Displays the total number of packet-mode flows that were passed through unoptimized.
Intentional	Displays the total number of connections that were intentionally passed through unoptimized.

2. Click Update.

Filtering the connections

Filters provide a powerful way to drill down into large numbers of connections by specifying either simple or complex filter criteria. Each filter further restricts the display.

When you customize filters, the system immediately writes them to disk on the SteelHead. The system saves all of your custom settings even after you log out, clear your browsing history, or close the browser. When you view the report again, your custom settings are intact. The system saves report settings on a per-user basis.

To filter the display (optional)

1. Click Add.

2. Select a filter from the drop-down list. Selecting some filters expands the query with a text input field for additional information. For example, selecting for application from the drop-down list displays a text input field for the application name. RiOS validates the text input fields as you enter the text (except when you enter a regular expression).

Filtering the Current Connection display

You can select any combination of these filters:

–matching regular expression - Displays a text input field for a regular expression and shows only those connections that match the expression. You can filter based on connections for a specific path selection uplink name by entering the name in this filter.

Examples:

10.16.35.1

Finds one particular IP address

10.16.35.1:5001

Finds port 5001 on one particular IP address

You can also use the regular expression filter to show only those connections for which the expression matches this string:

where each token in angle brackets is replaced by the connection properties. Use a single space between <source port> and <destination IP> and between <destination port> <protocol name>.

Notes

RiOS doesn’t validate the expression. A regular expression can contain special characters and embedded spaces that are unique to the regular expression syntax. For details, see The Gnu Awk User's Guide.

The filter matches only against the source, destination, and application name. It doesn’t consider start times, reduction, and byte counts.

The filter separates IP addresses and ports with a colon for matching:

x.x.x.x:p for IPv4

[xxxx:xxxx::xxxx]:p for IPv6

Uppercase and lowercase don’t matter (“mapi” matches MAPI, MAPI-ENCRYPT, and any other application containing MAPI).

A connection matches if the match string occurs anywhere within it (that is, a colon (:) matches all rows), unless overridden by special regular expression language such as a caret (^) or a dollar sign ($).

–from source IP address/mask - Displays a text input field for the IP address and subnet mask. You can specify an IPv4 or an IPv6 IP address.

–from source port - Displays a text input field for the source port.

–to destination IP address/mask - Displays a text input field for the IP address and subnet mask. You can specify an IPv4 or an IPv6 IP address.

–to destination port - Displays a text input field for the destination port.

–that have errors - Displays connections with either application protocol errors or transport protocol errors.

–for application - Select an application name from the drop-down list. The application filter is only relevant for optimized connections.

–that were started before - Displays a text input field for the date and time. Use this format: yyyy/mm/dd hh:mm:ss.

–that were started after - Displays a text input field for the date and time. Use this format: yyyy/mm/dd hh:mm:ss.

–that are single-ended only - Displays SCPS and TCP proxy connections. Applies only to established connections.

–that are double-ended only - Displays RiOS and RiOS + SCPS connections. Applies only to established connections.

–for user - Displays a text field that accepts only a valid email ID as input, to filter on User Identity column values.

Starting with RiOS 9.7, this field reports User IDs for SMB encrypted, SMB signed, and MAPI over HTTP (MoH) connections that are optimized. The User IDs are propagated for any other traffic that uses the same IP address as the SMB or MoH traffic.

This field also displays for SteelHeads running RiOS 9.5 and later if you check the Enable SaaS User Identity (Office 365) check box in the Optimization > Protocols: HTTP Configuration page, and configure the SteelHead to support SaaS features. See Configuring HTTP optimization feature settings for details. Starting with RiOS 9.7, User IDs are also propagated for any traffic that uses the same IP address as Office 365 traffic.

3. To add another filter, click add filter again. You can add up to eight filters; they’re logically ANDed together and are all active at any given time. Continue adding filters until your query is complete.

4. Click Update.

To delete a filter

•Click the delete filter icon.

Connections table

The connections table displays more information about each connection, filtered by the show statement and any filters in the query area. The connections table can show up to 500 connections at a time; it lists the total of all matching connections in the upper-right corner. From this table, you can view more details about each connection and perform operations on it. For example, you can reset connections or send a keepalive message to the outer remote machine for an optimized connection (the machine that is connected to the SteelHead).

For details about the query area, see Query area.

Connections with IPv6 addresses are split into two rows to accommodate the long address. The report encloses IPv6 addresses in square brackets, and the source address, destination address, and other information appear in different columns.

Icons in the CT and Notes columns indicate the connection type and attributes. Use the mouse to hover over an icon and reveal a tooltip identifying its meaning.

The individual connections table displays additional information about each connection. Because this report can list hundreds of transient connections, you can sort the table by column heading (except for the Notes column). For example, you can sort the connections by source IP address.

To sort the table by row

•Click the table column heading.

The table contents reload, if necessary. Click the heading again to reverse the order. A small up or down triangle reflects the current bidirectional sort order.

To reset the connection sample

•Click the dice icon on the far left.

The table contents reappear in the original display. For example, if you sort the display by a particular type, and there are more than 500 connections of that type, click the dice icon to return to the original display.

The connections table displays this information:

Column	Icon	Description
		Click this triangle to display the current connections details. See Viewing the current connection details. Because the details are a snapshot in time, by the time you click the connection, it could be gone or in a different state. If the connection is no longer available, a message tells you that the connection is closed. To refresh the display, click Update.
		Protocol Error - Displays a protocol error for both transport and application conditions. This list contains some of the conditions that trigger errors; it is a small subset of possible error conditions: •When the Optimize Connections with Security Signatures feature is enabled (which prevents SMB signing). This is an expected response. For details about preventing SMB signing, see Configuring CIFS optimization. •If a problem occurs while optimizing encrypted MAPI traffic. For details about enabling optimization of encrypted MAPI traffic, see Configuring MAPI optimization. •If a problem occurs with SSL optimization or the secure inner channel. •If a SRDF protocol error occurs when attempting to optimize traffic originating from the LAN side of the SteelHead. Check the LAN-side Symmetrix array for compatibility. Click the connection for more details about the error.
CT (Connection Type)		Established - Indicates that the connection is established and active.
		Intentional Passthrough - Indicates that the connection was intentionally passed through unoptimized because of in-path rules.
		Failed terminated - Indicates that the connection was passed through unoptimized.
		Failed packet-mode - Indicates that the packet-mode flow was passed through unoptimized.
		Establishing - Indicates that the connection is initiating and isn’t yet fully established. The source and destination ports appear as n/a.
		Opening (Optimized) - Indicates that the connection is half-open and active. A half-open connection is a TCP connection that has not been fully established.
		Closing (Optimized) - Indicates that the connection is half-closed and active. A half-closed connection has been intercepted and optimized by the SteelHead but is in the process of becoming disconnected.
		Forwarded - Indicates that the connection is forwarded by the connection-forwarding neighbor managing the connection. For details about connection forwarding, see Configuring connection forwarding features.
Notes		Displays connection icons that indicate the current state of the connection. The connection states can be one of these:
		Compression Enabled - Indicates that LZ compression is enabled.
		SDR Enabled - Indicates that SDR optimization is enabled.
		WAN Encryption Enabled - Indicates that encryption is enabled on the secure inner channel (WAN). For details, see Configuring secure peers.
		Cloud Acceleration ON - Indicates that the legacy cloud acceleration service for SaaS applications is enabled.
Source:Port		Displays the connection source IP address and port.
Destination:Port		Displays the connection destination IP address and port.
LAN/kB WAN/kB		Displays the amount of LAN or WAN throughput, in kilobytes.
Reduction		Displays the degree of WAN traffic optimization as a percentage of LAN traffic sent. Higher percentages mean that fewer bytes were sent over the WAN. Red squares indicate that an optimizing connection is currently showing 0 percent data reduction, which might be caused by multiple scenarios. Typically, 0 percent data reduction occurs when the system is optimizing a session containing encrypted payload. You can set up an in-path pass-through rule to prevent the system from interception the connection for optimization.
Start Time		Displays the time that the connection was started. This column doesn’t apply to preexisting connections. Select the column heading to sort data start time in ascending or descending order.
Application		Displays the application associated with the connection: for example: TCP, CIFS, MAPI, eMAPI-OA (encrypted MAPI Outlook Anywhere), SMB31-ENCRYPED, SMB21-SIGNED, or HTTP. When Application Visibility is enabled (the default), the table displays the hierarchical, DPI-based application name (for example, HTTP > Facebook), instead of just the port-based name (for example, HTTP). When you expand a connection, a new Application row displays the hierarchical name, when available, or the port-based name if not. (For newly formed connections, the application name might have changed from what was reported in the table). Application visibility gives you a better sense of what applications are running instead of just seeing traffic through port numbers or web traffic classified as generic HTTP.
User Identity		Starting with RiOS 9.7, this field reports User IDs for SMB encrypted, SMB signed, and MoH connections that are optimized. The User IDs are propagated for any other traffic that uses the same IP address as the SMB or MoH 365 traffic. Starting with RiOS 9.5, this field also displays the user ID for Office 365 traffic when the SaaS User Identity feature is enabled in the Optimization > Protocols: HTTP page. See Configuring HTTP optimization feature settings for details. Starting with RiOS 9.7, user IDs are also propagated for any traffic that uses the same IP address as Office 365 traffic. The following caveats apply to the SMB and MoH reporting feature: •For the user ID to appear in the client-side SteelHead’s current connections report, both the client-side and server-side SteelHeads must be running a RiOS version of 9.7 or later. •Network address translation (NAT) cannot be used before traffic reaches the SteelHead. •The SteelHead appliance extracts and reports User IDs each time any SMB encrypted, SMB signed, and MoH connections are optimized. User IDs are also extracted and reported for Office 365 SaaS connections if SaaS User Identity is enabled. If traffic that does not match those properties is received on the same IP address on which User IDs have been extracted, that traffic is reported as having the same user ID as the last-reported SMB, MoH, or SaaS connection. •This feature is enabled by default; to disable or reenable this feature, enter the [no] user-identity propagation enable and, optionally, [no] user-identity sources enable commands. See the Riverbed Command-Line Interface Reference Manual for command details.

For information on removing an unknown SteelHead from the current connections list, see Preventing an unknown (or unwanted) SteelHead from peering.

Viewing the current connection details

The Current Connections report displays details about the connected appliances, such as the source and destination IP address, the peer SteelHead, the inner local port, and so on. You can also perform these operations:

•For optimized connections, send a keepalive message to the outer remote machine (the machine that is connected to this appliance)

•Reset any connection, optimized or pass-through

•Retrieve the most recent data for a connection

The report doesn’t allow the connection details to refresh automatically, because doing so could slow down the SteelHead; however, the connection age updates when you manually refresh the page.

To view current connection details

1. Choose Reports > Networking: Current Connections.

2. Click the arrow next to the connection in the connections table to see more details about an individual connection and perform operations on it. Because this report is a snapshot in time, by the time you click it, the connection could be gone or in a different state. Click Update to refresh the display.

Current Connections Details for an Optimized Connection

To close the connection details report

•Click the close icon on the far left.

Connection details

The expanded connection details vary, depending on the nature of the connection.

Optimized connection details

This table summarizes details about individual optimized connections. The fields that appear are dependent on the type of connection.

Field	Description
Connection type	Shows the connection type icon and whether the connection is established, opening, or closing.
Connection age	Shows the time since the connection was created.
Application	Shows the application corresponding to the connection (for example, NFS). When Application Visibility is enabled, more detailed protocol information is shown for some applications. For example, HTTP-SharePoint appears as the WebDAV or FPSE protocols and Office 365 appears as MS-Office-365 instead of HTTP.
Application error	Displays the application protocol error, if one exists.
Transport	Shows the transport protocol name: for example, SSL inner.
Transport error	Displays the transport protocol error, if one exists.
User Name	Shows the SSO user ID for Office 365 users.
User Domain	Shows the SSO user domain for Office 365 users.
Client side	Displays whether this appliance is on the client side.
Protocol	Shows the low-level protocol that RiOS is using inside the packet-mode channel. The protocol can be UDP, TCP, or variants.
SaaS application	Shows the SaaS application name, if one exists.
Cloud acceleration state	Shows the SaaS connection state, if a SaaS application is running (with the legacy cloud acceleration service).
Inbound QoS class	Shows the QoS inbound class the connection is associated with when shaping is enabled. When the connection carries multiple classes, the report displays Variable.
Outbound QoS class	Shows the QoS outbound class the connection is associated with when shaping is enabled. When the connection carries multiple classes, the report displays Variable.
Outbound QoS DSCP	Shows the DSCP marking value for the connection when marking is enabled, even if it is zero. The report displays the value from the inner ToS. When the connection carries multiple values, the report displays Variable. When relevant, the Notes section displays several details that are binary in nature.
GeoDNS IP result	Shows the GeoDNS IP address that the SteelHead is using to optimize Office 365. The connection summary displays the original destination IP address.
Notes	In-path- This connection is in-path. SkipWare compression in - The single-ended optimized connection is applying Skipware105 compression on incoming data. SkipWare compression out - The single-ended optimized connection is applying Skipware105 compression on outgoing data. Pre-existing - The connection existed before the last restart of the optimization service. Pre-existing asymmetric - The connection is traveling an asymmetric route and existed before the last restart of the optimization service. Optimized connections might show the following notes: •Client side - The SteelHead is on the client side of the connection. •SDR optimized - SDR optimization is enabled. •LZ compressed - LZ compression is enabled. Packet-mode optimized connections might show the following note: •Incomplete parse - The inner channel exists but the connection through the channel isn’t fully formed. Optimized, nonpacket mode connections might show the following notes: •In-path - This is an in-path connection. •Single-ended - The connection involves only one SteelHead. •WAN encrypted - Encryption is enabled on the secure inner channel (WAN). •Cloud accelerated - The legacy cloud acceleration service for SaaS applications is enabled. SCPS connections show at least one of the following notes: •SCPS initiate: WAN side - The SteelHead has initiated the SCPS connection on the WAN. •SCPS initiate: LAN side - The SteelHead has initiated the SCPS connection on the LAN. •SCPS terminate: WAN side - The SteelHead has terminated the SCPS connection on the WAN. •SCPS terminate: LAN side - The SteelHead has terminated the SCPS connection on the LAN.
WAN and LAN-Side Statistics	LAN Bytes - Displays the total LAN bytes transmitted. WAN Bytes - Displays the total WAN bytes transmitted. Retransmitted - Displays the total packets retransmitted. Fast Retransmitted - Displays the total packets fast retransmitted. Fast retransmit reduces the time a sender waits before retransmitting a lost segment. If an acknowledgment isn’t received for a particular segment within a specified time (a function of the estimated round-trip delay time), the sender assumes the segment was lost in the network, and retransmits the segment. Timeouts - Displays the number of packet transmissions that timed out because no ACK was received. Congestion Window - Displays number of unACKed packets permitted, adjusted automatically by the SteelHead, depending on WAN congestion.

3. Optionally, to print the report, choose File > Print in your web browser to open the Print dialog box.

Path selection connection details

This table summarizes details about optimized and pass-through TCP connections using path selection. It displays the history of the three recent uplinks, in case the connection switches uplinks after an uplink goes down. This summary includes only nonpacket-mode flows.

You can filter based on connections for a specific path selection uplink name by entering the name into the matching regular expression filter.

Data	Description (varies by connection)
Relayed	Displays the number of bytes relayed if all uplinks are down.
Dropped	Displays the number of bytes dropped if all uplinks are down.
Bypassed	Displays the number of bytes bypassed if all uplinks are down.
Reflected	Displays the number of bytes reflected.
Local uplink	Displays the uplink name.
Remote uplink	Displays the remote uplink name.
Status	Displays whether the uplink is reachable (Up) or unreachable (Down).
Last started	Displays the time the connection started using the uplink.
Bytes	Displays the total number of bytes transferred through the uplink. Note: The LAN kB value and this number don’t match. This value displays only the bytes using path selection on the WAN.
DSCP	Displays the DSCP marking set for the uplink.

For details, see Path selection.

Individual pass-through or forwarded connection details

This table summarizes details about individual pass-through or forwarded connections.

Data

Description (varies by connection)

Connection Information

Connection Type - Displays a connection type icon and whether the pass-through was intentional or unintentional. Displays the forwarded reduction percentage bar for forwarded connections.

Connection Age - Displays the time since the connection was created.

Transport - Displays the transport protocol name: for example, SSL inner.

Application - Displays the application corresponding to the connection: for example, NFS.

Client-Side - Displays whether the connection is on the client side.

Pre-Existing - Displays whether the connection existed before the last restart of the optimization service.

Passthrough Reason - Displays the reason for passing through or forwarding the connection.

Pass-through reasons

This table shows the connection pass-through reasons.

Value	Pass-through reason (varies by connection)	Description	Action
0	None	None	None
1	Preexisting connection	Connection existed before SteelHead started.	Create a connection.
2	Connection paused	SteelHead isn’t intercepting connections.	Check that the service is enabled, in-path is enabled, the neighbor configuration, and whether the SteelHead is in admission control.
3	SYN on WAN side	Client is on the SteelHead WAN side.	Either this is the server-side SteelHead and there’s no client-side SteelHead, or the client-side SteelHead did not probe. Check the cabling if it is really the client-side SteelHead.
4	In-path rule	In-path rule matched on the client-side SteelHead is pass-through.	Check the in-path rules.
5	Peering rule	Peering rule matched on the server-side SteelHead is pass-through.	Check the peering rules.
6	Inner failed to establish	Inner connection between SteelHeads failed.	Check the connectivity between the client-side SteelHead and the server-side SteelHead.
7	Peer in fixed-target rule down	The target of a fixed-target rule is destined to a failed peer.	Check the connectivity between the client-side SteelHead and the server-side SteelHead.
8	No SteelHead on path to server	No server-side SteelHead.	Check that the server-side SteelHead is up and check that the connection goes through the server-side SteelHead.
9	No route for probe response	No route to send back probe response.	Check in-path gateway on the server-side SteelHead.
10	Out of memory	Memory problem while copying packet.	Check if the SteelHead is out of memory.
11	No room for more TCP options	Not enough space in TCP header to add probe.	This condition occurs when another device added TCP options before the SteelHead. Take a TCP dump to check which TCP options are in the SYN packet. Search for those options to learn what device uses them.
12	No proxy port for probe response	There is no service port configured on server-side SteelHead.	Configure a service port.
13	RX probe from failover buddy	The connection is intercepted by failover buddy.	No action is necessary.
14	Asymmetric routing	The connection is asymmetric.	Check the asymmetric routing table for reason.
15	Middle SteelHead	The SteelHead isn’t the first or last SteelHead.	Only happens when the Enhanced Auto-Discovery Protocol is enabled.
16	Error connecting to server	The server-side SteelHead couldn’t connect to the server.	Only happens when the Enhanced Auto-Discovery Protocol is enabled.
17	Half open connections above limit	The client has too many half-opened connections.	Check if many connections open quickly from the same client.
18	Connection count above QOS limit	There are too many connections for that QoS class.	Check the QoS class.
19	Reached maximum TTL	The probe has an incorrect TTL.	Take a trace to check the probe.
20	Incompatible probe version	The probe has an incompatible version number.	Check if the new probe format is enabled, it is disabled by default.
21	Too many retransmitted SYNs	The client SYN has been retransmitted too many times.	Check if there’s a firewall that doesn’t like the probe TCP option.
22	Connection initiated by neighbor	The connection is intercepted by a neighbor.	No action is necessary.
23	Connection for local host	The connection is to the in-path interface.	No action is necessary.
24	Unknown reason	The pass-through reason doesn’t match any other description.	No action is necessary.
25	Connection from proxy target	Because the connection originates from an IP address that is also the IP address of a fixed-target rule, it isn’t intercepted.	No action is necessary.
26	SYN before SFE outer completes	The client connection was passed through at the client-side SteelHead and the client's pure SYN was seen at the server-side SteelHead.	Check if there’s a firewall that doesn’t like the probe TCP option.
27	Transparent inner on wrong VLAN	The inner connection seen on VLAN is different than the in-path VLAN.	No action is necessary.
28	Transparent inner not for this host	The inner connection is not meant for this host.	No action is necessary.
29	Error on neighbor side	The neighbor SteelHead returned an error to a connection-forwarding request.	Check the health of the configured neighbors.
30	SYN/ACK, but no SYN	There is asymmetric routing - received SYN/ACK but no SYN.	Check your routing.
31	Transparency packet from self	For Riverbed internal use only.	No action is necessary.
32	System is heavily loaded	The SteelHead is experiencing a heavy traffic load.	Contact Riverbed Support. You might require a larger model SteelHead.
33	SYN/ACK at MFE not SFE	There is asymmetric routing around the server-side SteelHead.	Check your routing.
34	Windows branch mode detected	The client-side is a SteelHead Mobile. Optimization is occurring between the SteelHead Mobile and the server-side SteelHead, so the connection is passed through on the client-side SteelHead.	No action is necessary.
35	Transparent RST to reset firewall state	The optimization service has sent a RST to clear the probe connection created by the SteelHead and to allow for the full transparent inner connection to traverse the firewall.	No action is necessary.
36	Error on SSL inner channel	An inner channel handshake has failed with peer.	Check the SSL configuration on both SteelHeads.
37	Netflow only: Ricochet packet of optimized connection	This pass-through reason is attributed to a flow reported to a NetFlow v9 collector. A probe and packet have been sent by the SteelHead back through itself. For example, in an in-path setup, if a client-side SteelHead gateway is on its WAN side, all packets sent to the client will first go to the gateway and be sent back through the SteelHead on the way to the client.	Packet ricochet can be avoided in many environments by enabling simplified routing.
38	Passthrough due to MAPI admission control	New MAPI connections will be passed through due to high connection count.	New MAPI connections are optimized automatically when the MAPI traffic has decreased.
39	A SYN or RST packet contains data
40	Failed to discover SCPS device	RiOS can’t find a SCPS device.
41	No matching client/server IPv6 scope	RiOS can’t set up the outer channel connection.	RiOS passes all packets through until it creates the outer channel.
42	Failed to create sport outer channel	RiOS can’t set up the outer channel connection.	RiOS passes all packets through until it creates the outer channel.
43	Flows not matching in-path rule	RiOS can’t match this traffic flow to any packet-mode optimization in-path rule. A packet-mode optimization rule defines the inner channel characteristics.	RiOS passes all packets through while the flow is in this state. Go to Optimization > In-Path rules to add a fixed-target packet-mode optimization in-path rule.
44	Packet mode channel setup pending	RiOS is attempting to set up the inner IPv4 or IPv6 channel connection.	RiOS passes all packets through until it creates the inner IPv4 or IPv6 channel.
45	Peer does not support packet-mode optimization	The peer SteelHead to which RiOS needs to establish the inner IPv4 or IPv6 channel connection doesn’t support packet-mode optimization or packet-mode optimization isn’t enabled.	RiOS stops trying to optimize connections using packet-mode optimization with the peer.
46	Generic Flow error	A packet-mode optimization traffic flow transitions to this state when RiOS encounters one of these unrecoverable errors: •There isn’t enough memory to set up the inner channel. •The system has requested that RiOS kill the traffic flow. When RiOS receives this error, the SteelHead abandons all attempts to optimize the flow.	RiOS passes the flow through for its lifetime.
47	Failed to cache sock pointer	While configured for packet-mode optimization, RiOS can’t locate the socket pointer used to exchange packets through the inner channel. The system is attempting to write packets to the ring, but the socket is closed. This condition can occur when the optimization service shuts down unexpectedly.	Go to Administration > Maintenance: Services and restart the optimization service.
48	Packet mode optimization disabled	The connection is being passed through because packet-mode optimization is disabled.	Go to Optimization > In-path Rules and enable packet-mode optimization.
49	Optimizing local connections only	On a SteelHead EX, the connection is being passed through because it did not originate locally.
50	Netflow only: probe packet of optimized connection
51	IPv6 connection forwarding requires multi-interface support	RiOS is passing the connection through because the client-side SteelHead is configured without multi-interface connection forwarding. This configuration doesn’t support IPv6.	Go to Networking > Connection Forwarding and enable multiple interface support.
52	Neighbor does not support IPv6	RiOS is passing the connection through because a connection-forwarding neighbor doesn’t support IPv6.	Upgrade the connection-forwarding neighbor to RiOS 8.0 or later.
53	Reached the hard limit for the number of entries	RiOS is passing the connection through because it hit the maximum allowed limit for nonreusable connection entries.
54	Connection or flow from GRE IPv4 tunnel

SaaS connection details

This table shows the SaaS connection details.

Value	Reason	Description	Action
0	None	None	None
1	Optimized connection	Connection is redirected through the SteelHead SaaS to a SaaS service.	No action is necessary.

Pass-through reasons for SaaS connections

This table lists the connection pass-through reasons for SaaS connections with the legacy cloud accelerator service.

Value	Pass-through reason (varies by connection)	Description	Action
2	Inner Connection through Cloud Accelerator	An inner connection to a remote SteelHead is running in the cloud.	No action is necessary.
3	Not a supported SaaS destination	Connection is through a SaaS service that isn’t supported, subscribed to, or enabled.	No action is necessary; however, if you want to optimize this destination IP address, contact Riverbed Support.
4	Due to configured In-path rule	Connection isn’t redirected through the SteelHead SaaS due to an in-path rule to disable cloud acceleration.	Check that the Cloud Acceleration field in the relevant in-path rule is set to Auto.
5	Due to configured Peering rule	Connection isn’t redirected through the SteelHead SaaS due to a peering rule to disable cloud acceleration.	Check that the Cloud Acceleration field in the relevant peering rule is set to Auto.
6	Cloud acceleration disabled	Connection isn’t redirected through the SteelHead SaaS because it is disabled.	Check the cloud accelerator configuration. Go to Optimization > Cloud Accelerator and select the Enable Cloud Acceleration check box in the Cloud Accelerator page.
7	Redirection disabled globally	Connection isn’t redirected through the SteelHead SaaS because cloud acceleration redirection is disabled.	Go to Optimization > Cloud Accelerator and select the Enable Cloud Acceleration Redirection check box in the Cloud Accelerator page.
8	Redirection disabled for relay	Connection isn’t redirected through SteelHead SaaS because cloud acceleration redirection for this in-path interface is disabled.	Check the Cloud Accelerator redirection configuration for the relevant in-path interface on the command-line interface. Enter this command on the command-line interface: show service cloud-accel For details, see the Riverbed Command-Line Interface Reference Manual.
9	Cloud proxy is down	Connection isn’t redirected through SteelHead SaaS because the redirection service encountered an error.	Contact Riverbed Support.
10	No PQID added by first SteelHead	Connection isn’t redirected through SteelHead SaaS because the SteelHead closest to the client has SteelHead SaaS disabled or misconfigured.	Check the Cloud Accelerator configuration on the client-side SteelHead.
11	Failed to append CP code	Connection isn’t redirected through SteelHead SaaS because of a packet processing error.	Contact Riverbed Support.
12	SYN retransmit (backhauled)	Connection isn’t redirected through SteelHead SaaS because too many SYN retransmits were received from the client.	Check if there’s a firewall that doesn’t allow inbound or outbound UDP packets for the SteelHead.
13	SYN retransmit (direct)	Connection isn’t redirected through SteelHead SaaS because too many SYN retransmits were received from the client.	Check if there’s a firewall that doesn’t allow inbound or outbound UDP packets for the SteelHead.
14	Passing to downstream SteelHead	Connection isn’t redirected through SteelHead SaaS because admission control is reached and there’s a SteelHead downstream that might optimize the connection.	No action is necessary.
15	Passthrough SYN retransmit	Connection isn’t redirected through SteelHead SaaS because too many SYN retransmits were received from the client.	Check if there’s a firewall that doesn’t allow inbound or outbound UDP packets for the SteelHead.
16	Rejected by cloud proxy	Connection isn’t redirected through SteelHead SaaS because the SteelHead SaaS network rejected the connection.	Contact Riverbed Support.
17	Invalid Entitlement code	Connection isn’t redirected through SteelHead SaaS because of an invalid SteelHead SaaS configuration.	Contact Riverbed Support.
18	Invalid timestamp	Connection isn’t redirected through SteelHead SaaS because the clock on the SteelHead isn’t synchronized.	Check the date and time settings on the SteelHead.
19	Invalid customer ID	Connection isn’t redirected through SteelHead SaaS because of an invalid SteelHead SaaS configuration.	Contact Riverbed Support.
20	Invalid ESH ID	Connection isn’t redirected through SteelHead SaaS because of an invalid SCA configuration.	Contact Riverbed Support.
21	Invalid SaaS ID	Connection isn’t redirected through SteelHead SaaS because of an invalid SCA configuration.	Contact Riverbed Support.
22	Connection limit reached	Connection isn’t redirected through SteelHead SaaS because the subscription limit for the number of connections is reached.	Contact Riverbed Support. You might require a higher SteelHead SaaS license.
23	Bandwidth limit reached	Connection isn’t redirected through SteelHead SaaS because the subscription limit for bandwidth used is reached.	Contact Riverbed Support. You might require a higher SteelHead SaaS license.

Tools

This section provides buttons that perform an operation on a single connection. It also provides a link to log information.

Tools

You can perform these operations:

Control	Description
Send Keep-Alive	For an optimized connection, click to send a keepalive message to the outer remote machine (the machine that is connected to this appliance). This operation isn’t available for a pass-through connection. This button is dimmed for users logged in as a monitor user.
Refresh Data	Click to retrieve the most recent data for the connection.
Reset Connection	Click to send a RST packet to both the client and server to close the connection. You can reset both optimized and pass-through connections. You can’t reset a forwarded connection. Note: If no data is being transferred between the client and server when you click Reset Connection, the connection isn’t reset immediately. It resets the next time the client or server tries to send a message. Therefore, when the application is idle, it might take a while for the connection to disappear. This button is dimmed for users logged in as a monitor user.
Log for this SteelHead	Click to go to the System Logs page.

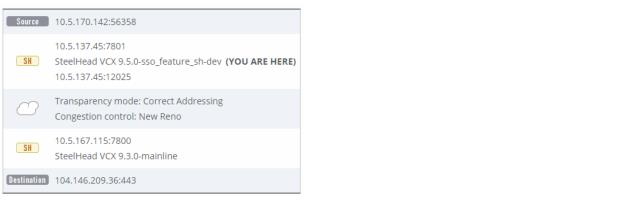

Network topology

This section shows a graphical representation of the connection source-to-destination network topology and information associated with the different elements. This graphic varies depending on the connection type and is only relevant for optimized connections. It doesn’t appear for pass-through connections.

Connection topology

The topology shows this information:

•All of the IP addresses and port numbers associated with the connection.

•Transparency mode, which describes the visibility of each actual IP address and port on the SteelHeads to each other, for terminated connections only. For details, see Configuring in-path rules.

•Channel ID and type for packet-mode flows only. For details, see Configuring in-path rules.

•Congestion control, including the method in use to mitigate WAN congestion. For details on congestion-control types, see Configuring TCP, satellite optimization, and high-speed TCP.

•SteelHead models and RiOS versions.

•A YOU ARE HERE label identifies the SteelHead whose page you are viewing.

LAN/WAN table

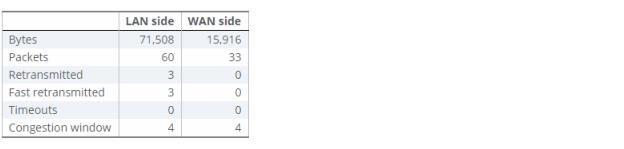

This table shows raw tallies for LAN and WAN connections to summarize data about channel processing for a specific connection. The table varies by type of connection.

LAN/WAN table

Use this table to answer questions such as:

•For any given channel, how many bytes (or packets) did the channel receive and subsequently transmit?

•Which channels have processed the most traffic? The least traffic?

•What error types and quantities were encountered for traffic inbound from the WAN?

•What error types and quantities were encountered for traffic inbound from the LAN?

This table provides an explanation for some of the fields.

Field	Description
Bytes	The total of transmitted LAN and WAN bytes.
Packets	The total of transmitted WAN and LAN packets.
Retransmitted	The total of retransmitted WAN and LAN packets.
Fast Retransmitted	The total fast-retransmitted packets. Fast retransmit reduces the time a sender waits before retransmitting a lost segment. If an acknowledgment isn’t received for a particular segment within a specified time (a function of the estimated round-trip delay time), the sender assumes the segment was lost in the network, and retransmits the segment.
Timeouts	The number of packet transmissions that timed out because no ACK was received.
Congestion Window	Displays number of unACKed packets permitted, adjusted automatically by the SteelHead, depending on WAN congestion.

Viewing Connection History reports

The Connection History report shows connection counts for a variety of connection types for the time period specified.

This report includes IPv6 and packet-mode optimized traffic in RiOS 8.5 and later.

For details about the report format, see Overview.

The Connection History report contains these statistics that summarize connection activity.

Connection type	Description
Optimized	Displays the total connections, including half-open, half-closed (where half-open and half-closed are TCP connection states), idle, established, and optimized.
Optimized (Active)	Displays the total active connections that are established and optimized.
Passthrough	Displays the total connections passed through unoptimized.
Forwarded	Displays the total number of connections forwarded by the connection-forwarding neighbor managing the connection.
Optimized (Half Open)	Displays the percentage of half-opened connections represented in the optimized connection total. A half-open connection is a TCP connection that has not been fully established. Half-open connections count toward the connection count limit on the SteelHead because, at any time, they might become a fully open connection. If you are experiencing a large number of half-opened connections, consider a more appropriately sized SteelHead.
Optimized (Half Closed)	Displays the percentage of half-closed active connections represented in the optimized connection total. Half-closed connections are connections that the SteelHead has intercepted and optimized but are in the process of being disconnected. These connections are counted toward the connection count limit on the SteelHead. (Half-closed connections might remain if the client or server doesn’t close its connections cleanly.) If you are experiencing a large number of half-closed connections, consider a more appropriately sized SteelHead.

The navigator shadows the optimized series.

What this report tells you

The Connection History report answers these questions:

•How many connections were optimized?

•How many connections were passed through, unoptimized?

•What’s the percentage of half-opened connections represented in the total optimized connections?

•What’s the percentage of half-closed connections represented in the total optimized connections?

About report graphs

Use the mouse to hover over a specific data point to see the values and exact time stamp.

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled. The data is collected at a 5-minute granularity for the entire month.

To view the Connection History report

1. Choose Reports > Networking: Connection History to display the Connection History page.

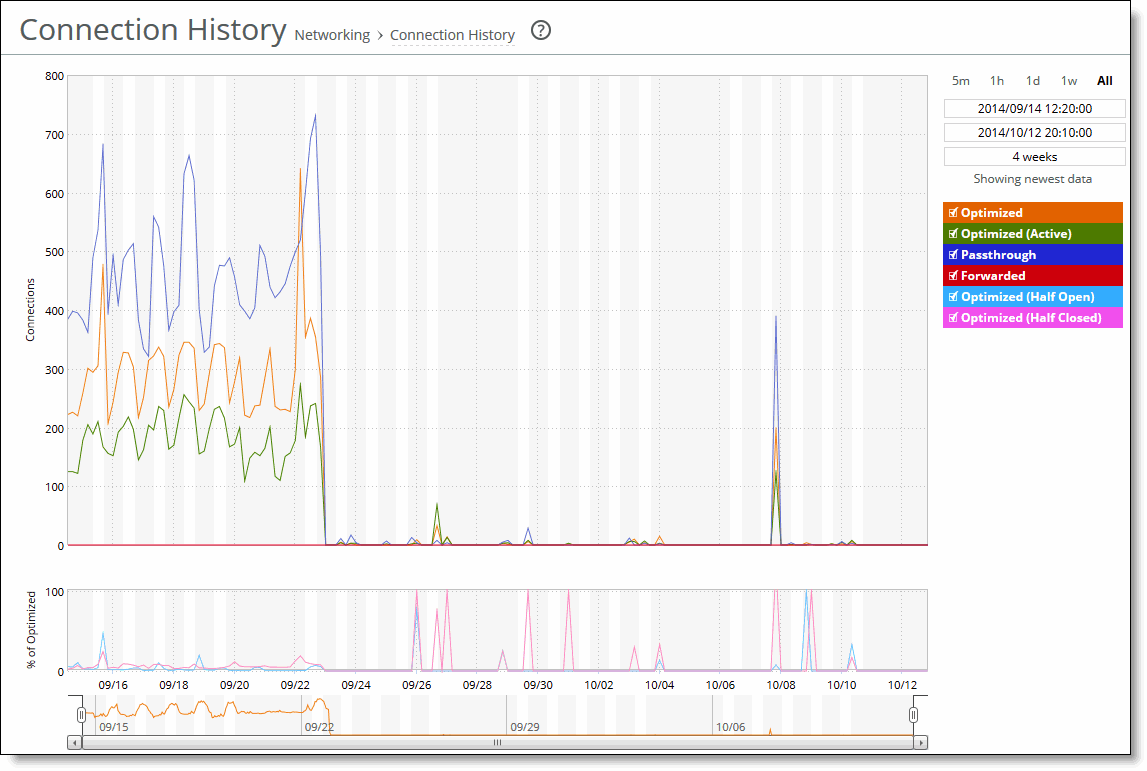

Connection History page

2. Use the controls to change the report display as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing Connection Forwarding reports

The Connection Forwarding report summarizes the data throughput between the SteelHead and a specified neighbor (or all neighbors).

For details about the report format, see Overview.

Data series	Description
Throughput	Displays the throughput in bits per second.

The navigator shadows the throughput series.

You configure neighbors when you enable connection forwarding. For details, see Configuring connection forwarding features.

What this report tells you

The Connection Forwarding report answers this question:

•How many bytes were transferred between a SteelHead and a specified neighbor?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the Connection Forwarding report

1. Choose Reports > Networking: Connection Forwarding to display the Connection Forwarding page.

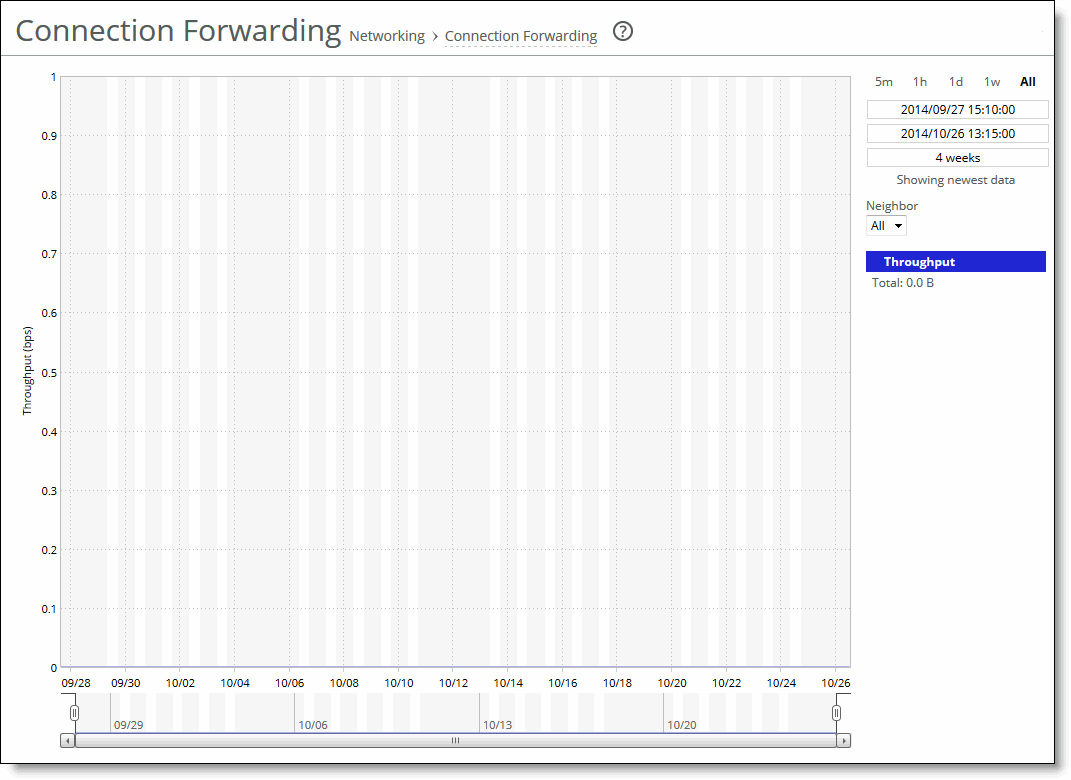

Connection Forwarding page

2. Use the controls to customize the report as described in this table.

Control	Description
Time interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Neighbor	Select a neighbor from the drop-down list or All to display all neighbors.

Viewing Outbound QoS reports

The Outbound QoS report summarizes the number of bits per second or packets per second transmitted for either a set of QoS classes (up to seven) or an aggregate total of all classes for the time period specified.

Upgrading from RiOS 8.0.x (or earlier) to version 9.0 or later changes the QoS statistics data. The Outbound QoS report will not show any statistics from a previous configuration.

For details about the report format, see Overview.

What this report tells you

The Outbound QoS report answers these questions:

•Is outbound QoS working correctly?

•How many bits or packets per second were transmitted over the WAN for the QoS classes?

•How many bits or packets per second were sent and dropped for the QoS classes?

The Outbound QoS report might display this message for a traffic class even when QoS is shaping it:

This is because the report limits the data sample display to only the first 1000 classes. When a class falls beyond the first 1000 lines of classes, the report displays no data.

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled with a granularity of 5 minutes for the day, 1 hour for the last week, and 2 hours for the rest of the month.

To view the Outbound QoS report

1. Choose Reports > Networking: Outbound QoS to display the Outbound QoS page.

Outbound QoS page

2. Use the controls to change the report display as described in this table.

Control	Description
Time interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. Because the system aggregates data on the hour, request hourly time intervals. For example, setting a time interval to 08:30:00 to 09:30:00 from 2 days ago doesn’t create a data display, whereas setting a time interval to 08:00:00 to 09:00:00 from 2 days ago will display data. When you request a custom time interval to view data beyond the aggregated granularity, the data is not visible because the system is no longer storing the data. For example, the following custom time intervals don’t return data because the system automatically aggregates data older than 7 days into 2-hour data points: •Setting a 1-hour time period that occurred 2 weeks ago. •Setting a 75-minute time period that occurred more than 1 week ago. You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Units	Select either packets/sec or bps from the drop-down list.
Classes	Select Total or Selected classes from the drop-down list. Selected classes lets you narrow the report by choosing from drop-down lists of classes and remote sites (up to seven). You can’t select a class or a class @ site more than once. Click Update to change the QoS class selection without updating the chart. When the report display includes the total classes, the data series appear as translucent; selected classes appear as opaque. When the report display includes the total classes, the navigator shadows the total sent series. When the report display includes selected classes and remote sites, the navigator shadows the first nonempty sent series. A data series can be empty if you create a QoS class but it has not seen any traffic yet. Selecting a parent class displays its child classes. For example, the report for an HTTP class with two child classes named WebApp1 and WebApp2 displays statistics for HTTP, WebApp1, and WebApp2. When a selected class has descendant classes, the report aggregates the statistics for the entire tree of classes. It displays the aggregated tree statistics as belonging to the selected class.

Viewing Inbound QoS reports

The Inbound QoS report displays received and dropped throughputs for a variety of inbound QoS class configurations (up to seven) or an aggregate total of all classes for the time period specified.

For details about the report format, see Overview.

What this report tells you

The Inbound QoS report answers these questions:

•How many bits or packets per second were transmitted over the WAN for the QoS classes?

•How many bits or packets per second were received and dropped for the QoS classes?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled with a granularity of 5 minutes for the day, 1 hour for the last week, and 2 hours for the rest of the month.

To view the Inbound QoS report

1. Choose Reports > Networking: Inbound QoS to display the Inbound QoS page.

Inbound QoS page

2. Use the controls to customize the report as described in this table.

Control	Description
Time interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. Because the system aggregates data on the hour, request hourly time intervals. For example, setting a time interval to 08:30:00 to 09:30:00 from 2 days ago doesn’t create a data display, whereas setting a time interval to 08:00:00 to 09:00:00 from 2 days ago will display data. When you request a custom time interval to view data beyond the aggregated granularity, the data is not visible because the system is no longer storing the data. For example, these custom time intervals don’t return data because the system automatically aggregates data older than 7 days into 2-hour data points: •Setting a 1-hour time period that occurred 2 weeks ago. •Setting a 75-minute time period that occurred more than 1 week ago. You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Units	Select either packets/sec or bps from the drop-down list.
Classes	Select Total or Selected classes from the drop-down list. Selected classes lets you narrow the report by choosing from drop-down lists of classes and remote sites (up to seven). You can’t select a class or a class @ site more than once. Click Update to change the QoS class selection without updating the chart. When the report display includes the total classes, the data series appear as translucent; selected classes appear as opaque. When the report display includes the total classes, the navigator shadows the total received series. When the report display includes selected classes, the navigator shadows the first nonempty received series. A data series can be empty if you create a QoS class but it has not seen any traffic yet. Selecting a parent class displays its child classes. For example, the report for an HTTP class with two child classes named WebApp1 and WebApp2 displays statistics for HTTP, WebApp1, and WebApp2. When a selected class has descendant classes, the report aggregates the statistics for the entire tree of classes. It displays the aggregated tree statistics as belonging to the selected class.

Viewing Secure Transport reports

The Secure Transport report summarizes secure transport properties for a SteelHead configured as a secure transport peer.

The Secure Transport report contains these properties that summarize secure transport activity.

Controller properties	Description
Private Address	Displays the private IP address of the secure transport controller to which the SteelHead has registered.
Public Address	Displays the public IP address of the secure transport controller to which the SteelHead has registered.
Status	Displays the current status of the connectivity to the secure transport controller.
Last Keep-Alive	Displays the last time a keepalive message was sent from the SteelHead to the secure transport controller.
Group Name	Displays the name of the secure transport group.
Number of Peers	Displays how many peers are in the secure transport group.
Peer Name	Displays the peer names within the secure transport group.

What this report tells you

The Secure Transport report provides details about the secure group and answers these questions:

•Which peers have joined the group?

•Are the peers sending and receiving traffic?

•What’s the current status of the connectivity to the secure transport controller?

To view the Secure Transport report

1. Choose Reports > Networking: Secure Transport to display the Secure Transport page.

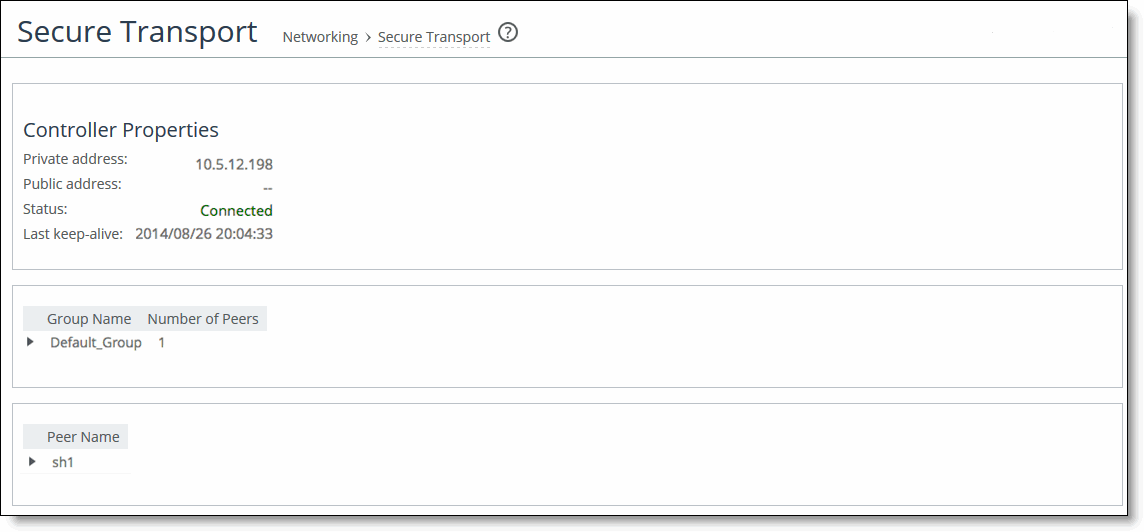

Secure Transport page

2. Click the Group name for details.

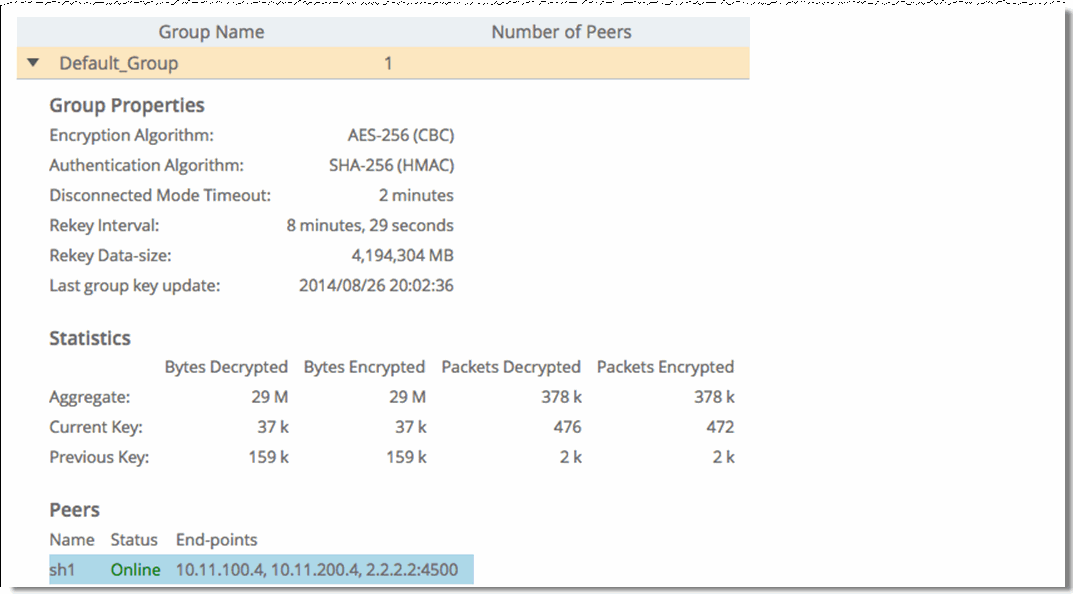

Secure Transport Group details

3. Click the Peer name for details.

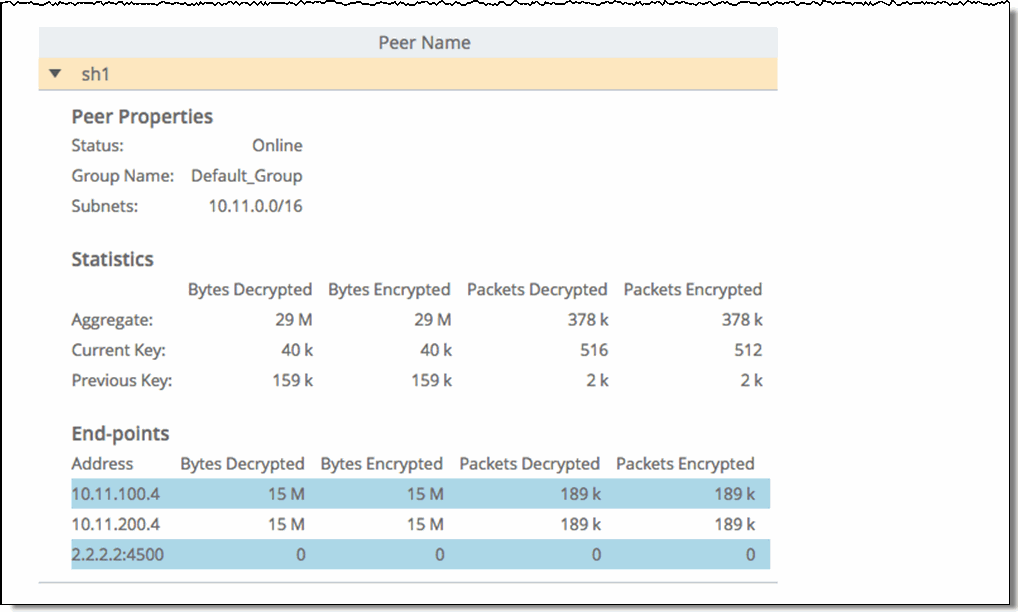

Secure Transport Peer details

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing Top Talkers reports

The Top Talkers report displays the top talking hosts on a per-port basis for the time period specified. The traffic flows that generate the heaviest use of WAN bandwidth are known as the Top Talkers. This report provides WAN visibility for traffic analysis, security monitoring, accounting, load balancing, and capacity planning. It can include both optimized and pass-through traffic.

A traffic flow consists of data sent and received from a first single IP address and port number to a second single IP address and port number over the same protocol. Only traffic flows that start in the selected time period are shown in the report.

The Top Talkers report doesn’t include IPv6 traffic.

The Top Talkers report includes bytes used for packet headers and is an approximation based on various assumptions.

The Top Talkers report contains this table of statistics that summarize Top Talker activity.

Column	Description
Rank	Displays the relative position of the traffic flow WAN bandwidth use.
<Sender> IP Address 1:Port	Displays the first IP address and port for the connection.
<Receiver> IP Address 2:Port	Displays the second IP address and port for the connection.
Byte Count	Displays the total number of bytes sent and received by the first IP address.

You can export this report in CSV format in the Export report. The CSV format allows you to easily import the statistics into spreadsheets and databases. You can open the CSV file in any text editor. For details, see Exporting performance statistics.

Flow Export must be enabled before viewing the Top Talker report. For details, see Configuring subnet side rules.

What this report tells you

The Top Talkers report answers this question:

•Who were the top talking hosts on a per-port basis?

About report data

To view the Top Talkers report

1. Choose Reports > Networking: Top Talkers to display the Top Talkers page.

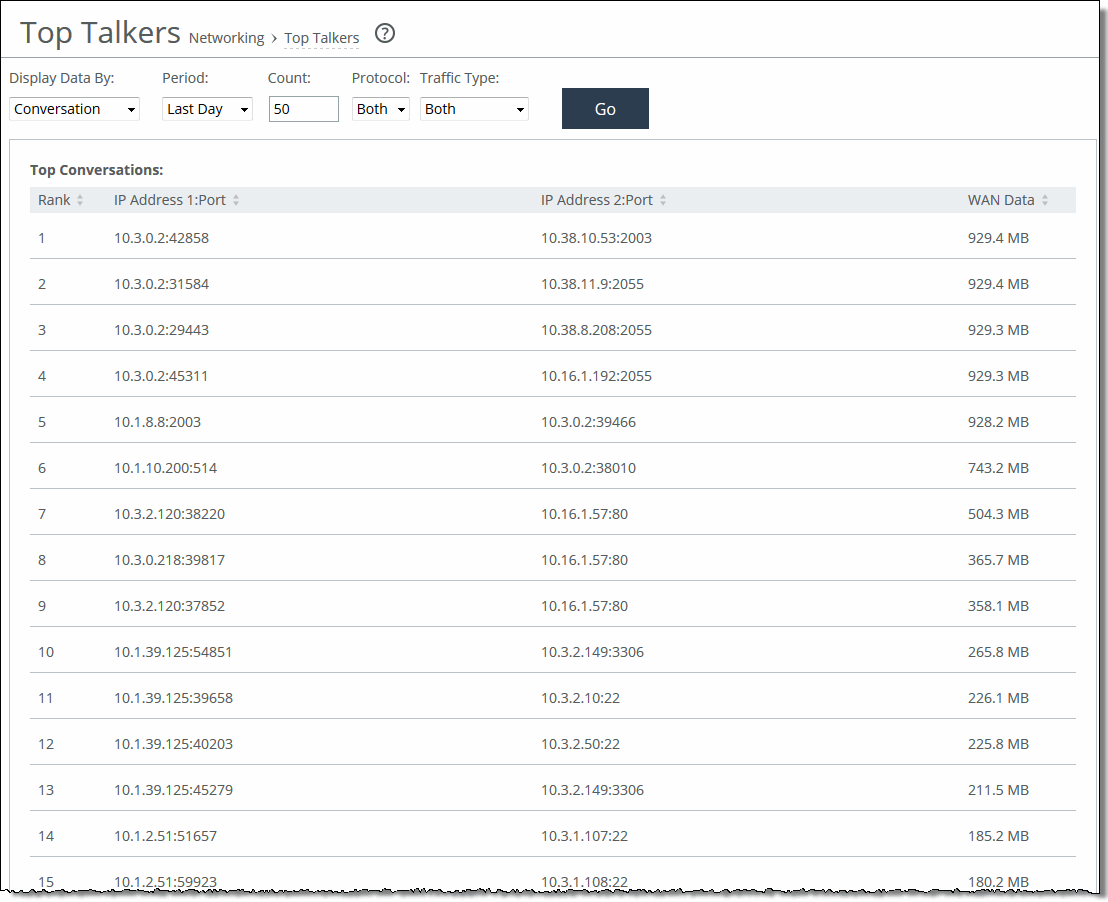

Top Talkers page

2. Use the controls to customize the report as described in this table.

Control	Description
Chart	Select the report display from the drop-down list: By Conversation, By Sender, By Receiver, By Host, or By Application Port. The default setting is By Conversation.
Period	You can view the traffic statistics for the past hour, the past 24 hours, or all available hours. All is the default setting, which displays statistics for the entire duration the SteelHead has gathered statistics. This duration can be up to 2 days, depending on how long the service has been up and the traffic volume. Select All, Last Hour, or Last Day from the drop-down list. The default setting is All. Note: Top Talker statistics aren’t persistent between service restarts.
Count	Specify how many top pairs of IP addresses and ports with the highest total traffic (sent and received) appear in the report. Each pair shows the number of bytes and packets sent and received at IP address 1. The default value is 50. Note: You can export the complete list of top talkers to a file in CSV format using the Export report.
Protocol	Select Both, TCP, or UDP from the drop-down list. The default value is Both.
Traffic Type	Select Both, Optimized, or Passthrough from the drop-down list. The default value is Both.
Go	Displays the report.

The Top Talkers data doesn’t exactly match the Traffic Summary data, the Bandwidth Optimization data, or specific connection data that appears when you select a particular connection in the Current Connections report. This variation is due to packet headers, packet retransmits, and other TCP/IP effects that flow export collectors see, but RiOS doesn’t. Consequently, the reports are proportional but not equivalent.

Select a Top Talkers report column heading to sort the column in ascending or descending order.

Viewing Traffic Summary reports

The Traffic Summary report provides a percentage breakdown of the amount of TCP traffic going through the system. For details about setting ports to be monitored, see Configuring monitored ports.

The SteelHead automatically discovers all the ports in the system that have traffic. The discovered port and its label (if one exists) are added to the report. If a label doesn’t exist, an unknown label is added to the discovered port.

Starting with RiOS 9.5, you can view optimization statistics for SaaS applications. This report lists the optimized traffic by SaaS application instead of by port number, and the ID for the SaaS application is listed in the Port column. To configure SaaS applications for optimization by the SteelHead, see Configuring the Legacy Cloud Accelerator and Activating SaaS applications.

SaaS application statistics are not included with the overall statistics for port 443 and port 80.

When using a role-based management (RBM) user, ensure that the RBM user has at least Read-Only permissions for the Cloud Optimization role, or the user will not be able to view the SaaS application names.

To find the definition of the application ID that is listed in the Port column, open the Optimization > Cloud Accelerator page. The ID (for example, SFDC) and application name (for example, Salesforce.com) are listed in the Application ID and SaaS Application Control fields.

If you want to change the unknown label to a name representing the port, you must readd the port with a new label. All statistics for this new port label are preserved from the time the port was discovered.

The Traffic Summary report displays a maximum of 16 ports and pie slices for the traffic types comprising more than 0.005 percent of the total traffic (by destination port). When there are more than 16 ports, the report displays 15 individual ports and aggregates the remaining ports into the 16th slice. The 16th slice is always gray. Any ports aggregated into the 16th slice are also gray. Any traffic that comprises less than 0.005 percent of the total isn’t included in the Traffic Summary report, but is aggregated into the Bandwidth Optimization report.

The Traffic Summary report provides this table of statistics that describe data activity for the application and the time period you specify.

Column	Description
Port	Displays the TCP/IP port number and application for each row of statistics. For SaaS applications, the word “Custom” and the application name is displayed instead of a port number.
Reduction	Displays the amount of application data reduction.
LAN Data	Displays the amount of application data on the LAN.
WAN Data	Displays the amount of application data on the WAN.
Traffic %	Calculates LAN-side data to indicate the percentage of the total traffic each port represents.

What this report tells you

The Traffic Summary report answers these questions:

•How much data reduction has occurred?

•What was the percentage of the total traffic for each port?

•Which SaaS applications are being optimized? (RiOS 9.5 and later)

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled. The Traffic Summary report displays these data granularities:

•Last 1 hour's worth of data is available at 10-second granularity.

•Last 1 day's worth of data is available at 5-minute granularity.

•Last 1 week's worth of data is available at 1-hour granularity.

•Last 1 month's worth of data is available at 2-hour granularity.

To view the Traffic Summary report

1. Choose Reports > Networking: Traffic Summary to display the Traffic Summary page.

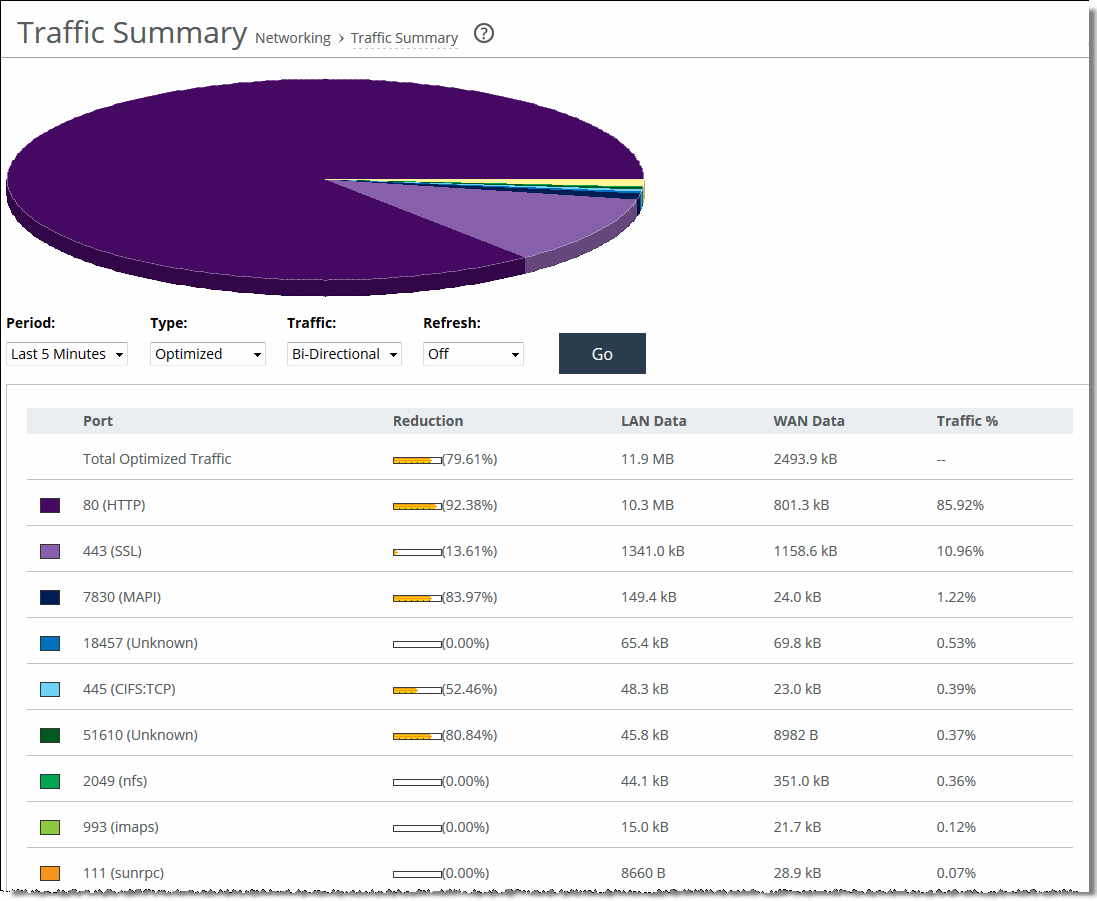

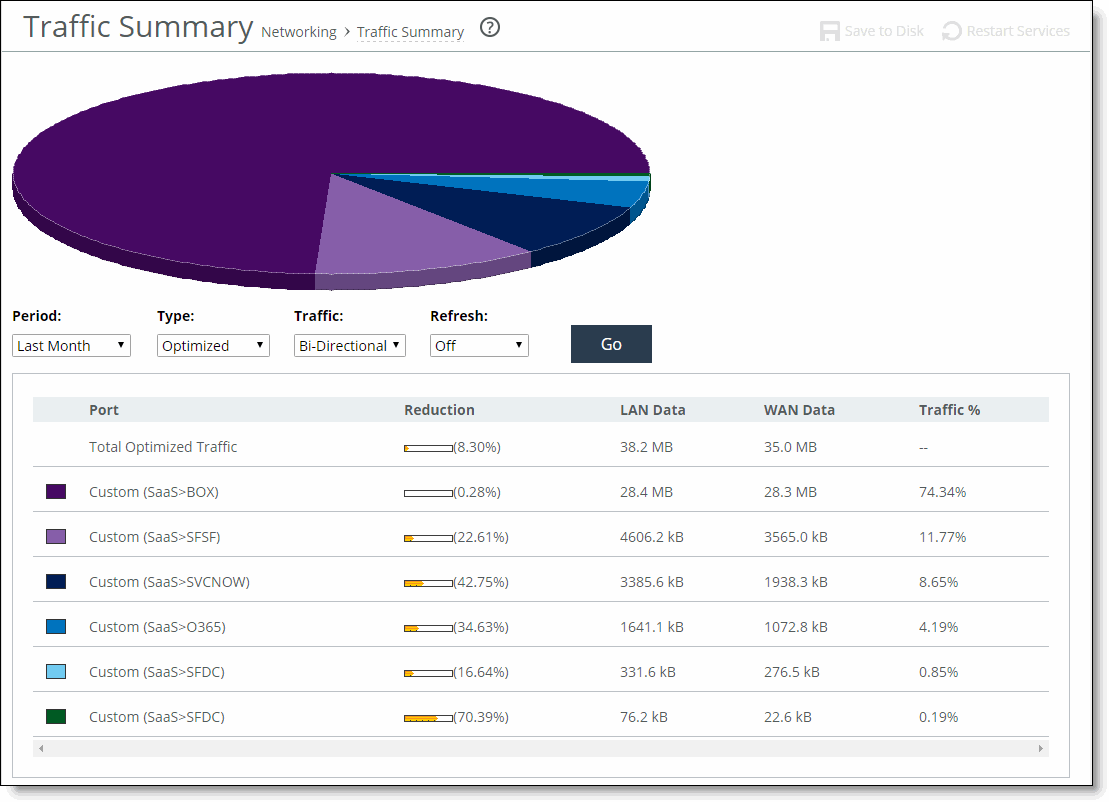

Traffic Summary page showing port numbers

Traffic Summary page showing SaaS applications

2. Use the controls to customize the report as described in this table.

Control	Description
Period	Select a period of Last Minute, Last 5 Minutes, Last Hour, Last Day, Last Week, Last Month, or Custom from the drop-down list. For Custom, enter the Start Time and End Time and click Go. Use the following format: YYYY/MM/DD HH:MM:SS
Type	Select a traffic type of Optimized, Pass Through, or Both from the drop-down list.
Traffic	Select a traffic direction from the drop-down list: • Bi-Directional - traffic flowing in both directions • WAN-to-LAN - inbound traffic flowing from the WAN to the LAN • LAN-to-WAN - outbound traffic flowing from the LAN to the WAN.
Refresh	Select a refresh rate from the drop-down list: •To refresh the report every 10 seconds, select 10 seconds. •To refresh the report every 30 seconds, select 30 seconds. •To refresh the report every 60 seconds, select 60 seconds. •To turn refresh off, click Off.
Go	Displays the report.

Viewing WAN Throughput reports

The WAN Throughput report summarizes the WAN throughput for the time period specified. In standard in-path and virtual in-path deployments, the throughput is an aggregation of all data the system transmits out of all WAN interfaces. In a server-side out-of-path configuration, the report summarizes all data the system transmits out of the primary interface.

For details about the report format, see Overview.

You must choose Networking > Network Services: Flow Statistics and enable WAN Throughput Statistics to view data in this report. WAN throughput statistics are enabled by default.

The WAN Throughput report doesn’t include any traffic that is hardware bypassed, either by an in-path interface in hardware bypass, or the portion of traffic that is bypassed by hardware-assist rules on supported Fiber 10 Gigabit-Ethernet in-path cards.

The WAN Throughput report includes a WAN link throughput graph that provides these statistics describing data activity for the time period you specify.

Data series	Description
Peak Throughput	Displays the peak data activity.
Average Throughput	Displays the average and total throughput. RiOS calculates the WAN average at each data point by taking the number of bytes transferred, converting that to bits, and then dividing by the granularity. For instance, if the system reports 100 bytes for a data point with a 10-second granularity, RiOS calculates: 100 bytes * 8 bits/byte / 10 seconds = 80 bps This calculation means that 80 bps was the average throughput over that 10-second period. The total throughput shows the data amount transferred during the displayed time interval. The average that appears below the Average Throughput is an average of all displayed averages.

The navigator shadows the Peak throughput series.

In some configurations, RiOS transmits LAN traffic out of WAN interfaces: for example, virtual in-path deployments and deployments using the default gateway on the WAN side without simplified routing. In such deployments, you can configure subnet side rules to decide which channel traffic isn’t destined for the WAN. For details, see Configuring subnet side rules.

What this report tells you

The WAN Throughput report answers these questions:

•What was the average WAN throughput?

•What was the peak WAN throughput?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled with a granularity of 5 minutes for the day, 1 hour for the last week, and 2 hours for the rest of the month.

To view the WAN Throughput report

1. Choose Reports > Optimization: WAN Throughput to display the WAN Throughput page.

WAN Throughput page

2. Use the controls to change the display as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format
YYYY/MM/DD HH:MM:SS.

Because the system aggregates data on the hour, request hourly time intervals. For example, setting a time interval to 08:30:00 to 09:30:00 from 2 days ago doesn’t create a data display, whereas setting a time interval to 08:00:00 to 09:00:00 from 2 days ago will display data.

When you request a custom time interval to view data beyond the aggregated granularity, the data is not visible because the system is no longer storing the data. For example, these custom time intervals don’t return data because the system automatically aggregates data older than 7 days into 2-hour data points:

•Setting a 1-hour time period that occurred 2 weeks ago.

•Setting a 75-minute time period that occurred more than 1 week ago.

You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing Application Statistics reports

The Application Statistics report provides a tabular summary or a graph of the traffic flowing through a SteelHead for the time period specified. You can view up to seven applications in a stacked view.

You must enable application visibility on the Networking > Network Services: Flow Statistics page before the Application Statistics report can gather and display statistics. For details, see Configuring flow statistics.

RiOS collects application statistics for all data transmitted out of the WAN and primary interfaces and commits samples every 5 minutes. Let the system collect statistics awhile to view the most meaningful data display.

For details about the report format, see Overview.

The Application Statistics report includes these statistics for each listed application, traffic direction, and the time period you specify.

Data series	Description
Average bps	Displays the average data activity in all flows of an application in bits per second. The minimum sample granularity is 5 minutes.
Per Flow Average bps	Displays the average trended throughput in all traffic flows of an application in bits per second. This data series indicates how bandwidth intensive an application is per user or flow. RiOS calculates the WAN average at each data point by taking the number of bytes transferred, converting that to bits, and then dividing by the granularity. For instance, if the system reports 100 bytes for a data point with a 10-second granularity, RiOS calculates: 100 bytes * 8 bits/byte / 10 seconds = 80 bps This calculation means that 80 bps was the average throughput over that 10-second period.
Peak bps	Displays the peak data activity in bits per second. For larger granularity data points, this represents the largest 5 minute average within. For 5 minutes, this is the same as the average.
Per flow Peak bps	Displays the peak trended data activity per traffic flow in bits per second. This peak is the largest per flow 5-minute bps within a larger sample.

This report displays applications within their protocol hierarchy. For example, Facebook appears as TCP > HTTP > Facebook.

This report lists unrecognized applications by their server port. For example, TCP > Unknown (port 5001).

What this report tells you

The Application Statistics report answers this question:

•How much bandwidth is a particular application using?

About report graphs

While viewing the application statistics in a graph, use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the Application Statistics report

1. Choose Reports > Networking: Application Statistics to display the Application Statistics page.

2. Click View graphs of the applications selected below to switch from a tabular display to a graph.

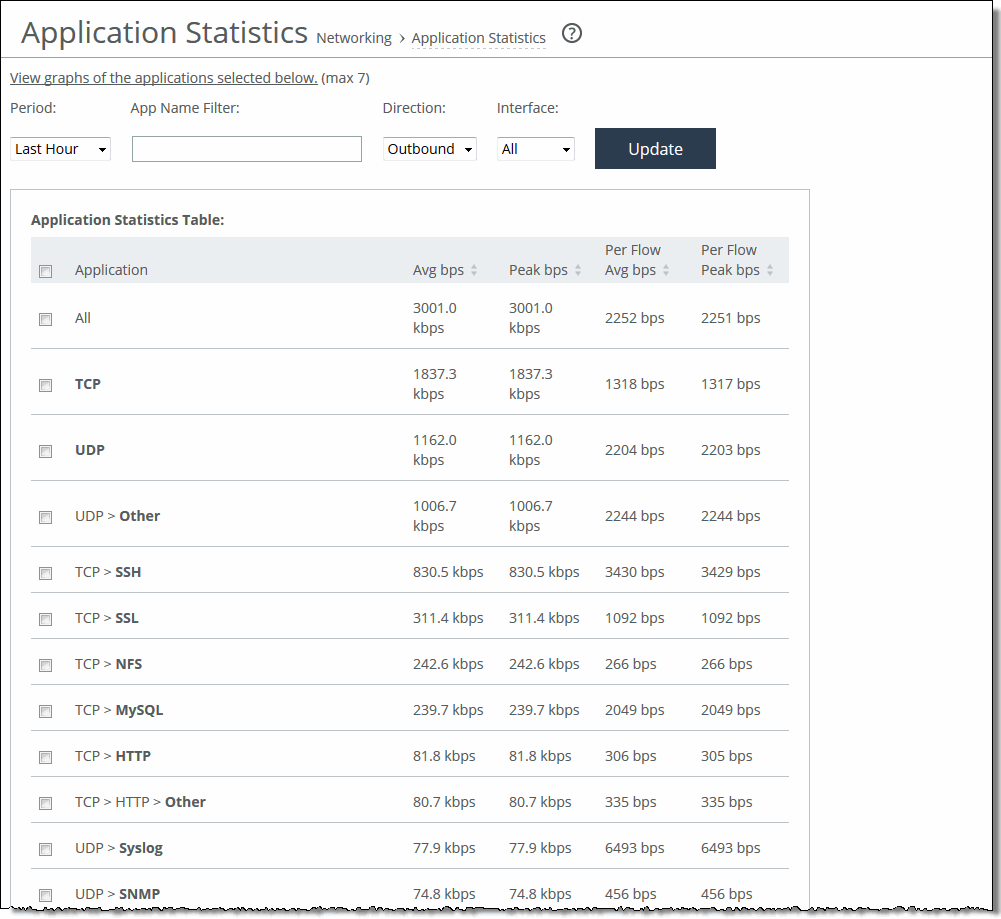

Application Statistics page

3. Use the controls to change the report display as described in this table.

Control	Description
Period	Select a period of Last 5 Minutes, Last Hour, Last Day, Last Week, Last Month, or Custom from the drop-down list. For Custom, enter the Start Time and End Time and click Go. Use the format YYYY/MM/DD HH:MM:SS.
App Name Filter	Click a protocol or application name (for example, TCP, LDAP, SharePoint) to show only the selection. You can select only one filter at a time. For example, if the report is filtering on UDP and you click TCP, the report displays all TCP entries and clears the UDP filter.
Direction	Select the traffic direction from the drop-down list. The default is outbound LAN > WAN traffic.
Interface	Select an interface from the drop-down list. The default is all WAN and primary interfaces.
Update	Click to update the chart without updating the application selection.

Viewing Application Visibility reports

The Application Visibility report summarizes the traffic flowing through a SteelHead classified by the application for the time period specified. This report provides application level visibility into layer-7 and shows the application dynamics for pass-through and optimized traffic.

You must enable application visibility on the Networking > Network Services: Flow Statistics page before the Application Visibility report can gather and display statistics. Application Visibility is enabled by default. For details, see Configuring flow statistics.

For details about the report format, see Overview.

This report doesn’t include IPv6 traffic.

The Application Visibility report includes these statistics for each listed application, traffic direction, and the time period you specify.

Data series	Description
App Throughput	Displays the throughput for all traffic flows in bits per second. The minimum sample granularity is 5 minutes. Throughput Peak - Hover the mouse over the data series to display the peak data activity in bits per second. For larger granularity data points, this represents the largest 5 minute average within. For 5 minutes, this is the same as the average. Throughput Average - Hover the mouse over the data series to display the average trended throughput for all traffic flows in kbps.
Per-Flow Throughput	Displays the throughput per traffic flow in bits-per-second. Per-Flow Peak - Hover the mouse over the data series to display the peak trended data activity per traffic flow in bits per second. This peak is the largest per flow 5-minute bps within a larger sample. Per-Flow Average - Hover the mouse over the data series to display the average trended throughput in all traffic flows of an application in bits per second. This data series indicates how bandwidth-intensive an application is per user or flow. RiOS calculates the WAN average at each data point by taking the number of bytes transferred, converting that to bits, and then dividing by the granularity. For instance, if the system reports 100 bytes for a data point with a 10-second granularity, RiOS calculates: 100 bytes * 8 bits/byte / 10 seconds = 80 bps This calculation means that 80 bps was the average throughput over that 10-second period.

The navigator shadows the Per-flow throughput series.

What this report tells you

The Application Visibility report answers this question:

•How much bandwidth is a particular application using?

•What’s the inbound (WAN to LAN) and outbound (LAN to WAN) throughput for each application for a given time range?

•What are the average and peak throughputs for all flows of an application, or per flow?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the Application Visibility report

1. Choose Reports > Networking: Application Visibility to display the Application Visibility page.

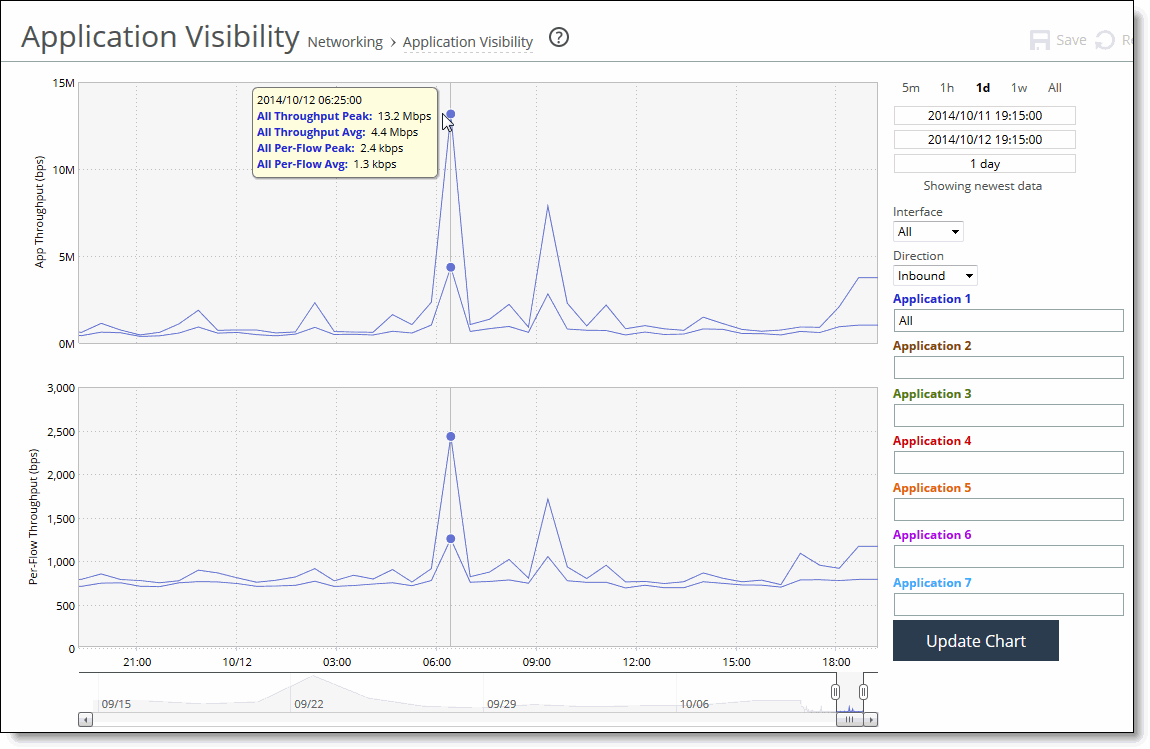

Application Visibility page

2. Use the controls to change the report display as described in this table.

Control	Description
Time interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Interface	Select an interface from the drop-down list. The default is all interfaces.
Direction	Select the traffic direction from the drop-down list. The default is outbound LAN > WAN traffic.
Application Name	Type the first characters in the application name. When the application name and definition appears, select it from the list. You can select up to seven applications. Click Update Chart to update the chart without changing the application selection.

Viewing Interface Counter reports

The Interface Counters report summarizes the statistics for the interfaces. It also displays the IP address, speed, duplex, MAC address, and current status of each interface.

This report includes interfaces configured with IPv6 addresses.

For automatically negotiated speed and duplex settings, the Interface Counters report displays the speed at which they’re negotiated.

Interface statistics display the data accumulated since the last reboot.

The Interface Counters report displays the statistics described in this table.

Column	Description
Interface	LAN - Displays statistics for the LAN interface. WAN - Displays statistics for the WAN interface. Primary - Displays statistics for the primary interface. Aux - Displays statistics for the auxiliary interface. Inpath - Displays statistics for the in-path interface.
IP	Displays the IP address (if application) for the interface.
Ethernet	Displays the MAC address, speed, and duplex setting for interface. Use this information to troubleshoot speed and duplex problems. Make sure the speed for the SteelHead matches the WAN or LAN interfaces. We recommend setting the speed to 100 and duplex to full.
Link	Displays true or false to indicate whether the link is up or down.
Receive Packets	Displays the total number of packets, packets discarded, errors encountered, packets overrun, frames sent, and multicast packets sent.
Transmit Packets	Displays the total number of packets, packets discarded, errors encountered, packets overrun, carriers used, and collisions encountered.

If you have multiple dual port, four-port, or six-port bypass cards installed, the Reports > Networking: Interface Counters report displays the interface statistics for each LAN and WAN port.

What this report tells you

The Interface Counters report answers these questions:

•How many packets is the appliance transmitting or receiving?

•Are there any errors occurring during the packet transmissions?

•What’s the current status of the interface?

To view interface counters

•Choose Reports > Networking: Interface Counters to display the Interface Counters page.

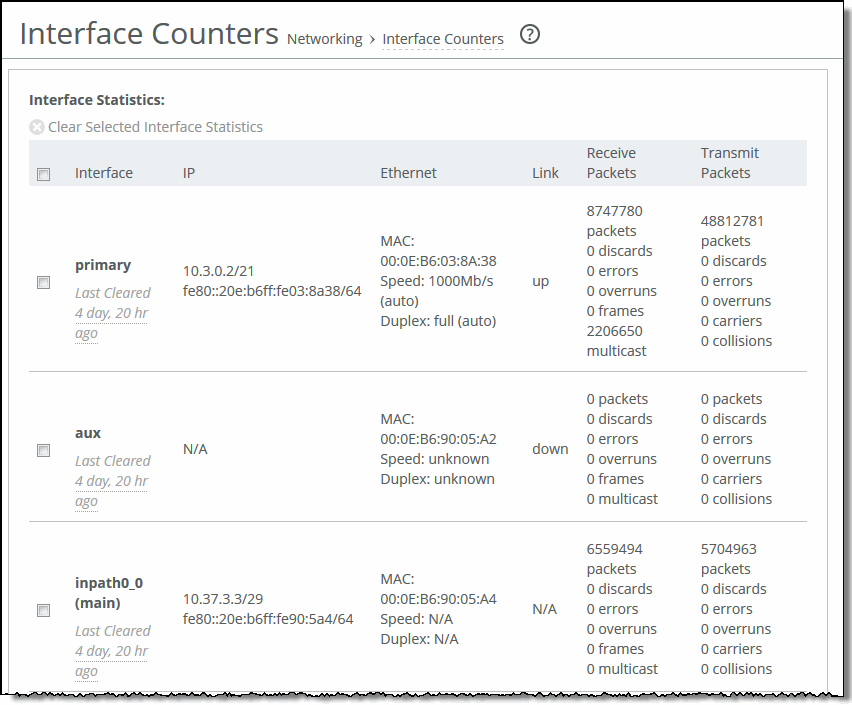

Interface Counters page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing TCP Statistics reports

The TCP Statistics report summarizes TCP statistics for the appliance.

The TCP Statistics report contains this table of statistics that summarize TCP activity.

Packet Type	Description
Packets Received	Displays the total packets received.
Packets Sent	Displays the total TCP packets sent.
Packets Retransmitted	Displays the total TCP packets retransmitted.
Packets Fast Retransmitted	Displays the total TCP packets fast retransmitted. Fast retransmit is an enhancement to TCP which reduces the time a sender waits before retransmitting a lost segment. If an acknowledgment isn’t received for a particular segment within a specified time (a function of the estimated round-trip delay time), the sender assumes the segment was lost in the network, and retransmits the segment.
Time-outs	Displays the number of time-outs.
Loss Events	Displays the total number of loss events.

What this report tells you

The TCP Statistics report answers these questions:

•How many TCP packets have been sent and received?

•How many TCP packets have been retransmitted?

•How many time-outs have occurred?

•How many loss events have occurred?

To view the TCP Statistics report

•Choose Reports > Networking: TCP Statistics to display the TCP Statistics page.

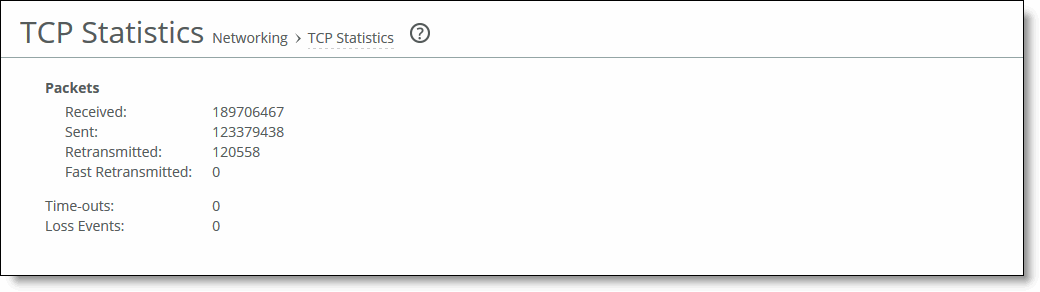

TCP Statistics page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing Latency Detected Peers reports

The Latency Detected Peers report displays the connections that are optimized and the connections that are passed through due to latency detection for peers of the appliance.

You can view the following information about peer appliances with low-latency connections.

Field	Description
Peer IP / Hostname	Displays the hostname or IP address of the latency-detected peer appliance.
Latency	Displays the amount of latency between the selected appliance and the peer in milliseconds.
Cumulative Optimized Connections	Displays the number of optimized connections between the selected appliance and the peer.
Cumulative Passthrough Connections	Displays the number of passthrough connections between the selected appliance and the peer.
Current Peer State	Displays the state of the peer ‑ Optimized or Passthrough ‑ based on the current latency between the selected appliance and the peer.

What this report tells you

The Latency Detected Peers report answers these questions:

•What latency is detected between peers?

•How many optimized connections exist for those peers?

•How many passthrough connections exist for those peers?

•What is the current peer status?

To view the Latency Detected Peers report

•Choose Reports > Networking: Latency Detected Peers to display the Latency Detected Peers page.

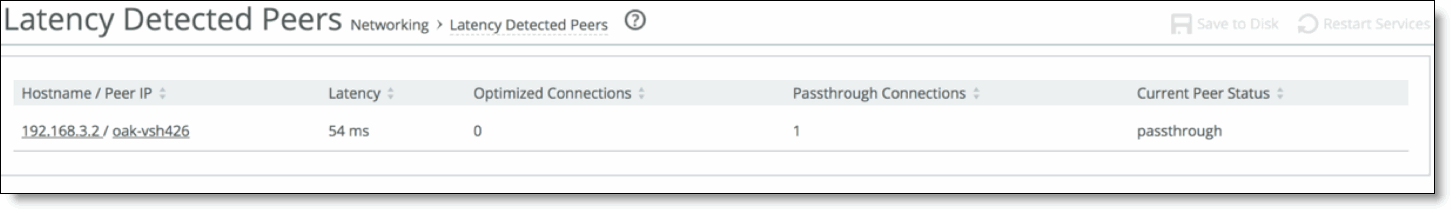

Latency Detected Peers page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing Optimized Throughput reports

The Optimized Throughput report summarizes the throughput for the port, traffic direction, and time period specified.

For details about the report format, see Overview.

You can view optimization statistics for SaaS applications. This report lists the optimized traffic by SaaS application instead of by port number, and the ID for the SaaS application is listed in the Port column. To configure SaaS applications for optimization by the SteelHead, see Configuring the Legacy Cloud Accelerator and Activating SaaS applications.

SaaS application statistics are not included with the overall statistics for port 443 and port 80.

The Optimized Throughput report includes LAN and WAN link throughput graphs that include these statistics describing data activity for the port, traffic direction, and the time period you specify.

Data series	Description
LAN Peak	Displays the peak data activity.
LAN P95	Displays the 95th percentile for data activity. The 95th percentile is calculated by taking the peak of the lower 95 percent of inbound and outbound throughput samples.
LAN Average	Displays the average throughput. RiOS calculates the LAN average at each data point by taking the number of bytes transferred, converting that to bits, and then dividing by the granularity. For instance, if the system reports 100 bytes for a data point with a 10-second granularity, RiOS calculates: 100 bytes * 8 bits/byte / 10 seconds = 80 bps This calculation means that 80 bps was the average throughput over that 10-second period. The average that appears below the LAN Average is an average of all displayed averages.
WAN Peak	Displays the peak data activity.
WAN P95	Displays the 95th percentile for data activity. The 95th percentile is calculated by taking the peak of the lower 95 percent of inbound and outbound throughput samples.
WAN Average	Displays the average throughput. RiOS calculates the WAN average at each data point by taking the number of bytes transferred, converting that to bits, and then dividing by the granularity. For instance, if the system reports 100 bytes for a data point with a 10-second granularity, RiOS calculates: 100 bytes * 8 bits/byte / 10 seconds = 80 bps This calculation means that 80 bps was the average throughput over that 10-second period. The average that appears below the WAN Average is an average of all displayed averages.

The navigator shadows the WAN Peak series.

What this report tells you

The Optimized Throughput report answers these questions:

•What was the average WAN and LAN throughput?

•What was the peak WAN and LAN throughput?

•Which SaaS applications are being optimized? (RiOS 9.5 and later)

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

The Riverbed system reports on performance for periods up to one month. However, due to performance and disk space considerations, data representation in reports for periods longer than the last 5 minutes are interpolated from aggregate data points. The Optimized Throughput report displays these data granularities:

•Last 1 hour's worth of data is available at 10-second granularity.

•Last 1 day's worth of data is available at 5-minute granularity.

•Last 1 week's worth of data is available at 1-hour granularity.

•Last 1 month's worth of data is available at 2-hour granularity.

To view the Optimized Throughput report

1. Choose Reports > Optimization: Optimized Throughput to display the Optimized Throughput page.

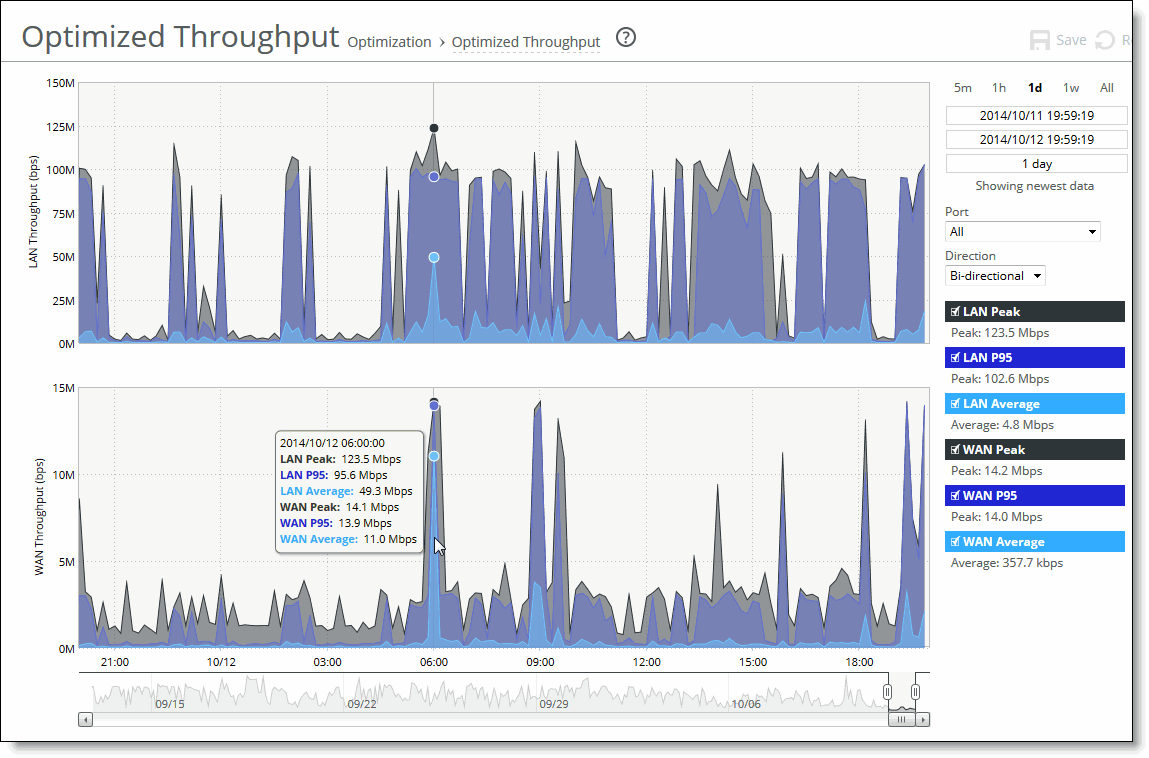

Optimized Throughput page

Optimized Throughput page with drop-down list showing SaaS applications

2. Use the controls to change the display as described in this table.

Control	Description
Time interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. Because the system aggregates data on the hour, request hourly time intervals. For example, setting a time interval to 08:30:00 to 09:30:00 from 2 days ago doesn’t create a data display, whereas setting a time interval to 08:00:00 to 09:00:00 from 2 days ago will display data. When you request a custom time interval to view data beyond the aggregated granularity, the data is not visible because the system is no longer storing the data. For example, these custom time intervals don’t return data because the system automatically aggregates data older than 7 days into 2-hour data points: •Setting a 1-hour time period that occurred 2 weeks ago. •Setting a 75-minute time period that occurred more than 1 week ago. You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Direction	Select a traffic direction from the drop-down list: • Bi-Directional - traffic flowing in both directions • WAN to LAN - inbound traffic flowing from the WAN to the LAN • LAN to WAN - outbound traffic flowing from the LAN to the WAN
Port	Select a port or All to display all of the TCP ports on which the SteelHead has seen traffic. The list appends the port name to the number where available. If your SteelHead appliance is SaaS-enabled, select the SaaS application from the drop-down list. To see the definition of the SaaS application (for example, SFDC in the drop-down list refers to Salesforce.com), log in to the Riverbed Cloud Portal and click Cloud Accelerator. The application names and acronyms are listed in the SaaS Services Summary pane.

Viewing Bandwidth Optimization reports

The Bandwidth Optimization report summarizes the overall inbound and outbound bandwidth improvements on your network. You can create reports according to the time period, port, and traffic direction of your choice.

SaaS application statistics are not included with the overall statistics for port 443 and port 80.

For details about the report format, see Overview.

The Bandwidth Optimization report includes these statistics describing bandwidth activity for the time period you specify.

Data series	Description
Data Reduction %	Displays the peak and total decrease of data transmitted over the WAN, according to this calculation: (Data In – Data Out)/(Data In) Displays the capacity increase x-factor below the peak and total data reduction percentages.
WAN and LAN Throughput	Depending on which direction you select, specifies one of these traffic flows: •Bi-Directional - traffic flowing in both directions •WAN-to-LAN - inbound traffic flowing from the WAN to the LAN •LAN-to-WAN - outbound traffic flowing from the LAN to the WAN

The navigator shadows the data reduction series.

What this report tells you

The Bandwidth Optimization report answers these questions:

•How much data reduction has occurred?

•How much data was removed from the WAN link?

•How much data was sent/received on the LAN/WAN ports?

•Which SaaS applications are being optimized? (RiOS 9.5 and later)

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled with a granularity of 5 minutes for the day, 1 hour for the last week, and 2 hours for the rest of the month.

To view a Bandwidth Optimization report

1. Choose Reports > Optimization: Bandwidth Optimization to display the Bandwidth Optimization page.

Bandwidth Optimization page

Bandwidth Optimization page with drop-down list showing SaaS applications

2. Use the controls to customize the report as described in this table.

Control	Description
Time interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 week (1w), All, or type a custom date. All includes statistics for the past 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. Because the system aggregates data on the hour, request hourly time intervals. For example, setting a time interval to 08:30:00 to 09:30:00 from 2 days ago doesn’t create a data display, whereas setting a time interval to 08:00:00 to 09:00:00 from 2 days ago will display data. When you request a custom time interval to view data beyond the aggregated granularity, the data is not visible because the system is no longer storing the data. For example, these custom time intervals don’t return data because the system automatically aggregates data older than 7 days into 2-hour data points: •Setting a 1-hour time period that occurred 2 weeks ago. •Setting a 75-minute time period that occurred more than 1 week ago. You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Port	Select a port or All to select all ports from the drop-down list. If your SteelHead appliance is SaaS-enabled, select the SaaS application from the drop-down list. To see the definition of the SaaS application (for example, SFDC in the drop-down list refers to Salesforce.com), log in to the Riverbed Cloud Portal and click Cloud Accelerator. The application names and acronyms are listed in the SaaS Services Summary pane.
Direction	Select a traffic direction (Bi-Directional, WAN to LAN, or LAN to WAN) from the drop-down list.

Viewing Peer reports

The Peers report summarizes the peer SteelHeads. You can view peer SteelHead Mobile appliances as well. The Peers report contains this table of statistics that summarize connection peer activity.

Column	Description
Name	Specifies the name of the peer appliance.
IP Address	Specifies the IP address of the peer appliance.
Model	Specifies the appliance model.
Version	Specifies the appliance version.
Licenses	Specifies the current appliance licenses.

The report includes both connected and unconnected peers. The connected icon appears next to a connected peer. A dimmed icon indicates that the peer is disconnected.

For details about configuring peering, see Enabling peering and configuring peering rules.

What this report tells you

The Peers report answers these questions:

•How many peers are connected to the SteelHead?

•How many peers are disconnected from the SteelHead?

To view the Peers report

1. Choose Reports > Optimization: Peers to display the Peers page.

2. To view only connected peers, select the Hide Disconnected Peers check box. To view only SteelHead peers and hide the SteelHead Mobile peers, select the Hide SteelCentral Controller for SteelHead Mobile Peers check box.

Select a report column heading to sort the column in ascending or descending order.

To open the Management Console for a peer, click the peer name or IP address.

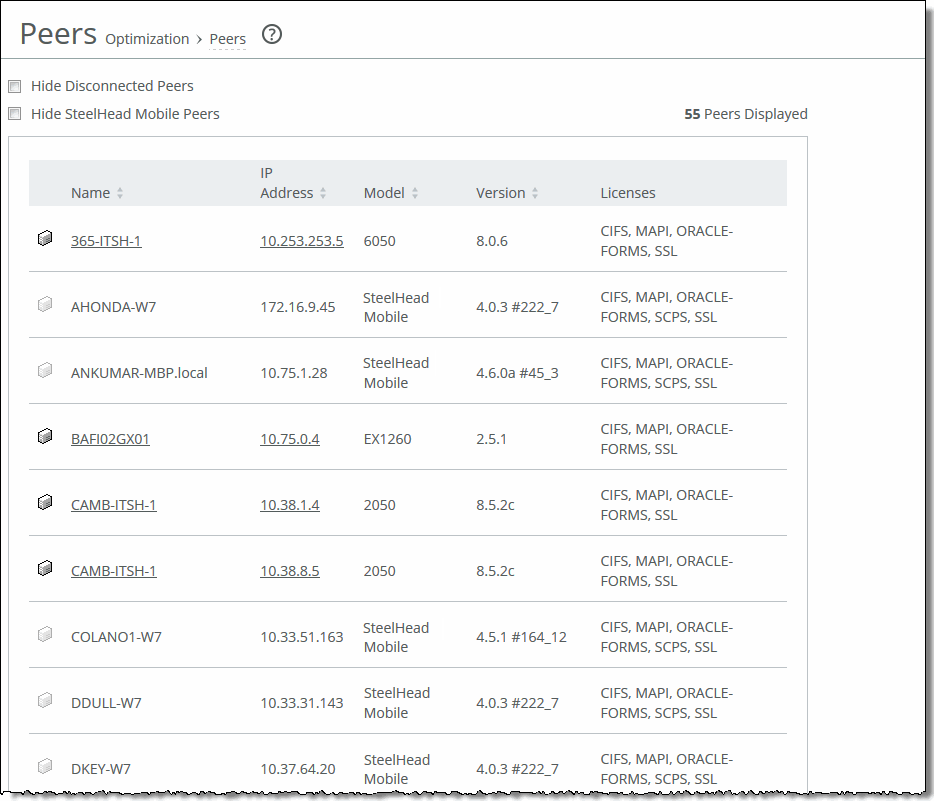

Peers page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing CIFS Prepopulation Share Log reports

The prepopulation share logs provide detail regarding the initial copy of the share or the last share synchronization.

To view CIFS prepopulation share logs

1. Choose Optimization > Protocols: CIFS Prepopulation to display the CIFS Prepopulation page.

2. Select the remote path for the share.

3. Select Operations.

4. Click Initial Sync, Recent Syncs, or Last Dry Run. The initial copy, recent sync, or last dry run log appears.

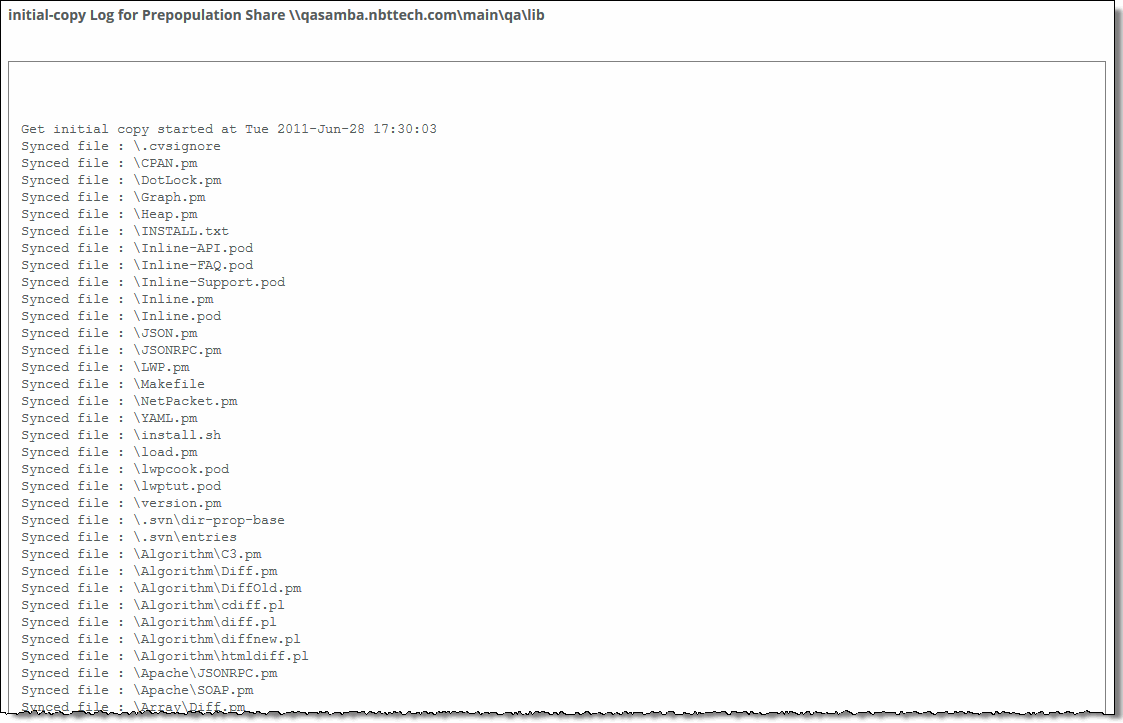

CIFS Prepopulation Share Initial Copy log

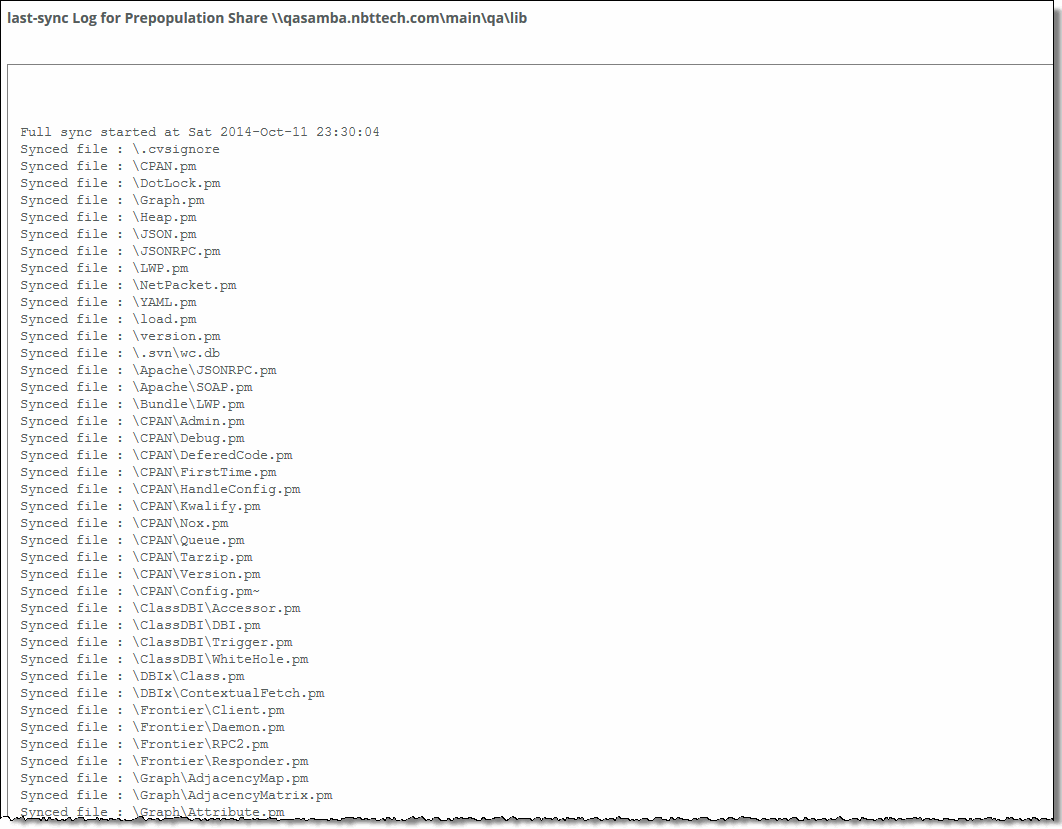

CIFS Prepopulation Share Sync log

The logs contain these statistics that summarize prepopulation share activity.

Log File	Description
Recent syncs	Contains logs for the last few share synchronizations. The log includes how many directories, files, and bytes were received and how long it took to receive them. The log also lists any errors or deletions.
Initial sync	Includes how many directories, files, and bytes were received initially and how long it took to receive them. The log also lists any errors or deletions.
Last dry run	Includes a log of what would have been synchronized with the current share configuration, without actually synchronizing anything.

To print the log, choose File > Print in your web browser to open the Print dialog box.

Related topic

•Configuring SnapMirror optimization

Viewing SSL reports

The SSL report displays the SSL requested and established connection rate for the time period specified.

For details about the report format, see Overview.

SSL reports contain the information listed in this table.

Data Series	Description
Requested Connection Rate	Displays the rate of requested SSL connections.
Established Connection Rate	Displays the rate established SSL connections.

The navigator shadows the requested connection rate series.

What this report tells you

The SSL report answers these questions:

•What’s the rate of established SSL connections?

•What’s the rate of connection requested SSL connections?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the SSL report

1. Choose Reports > Optimization: SSL to display the SSL page.

SSL page

2. Use the controls to customize the report as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing SharePoint reports

The SharePoint report displays the FPSE and WebDAV performance improvements for the time period specified.

Before you can view these statistics, on the client-side SteelHead, choose Optimization > Protocols: HTTP, select Enable Per-Host Auto Configuration, select FPSE and WebDAV and click Apply.

For details about the report format, see Overview.

SharePoint reports contain the information listed in this table.

Data Series	Description
Request Rate	Select to display the total number of FPSE and WebDAV requests per second.
FPSE Metadata Cache Hits	Select to display the Microsoft Front Page Server Extensions (FPSE) metadata cache hits per second. Shows how many FPSE requests were served locally, resulting in performance improvements. SSL connections and files smaller than 5 MB can experience significant performance improvements. Microsoft Office 2007/2010/2013 clients use FPSE when communicating with SharePoint 2007/2010 servers.
WebDAV Metadata Cache Hits	Select to display the Microsoft Web Distributed Authoring and Versioning (WebDAV) metadata cache hits per second. RiOS predicts and prefetches WebDAV responses, which saves multiple round-trips and makes browsing the SharePoint file repository more responsive.

The navigator shadows the request rate series.

What this report tells you

The SharePoint report answers this question:

•How many FPSE and WebDAV responses were served locally?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the SharePoint report

1. Choose Reports > Optimization: SharePoint to display the SharePoint page.

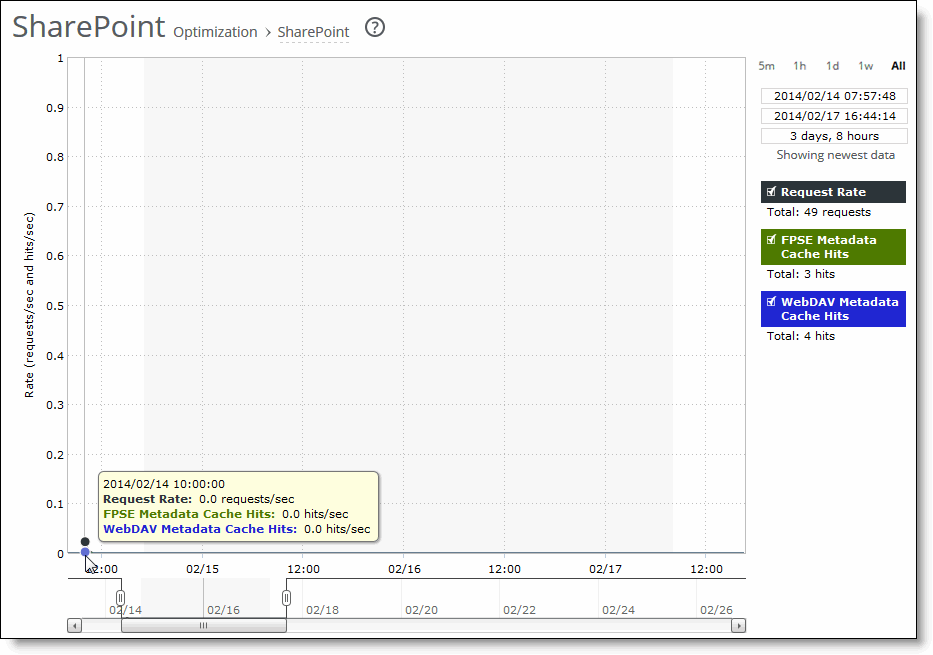

SharePoint page

2. Use the controls to customize the report as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing Data Store Status reports

The Data Store Status report summarizes the current status and state of the RiOS data store synchronization process.

If you have enabled data store synchronization, this report summarizes the state of the replication process. For details, see Synchronizing peer RiOS data stores.

The Data Store Status report contains these statistics that summarize data store activity.

Data	Description
Synchronization Connection	Indicates the status of the connection between the synchronized SteelHeads.
Synchronization Catch-Up	Indicates the status of transferring data between the synchronized SteelHeads. Catch-Up is used for synchronizing data that was not synchronized during the Keep-Up phase.
Synchronization Keep-Up	Indicates the status of transferring new incoming data between the synchronized SteelHeads.
Data Store Percentage Used (Since Last Clear)	Displays the percentage of the RiOS data store that is used.

What this report tells you

The Data Store Status report answers these questions:

•Is the synchronization connection active?

•Is the SteelHead in the catch-up or keep-up phase of RiOS data store synchronization?

•What percentage of the RiOS data store is unused?

To view the Data Store Status report

1. Choose Reports > Optimization: Data Store Status to display the Data Store Status page.

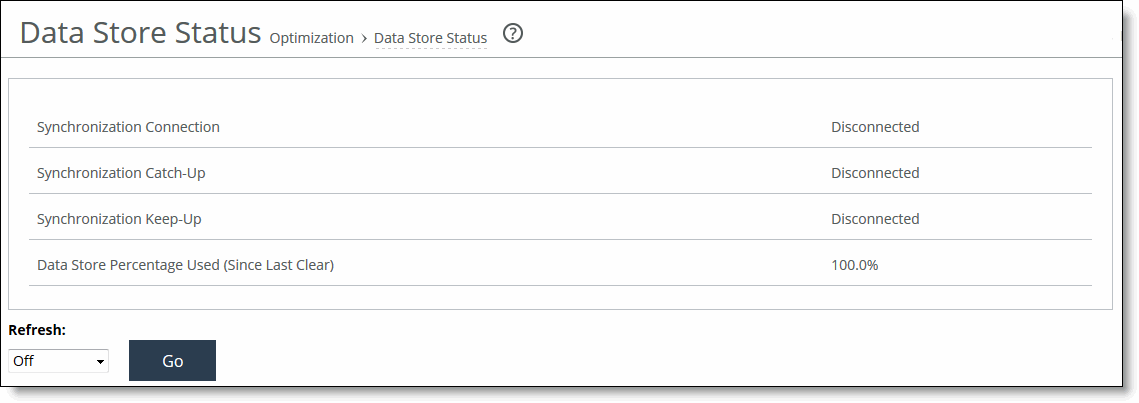

Data Store Status page

2. Use the controls to customize the report as described in this table.

Control	Description
Refresh	Select a refresh rate from the drop-down list: •To refresh the report every 10 seconds, select 10 seconds. •To refresh the report every 30 seconds, select 30 seconds. •To refresh the report every 60 seconds, select 60 seconds. •To disable refresh, click Off.
Go	Displays the report.

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing Data Store SDR-Adaptive reports

The Data Store SDR-Adaptive report summarizes:

•how much adaptive compression is occurring in the RiOS data store using legacy mode. The report combines the percentages due to both local and remote adaptive compression (as signaled by the peers).

•the percentage of the traffic, in bytes, that is adapted to in-memory-only (or transient), compared to the total SDR traffic (SDR-adaptive mode).

For details about the report format, see Overview.

The report contains these statistics that summarize RiOS data store adaptive compression activity, shown as a percent of total SDR data.

You must enable the SDR-Adaptive setting before creating this report. For details, see Setting an adaptive streamlining mode.

Data series	Description
Compression-Only Due To Disk/CPU Pressure	Displays the adaptive compression occurring due to disk/CPU pressure.
Compression-Only Due To In-Path Rule	Displays the adaptive compression occurring due to the in-path rule.
In-Memory SDR Due To Disk/CPU Pressure	Displays the in-memory SDR due to disk/CPU pressure.
In-Memory SDR Due To In-Path Rule	Displays the maximum in-memory SDR due to the in-path rule.

The navigator shadows the compression-only due to disk/CPU pressure series.

What this report tells you

The Data Store SDR-Adaptive report answers this question:

•What’s the relative adaptive compression when SDR-Adaptive is enabled at various times of the day?

To view the Data Store SDR-Adaptive report

1. Choose Reports > Optimization: Data Store SDR-Adaptive to display the Data Store SDR-Adaptive page.

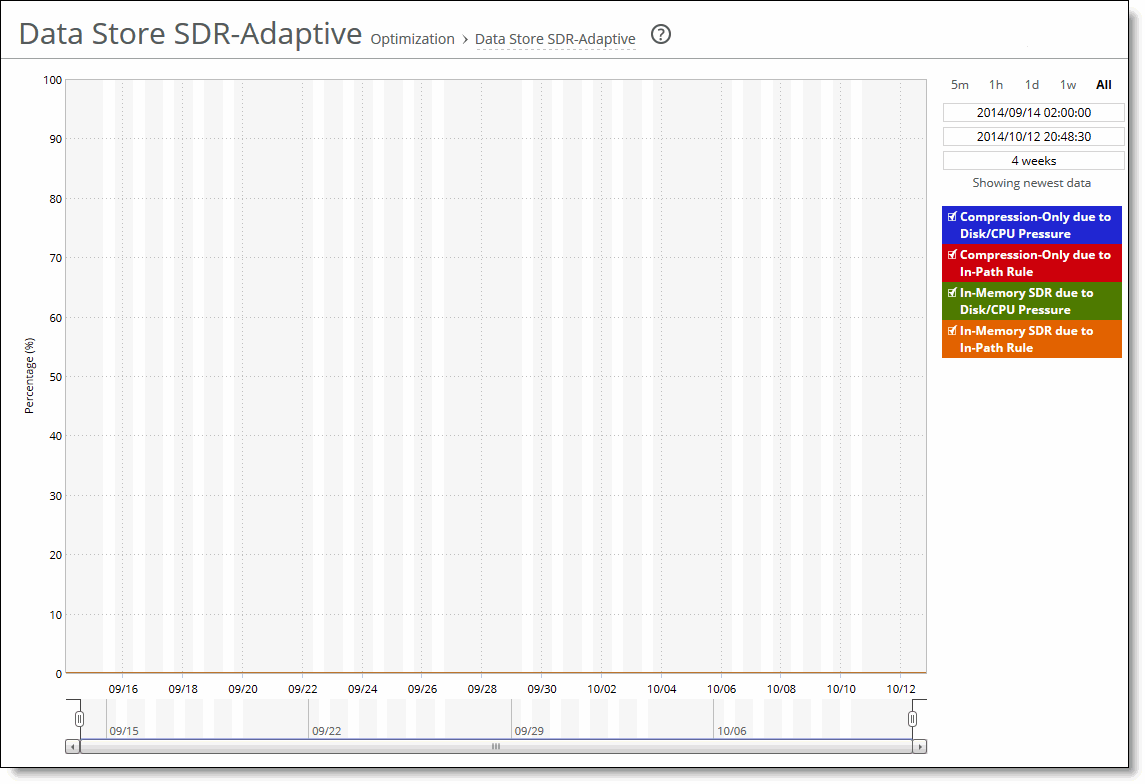

Data Store SDR-Adaptive page

2. Use the controls to customize the report as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can view the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing Data Store Disk Load reports

The Data Store Disk Load report summarizes the RiOS data store disk load due to SDR only as related to the benchmarked capacity of the RiOS data store. Consider any value under 90 as healthy. Any value higher than a sustained load over 90 is considered high and might indicate disk pressure. A red line with shading appears at the top of the report to indicate the threshold of 90 and above. When a value is consistently higher than 90, contact Riverbed Support for guidance on reconfiguring the RiOS data store to alleviate disk pressure.

For details about the report format, see Overview.

The report contains this statistic that summarizes the RiOS data store disk load.

Data series	Description
Disk Load	Displays the RiOS data store disk load.

What this report tells you

The Data Store Disk Load report answers these questions:

•Is there any indication of disk pressure?

•What’s the disk load at different times of the day?

To view the Data Store Disk Load report

Choose Reports > Optimization: Data Store Disk Load to display the Data Store Disk Load page.

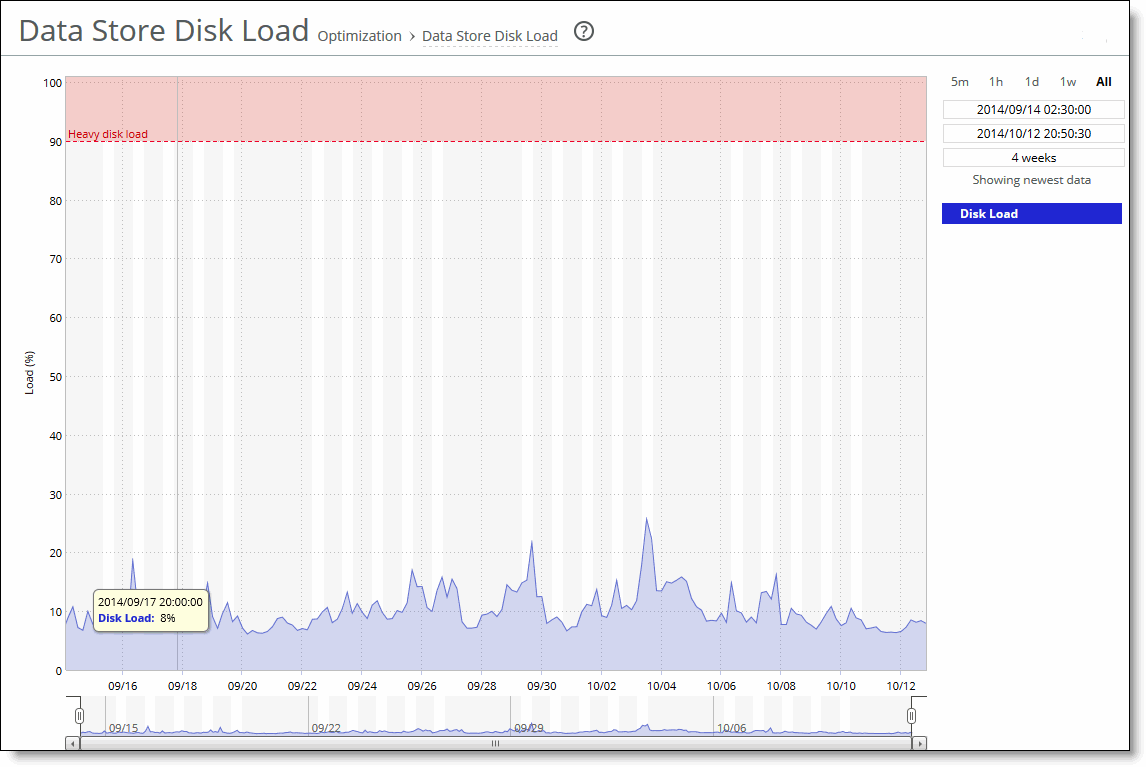

Data Store Disk Load page

Viewing Alarm Status reports

The Alarm Status report provides status for the SteelHead alarms.

The SteelHead tracks key hardware and software metrics and alerts you of any potential problems so you can quickly discover and diagnose issues.

RiOS groups certain alarms into top-level categories, such as the SSL Settings alarm. When an alarm triggers, its parent expands to provide more information. For example, the System Disk Full top-level alarm aggregates over multiple partitions. If a specific partition is full, the System Disk Full alarm triggers and the Alarm Status report displays more information regarding which partition caused the alarm to trigger.

The health of an appliance falls into one of these states:

•Needs Attention - Accompanies a healthy state to indicate management-related issues not affecting the ability of the SteelHead to optimize traffic.

•Degraded - The SteelHead is optimizing traffic but the system has detected an issue.

•Admission Control - The SteelHead is optimizing traffic but has reached its connection limit.

•Critical - The SteelHead might or might not be optimizing traffic; you must address a critical issue.

The Alarm Status report includes this alarm information.

Alarm	SteelHead state	Reason
Admission Control	Admission Control	•Connection Limit - Indicates that the system connection limit has been reached. Additional connections are passed through unoptimized. The alarm clears when the SteelHead moves out of this condition. •CPU - Indicates that the SteelHead has entered admission control due to high CPU use. During this event, the SteelHead continues to optimize existing connections, but passes through new connections without optimization. The alarm clears automatically when the CPU usage decreases. •MAPI - Indicates that the total number of MAPI optimized connections has exceeded the maximum admission control threshold. By default, the maximum admission control threshold is 85 percent of the total maximum optimized connection count for the client-side SteelHead. The SteelHead reserves the remaining 15 percent so the MAPI admission control doesn’t affect the other protocols. The 85 percent threshold is applied only to MAPI connections. The alarm clears automatically when the MAPI traffic decreases; however, it can take one minute for the alarm to clear. The system preemptively closes MAPI sessions to reduce the connection count in an attempt to bring the SteelHead out of admission control. RiOS closes MAPI sessions in this order: –MAPI prepopulation connections –MAPI sessions with the largest number of connections –MAPI sessions with the most idle connections –Most recently optimized MAPI sessions or the oldest MAPI session –MAPI sessions exceeding the memory threshold •Memory - Indicates that the appliance has entered admission control due to memory consumption. The appliance is optimizing traffic beyond its rated capability and is unable to handle the amount of traffic passing through the WAN link. During this event, the appliance continues to optimize existing connections, but new connections are passed through without optimization. No other action is necessary as the alarm clears automatically when the traffic decreases. •TCP - Indicates that the appliance has entered admission control due to high TCP memory use. During this event, the appliance continues to optimize existing connections, but new connections are passed through without optimization. The alarm clears automatically when the TCP memory pressure decreases.
Asymmetric Routing	Needs Attention	Indicates that the system is experiencing asymmetric traffic. Indicates OK if the system isn’t experiencing asymmetric traffic. In addition, any asymmetric traffic is passed through, and the route appears in the Asymmetric Routing table. For details about the Asymmetric Routing table, see Configuring asymmetric routing features.
Connection Forwarding	Degraded	Indicates that the system has detected a problem with a connection-forwarding neighbor. The connection-forwarding alarms are inclusive of all connection-forwarding neighbors. For example, if a SteelHead has three neighbors, the alarm triggers if any one of the neighbors is in error. In the same way, the alarm clears only when all three neighbors are no longer in error. •Cluster Neighbor Incompatible - Indicates that a connection-forwarding neighbor in a SteelHead Interceptor cluster has path selection enabled while path selection isn’t enabled on another appliance in the cluster. This alarm can also indicate that a connection-forwarding neighbor is running a RiOS version that is incompatible with IPv6. Neighbors must be running RiOS 8.5 or later. The SteelHead neighbors pass through IPv6 connections when this incompatibility is detected. •Multiple Interface - Indicates that the connection to an appliance in a connection forwarding cluster has been lost or disconnected due to a configuration incompatibility. •Single Interface - Indicates that the connection to a SteelHead connection-forwarding neighbor is lost. These issues trigger the single connection-forwarding alarm: –The connection-forwarding neighbor has not sent a keepalive message within the time-out period to the neighbor SteelHead(s), indicating that the connection has been lost. –The connection can’t be established with a connection-forwarding neighbor. –The connection has been closed by the connection-forwarding neighbor. –The connection has been lost with the connection-forwarding neighbor due to an error. –The connection has been lost because requests have not been acknowledged by a connection-forwarding neighbor within the set threshold. –The SteelHead has timed out while waiting for an initialization message from a connection-forwarding neighbor. –The amount of latency between connection-forwarding neighbors has exceeded the specified threshold.
CPU Utilization	Degraded	Indicates that the system has reached the CPU threshold for any of the CPUs in the SteelHead. If the system has reached the CPU threshold, check your settings. For details, see Configuring alarm settings. If your alarm thresholds are correct, reboot the SteelHead. For details, see Rebooting and shutting down the SteelHead. Note: If more than 100 MB of data is moved through a SteelHead while performing PFS synchronization, the CPU utilization might become high and result in a CPU alarm. This CPU alarm isn’t cause for concern.
Data Store	Critical	•Corruption - Indicates that the RiOS data store is corrupt or has become incompatible with the current configuration. •Data Store Clean Required - Indicates that you must clear the RiOS data store. To clear the data store, choose Administration > Maintenance: Services and select the Clear Data Store check box before restarting the appliance. Clearing the data store degrades performance until the system repopulates the data. •Encryption Level Mismatch - Indicates a RiOS data store error such as an encryption, header, or format error. •Synchronization Error - Indicates that the RiOS data store synchronization between two SteelHeads has been disrupted and the RiOS data stores are no longer synchronized. For details, see Synchronizing peer RiOS data stores. Resetting the Data Store alarm If a data store alarm was caused by an unintended change to the configuration, you can change the configuration to match the previous RiOS data store settings, and then restart the service without clearing the data store to reset the alarm. Typical configuration changes that require a restart with a clear RiOS data store are enabling the extended peer table or changing the data store encryption type. For details, see Configuring peering and Encrypting the RiOS data store. To clear the RiOS data store of data, choose Administration > Maintenance: Services, select Clear Data Store and click Reboot to reboot the optimization service. For details, see Starting and stopping the optimization service.
Disk Full		Indicates that the system partitions (not the RiOS data store) are full or almost full. For example, RiOS monitors the available space on /var, which is used to hold logs, statistics, system dumps, TCP dumps, and so on. Examine the directory to see if it is storing an excessive amount of snapshots, system dumps, or TCP dumps that you could delete. You could also delete any RiOS images that you no longer use.
Domain Authentication Alert	Needs Attention	Indicates that the system is unable to communicate with the DC, has detected an SMB signing error, or delegation has failed. CIFS-signed and Encrypted-MAPI traffic is passed through without optimization. For details, see Configuring CIFS optimization.
Domain Join Error	Degraded	Indicates an attempt to join a Windows domain has failed. For details, see Troubleshooting a domain join failure.
Flash Protection Failure	Critical	Indicates that the USB flash drive has not been backed up because there isn’t enough available space in the /var filesystem directory. Examine the /var directory to see if it is storing an excessive amount of snapshots, system dumps, or TCP dumps that you could delete. You could also delete any RiOS images that you no longer use.
Hardware	Either Critical or Degraded, depending on the state	•Disk Error - Indicates that one or more disks is offline. To see which disk is offline, enter this CLI command from the system prompt: show raid diagram •Fan Error - Indicates that a fan is failing or has failed and must be replaced. •Flash Error - Indicates an error with the flash drive hardware. At times, the USB flash drive that holds the system images might become unresponsive; the SteelHead continues to function normally. When this error triggers you can’t perform a software upgrade, as the SteelHead is unable to write a new upgrade image to the flash drive without first power cycling the system. To reboot the appliance, go to the Administration > Maintenance: Reboot/Shutdown page or enter the CLI reload command to automatically power cycle the SteelHead and restore the flash drive to its proper function. On desktop SteelHead x50 and x55 models, you must physically power cycle the appliance (push the power button or pull the power cord). •IPMI - Indicates an Intelligent Platform Management Interface (IPMI) event (not supported on all appliance models). This alarm triggers when there has been a physical security intrusion. These events trigger this alarm: –chassis intrusion (physical opening and closing of the appliance case) –memory errors (correctable or uncorrectable ECC memory errors) –hard drive faults or predictive failures –power supply status or predictive failure By default, this alarm is enabled. •Management Disk Size Error - Indicates that the size of the management disk is too small for the SteelHead (virtual edition) model. This condition can occur when upgrading a SteelHead (virtual edition) to a VCX model without first expanding the management disk to a size that supports the higher end models. To clear the alarm, increase the size of the management disk. •Memory Error - Indicates a memory error (for example, when a system memory stick fails).
		• Other Hardware Error - Indicates one of these hardware issues: –the SteelHead doesn’t have enough disk, memory, CPU cores, or NIC cards to support the current configuration. –the SteelHead is using a memory Dual In-line Memory Module (DIMM), a hard disk, or a NIC that isn’t qualified by Riverbed. •DIMMs are plugged into the SteelHead but RiOS can’t recognize them because: –a DIMM is in the wrong slot. You must plug DIMMs into the black slots first and then use the blue slots when all of the black slots are in use. —or— –a DIMM is broken and you must replace it. –other hardware issues exist. By default, this alarm is enabled. •Safety Valve: disk access exceeds response times - Indicates that the SteelHead is experiencing increased disk access time and has started the safety valve disk bypass mechanism that switches connections into SDR-A. SDR-A performs data reduction in memory until the disk access latency falls below the safety valve activation threshold. Disk access time can exceed the safety valve activation threshold for several reasons: the SteelHead might be undersized for the amount of traffic it is required to optimize, a larger than usual amount of traffic is being optimized temporarily, or a disk is experiencing hardware issues such as sector errors, failing mechanicals, or RAID disk rebuilding. You configure the safety valve activation threshold and timeout using CLI commands: datastore safety-valve threshold datastore safety-value timeout For details, see the Riverbed Command-Line Interface Reference Manual. To clear the alarm, restart the SteelHead. •Power Supply - Indicates an inserted power supply cord doesn’t have power, as opposed to a power supply slot with no power supply cord inserted. •RAID - Indicates an error with the RAID array (for example, missing drives, pulled drives, drive failures, and drive rebuilds). An audible alarm might also sound. To see if a disk has failed, enter this CLI command from the system prompt: show raid diagram For drive rebuilds, if a drive is removed and then reinserted, the alarm continues to be triggered until the rebuild is complete. Rebuilding a disk drive can take 4-6 hours.
Inbound QoS WAN Bandwidth Configuration	Degraded (Needs Attention)	Indicates that the inbound QoS WAN bandwidth for one or more of the interfaces is set incorrectly. You must configure the WAN bandwidth to be less than or equal to the interface bandwidth link rate. This alarm triggers when the system encounters one of these conditions: •An interface is connected and the WAN bandwidth is set higher than its bandwidth link rate: for example, if the bandwidth link rate is 1536 kbps, and the WAN bandwidth is set to 2000 kbps. •A nonzero WAN bandwidth is set and QoS is enabled on an interface that is disconnected; that is, the bandwidth link rate is 0. •A previously disconnected interface is reconnected, and its previously configured WAN bandwidth was set higher than the bandwidth link rate. The Management Console refreshes the alarm message to inform you that the configured WAN bandwidth is set higher than the interface bandwidth link rate. While this alarm appears, the SteelHead puts existing connections into the default class. The alarm clears when you configure the WAN bandwidth to be less than or equal to the bandwidth link rate or reconnect an interface configured with the correct WAN bandwidth. By default, this alarm is enabled.
Licensing	Needs Attention, Degraded, or Critical, depending on the state	Indicates whether your licenses are current. •Appliance Unlicensed - This alarm triggers if the SteelHead a license installed for its currently configured model or feature set. For details about updating licenses, see Managing licenses and model upgrades. •Autolicense Critical Event - This alarm triggers on a SteelHead (virtual edition) appliance when the Riverbed Licensing Portal can’t respond to a license request with valid licenses. The Licensing Portal can’t issue a valid license for one of these reasons: –A newer SteelHead (virtual edition) appliance is already using the token, so you can’t use it on the SteelHead (virtual edition) appliance displaying the critical alarm. Every time the SteelHead (virtual edition) appliance attempts to refetch a license token, the alarm retriggers. –The token has been redeemed too many times. Every time the SteelHead (virtual edition) appliance attempts to refetch a license token, the alarm retriggers. Discontinue use of the other SteelHead (virtual edition) appliance or contact Riverbed Support. •Autolicense Informational Event - This alarm triggers if the Riverbed Licensing Portal has information regarding the licenses for a SteelHead (virtual edition) appliance. For example, the SteelHead (virtual edition) appliance displays this alarm when the portal returns licenses that are associated with a token that has been used on a different SteelHead (virtual edition) appliance. Make sure that any previous SteelHead (virtual edition) appliances that were licensed with that token are no longer running. The alarm clears automatically the next time the SteelHead (virtual edition) appliance fetches the licenses from the Licensing Portal. •Licenses Expired - This alarm triggers if one or more features has at least one license installed, but all of them are expired. •Licenses Expiring - This alarm triggers if the license for one or more features is going to expire within two weeks. Note: The licenses expiring and licenses expired alarms are triggered per feature. For example, if you install two license keys for a feature, LK1-FOO-xxx (expired) and LK1-FOO-yyy (not expired), the alarms don’t trigger, because the feature has one valid license. If the Licenses Expiring alarm triggers, the system status changes to Needs Attention. The Licenses Expired alarm changes the system status to Degraded. Depending on the expiring license, other alarms might trigger simultaneously. For example, if the primary license expires, the Appliance Unlicensed alarm triggers and changes the health to Critical.
Link Duplex	Degraded	Indicates that an interface was not configured for half-duplex negotiation but has negotiated half-duplex mode. Half-duplex significantly limits the optimization service results. The alarm displays which interface is triggering the duplex error. Choose Networking > Networking: Base Interfaces and examine the SteelHead link configuration. Next, examine the peer switch user interface to check its link configuration. If the configuration on one side is different from the other, traffic is sent at different rates on each side, causing many collisions. To troubleshoot, change both interfaces to automatic duplex negotiation. If the interfaces don’t support automatic duplex, configure both ends for full duplex. You can enable or disable the alarm for a specific interface. To disable an alarm, choose Administration: System Settings > Alarms and select or clear the check box next to the link alarm.
Link I/O Errors	Degraded	Indicates that the error rate on an interface has exceeded 0.1 percent while either sending or receiving packets. This threshold is based on the observation that even a small link error rate reduces TCP throughput significantly. A properly configured LAN connection experiences few errors. The alarm clears when the error rate drops below 0.05 percent. You can change the default alarm thresholds by entering the alarm link_io_errors err-threshold <threshold-value> CLI command at the system prompt. For details, see the Riverbed Command-Line Interface Reference Manual. To troubleshoot, try a new cable and a different switch port. Another possible cause is electromagnetic noise nearby. You can enable or disable the alarm for a specific interface. For example, you can disable the alarm for a link after deciding to tolerate the errors. To enable or disable an alarm, choose Administration > System Settings: Alarms and select or clear the check box next to the link name.
Link State	Degraded	Indicates that the system has lost one of its Ethernet links due to an unplugged cable or dead switch port. Check the physical connectivity between the SteelHead and its neighbor device. Investigate this alarm as soon as possible. Depending on what link is down, the system might no longer be optimizing, and a network outage could occur. You can enable or disable the alarm for a specific interface. To enable or disable the alarm, choose Administration > System Settings: Alarms and select or clear the check box next to the link name.
Memory Error	Degraded	Indicates that the system has detected a memory error. A system memory stick might be failing. First, try reseating the memory first. If the problem persists, contact Riverbed Support for an RMA replacement as soon as practically possible.
Memory Paging	Degraded	Indicates that the system has reached the memory paging threshold. If 100 pages are swapped approximately every two hours the SteelHead is functioning properly. If thousands of pages are swapped every few minutes, reboot the SteelHead. For details, see Rebooting and shutting down the SteelHead. If rebooting doesn’t solve the problem, contact Riverbed Support at https://support.riverbed.com.
Neighbor Incompatibility	Degraded	Indicates that the system has encountered an error in reaching a SteelHead configured for connection forwarding. For details, see Configuring connection forwarding features.
Network Bypass	Critical	Indicates that the system is in bypass failover mode. If the SteelHead is in bypass failover mode, restart the optimization service. If restarting the service doesn’t resolve the problem, reboot the SteelHead. If rebooting doesn’t resolve the problem, shut down and restart the SteelHead. For details, see Rebooting and shutting down the SteelHead, and Starting and stopping the optimization service.
NFS V2/V4 Alarm	Degraded	Indicates that the system has detected either NFSv2 or NFSv4 is in use. The SteelHead supports only NFSv3 and passes through all other versions. For details, see Configuring NFS optimization.
Optimization Service	Critical	•Internal Error - The optimization service has encountered a condition that might degrade optimization performance. Go to the Administration > Maintenance: Services page and restart the optimization service. •Unexpected Halt - The optimization service has halted due to a serious software error. See if a system dump was created. If so, retrieve the system dump and contact Riverbed Support immediately. For details, see Viewing logs. •Service Status - The optimization service has encountered an optimization service condition. The message indicates the reason for the condition: –optimization service is not running This message appears after an optimization restart. For more information, review the SteelHead logs. –in-path optimization is not enabled This message appears if an in-path setting is disabled for an in-path SteelHead. For more information, review the SteelHead logs. –optimization service is initializing This message appears after a reboot. The alarm clears. For more information, review the SteelHead logs. –optimization service is not optimizing This message appears after a system crash. For more information, review the SteelHead logs. –optimization service is disabled by user This message appears after entering the CLI command no service enable or shutting down the optimization service from the Management Console. For more information, review the SteelHead logs. –optimization service is restarted by user This message appears after the optimization service is restarted from either the CLI or Management Console. You might want to review the SteelHead logs for more information.
Outbound QoS WAN Bandwidth Configuration	Degraded (Needs Attention)	Indicates that the outbound QoS WAN bandwidth for one or more of the interfaces is set incorrectly. You must configure the WAN bandwidth to be less than or equal to the interface bandwidth link rate. This alarm triggers when the system encounters one of these conditions: •An interface is connected and the WAN bandwidth is set higher than its bandwidth link rate: for example, if the bandwidth link rate is 1536 kbps, and the WAN bandwidth is set to 2000 kbps. •A nonzero WAN bandwidth is set and QoS is enabled on an interface that is disconnected; that is, the bandwidth link rate is 0. •A previously disconnected interface is reconnected, and its previously configured WAN bandwidth was set higher than the bandwidth link rate. The Management Console refreshes the alarm message to inform you that the configured WAN bandwidth is set higher than the interface bandwidth link rate. While this alarm appears, the SteelHead puts existing connections into the default class. The alarm clears when you configure the WAN bandwidth to be less than or equal to the bandwidth link rate or reconnect an interface configured with the correct WAN bandwidth. By default, this alarm is enabled.
Path Selection Path Down	Degraded	Indicates that one of the predefined paths for a connection is unavailable because it has exceeded either the timeout value for path latency or the threshold for observed packet loss. When a path fails, the SteelHead directs traffic through another available path. When the original path comes back up, the SteelHead redirects the traffic back to it.
Path Selection Path Probing Error	Degraded	Indicates that a path selection monitoring probe for a predefined path has received a probe response from an unexpected relay or interface.
Process Dump Creation Error	Degraded	Indicates that the system has detected an error while trying to create a process dump. This alarm indicates an abnormal condition in which RiOS can’t collect the core file after three retries. It can be caused when the /var directory, which is used to hold system dumps, is reaching capacity or other conditions. When this alarm is raised, the directory is blacklisted. Contact Riverbed Support to correct the issue.
Proxy File Service	Degraded	Indicates that there has been a PFS operation or configuration error. •Proxy File Service Configuration - Indicates that a configuration attempt has failed. If the system detects an configuration failure, attempt the configuration again. •Proxy File Service Operation - Indicates that a synchronization operation has failed. If the system detects an operation failure, attempt the operation again.
Secure Transport		Indicates that a peer SteelHead has encountered a problem with the secure transport controller connection. The secure transport controller is a SteelHead that typically resides in the data center and manages the control channel and operations required for secure transport between SteelHead peers. The control channel between the SteelHeads uses SSL to secure the connection between the peer SteelHead and the secure transport controller. •Connection with Controller Lost - Indicates that the peer SteelHead is no longer connected to the secure transport controller for one of these reasons: –The connectivity between the peer SteelHead and the secure transport controller is lost. –The SSL for the connection isn’t configured correctly. •Registration with Controller Unsuccessful - Indicates that the peer SteelHead isn’t registered with the secure transport controller, and the controller doesn’t recognize it as a member of the secure transport group.
Secure Vault	Degraded	Indicates a problem with the secure vault. •Secure Vault Locked - Needs Attention - Indicates that the secure vault is locked. To optimize SSL connections or to use RiOS data store encryption, the secure vault must be unlocked. Go to Administration > Security: Secure Vault and unlock the secure vault. •Secure Vault New Password Recommended - Degraded - Indicates that the secure vault requires a new, nondefault password. Reenter the password. •Secure Vault Not Initialized - Critical - Indicates that an error has occurred while initializing the secure vault. When the vault is locked, SSL traffic isn’t optimized and you can’t encrypt the RiOS data store. For details, see Unlocking the secure vault.
Software Compatibility	Needs Attention or Degraded, depending on the state	Indicates that there’s a mismatch between software versions in the Riverbed system. •Peer Mismatch - Needs Attention - Indicates that the appliance has encountered another appliance that is running an incompatible version of system software. Refer to the CLI, Management Console, or the SNMP peer table to determine which appliance is causing the conflict. Connections with that peer will not be optimized, connections with other peers running compatible RiOS versions are unaffected. To resolve the problem, upgrade your system software. No other action is required as the alarm clears automatically. •Software Version Mismatch - Degraded - Indicates that the appliance is running an incompatible version of system software. To resolve the problem, upgrade your system software. No other action is required as the alarm clears automatically. By default, this alarm is enabled.
SSD Write Cycle Level Exceeded	Degraded	Indicates that the accumulated Solid-State Disk (SSD) write cycles are exceeding a predefined write cycle level (95 percent) on SteelHead models with SSDs. If the alarm triggers, the administrator can swap out the disk before any problems arise. RiOS tracks the number of writes to each block. To view the associated statistics, enter this CLI command: show stats alarm ssd_wear_warning For details, see the Riverbed Command-Line Interface Reference Manual.
SSL	Needs Attention	Indicates that an error has been detected in your secure vault or SSL configuration. For details about checking your settings, see Verifying SSL and secure inner channel optimization. •Non-443 SSL Servers - Indicates that during a RiOS upgrade (for example, from 8.5 to 9.0), the system has detected a preexisting SSL server certificate configuration on a port other than the default SSL port 443. SSL traffic might not be optimized. To restore SSL optimization, you can add an in-path rule to the client-side SteelHead to intercept the connection and optimize the SSL traffic on the nondefault SSL server port. After adding an in-path rule, you must clear this alarm manually by entering this CLI command: stats alarm non_443_ssl_servers_detected_on_upgrade clear •SSL Certificates Error - Indicates that an SSL peering certificate has failed to re-enroll automatically within the Simple Certificate Enrollment Protocol (SCEP) polling interval. •SSL Certificates Expiring - Indicates that an SSL certificate is about to expire. Two types of certificates can trigger this alarm: Certificate Authority certificates used to validate servers and SSL Server Certificates that the SteelHead uses when acting as a trusted man in the middle. Depending on the type of certificate, you can review the expiring certificates on the Optimization: SSL > Certificate Authorities page or the Optimization: SSL > SSL Main Settings page. (The alarm only redirects you to the Certificate Authorities page, but you might need to review the SSL Main Settings page for your certificate.) Note, certificates are sorted by name and the expiring certificates might not be visible until you scroll through the list. •SSL Certificates SCEP - Indicates that an SSL certificate has failed to reenroll automatically within the SCEP polling interval. •SSL HSM private key not accessible - Indicates that the server-side SteelHead can’t import the private key corresponding to the proxy certificate from a SafeNet Luna Hardware Security Module (HSM) server. The private key is necessary to establish mutual trust between the SteelHead and the HSM for proxied SSL traffic optimization. Check that the server-side SteelHead can access the HSM device and that the private key exists on the HSM server. For details, see the Riverbed Command-Line Interface Reference Manual.
Storage Profile Switch Failed	Either Critical or Needs Attention, depending on the state	On a SteelHead EX, indicates that an error has occurred while repartitioning the disk drives during a storage profile switch. The repartitioning was unsuccessful. A profile switch changes the disk space allocation on the drives to allow VE and VSP to use varying amounts of storage. It also clears the SteelFusion and VSP data stores, and repartitions the data stores to the appropriate sizes. You switch a storage profile by entering the disk-config layout CLI command at the system prompt or by choosing Administration > System Settings: Disk Management on an EX or EX+SteelFusion SteelHead and selecting a storage profile. A storage profile switch requires a reboot of the SteelHead. The alarm appears after the reboot. These reasons can cause a profile switch to fail: •RiOS can’t validate the profile. •The profile contains an invalid upgrade or downgrade. •RiOS can’t clean up the existing VDMKs. During cleanup, RiOS uninstalls all slots and deletes all backups and packages. When you encounter this error, reboot the SteelHead and then switch the storage profile again. If the switch succeeds, the error clears. If it fails, RiOS reverts the SteelHead to the previous storage profile. •If RiOS successfully reverts the SteelHead to the previous storage profile, the alarm status displays needs attention. •If RiOS is unable to revert the SteelHead to the previous storage profile, the alarm status becomes critical. For assistance, contact Riverbed Support: https://support.riverbed.com
System Detail Report	Degraded	Indicates that the system has detected a problem with an optimization or system module. For details, see Viewing System Details reports.
Temperature	Critical or Warning	•Critical - Indicates that the CPU temperature has exceeded the critical threshold. The default value for the rising threshold temperature is 80ºC; the default reset threshold temperature is 67ºC. •Warning - Indicates that the CPU temperature is about to exceed the critical threshold.
Web Proxy	Degraded	•Configuration - Indicates that the system has detected an error with the web proxy configuration. •Service Status - Indicates that the system has detected an error with the web proxy service.

What this report tells you

The Alarm Status report answers this question:

•What’s the current status of the SteelHead?

To view the Alarm Status report

•Choose Reports > Diagnostics: Alarm Status to display the Alarm Status page. Alternately, you can select the current system status that appears in the status box in the upper-left corner of each page (Healthy, Admission Control, Degraded, or Critical) to display the Alarm Status page.

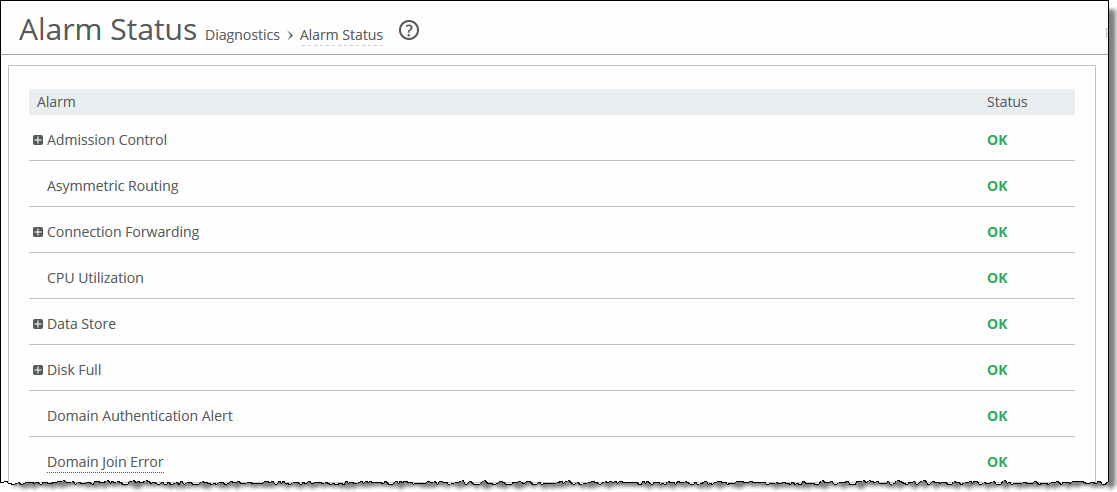

Alarm Status page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing CPU Utilization reports

The CPU Utilization report summarizes the percentage of all of the CPU cores used in the system within the time period specified. You can display individual cores or an overall average, or both.

For details about the report format, see Overview.

General usage guidelines

Typically, a SteelHead operates on approximately 30 to 40 percent CPU capacity during nonpeak hours and approximately 60 to 70 percent capacity during peak hours. No single SteelHead CPU usage should exceed 90 percent.

What this report tells you

The CPU Utilization report answers these questions:

•How much of the CPU is being used?

•What’s the average and peak percentage of the CPU being used?

About report graphs

Use the mouse to hover over a specific data point to see the values and exact time stamp.

To view the CPU Utilization report

1. Choose Reports > Diagnostics: CPU Utilization to display the CPU Utilization page.

CPU Utilization page

2. Use the controls to customize the report as described in this table.

Control	Description
Time Interval	Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days. Time intervals that don’t apply to a particular report are dimmed. For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS. You can quickly see the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Display Mode	Select one of these displays from the drop-down menu: •Brief - Displays the CPU utilization percentage of all CPU cores combined as a systemwide average. Detailed - Displays the CPU percentages for each RiOS core individually. The individual cores appear with a number and a color in the data series. To hide or display a core in the plot area, select or clear the check box next to the core name.

Viewing Memory Paging reports

The Memory Paging report provides the rate at which memory pages are swapped out to disk.

For details about the report format, see Overview.

The Memory Page report includes this statistic that describes memory paging activity for the time period you specify.

Data series	Description
Page Swap Out Rate	Specifies the total number of pages swapped per second. If 100 pages are swapped approximately every two hours, the SteelHead is functioning properly. If thousands of pages are swapped every few minutes, contact Riverbed Support at https://support.riverbed.com.

What this report tells you

The Memory Paging report answers this question:

•How many memory pages are swapping out?

About report graphs

Use the mouse to hover over a specific data point to see the values and exact time stamp.

To view the Memory Paging report

1. Choose Reports > Diagnostics: Memory Paging to display the Memory Paging page.

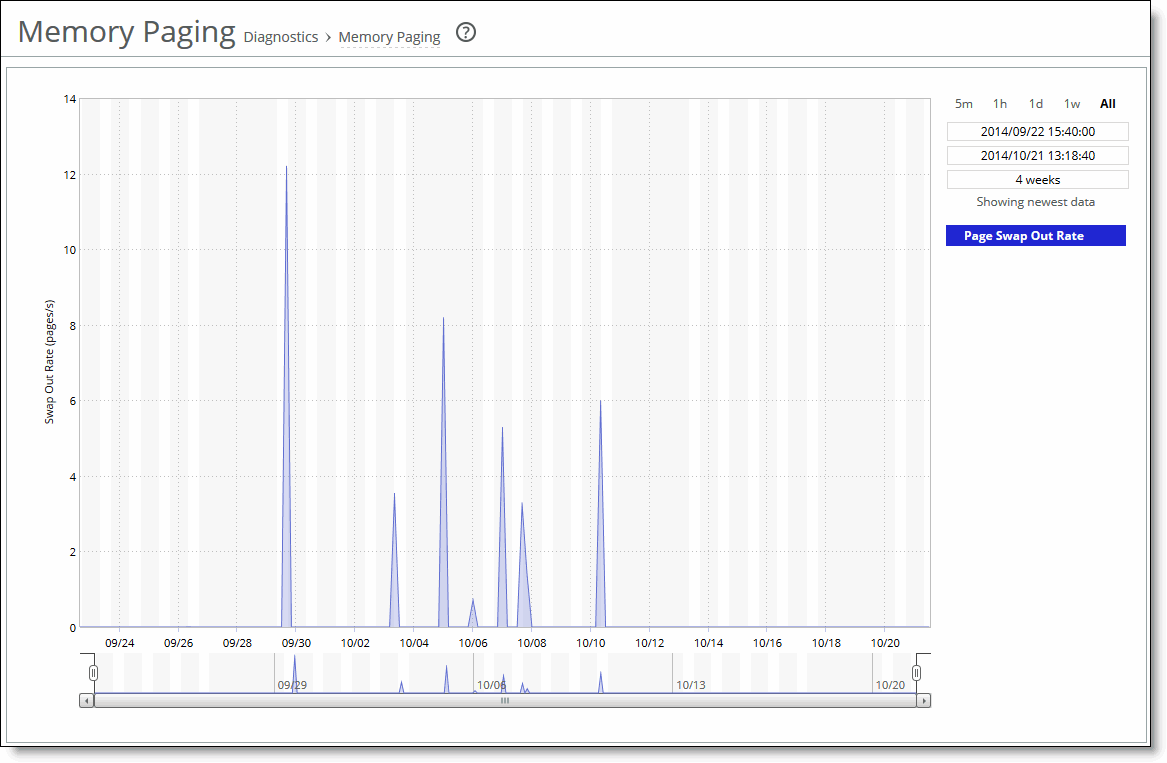

Memory Paging page

2. Use the controls to customize the report as described in this table.

Control

Description

Time Interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can quickly see the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing TCP Memory reports

The TCP Memory report simplifies the analysis of unexplainable throughput degradations, stalled and timed-out connections, and other network-related problems by providing the history of the TCP memory consumption and any TCP memory pressure events detected during network traffic processing. Use this report to gather preliminary information before calling Riverbed Support to troubleshoot an issue.

For details about the report format, see Overview.

The TCP Memory report includes two graphs. The TCP usage graph provides the absolute number of memory bytes allocated by the TCP subsystem. This graph includes these statistics that describe TCP memory activity for the time period you specify.

Data series	Description
Max Threshold	Displays the maximum amount of memory bytes that the TCP stack can allocate for its needs.
Cutoff Threshold	Displays the number of memory bytes allocated until the TCP memory allocation subsystem doesn’t apply memory-saving mechanisms and rules. As soon as the TCP memory consumption reaches the cutoff limit, the TCP stack enters a “memory pressure” state. This state applies several important limitations that restrict memory use by incoming and transmitted packets. In practice, this means that part of the incoming packets can be discarded, and user space code is limited in its abilities to send data.
Enable Threshold	Displays the lower boundary of TCP memory consumption, when the memory pressure state is cleared and the TCP stack can use the regular memory allocation approach again.
Memory Usage	Displays the average memory consumption by the TCP/IP stack.
Memory Pressure	Displays the maximum percentage of time that the kernel has spent under TCP memory pressure.

The navigator shadows the memory usage series.

In many cases, even an insignificant increase in network traffic can cause TCP memory pressure, leading to negative consequences. There are many conditions that can cause TCP memory pressure events. However, all of them can be sorted into these two categories to identify the bottleneck in the data transfer chain:

•Slow client cases - Occur when the receiver (client) isn’t able to accept data at the rate the client-side SteelHead or the server-side SteelHead transfers data. This condition usually causes two TCP memory pressure points—one on the sender's side and another one on the receiver's (client's) side. The slow client on the sender's side (usually the client-side SteelHead) is characterized by a large amount of unsent data collected in the send socket buffers. Incorrect SteelHead settings, such as overly large send buffers, can trigger TCP memory pressure, even with relatively normal network traffic.

•Fast server cases - Occur when the sender is able to transfer data faster than the receiver can accept it. This condition can be triggered not only because of insufficient CPU resources, but also because of an insufficient disk transfer rate (especially with a cold and warm data pattern). The most common causes of this problem are a lack of processing power on the SteelHead and a large receive buffer setting.

What this report tells you

The TCP Memory report answers these questions:

•How much time is the kernel spending under TCP memory pressure?

•What’s the average TCP memory consumption for the SteelHead?

About report graphs

Use the mouse to hover over a specific data point to see the values and exact time stamp.

About report data

The Riverbed system reports on performance for periods up to one month. Due to performance and disk space considerations, the display granularity decreases with time passed since the data was sampled with a granularity of 5 minutes for the day, 1 hour for the last week, and 2 hours for the rest of the month.

To view the TCP Memory report

1. Choose Reports > Diagnostics: TCP Memory to display the TCP Memory page.

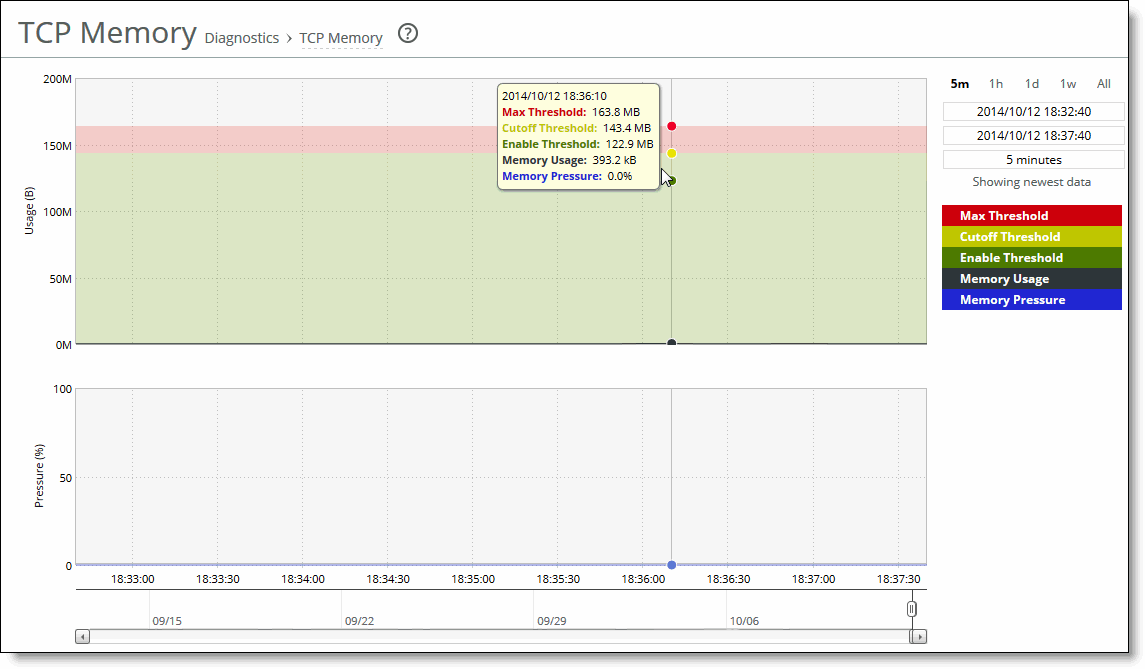

TCP Memory page

2. Use the controls to customize the report as described in this table.

Control

Description

Time Interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can quickly see the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing Disk Status reports

The Disk Status report appears on Fault Tolerant Storage (FTS) enabled SteelHead models 7050 and CX 1555 to alert you to a disk failure or recovery.

SteelHeads using Solid-State Disk (SSD) technology to store optimization data also use FTS.

FTS technology is a high-performance alternative to RAID and has these benefits:

•Service reliability - FTS allows the SteelHead to continue working at full operating speed after a drive failure with the remaining drives. The optimization data store is slightly smaller until you replace the failed SSD. In the 7050L, a single SSD failure means that the data store size drops from 2.24 TB to 2.08 TB, slightly reducing the size of the optimization vocabulary known by the SteelHead.

FTS-enabled SteelHead can optimize traffic up to the point that every data store drive fails.

•Performance - When you replace the failed SSD, the data store returns to its original size.

A disk failure or recovery can occur when the optimization service is:

•not running.

•running, but idle because there’s no traffic.

•handling optimized connections but not using the disk.

•writing to the disk.

•reading from the disk.

The Disk Status report includes this information.

Column	Description
Disk	Displays the disk number.
Status	Displays the disk status: •Degraded - Indicates a failure of one or more of the RAID arrays. The disk itself has not failed. •Failed - Indicates the disk has failed. The alarm email notification denotes whether the failure is on a management or data store disk. The optimization service continues to run normally without interruption or dropped connections when a single disk fails, albeit with reduced data store capacity and performance degradation. This message can also indicate that a disk has been inserted into an incorrect slot or that the disk has already been used in another SteelHead. If all disks fail, the optimization service halts. Consult the system log for more information. Riverbed replaces the failed component at Riverbed’s expense as long as the device is covered by a current support contract. Depending on the level of support contract, a trained engineer could be on site with the replacement part within four hours. If the report displays a failed disk status, go to Riverbed Support at https://support.riverbed.com. •Missing - There is no disk in the slot. •Rebuilding - The disk is rebuilding after it has been inserted into the slot. Rebuilding a data store disk takes approximately one hour or less to rebuild; a management disk that is part of a RAID mirror can take longer (4-6 hours). The status continues to be rebuilding until the drive is completely rebuilt. •Online - Disk is up and working.
Task	Displays the system component the disk is used for: either data store or management. If the disk is used for both, the task column doesn’t appear.

What this report tells you

The Disk Status report answers these questions:

•How many disks are on the SteelHead?

•What’s the current status of each disk?

•What function is the disk performing?

To view the Disk Status report

•Choose Reports > Diagnostics: Disk Status to display the Disk Status page. This menu item appears only on SteelHead models using Solid State Disks (SSDs).

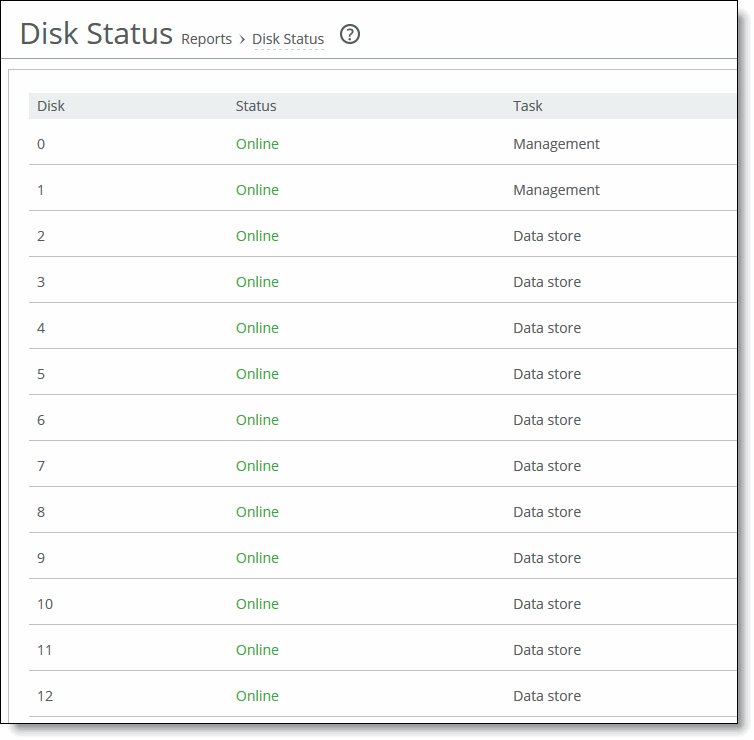

Disk Status page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Viewing System Details reports

The System Details report takes a current snapshot of the system to provide a one-stop report you can use to check for any issues with the SteelHead. The report examines key system components. For example, the CPU and memory. Use this report to gather preliminary system information before calling Riverbed Support to troubleshoot an issue.

Column	Description
Module	Displays the SteelHead module. Select a module name to view details. A right arrow to the left of a module indicates that the report includes detailed information about a submodule. Click the arrow to view submodule details. This report examines these modules: •CPU - Displays information about idle time, system time, and user time per CPU. •Memory - Displays information about the total, used, and free memory by percentage and in kilobytes. •CIFS - Click the right arrow and the submodule name to view details for unexpected shutdowns and round-trip statistics. •HTTP - Click the right arrow and the submodule name to view details for the URL Learning, Parse and Prefetch, Object Prefetch Table, and Stream Splitting optimization schemes. •Intercept - Click the right arrow to view statistics for message queue, GRE, and WCCP. Also includes table length and watchdog status. •Lotus Notes - Displays whether Lotus Notes optimization is enabled. •MAPI - Click the right arrow and the submodule name to view details for: Accelerators - Displays how many accelerator objects have been created for read-ahead, write-behind, and cached-mode folder synchronization. One accelerator object corresponds to the optimization of one particular Outlook action. –Read-ahead is for downloading an email attachment (in noncached Outlook mode or for public folders). –Write-behind is for uploading an email attachment. –Cache-sync is for downloading the new contents of a folder (in cached mode). Requests and responses - Displays the number of MAPI round-trips used and saved. Includes the number of responses and faults along with the fault reason: for example, access denied. MAPI decryption and encryption (RPCCR) - Displays whether MAPI decryption and encryption is enabled. Includes the number of client-side and server-side SteelHead encrypted MAPI sessions, along with details about how many sessions were not encrypted, how many sessions were successfully decrypted and encrypted, how many sessions were passed through, and how many sessions experienced an authentication failure. Connection sessions - Displays the number of client-side and server-side SteelHead MAPI sessions, counting the number of MAPI 2000, 2003, 2007, and pass-through sessions. •Oracle Forms - Click the right arrow and submodule name to view details for native and HTTP mode key. •Secure Peering - Click the right arrow and submodule name to view details for secure inner channels, including information about certificate and private key validity, peer SteelHead trust, and blacklisted servers. •Splice Policy - Displays details about the splice policy in use. •SSL - Displays whether SSL optimization is enabled and details about the SSL configuration, such as which advanced settings are in use. Click the right arrow and the submodule name to view details for the SSL outer and inner channels.
Status	Displays one of these results: •OK (Green) •Warning (Yellow) •Error (Red) •Disabled (Gray). Appears when you manually disable the module.

What this report tells you

The System Details report answers this question:

•Is there a problem with one particular application module or does the issue affect multiple modules?

To view the System Details report

•Choose Reports > Diagnostics: System Details to display the System Details page.

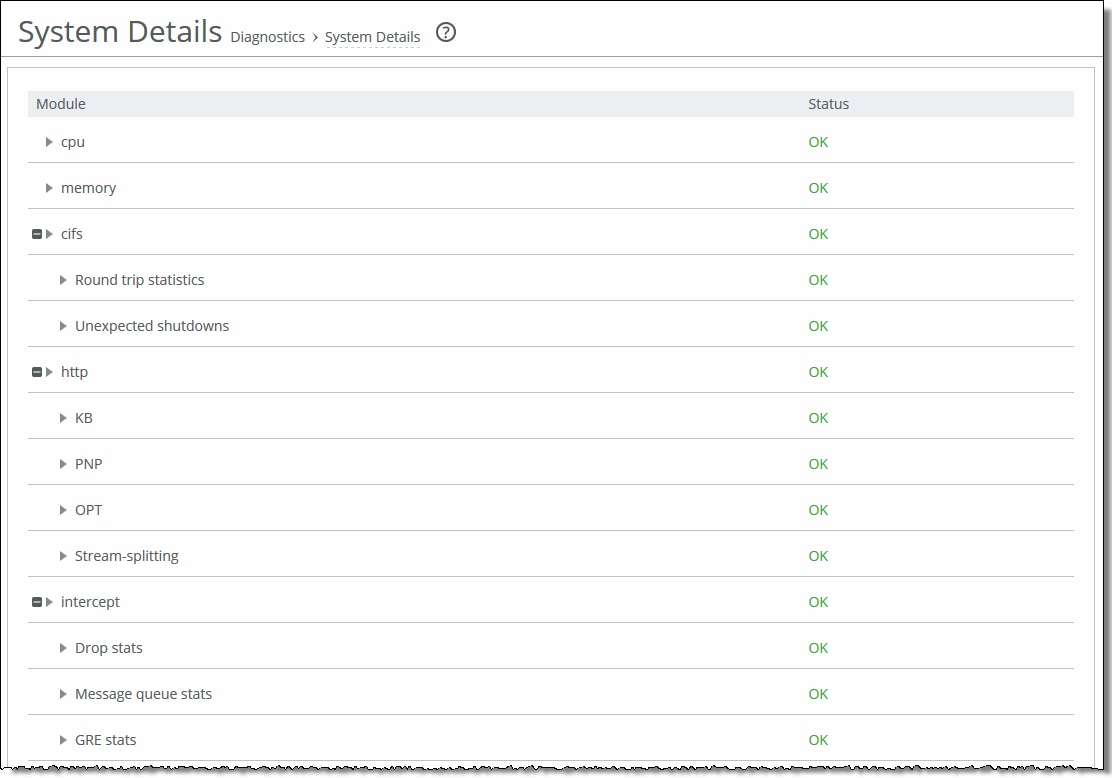

System Details page

To print the report, choose File > Print in your web browser to open the Print dialog box.

Checking network health status

You can run diagnostic tests on SteelHead connectivity in the Reports > Diagnostics: Network Health Check page.

The network health check provides a convenient way to troubleshoot connectivity issues by running a set of general diagnostic tests. Viewing the test results can pinpoint any issues with appliance connectivity and significantly speed problem resolution.

To run diagnostic tests

1. Choose Reports > Diagnostics: Network Health Check to display the Network Health Check page.

Network Health Check page

2. Complete the configuration as described in this table.

Control	Description
Gateway Test	Determines if each configured gateway is connected correctly. Run this test to ping each configured gateway address with 4 packets and record the number of failed or successful replies. The test passes if all 4 packets are acknowledged. The default packet size is 64 bytes. •Internet Protocol - Select IPv4 or IPv6 from the drop-down list. •Run - Click to run the test. If the test fails and all packets are lost, ensure the gateway IP address is correct and the SteelHead is on the correct network segment. If the gateway is reachable from another source, check the connections between the SteelHead and the gateway. If the test fails and only some packets are lost, check your duplex settings and other network conditions that might cause dropped packets.
Cable Swap Test	Ensures that the WAN and LAN cables on the SteelHead are connected to the LAN and WAN of the network. The test enumerates the results by interface (one row entry per pair of bypass interfaces). By default, this test is disabled. Note: Certain network topologies might cause an incorrect result for this test. For the following topologies, we recommend that you confirm the test result manually: •SteelHeads deployed in virtual in-path mode. •Server-side SteelHeads that receive significant amounts of traffic from nonoptimized sites. •SteelHeads that sit in the path between other SteelHeads that are optimizing traffic. If the test fails, ensure a straight-through cable is not in use between an appliance port and a router, or that a crossover cable is not in use between an appliance port and a switch.
Duplex Test	Determines if the speed and duplex settings match on each side of the selected interface. If one side is different from the other, then traffic is sent at different rates on each side, causing a great deal of collision. This test runs the ping utility for 5 seconds with a packet size of 2500 bytes against the interface. •Interface - Specify an interface to test. •IP Address - Specify an IPv4 or IPv6 address that is on the testing interface side. •Run - Click to run the test. The test passes if the system acknowledges 100 percent of the packets and receives responses from all packets. If any packets are lost, the test fails. If the test fails, ensure the speed and duplex settings of the appliance's Ethernet interface matches that of the switch ports to which it’s connected. The test output records the percentage of any lost packets and number of collisions. Note: For accurate test results, traffic must be running through the SteelHead.
Peer Reachability Test	Select to send a test probe to a specified peer and await the probe response. If a response is not received, the test fails. To view the current peer appliances, choose Reports > Optimization: Peers. •IP Address - Specify the IPv4 or IPv6 address of the peer appliance to test. •Run - Click to run the test. Notes: •This test might not be accurate when the peer SteelHead is configured out-of-path. •Do not specify the primary or auxiliary IP of the same SteelHead displayed in the Peers report (the primary or auxiliary IP to which the SteelHead is connected). If the test fails, ensure that there are no firewalls, IDS/IPS, VPNs, or other security devices that might be stripping or dropping connection packets between SteelHeads.
IP Port Reachability Test	Select to determine whether a specified IP address and optional port is correctly connected. If you specify only an IP address, the test sends an ICMP message to the IP address. If you specify a port number, the test telnets to the port. •Interface - Optionally, specify an interface to test. •IP Address - Specify the IP4 or IPv6 address to test. •Port - Optionally, specify a port to test. •Run - Click to run the test. If the test fails, ensure that dynamic or static routing on your network is correctly configured and that the remote network is reachable from hosts on the same local subnet as this appliance.
Run Selected	Runs the selected tests.
View or Hide Test Output	Click to view or hide the test results.

Viewing the test status

The Last Run column displays the time and date the last test was run.

The Status column displays Initializing temporarily while the page loads. When the test starts, the Status column displays Running, and then the test result appears in the Results column.

Viewing the test results

The Results column displays one of these test results:

•Passed

•Failed

•Undetermined - A test with an undetermined status indicates that the test couldn’t accurately determine a pass or fail test status.

To view diagnostic test results

1. Choose Reports > Diagnostics: Network Health Check to display the Network Health Check page.

2. Under the test name, click View Test Output.

To print the test results, click View Test Output and choose File > Print in your web browser to open the Print dialog box.

Checking domain health

You run Windows domain diagnostic tests on a SteelHead in the Reports > Diagnostics: Domain Health Check page.

The RiOS Windows domain health check executes a variety of tests that provide diagnostics about the status of domain membership, end-to-end Kerberos replication, both manual and automatic constrained delegation, and DNS resolution. This information enables you to resolve issues quickly.

Before running domain diagnostic delegation or replication tests, choose Optimization > Active Directory: Auto Config or Optimization > Active Directory: Service Accounts to configure a Windows user account that you can use for delegation or replication purposes. The Windows domain health check on the SteelHead doesn’t create the delegate or replication user; the Windows domain administrator must create the account in advance. For details, see Easy domain authentication configuration or Viewing SnapMirror connections.

To run domain health tests

1. Choose Reports > Diagnostics: Domain Health Check to display the Domain Health Check page.

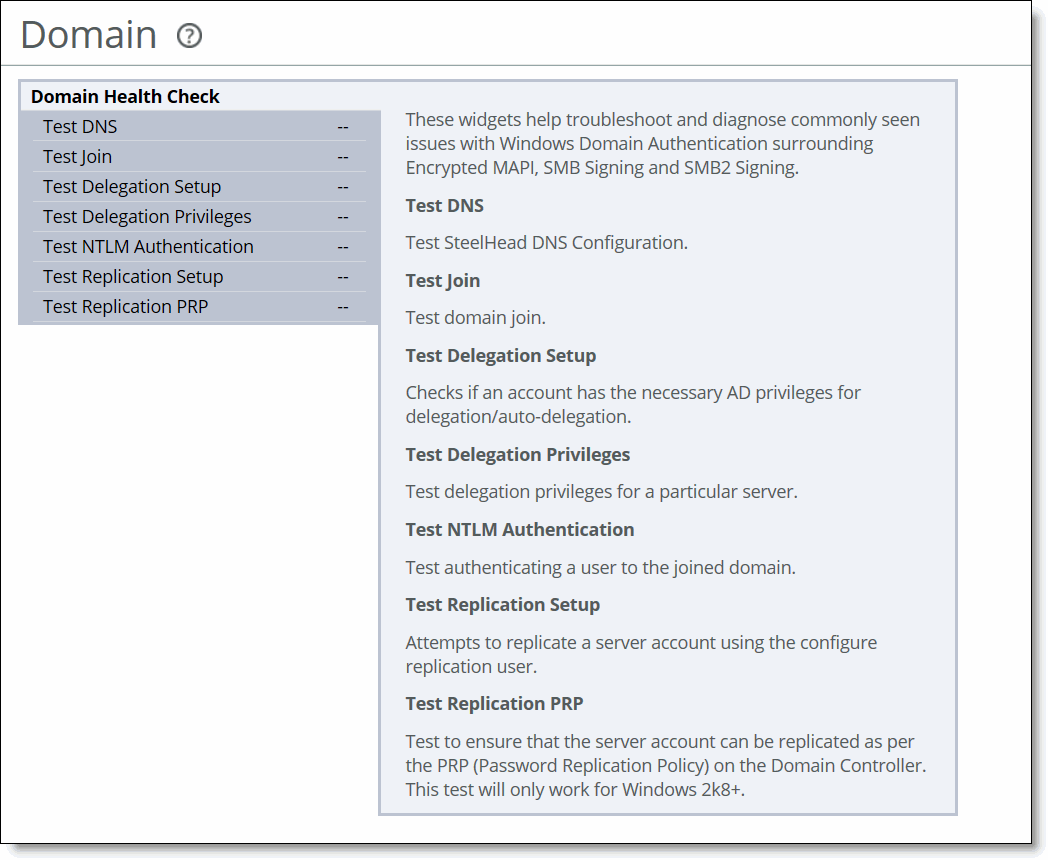

Domain Health Check page

Control	Description
Test DNS	Checks SteelHead DNS settings, which must be correct for Windows domain authentication, SMB signing, SMB2/3 signing, and encrypted MAPI optimization. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Domain/Realm - Specify the fully qualified Active Directory domain in which the SteelHead is a member. Typically, this is your company domain name. •Test DNS - Click to run the test. The Management Console dims this button until you specify the domain name.
Test Join	Confirms that the SteelHead is correctly joined to the Windows domain by verifying that the domain join configuration of the SteelHead is valid on the backend domain controller in Active Directory. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Test Join - Click to run the test.
Test Delegation Setup	Checks whether an account has the necessary Active Directory privileges for delegation or automatic delegation. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Delegation Domain/Realm - Select the fully qualified domain in which the SteelHead is a member. Typically, this is your company domain name. •Domain Controller - Specify the host that provides user login service in the domain. •Test Delegation Setup - Click to run the test. The Management Console dims this button until you specify all required information.
Test Delegation Privileges	Confirms delegation privileges for a particular server by verifying that the correct privileges are set to perform constrained delegation. Within SMB signing, SMB2/3 signing, and encrypted MAPI in delegation mode, the SteelHead and the AD environment must have correct privileges to obtain Kerberos tickets for the CIFS or Exchange Server and perform the subsequent authentication. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Delegation Domain/Realm - Select the domain in which the SteelHead is a member. Typically, this is your company domain name. •Server - Specify a delegate server hostname. •Server IP - Specify the delegate server IP address. •Service - Select either CIFS or Exchange MDB. •Account to Delegate - Specify a domain username. •Test Delegation Privileges - Click to run the test. The Management Console dims this button until you specify all required information.
Test NTLM Authentication	Tests whether NTLM can successfully authenticate a user to the joined domain. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Username - Specify an Active Directory domain username. •Password - Specify a password. •Domain/Realm - Specify the fully qualified domain of the Active Directory in which the SteelHead is a member. Typically, this is your company domain name. •Short Domain Name - Specify the short domain (NetBIOS) name if it doesn’t match the first portion of the Active Directory domain name. Case matters; NBTTECH isn’t the same as nbttech. •Test NTLM Authentication - Click to run the test. The Management Console dims this button until you specify all required information.
Test Replication Setup	Tests the ability to replicate the server account by attempting to replicate a server account using the replication user for the domain. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Delegation Domain/Realm - Select the fully qualified domain of the Active Directory in which the replication user is a trusted member. For example, REPLICATION.TEST. •Short Domain Name - Specify the short domain (NetBIOS) name (or replication server) if it doesn’t match the first portion of the Active Directory domain name. Case matters; NBTTECH isn’t the same as nbttech. •Replication Server - Specify a CIFS or Exchange replication server hostname. •Test Replication Setup - Click to run the test. The Management Console dims this button until you specify all required information.
Test Replication PRP	Ensures that the server account can be replicated as per the password replication policy (PRP) on the domain controller. This test only works for Windows 2008 and later domains. A test status appears for the most recent test run: Passed, Failed, or Undetermined. •Replication Domain/Realm - Select the fully qualified domain of the Active Directory in which the replication user is a trusted member: for example, REPLICATION.TEST •Domain Controller - Specify the host that provides user login service in the domain. •Replication Server - Specify a CIFS or Exchange replication server hostname. •Test Replication PRP - Click to run the test. The Management Console dims this button until you specify all required information.

Viewing the test status

The time and date of the last test appears after Last Run.

When the test runs, the status In Progress appears. After the test completes, the test logs and test result appear.

Viewing the test results

The test can report one of these results:

•Passed

•Undetermined - A test with an undetermined status indicates that the test couldn’t accurately determine a pass or fail test status.

To view diagnostic test logs

•Click Show logs. The number of lines in the log appear after Show logs or Hide logs.

The test logs are usually interesting only after a test fails.

An abbreviated form of the time stamp appears in the left margin of each line. To see the original, full time stamp in the form of a tooltip, hover the mouse over a time stamp. Not all log lines have time stamps, because third-party applications generate some of the logging data.

The log lines highlight errors in red and warnings in yellow.

Common domain health errors

This section describes common problems that can occur when joining a Windows domain.

System time mismatch

The number one cause of failing to join a domain is a significant difference in the system time on the Windows domain controller and the SteelHead. When the time on the domain controller and the SteelHead don’t match, this error message appears:

lt-kinit: krb5_get_init_creds: Clock skew too great

We recommend using NTP time synchronization to synchronize the client and server clocks. It is critical that the SteelHead time is the same as on the Active Directory controller. Sometimes an NTP server is down or inaccessible, in which case there can be a time difference. You can also disable NTP if it isn’t being used and manually set the time. You must also verify that the time zone is correct. For details, see Configuring the date and time.

Select the primary DNS IP address to view the Networking > Networking: Host Settings page.

Invalid domain controller IP

A domain join can fail when the DNS server returns an invalid IP address for the Domain Controller. When a DNS misconfiguration occurs during an attempt to join a domain, these error messages appear:

Failed to join domain: failed to find DC for domain <domain name>

Failed to join domain: No Logon Servers

Additionally, the Domain Join alarm triggers and messages similar to these appear in the logs:

Oct 13 14:47:06 bravo-sh81 rcud[10014]: [rcud/main/.ERR] - {- -} Lookup for bravo-sh81.GEN-VCS78DOM.COM Failed

Oct 13 14:47:06 bravo-sh81 rcud[10014]: [rcud/main/.ERR] - {- -} Failed to join domain: failed to find DC for domain GEN-VCS78DOM.COM

When you encounter this error, choose Networking > Networking: Host Settings and verify that the DNS settings are correct.

Verifying hardware capabilities of a SteelHead-v

After you deploy a SteelHead-v, you might want to verify its optimization and disk usage performance before using it in a production environment. You can run tests that benchmark the SteelHead-v performance against that of other Riverbed products from the Reports > Diagnostics: Benchmarks page. Test results indicate the highest model SteelHead-v that can run on the hardware supporting the tested appliance.

This performance test appears only on SteelHead-v appliances.

A group is a collection of one or more tests. You can only select and run a group of tests but not individual tests. The tool provides two groups, one for benchmarking the storage devices (sequential writes, random reads), and one for benchmarking the RiOS optimization service (mixed traffic).

The Sequential Write or Random Read benchmark tests emulate common disk use on the storage devices. Running these tests clears all data from the RiOS data store.

For details on SteelHead-v, see the SteelHead (Virtual Edition) Installation Guide.

To verify hardware capabilities

1. Choose Reports > Diagnostics: Benchmarks.

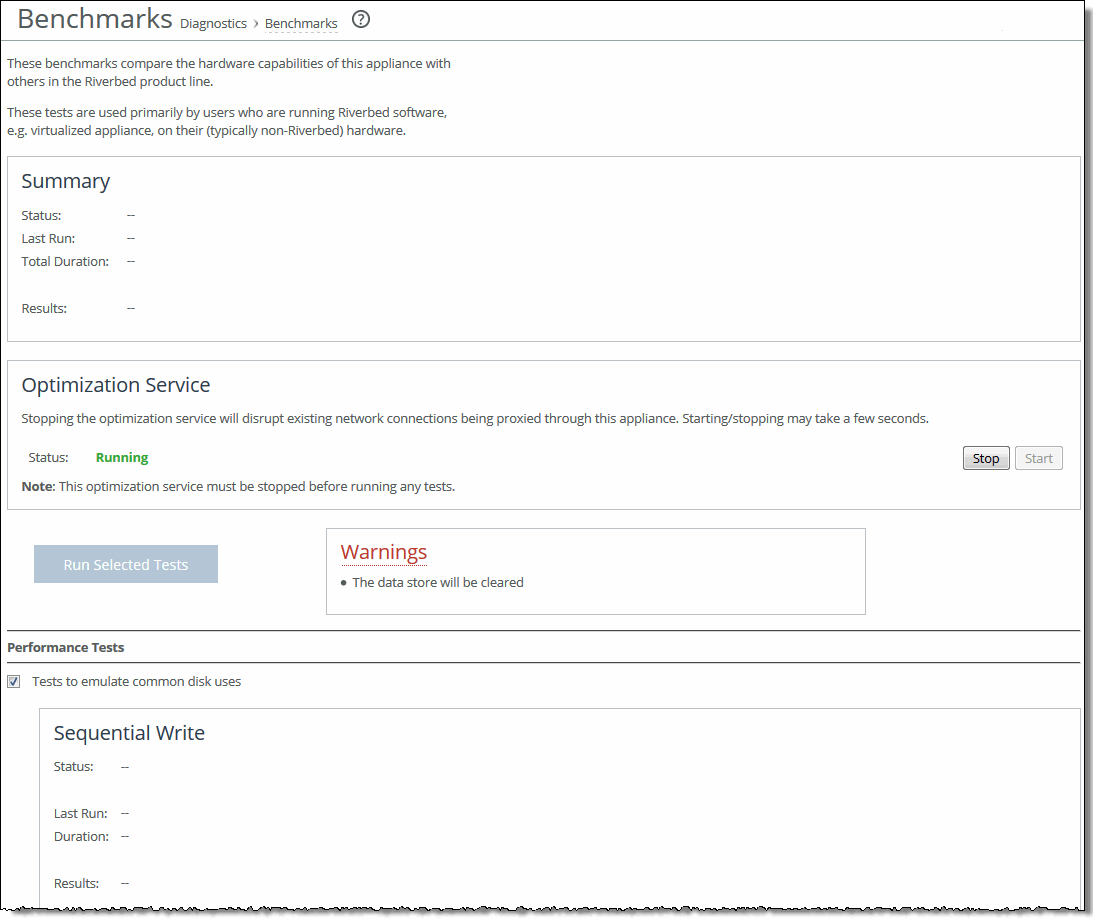

Benchmarks page

2. If the optimization service is running, click Stop. Alternatively, you can stop the optimization service on the Administration > Maintenance: Reboot/Shutdown page.

3. Select the tests that you want to run.

4. Click Run Selected Tests.

The tool runs only one test at a time, and queues the others. When a test completes, the tool pulls the next test from the queue and starts it.

When every test in a group completes, you can put the group back into the queue immediately without having to wait for any running test from another group to complete.

While the test runs, you can freely navigate to another page and come back to view the test results. You can also start the tests using the CLI and then return to the Benchmarks page to monitor the results.

Viewing the test status and results

The Last Run column displays the time and date the last test was run. The Duration column displays how long, from start to finish, it took to run the test.

When the test starts, the Status column displays Running, and then Done. The test result appears in the Results column.

The Status column might also show Queued for test that will run according to their sequence in the queue, Error for tests that encountered an error while running, and Timed Out, which indicates the test was stopped before it completed.

The Results column displays a list of Riverbed product models that this appliance qualifies; that is, it matches or exceeds performance. The list sorts the qualified models in descending order (best to worst)

An empty list indicates that the hardware under performs all Riverbed models, and this message appears:

This appliance is out performed by all similar appliances in Riverbed's product line.

Viewing logs

SteelHead log reports provide a high-level view of network activity. You can view both user and system logs.

•Viewing user logs

•Viewing system logs

Viewing user logs

You can view user logs in the Reports > Diagnostics: User Logs page. The user log filters messages from the system log to display messages that are of immediate use to the system administrator.

View user logs to monitor system activity and to troubleshoot problems. For example, you can monitor who logged in, who logged out, and who entered particular CLI commands, alarms, and errors. The most recent log events are listed first.

To view and customize user logs

1. Choose Reports > Diagnostics: User Logs to display the User Logs page.

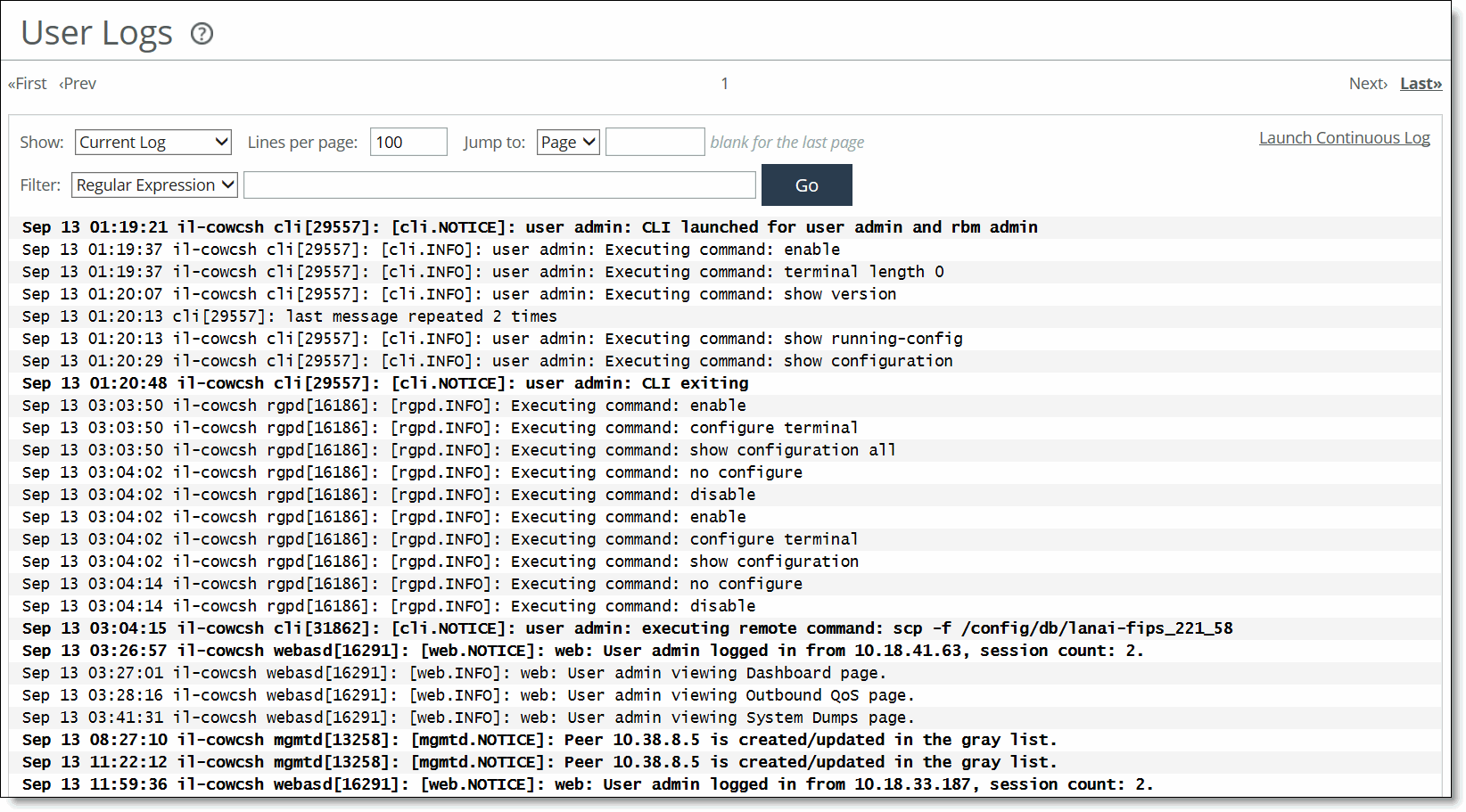

User Logs page

2. Use the controls to customize the log as described in this table.

Control	Description
Show	Select one of the archived logs or Current Log from the drop-down list.
Lines per Page	Specify the number of lines you want to display in the page.
Jump to	Select one of these options from the drop-down list: •Page - Specify the number of pages you want to display. •Time - Specify the time for the log you want to display.
Filter	Select one of these filtering options from the drop-down list: •Regular expression - Specify a regular expression on which to filter the log. •Error or higher - Displays Error level logs or higher. •Warning or higher - Displays Warning level logs or higher. •Notice or higher - Displays Notice level logs or higher. •Info or higher - Displays Info level logs or higher.
Go	Displays the report.

To print the report, choose File > Print in your web browser to open the Print dialog box.

You can continuously display new lines as the log grows and appends new data.

To view a continuous log

1. Choose Reports > Diagnostics: User Logs to display the User Logs page.

2. Customize the log as described in To view and customize user logs.

3. Click Launch Continuous Log in the upper-right corner of the page.

If the continuous log doesn’t appear after clicking Launch Continuous Log, a pair of SteelHeads might be optimizing HTTP traffic between the user's web browser and the primary or auxiliary interface of the SteelHead for which the user is viewing the log, and they’re buffering the HTTP response.

To display the continuous log, you can switch to HTTPS because the SteelHeads will not optimize HTTPS traffic. Alternatively, you can configure the other SteelHeads to pass-through traffic on the primary or auxiliary interfaces for port 80.

Viewing system logs

You can view system logs in the Reports: Diagnostics: System Logs page. View System logs to monitor system activity and to troubleshoot problems. The most recent log events are listed first.

To customize system logs

1. Choose Reports > Diagnostics: System Logs to display the System Logs page.

System Logs page

2. Use the controls to customize the report as described in this table.

Control	Description
Show	Select one of the archived logs or Current Log from the drop-down list.
Lines per page	Specify the number of lines you want to display in the page.
Jump to	Select one of these options from the drop-down list: •Page - Specify the number of pages you want to display. •Time - Specify the time for the log you want to display.
Regular Expression Filter	Select one of these filtering options from the drop-down list: •Regular expression - Specify a regular expression on which to filter the log. •Error or higher - Displays Error level logs or higher. •Warning or higher - Displays Warning level logs or higher. •Notice or higher - Displays Notice level logs or higher. •Info or higher - Displays Info level logs or higher.
Go	Displays the report.

To print the report, choose File > Print in your web browser to open the Print dialog box.

To view a continuous log

1. Choose Reports > Diagnostics: System Logs to display the System Logs page.

2. Customize the log as described in To customize system logs.

3. Click Launch Continuous Log in the upper-right corner of the page.

If the continuous log doesn’t appear after clicking Launch Continuous Log, a pair of SteelHeads might be optimizing the HTTP traffic between the user's web browser and the primary or auxiliary interface of the SteelHead for which the user is viewing the log, and they’re buffering the HTTP response.

To display the continuous log, you can switch to HTTPS because the SteelHeads will not optimize HTTPS traffic. You might want to configure the other SteelHeads to pass-through traffic on the primary or auxiliary interface

Downloading log files

This section describes how to download user and system log files.

You can download both user and system logs.

•Downloading user log files

•Downloading system log files

Downloading user log files

You can download user logs in the User Logs Download page. Download user logs to monitor system activity and to troubleshoot problems.

The User Logs Download page displays up to 10 archived log files plus the current day log file. By default, the system rotates each file every 24 hours or if the file size reaches one Gigabyte uncompressed. You can change this to rotate every week or month in the Administration: System Settings > Logging page. Additionally, you can rotate the files based on file size.

The automatic rotation of system logs deletes your oldest log file, labeled as Archived log #10, pushes the current log to Archived log # 1, and starts a new current-day log file.

To download user logs

1. Choose Reports > Diagnostics: User Logs Download to display the User Logs Download page.

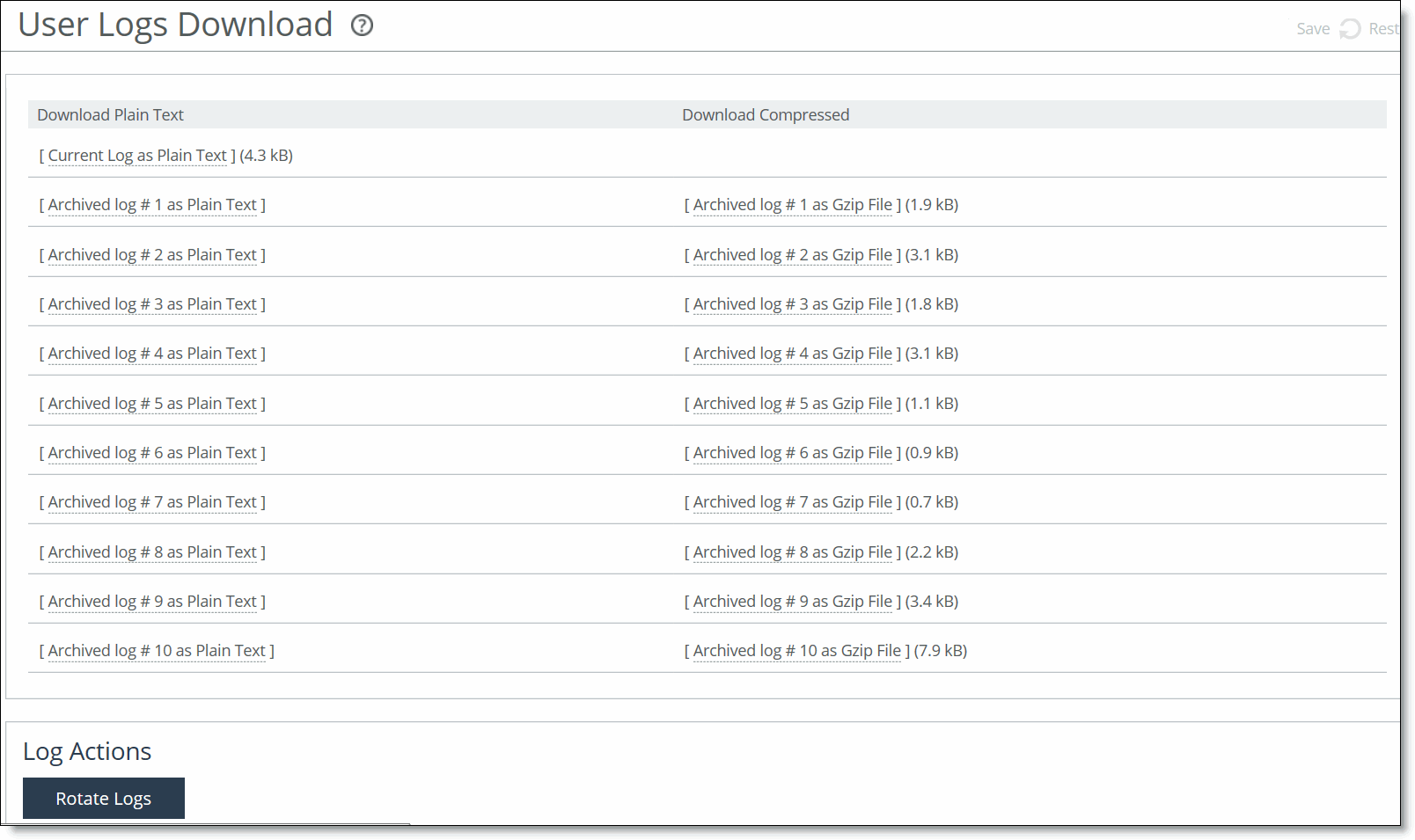

User Logs Download page

2. Click the log name in the Download Plain Text column or the Download Compressed column.

3. Open or save the log (these procedures vary depending on which browser you are using).

4. Click Rotate Logs to manually archive the current log to a numbered archived log file and then clear the log so that it is empty again.

When you click Rotate Logs, your archived file #1 contains data for a partial day because you are writing a new log before the current 24-hour period is complete.

Downloading system log files

You can download system logs in the System Logs Download page. Download system logs to monitor system activity and to troubleshoot problems.

The System Logs Download page displays up to 10 archived log files plus the current day log file. By default, the system rotates each file every 24 hours or if the file size reaches one Gigabyte uncompressed. You can change this to rotate every week or month in the Administration: System Settings > Logging page. Additionally, you can rotate the files based on file size.

The automatic rotation of system logs deletes your oldest log file, labeled as Archived log #10, pushes the current log to Archived log # 1, and starts a new current-day log file.

To download system logs

1. Choose Reports > Diagnostics: System Logs Download to display the System Logs Download page.

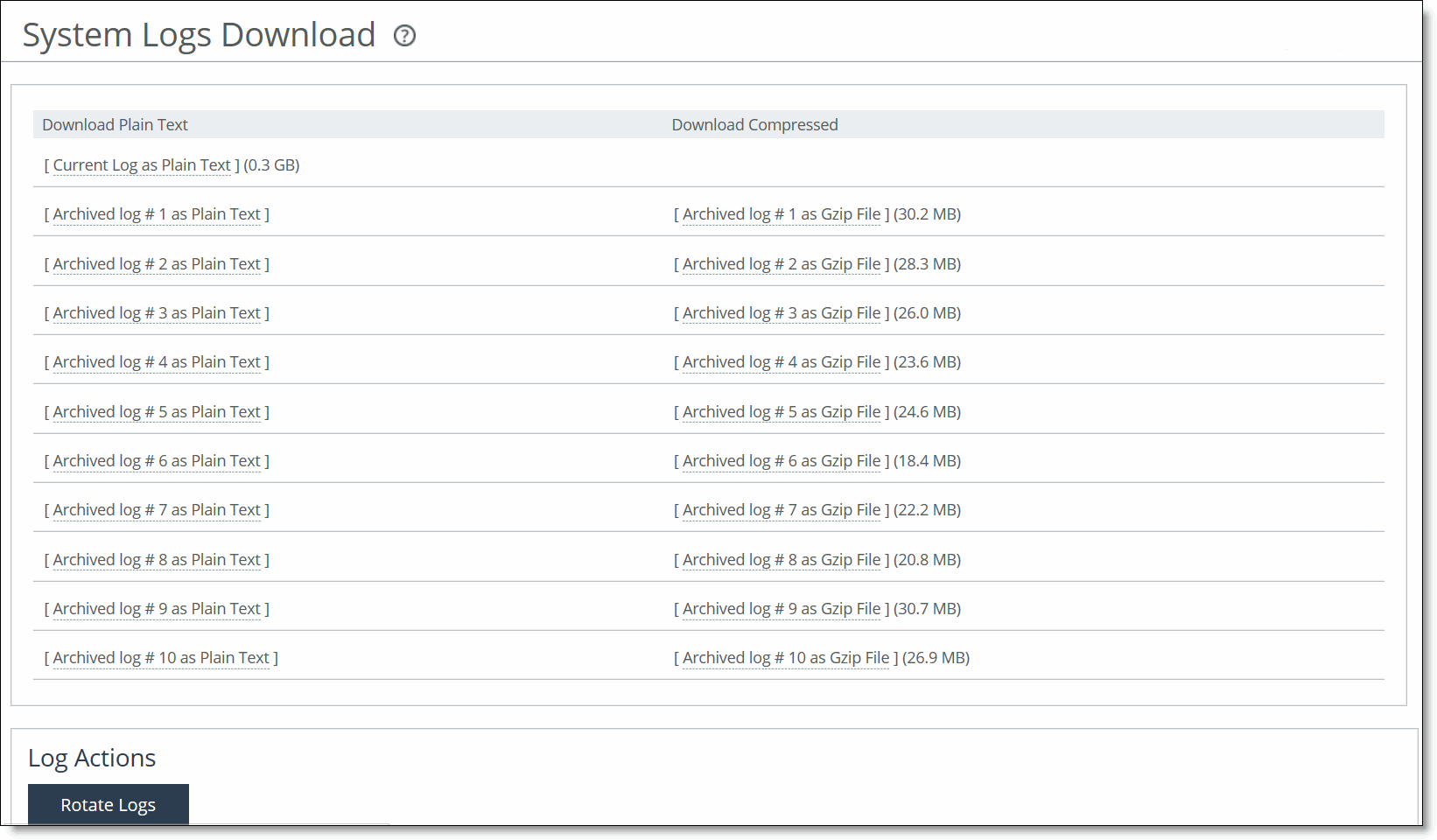

System Logs Download page

2. Click the log name in the Download Plain Text column or the Download Compressed column.

3. Open or save the log (these procedures vary depending on which browser you are using).

4. Click Rotate Logs to manually archive the current log to a numbered archived log file and then clear the log so that it is empty again.

When you click Rotate Logs, your archived file #1 contains data for a partial day because you are writing a new log before the current 24-hour period is complete.

Generating system dumps

You can generate, display, and download system dumps in the System Dumps page. A system dump contains a copy of the kernel data on the system. System dump files can help you diagnose problems in the system.

To generate a system dump

1. Choose Reports > Diagnostics: System Dumps to display the System Dumps page.

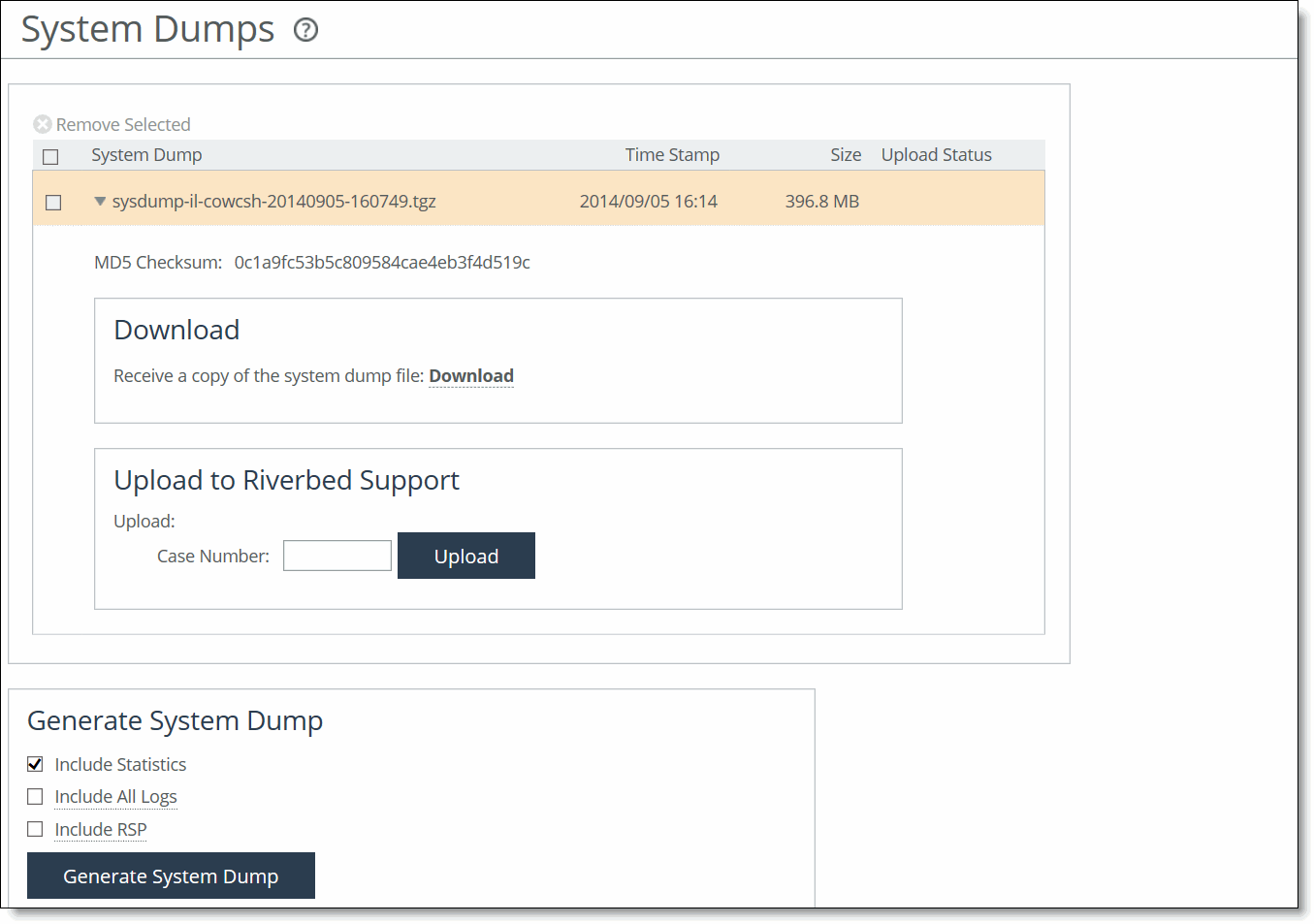

System Dumps page

2. Under Generate System Dump, select the type of information to include in the report:

–Include Statistics - Select to collect and include CPU, memory, and other statistics in the system dump (this option is enabled by default). These statistics are useful while analyzing traffic patterns to correlate to an issue. The system adds the statistics to a file in the system dump called stats.tgz.

In RiOS 8.5.x and later, you can collect and include application visibility statistics in a compressed archive file called app_vis.db. For details, see Viewing Application Visibility reports.

–Include All Logs - Removes the 50 MB limit for compressed log files, to include all logs in the system dump.

3. Click Generate System Dump.

Because generating a system dump can take a while, a spinner appears during the system dump creation. When the system dump is complete, its name appears in the list of links to download.

To view system dump files

1. Choose Reports > Diagnostics: System Dumps to display the System Dumps page.

2. Click Download to view a previously saved system dump.

3. Select the filename to open a file or save the file to disk.

4. To remove a log, check the box next to the name and click Remove Selected.

To print the report, choose File > Print in your web browser to open the Print dialog box.

To upload a system dump file to Riverbed support

1. Choose Reports > Diagnostics: System Dumps to display the System Dumps page.

2. Select the filename.

3. Optionally, specify a case number that corresponds to the system dump. We recommend using a case number: for example, 194170.

You can also enter the CLI command file debug dump upload URL to specify a URL instead of a case number. When you specify a URL, the dump file goes directly to the URL.

If the URL points to a directory on the upload server, it must have a trailing backslash (/).

For example:

ftp://ftp.riverbed.com/incoming/

(not ftp://ftp.riverbed.com/incoming)

The filename as it exists on the appliance will then match the filename on the upload server.

For details, see the Riverbed Command-Line Interface Reference Manual.

4. Click Upload.

Because uploading a system dump can take a while, the status appears during the upload. When the system dump finishes uploading, the date, time, and a status of either uploaded (appears in green) or failed (appears in red). An explanation appears for uploads that fail.

Viewing process dumps

You can display and download process dumps in the Process Dumps page. A process dump is a saved copy of memory including the contents of all memory, bytes, hardware registers, and status indicators. Process dumps are written for any process that crashes, on both physical and virtual appliances.

Process dumps aren’t written with any specific frequency during normal operation, they’re only written on demand, should a process crash for some reason.

Process dump files can help you diagnose problems in the system.

To view process dump files

1. Choose Reports > Diagnostics: Process Dumps to display the Process Dumps page.

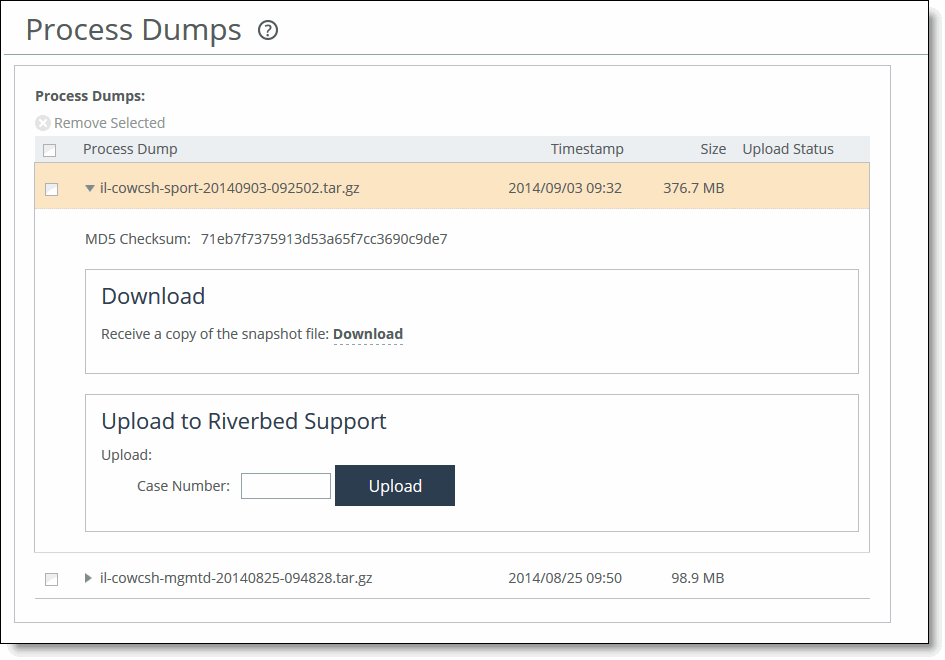

Process Dumps page

2. Select the filename to open a file or save the file to disk.

To remove an entry, check the box next to the name and click Remove Selected.

To print the report, choose File > Print in your web browser to open the Print dialog box.

To download a process dump file to Riverbed support

1. Choose Reports > Diagnostics: Process Dumps to display the Process Dumps page.

2. Click Download to receive a copy of the previously saved process dump.

3. Select the filename to open a file or save the file to disk.

4. To remove a log, check the box next to the name and click Remove Selected.

To print the report, choose File > Print in your web browser to open the Print dialog box.

To upload a process dump file to Riverbed support

1. Choose Reports > Diagnostics: Process Dumps to display the Process Dumps page.

2. Optionally, specify a case number that corresponds to the process dump. We recommend using a case number: for example, 194170.

You can also enter the CLI command file process dump upload URL to specify a URL instead of a case number. When you specify a URL, the dump file goes directly to the URL.

If the URL points to a directory on the upload server, it must have a trailing backslash (/).

For example:

ftp://ftp.riverbed.com/incoming/

(not ftp://ftp.riverbed.com/incoming)

The filename as it exists on the appliance will then match the filename on the upload server.

For details, see the Riverbed Command-Line Interface Reference Manual.

3. Click Upload.

Because uploading a process dump can take a while, a progress bar appears during the upload. When the process dump finishes uploading, the date, time, and a status of either uploaded (appears in green) or failed (appears in red) are indicated. An explanation appears for uploads that fail.

Capturing and uploading TCP dump files

You can create, download, and upload TCP dump (capture) files in the Reports > Diagnostics: TCP Dumps page.

Capture files contain summary information for every internet packet received or transmitted on the interface to help diagnose problems in the system.

RiOS provides an easy way to create and retrieve multiple capture files from the Management Console. You can create capture files from multiple interfaces at the same time, limit the size of the capture file, and schedule a specific date and time to create a capture file. Scheduling and limiting a capture file by time or size allows unattended captures.

You can’t upload a capture file to the SteelHead using Packet Analyzer.

The top of the TCP Dumps page displays a list of existing capture files and the bottom of the page displays controls to create a capture file. The bottom of the page also includes the capture files that are currently being generated, and the controls to create a trigger that stops a capture when a specific event occurs. The Running Capture Name list includes captures running at a particular time. It includes captures started manually and also any captures that were scheduled previously and are now running.

Capturing TCP dump files with Interceptor deployments

Starting with RiOS 9.6, the SteelHead appliance detects SteelHead Interceptors in your network, and automatically customizes the displays in the Reports > Diagnostics: TCP Dumps page to make them specific to Interceptor deployments. Instead of entering IP addresses and ports to capture traffic flows between a client-side and server-side SteelHead, enter information for either the client-side or server-side SteelHead only. When TCP dumps are generated, the SteelHead appliance creates a dump file for the traffic flows on the SteelHead connections you specify.

You can enter additional parameters to limit the size of the dump; the other fields on this page are unchanged.

If there are IPv6 extension headers in the original data packet that originated from the client or server, IPv6 packets are not captured.

To capture TCP dumps

1. Choose Reports > Diagnostics: TCP Dumps to display the TCP Dumps page.

TCP Dumps page for non-Interceptor deployments

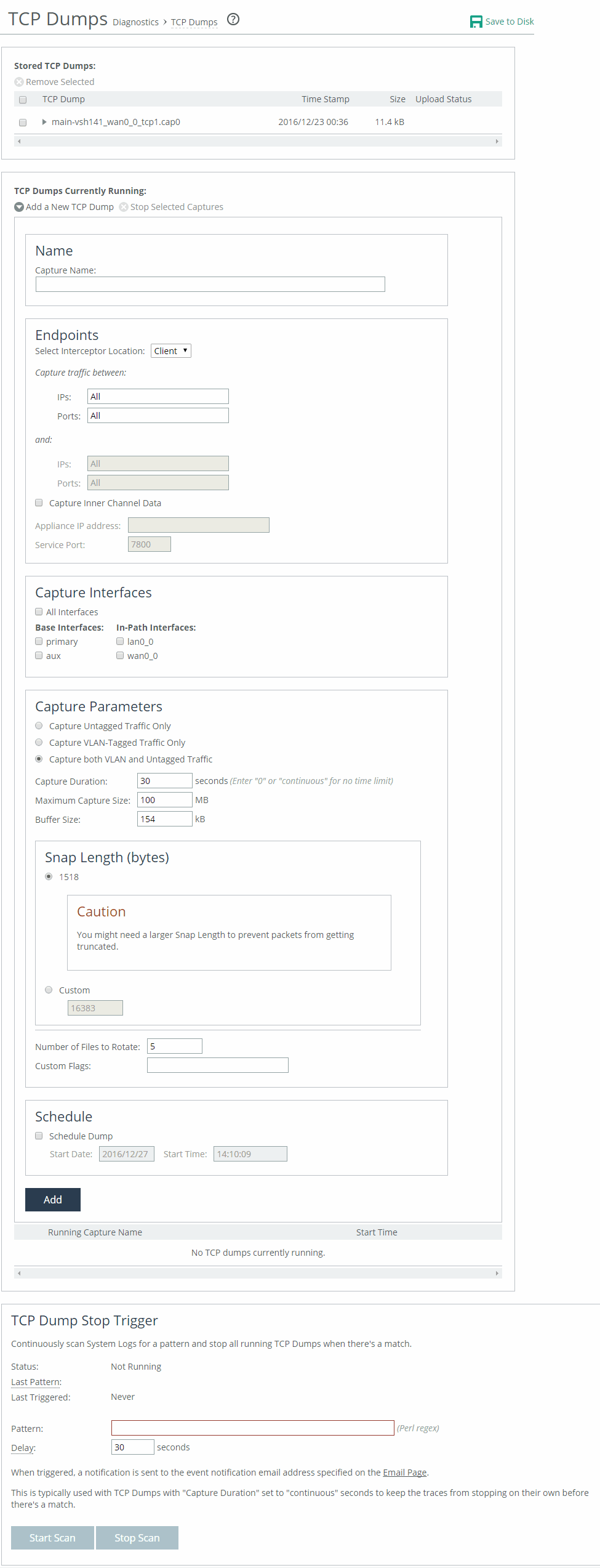

TCP Dumps page for Interceptor deployments

2. Complete the configuration as described in this table.

Some choices appear only if you have a SteelHead Interceptor in your network deployment. Those changes are noted in this table.

Control	Description
Add a New TCP Dump	Displays the controls for creating a capture file.
Capture Name	Specify the name of the capture file. Use a unique filename to prevent overwriting an existing capture file. The default filename uses this format: hostname_interface_timestamp.cap hostname is the hostname of the SteelHead, interface is the name of the interface selected for the trace (for example, lan0_0, wan0_0), and timestamp is in the YYYY-MM-DD-HH-MM-SS format. If this capture file relates to an open Riverbed Support case, specify the capture filename case_number where number is your Riverbed Support case number: for example, case_12345. Note: The .cap file extension isn’t included with the filename when it appears in the capture queue.
Endpoints (non-Interceptor deployments)	Specify IP addresses and port numbers to capture packets between them: IPs - Specify IP addresses of endpoints on one side. Separate multiple IP addresses using commas. You can enter IPv6 addresses separated by commas. The default setting is all IP addresses. Ports - Specify ports on one side. Separate multiple ports using commas. The default setting is all ports. —and— IPs - Specify IP addresses of endpoints on the other side. Separate multiple IP addresses using commas. You can enter IPv6 addresses separated by commas. The default setting is all IP addresses. Ports - Specify ports on the other side. Separate multiple ports using commas. The default setting is all ports. Note: To capture traffic flowing in only one direction or to enter a custom command, use the CLI tcpdump command. For details, see the Riverbed Command-Line Interface Reference Manual.
Endpoints (Interceptor deployments)	Select Interceptor Location - Select either Client or Server. Your choice determines the endpoints you can specify. The endpoints are IP addresses and port numbers in your network. If you select Client: •IPs - Specify All to capture traffic on all IP addresses between the client side and server side (the default). You can limit the capture to specific endpoints connected to the client-site SteelHead by specifying the IP addresses of those endpoints. You can also limit capture to specific IP addresses on the server-side SteelHead by specifying those IP addresses. You can use either IPv4 or IPv6 addresses. Separate multiple addresses with commas. •Ports - Specify All to capture all ports on the client side (the default). You can also specify one or more SteelHead ports, endpoint ports, or both. Separate multiple ports using commas. If you select Server: •IPs - Specify All to capture traffic on all IP addresses between the server side and client side (the default). You can limit the capture to specific endpoints connected to the server-site SteelHead by specifying the IP addresses of those endpoints. You can also limit capture to specific IP addresses on the client-side SteelHead by specifying those IP addresses. You can use either IPv4 or IPv6 addresses. Separate multiple addresses with commas. •Ports - Specify All to capture all ports on the server side (the default). You can also specify one or more SteelHead ports, endpoint ports, or both. Separate multiple ports using commas. Capture Inner Channel Data - Select this check box to capture all inner and redirected traffic between the Interceptor and SteelHead for the specified IP address and port. This check box is deselected by default. Appliance IP address - Specify the in-path IP address of the local SteelHead. Service Port - Specify the service port of the local SteelHead. The default service port number is 7800. Note: To capture traffic flowing in only one direction or to enter a custom command, use the CLI tcpdump command. For details, see the Riverbed Command-Line Interface Reference Manual.
Capture Interfaces	Captures packet traces on the selected interfaces. You can select all interfaces or a base or in-path interface. The default setting is none. You must specify a capture interface. If you select several interfaces at a time, the data is automatically placed into separate capture files. When path selection is enabled, we recommend that you collect packet traces on all LAN and WAN interfaces.
Capture Parameters	These parameters let you capture information about dot1q VLAN traffic. You can match traffic based on VLAN-tagged or untagged packets, or both. You can also filter by port number or host IP address and include or exclude ARP packets. Select one of these parameters for capturing VLAN packets: •Capture Untagged Traffic Only - Select this option for these captures: –All untagged VLAN traffic. –Untagged 7850 traffic and ARP packets. You must also specify or arp in the custom flags field in this page. –Only untagged ARP packets. You must also specify and arp in the custom flags field in this page. •Capture VLAN-Tagged Traffic Only - Select this option for these captures: –Only VLAN-tagged traffic. –VLAN-tagged packets with host 10.11.0.6 traffic and ARP packets. You must also specify 10.11.0.6 in the IPs field, and specify or arp in the custom flags field in this page. –VLAN-tagged ARP packets only. You must also specify and arp in the custom flags field in this page. •Capture both VLAN and Untagged Traffic - Select this option for these captures: –All VLAN traffic. –Both tagged and untagged 7850 traffic and ARP packets. You must also specify the following values in the custom flags field in this page: (port 7850 or arp) or (vlan and (port 7850 or arp)) –Both tagged and untagged 7850 traffic only. You must also specify 7850 in one of the port fields in this page. No custom flags are required. –Both tagged and untagged ARP packets. You must also specify the following values in the custom flags field in this page: (arp) or (vlan and arp)
Capture Duration (Seconds)	Specify a positive integer to set how long the capture runs, in seconds. The default value is 30. Specify 0 or continuous to initiate a continuous trace. For continuous capture, we recommend specifying a maximum capture size and a nonzero rotate file number to limit the size of the TCP dump.
Maximum Capture Size	Specify the maximum capture file size in megabytes. The default value is 100. After the file reaches the maximum capture size, TCP dump starts writing capture data into the next file, limited by the Number of Files to Rotate field. We recommend a maximum capture file size of 1024 MB (1 GB).
Buffer Size	Optionally, specify the maximum amount of data, in kilobytes, allowed to queue while awaiting processing by the capture file. The default value is 154 kilobytes.
Snap Length (bytes)	Optionally, select the snap length value for the capture file or specify a custom value. The snap length equals the number of bytes the report captures for each packet. Having a snap length smaller than the maximum packet size on the network enables you to store more packets, but you might not be able to inspect the full packet content. Select 65535 for a full packet capture (recommended for CIFS, MAPI, and SSL captures). The default value is 1518 bytes. When using jumbo frames, we recommend selecting 9018. The default custom value is 16383 bytes.
Number of Files to Rotate	Specify how many capture files to keep for each interface before overwriting the oldest file. To stop file rotation, you can specify 0; however, we recommend rotating files, because stopping the rotation can fill the disk partition. This control limits the number of files created to the specified number and begins overwriting files from the beginning, thus creating a rotating buffer. The default value is 5. The maximum value is 2147483647.
Custom Flags	Specify custom flags as additional statements within the filter expression. Custom flags are added to the end of the expression created from the Endpoints fields and the Capture Parameters radio buttons (pertaining to VLANs). If you require an “and” statement between the expression created from other fields and the expression that you are entering in the custom flags field, you must include the “and” statement at the start of the custom flags field. Do not use host, src, or dst statements in the custom flags field. Although it is possible in trivial cases to get these statements to start without a syntax error, they don’t capture GRE-encapsulated packets that some modes of SteelHead communications use, such as WCCP deployments or Interceptor connection-setup traffic. We recommend using bidirectional filters by specifying endpoints. For complete control of your filter expression, use the CLI tcpdump command. For details, see the Riverbed Command-Line Interface Reference Manual. For examples, see Custom flag use examples.
Schedule Dump	Schedules the capture to run at a later date and time.
Start Date	Specify a date to initiate the capture, in this format: YYYY/MM/DD.
Start Time	Specify a time to initiate the capture, in this format: HH:MM:SS.
Add	Adds the capture request to the capture queue.

Troubleshooting

If the tcpdump command results in a syntax error with an immediate or scheduled TCP dump, this message appears:

Error in tcpdump command. See System Log for details.

Review the system log to see the full tcpdump command attempt. Check the expression for issues such as a missing “and” statement as well as contradictory instructions such as looking for VLAN-tagged traffic and nontagged traffic.

Custom flag use examples

The examples in this table focus on the custom flag entry but rely on other fields to create a complete filter.

Filter purpose	Custom flag
To capture all traffic on VLAN 10 between two specified endpoints: 1.1.1.1 and 2.2.2.2	and vlan 10
To capture any packet with a SYN or an ACK	tcp[tcpflags] & (tcp-syn\|tcp-ack) != 0
To capture any packet with a SYN	tcp[tcpflags] & (tcp-syn) != 0 —or— tcp[13] & 2 == 2
To capture any SYN to or from host 1.1.1.1	and (tcp[tcpflags] & (tcp-syn) != 0) —or— and (tcp[13] & 2 == 2)

IPv6 custom flag use examples

The examples in this table focus on the custom flag entry but rely on other fields to create a complete filter.

To build expressions for TCP dump, IPv6 filtering doesn’t currently support the TCP, UDP, and other upper-layer protocol types that IPv4 does. Also, these IPv6 examples are based on the assumption that only a single IPv6 header is present.

Filter purpose	Custom flag
To capture all FIN packets to or from host 2001::2002	and (ip6[53] & 1!=0)
To capture all IPv6 SYN packets	ip6 or proto ipv6 and (ip6[53] & 2 == 2)

Stopping a TCP dump after an event occurs

Capture files offer visibility into intermittent network issues, but the amount of traffic they capture can be overwhelming. Also, because rotating logs is common, after a capture logs an event, the SteelHead log rotation can overwrite debugging information specific to the event.

RiOS 8.5.x and later make troubleshooting easier because they provide a trigger that can stop a continuous capture after a specific log event occurs. The result is a smaller file to help pinpoint what makes the event happen.

The stop trigger continuously scans the system logs for a search pattern. When it finds a match, it stops all running captures.

To stop a capture after a specific log event

1. Choose Reports > Diagnostics: TCP Dumps to display the TCP Dumps page.

2. Schedule a capture.

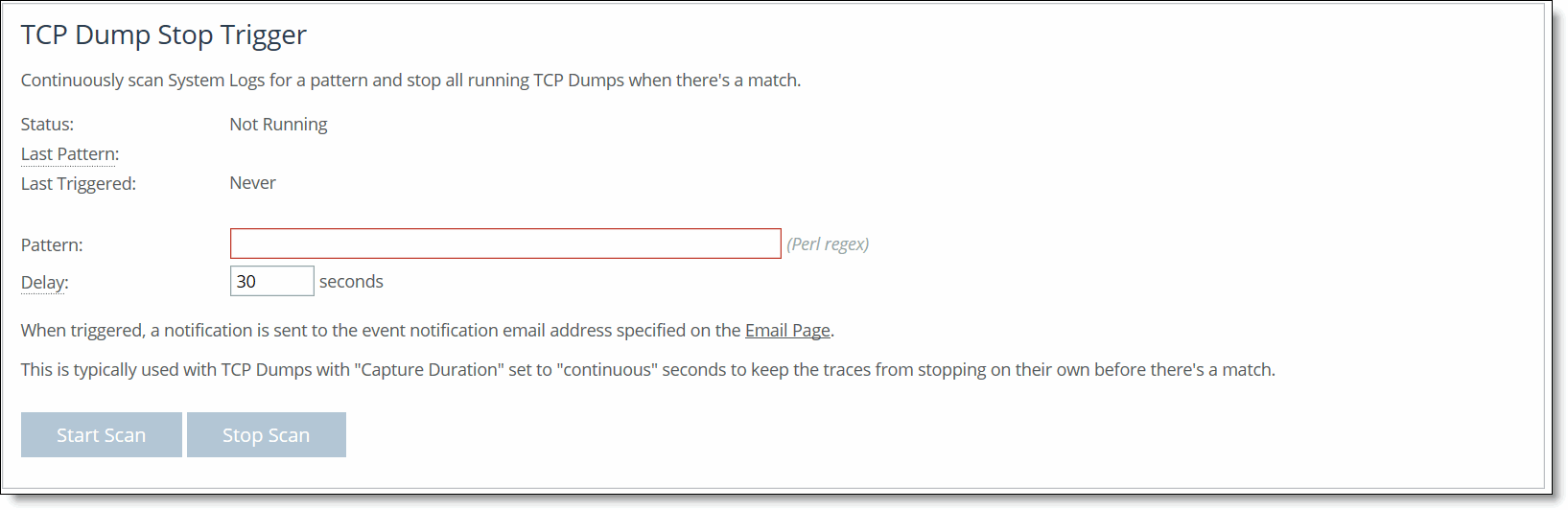

TCP Dump Stop Trigger pane

3. In the Pattern text box, enter a Perl regular expression (regex) to find in a log. RiOS compares the Perl regex against each new line in the system logs and the trigger stops if it finds a match.

The simplest regex is a word or a string of characters. For example, if you set the pattern to “Limit,” the trigger matches the line “Connection Limit Reached.”

Notes:

–Perl regular expressions are case sensitive.

–Perl treats the space character like any other character in a regex.

–Perl reserves some characters, called metacharacters, for use in regex notation. The metacharacters are:

{ } [ ] ( ) ^ $ . | * + ? \

You can match a metacharacter by putting a backslash before it. For example, to search for a backslash in the logs, you must enter two backslashes (\\) as the pattern.

–The pattern follows Perl regular expression syntax. For details, go to:

http://perldoc.perl.org/perlre.html

–You can’t change the pattern while a scan is running. You must stop the scan before changing a pattern.

–You don’t need to wrap the pattern with the metacharacters to match the beginning or end of a line (^ $) or with the wildcard character (*).

4. Specify the amount of time to pause before stopping all running captures when RiOS finds a match. The time delay gives the system some time to log more data without abruptly cutting off the capture. The default is 30 seconds. Specify 0 for no delay; the capture stops immediately.

After a trigger has fired, the capture can stop by itself before the delay expires. For example, the capture duration can expire.

5. Click Start Scan.

When the scan stops, RiOS sends an email to all email addresses on the Administration: System Settings > Email page appearing under Report Events via Email. The email notifies users that the trigger has fired.

The page indicates “Last Triggered: Never” if a TCP Dump stop trigger has never triggered on the SteelHead. After the delay duration of the stop trigger, RiOS displays the last triggered time.

Before changing the Perl regular expression or amount of delay, you must first stop the process.

To stop a running scan

•Click Stop Scan to halt the background process that monitors the system logs. RiOS dims this button when the stop trigger is idling.

Stop trigger limitations

These limitations apply to the trigger:

•You can’t create a trigger to stop a specific capture; the trigger affects all running captures.

•If the search pattern contains a typo, the trigger might never find a match.

•Only one instance of a trigger can run at one time.

Viewing a TCP dump

The top of the TCP Dumps page displays a list of existing captures.

To view a capture file

1. Choose Reports > Diagnostics: TCP Dumps to display the TCP Dumps page.

2. Under Stored TCP Dumps, select the capture name to open the file.

3. Click Download to view a previously saved capture file.

4. To remove a capture file, select the check box next to the name and click Remove Selected.

To print a capture file

1. Choose Reports > Diagnostics: TCP Dumps to display the TCP Dumps page.

2. Under Download Link, select the capture filename to open the file.

3. When the file opens, choose File > Print in your web browser to open the Print dialog box.

To stop a running capture

1. Choose Reports > Diagnostics: TCP Dumps to display the TCP Dumps page.

2. Select the capture filename in the Running Capture Name list.

3. Click Stop Selected Captures.

Uploading a TCP dump

Riverbed offers a way to upload capture files to the support server for sharing with the support team while diagnosing issues.

To upload the capture file to Riverbed Support

1. In continuous mode, on the TCP Dumps page, select the running capture and click Stop Selected Captures.

For timed captures that are complete, skip to Step 2.

The capture appears as a download link in the list of Stored TCP Dumps.

2. Select the capture filename.

3. Optionally, specify a case number that corresponds to the capture. We recommend using a case number: for example, 194170.

To specify a URL instead of a case number, you must use the CLI. You can enter the CLI command file tcpdump upload url. When you specify a URL, the capture file goes directly to the URL.

If the URL points to a directory on the upload server, it must have a trailing backslash (/).

For example:

ftp://ftp.riverbed.com/incoming/

(not ftp://ftp.riverbed.com/incoming)

The filename as it exists on the appliance will then match the filename on the upload server.

For details, see the Riverbed Command-Line Interface Reference Manual.

4. Click Upload.

Because uploading a capture file can take a while, a progress bar displays the percentage of the total upload completed, the case number (if applicable), and the date and time the upload began. When the capture file finishes uploading, the date, time, and a status of either uploaded (appears in green) or failed (appears in red) are indicated.

Successful uploads show the status, the case number (if applicable), and the date and time the upload finished.

For uploads that fail, an explanation, the case number (if applicable), and the upload starting date and time appear.

Viewing DNS Cache Hit reports

The DNS Cache Hits report displays the rate of DNS cache hits and misses for the time period specified.

For details about the report format, see Overview.

It contains these statistics that summarize DNS activity.

Data series	Description
Miss Rate	Displays the rate of cache misses.
Hit Rate	Displays the rate of cache hits.

The navigator shadows the hit rate series.

What this report tells you

The DNS Cache Hits report answers these questions:

•What was the rate of DNS requests that were cached?

•What was the rate of DNS requests that were not cached?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the DNS Cache Hits report

1. Choose Reports > Branch Services: DNS Cache Hits to display the DNS Cache Hits page.

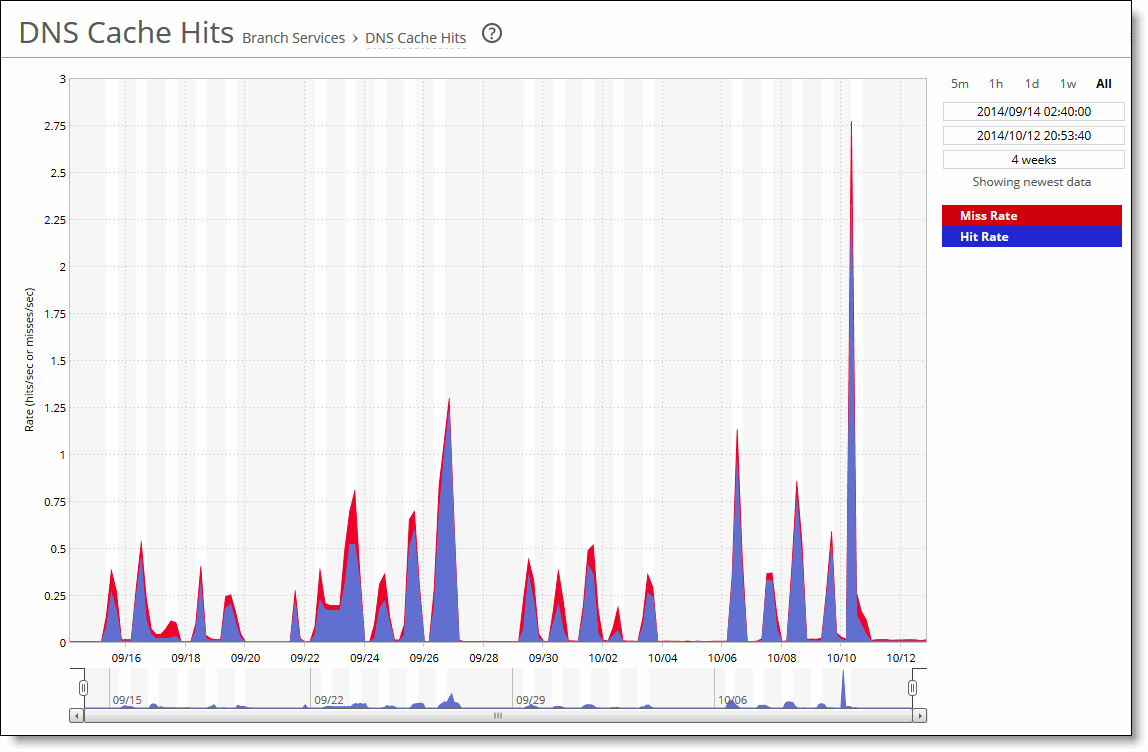

DNS Cache Hits page

2. Use the controls to customize the report as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can quickly see the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Viewing DNS Cache Utilization reports

The DNS Cache Utilization report displays the size of the DNS cache as entries and bytes for the time period specified.

For details about the report format, see Overview.

The DNS Cache Utilization report contains these statistics that summarize DNS cache activity.

Data series	Description
Cache Entries	Displays the number of DNS entries in the cache.
Memory Use	Displays the cache memory used, in bytes.

The navigator shadows the cache entries series.

What this report tells you

The DNS Cache Utilization report answers these questions:

•How much cache memory is used?

•How many DNS entries are in the cache?

About report graphs

Use the mouse to hover over a specific data point to see what the y values and exact time stamp were in relation to peaks.

About report data

To view the DNS Cache Utilization report

1. Choose Reports > Branch Services: DNS Cache Utilization to display the DNS Cache Utilization page.

DNS Cache Utilization page

2. Use the controls to customize the report as described in this table.

Control

Description

Time interval

Select a report time interval of 5 minutes (5m), 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.

Time intervals that don’t apply to a particular report are dimmed.

For a custom time interval, enter the start time and end time using the format YYYY/MM/DD HH:MM:SS.

You can quickly see the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.

Exporting performance statistics

You export performance statistics in CSV format in the Reports > Report Data: Export page. The CSV format allows you to easily import the statistics into spreadsheets and databases. You can open the CSV file in any text editor.

The CSV file contains commented lines (comments beginning with the # character) at the beginning of the file. These comments report what host generated the file, the report that was generated, time boundaries, the time the export occurred, and the version of the SteelHead the file was exported from. The statistical values are provided in columns: the first column is the date and time of the statistic sample, and the columns that follow contain the data.

To export statistics

1. Choose Reports > Report Data: Export to display the Export page.

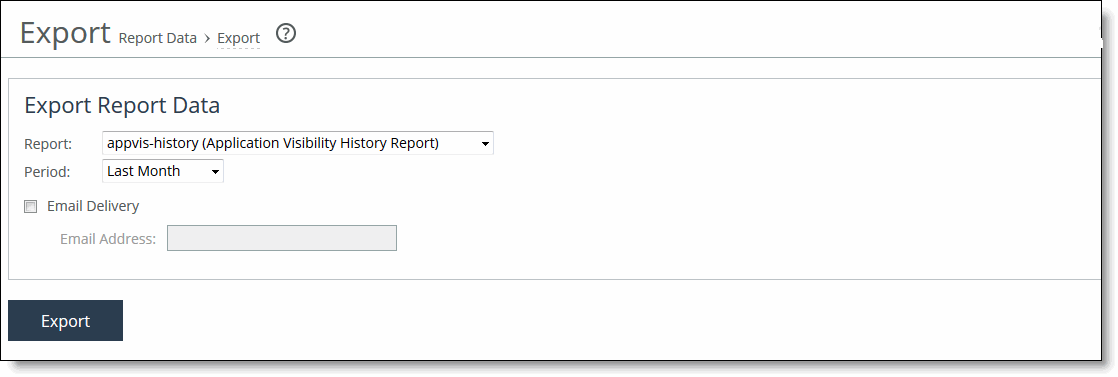

Export Report Data page

2. Use the controls to customize the report as described in this table.

Control	Description
Report	Select the type of report you want to export from the drop-down list.
Period	Select a report time interval of custom, last five minutes, last hour, last day, last week, or last month.
Email Delivery	Sends the report to an email address.
Email Address	Specify the email address of the recipient.
Export	Exports the report data.

Viewing in-path rule statistics

The In-Path Rule Statistics report displays statistics for in-path rules.

What this report tells you

The In-Path Rule Statistics report answers these questions:

•When was the rule created?

•What is the IP address of the host where the rule was created?

•Which user created the rule?

•How many hits are in-path rules getting?

•When was the last time the in-path rule was hit?

•When was the counter last cleared?

About report data

This report provides you with the following data:

•The number of hits each in-path rule is shown, which lets you see which in-path rules are being used, and which aren’t.

•All pass-through rules are listed in this report, which makes them easy to find. Pass-through rules are sometimes created as a workaround for a temporary network issue. When the issue is resolved, the rule can be forgotten, which results in traffic not being optimized.

•A field in this table shows you when email notifications are being sent, which is another way to track pass-through in-path rules. For more information, see To configure in-path rules and Configuring email settings.

•If the rule ignores the global latency detection setting.

To view the In-Path Rule Statistics report

1. Choose Reports > Rules Statistics: In-Path Rule Statistics to display the In-Path Rule Statistics page.

In-Path Rule Statistics page

2. View these statistics that summarize in-path rule activity.

Data series	Description
Rule ID	The in-path rule ID. This ID corresponds to the Rule ID in the Optimization > Network Services: In-Path Rules page.
Rule Summary	A summary of the rule's attributes.
Description	The description, which corresponds to the optional Description field for the rule in the Optimization > Network Services: In-Path Rules page.
Hit Count	The number of hits the rule has received.
Last Hit Time	The last time the in-path rule was matched.
Counter Clear Time	The last time the counter was cleared.
Creation time	The time that the rule was created.
Hostname	The hostname of the machine from where the user has logged in.
Created by	The SteelHead user ID of the user that created the rule (for example, admin).
Clear Stats	Clears the statistics.
Email Notify	This field applies only if you specify a pass-through in-path rule, and indicates whether emails are sent when one or more pass-through in-path rules are configured. Reminder emails are also sent every 15 days. To enable email notifications, verify the following additional changes: •Select the Enable Email Notification check box when creating the rule in the Optimization > Network Services: In-Path Rules page. •Select the Send Reminder of Passthrough Rules via email check box in the Administration > System Settings: Email page. •Select the Report Events via Email check box and specify an email address in the in the Administration > System Settings: Email page.
Ignore Latency Detection	Indicates if the rule applies latency-detection passthrough.

3. Optionally, select Clear Stats to clear statistics for a single in-path rule. To clear all in-path rule statistics, select the Clear All Statistics check box, and then click Submit.

Data series	Description
Request Rate	Select to display the rate of HTTP objects, URLs, and object prefetch requests.
Object Prefetch Table Hit Rate	Select to display the hit rate of stored object prefetches per second. The SteelHead stores object prefetches from HTTP GET requests for cascading style sheets, static images, and Java scripts in the Object Prefetch Table.
URL Learning Hit Rate	Select to display the hit rate of found base requests and follow-on requests per second. The SteelHead learns associations between a base request and a follow-on request. Instead of saving each object transaction, the SteelHead saves only the request URL of object transactions in a Knowledge Base and then generates related transactions from the list.
Parse and Prefetch Hit Rate	Select to display the hit rate of found and prefetched embedded objects per second. The SteelHead determines which objects are going to be requested for a given web page and prefetches them so that they’re readily available when the client makes its requests.

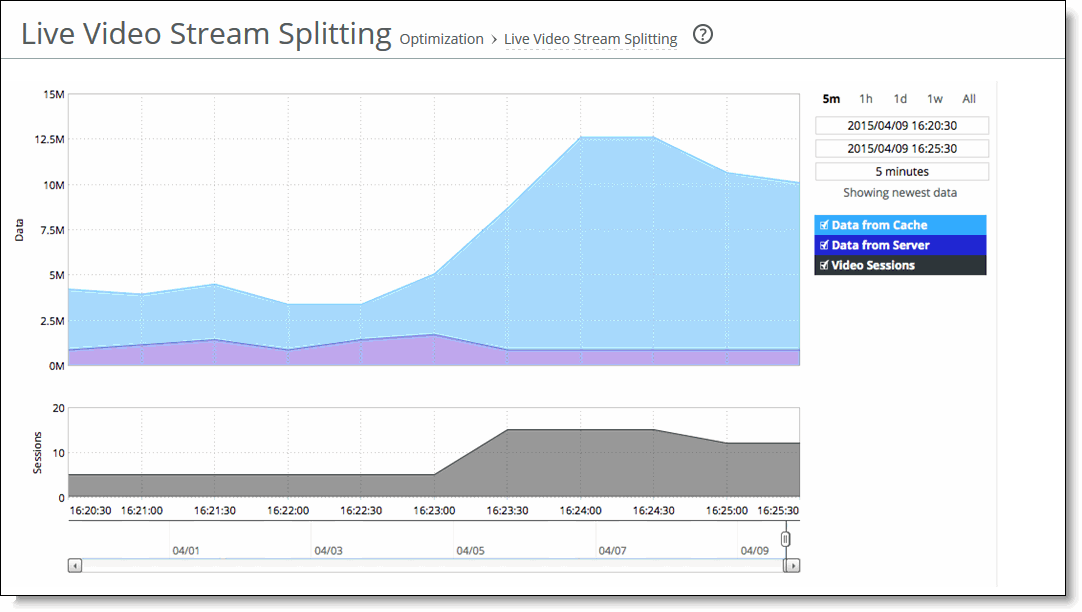

Data series	Description
Data From Cache	Displays the cumulative bps of video traffic served from the cache. Cache hits indicate that content is being served locally and avoiding round-trip bandwidth.
Data From Server	Displays the cumulative bps of video traffic going to and coming from the server over the WAN.
Video Sessions	Displays how many users are watching the video sessions. A video session is an open connection that has passed a video fragment.

Data series	Description
Local Response Rate	Displays the number of NFS calls that were responded to locally.
Remote Response Rate	Displays the number of NFS calls that were responded to remotely (that is, calls that traversed the WAN to the NFS server).
Delayed Response Rate	Displays the delayed calls that were responded to locally but not immediately (for example, reads that were delayed while a read ahead was occurring and that were responded to from the data in the read ahead).

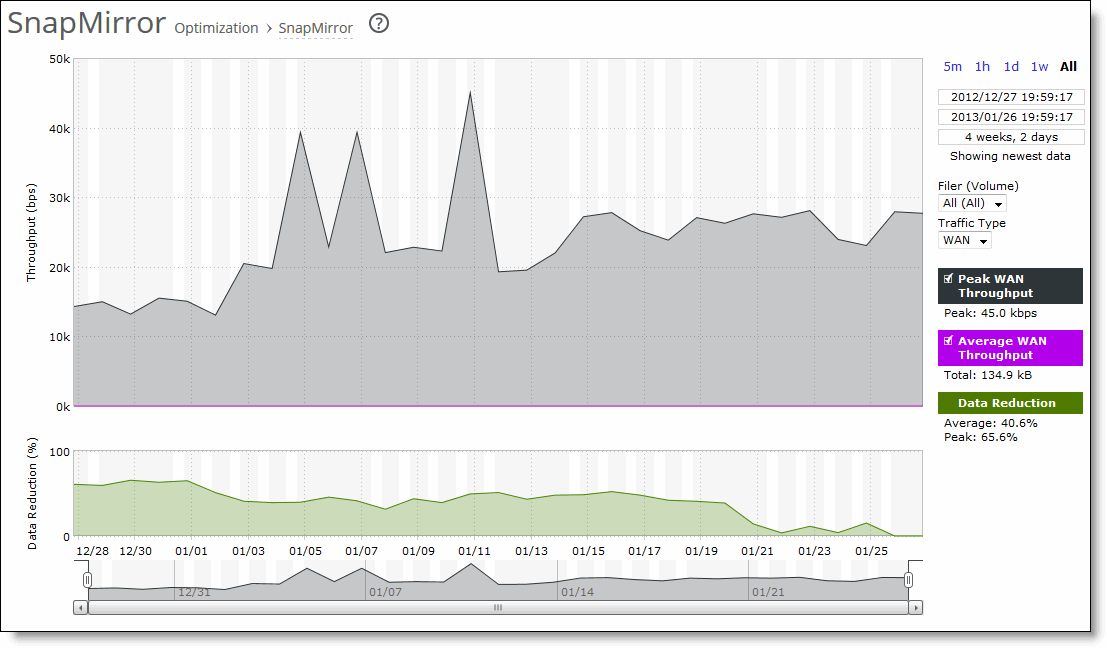

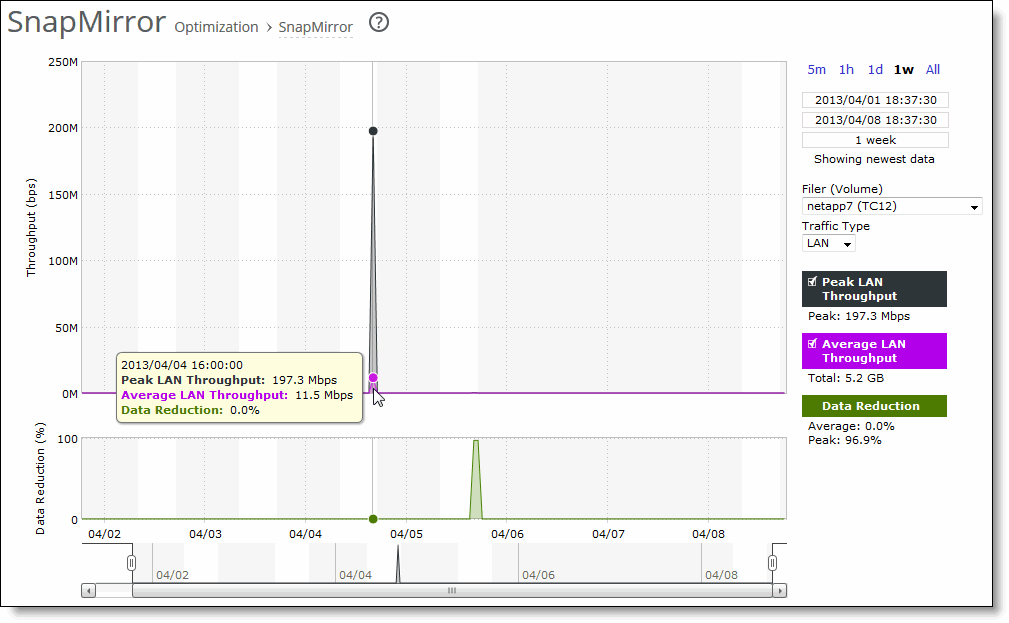

Data series	Description
Peak LAN/WAN Throughput	Displays the peak LAN/WAN data activity. The system stores peak statistics as bytes transferred over the LAN, but calculates the normal throughput using a granularity of 10 seconds.
Average LAN/WAN Throughput	Displays the average LAN/WAN data activity. The system stores non-peak statistics as the number of bytes transferred over the LAN/WAN, and calculates the throughput by converting bytes to bits and then dividing the result by the granularity. For instance, if the system reports 100 bytes for a data point with a 10-second granularity, RiOS calculates: 100 bytes * 8 bits/byte / 10 seconds = 80 bps This calculation means that 80 bps was the average throughput over that 10-second period. The total throughput shows the data amount transferred during the displayed time interval.
Data Reduction	Specifies the percentage of total decrease in overall data transmitted (when viewing all SnapMirror filers). The system calculates data reduction as (total LAN data - total WAN data) / total LAN data. You can use data reduction information to fine-tune the optimization settings for a filer, a filer and a volume, or a filer, volume, and qtree.
