Rack Mounting Appliances

Before you begin rack mounting appliances, ensure your site meets these basic requirements:

• A standard electronic environment where the ambient temperature doesn’t exceed 40°C (104°F) and the relative humidity doesn’t exceed 80% (non-condensing).

• Ethernet connections are available within the standard Ethernet limit.

• There’s available space on a two-post or four-post 19-inch Telco-type mounting rack. 2U and 3U systems require a four-post rack. If your rack requires special mounting screws, contact your rack manufacturer.

• A clean power source is available, dedicated to computer devices and other electronic equipment. You can’t connect an appliance directly to multiphase outlets. You must use a rack PDU or power strip that provides the appropriate three-prong outlet (hot/neutral/ground).

All appliances ship completely assembled, with all the equipment parts in place and securely fastened. If any items are damaged or missing, contact us immediately for replacements. See Contacting Riverbed. Your shipping carton contains these items:

Aside from country-specific requirements, all systems ship with the same power cable. The power cable has an IEC 60320 C13 plug on one end (to connect to the appliance) and a country-specific plug that fits the wall socket for that country. If a system has two power supplies, it ships with two suitable cables.

You must always connect the appliance using either the cable in the accessories box or another cable that is approved for use by the IEC in the country in which the appliance is connected.

Follow the safety precautions outlined in the Safety and Compliance Guide when installing and setting up your equipment.

Failure to follow these safety guidelines can result in injury or damage to the equipment. Mishandling of the equipment voids all warranties. Read and follow safety guidelines and installation instructions carefully.

Many countries require the safety information to be presented in their national languages. If this requirement applies to your country, consult the Safety and Compliance Guide. The guide contains the safety information in many languages. Before you install, operate, or service Riverbed products, you must be familiar with the safety information associated with them.

Rack cabinets can have square or circular holes in the vertical posts. If necessary, to accommodate standard screws you can convert the square post holes to circular holes using the included square post-hole adapters.

To convert a square post hole to fit a standard screw, press together the top and bottom of the square post-hole adapter and push it into the square hole on the inside of the rack post.

Rack mounting kits (RMK) are included with every appliance. These kits are specific to the rack size (desktop, 1U, or 2U) of the appliance. Some kits include sliding rails that enable you to rack mount the appliance so that you can slide it in and out of the rack for easy maintenance.

Most kits include a set of screws and washers for attaching brackets or rails, and securing the equipment to the rack. The supplied screws depend on the RMK that comes with the appliance.

The kit includes four M5 screws with washers that you use to install the outer rails behind the rail posts with square holes. The outer rails are installed behind the rail posts with square holes. The washers have a funnel shape that fits perfectly in the square hole rack.

All kit part numbers begin with “RMK-”. See the table in About Riverbed hardware platforms, which lists the kits available for each hardware platform and appliance model. Contact Riverbed Support if you need to order replacement parts.

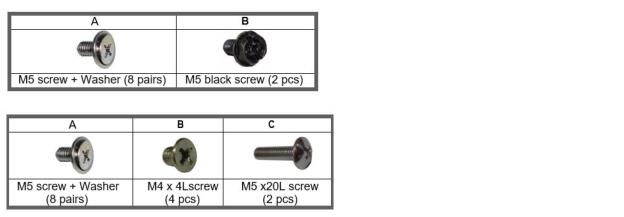

The xx80 and 9800 2U appliances use the RMK-4-2U kit, which contains:

• One sliding rail screw kit: 8 M5 screws, 8 M5 washers, 2 M5 black screws. For figures of screws, see About rack mounting kits.

For mounting instructions, see Rack mounting 2U appliances (RMK-4-2U).

The 3080 appliance comes with front and rear mounting brackets. For mounting instructions, see Rack mounting 1U appliances (RMK-4-3080).

All other xx80 1U appliances come with the RMK-4-1U kit that contains:

• One sliding rail screw kit: 8 M5 screws, 8 M5 washers, 4 M4 x M4L screws, 2 M5 x 20L screws. For figures of screws, see About rack mounting kits.

For mounting instructions, see Rack mounting 1U appliances (RMK-4-1U).

All desktop x80 models come with front ear brackets and a set of screws attaching the brackets to the appliance and securing the appliance (with ear brackets attached) to the rack. For mounting instructions, see Reference: Figures for Rack Mounting Desktop Appliances.

All 2U xx80 and 9800 appliances are mounted using the RMK-4-2U kit.

For figures illustrating the installation procedure, see Reference: Figures for Rack Mounting 2U Appliances.

1. Screw the mounting ears to both sides of the appliance using the included screws.

2. Pull out the inner rail from the rail assembly. When the rail comes to a stop, pull the tab to release the latch and completely extend the inner rail to its full length.

3. Align the inner sliding rail on the side of the appliance and pull it towards the arrow to secure the hooks.

4. Repeat Step 2 and Step 3 to attach the sliding rail to the other side of the appliance.

5. Attach the outer rails to the inner side of the rack post using four M5 screws and four washers. For figures of screws, see About rack mounting kits. Ensure that you:

– Use the included washers as they have the shape of a funnel that fits in the square hole.

6. With the inner rails fully extended, pull the tab to release the latch and push the appliance in.

7. Attach the mounting ears of the appliance to the rack using the included screws.

You can mount 3080 appliances in a rack by attaching the two ear brackets that are included with the accessory kit for these appliances.

All other xx80 appliances use sliding rail kits. For details about these kits, see About rack mounting kits.

For figures illustrating the installation procedure, see Reference: Figures for Rack Mounting 1U Appliances.

1. Attach the ear brackets to both sides of the chassis using the included screws. Each ear bracket requires four screws.

2. Slide the appliance into the rack and attach the ear brackets to the rails using the included screws.

3. From the back of the rack, slide the rail onto the appliance. Make sure the center of the rail aligns with the center screws on the side of the appliance.

4. Facing the back of the rack, attach the four screws on both sides of the appliance to the back of the rack.

For figures illustrating the installation procedure, see Reference: Figures for Rack Mounting 1U Appliances.

1. Screw the mounting ears to each side of the appliance using the included screws.

3. When the rail comes to a stop, pull the tab to release the latch and completely extend the inner rail to its full length.

4. Align the inner sliding rail on the side of the appliance, and pull towards the arrow to secure the hooks.

5. Secure the inner sliding rail to the appliance using one M4 x 4L screw. For figures of screws, see About rack mounting kits.

6. Repeat Step 2 through Step 5 to secure the sliding rail to the other side of the appliance.

7. Secure the outer rails to the inner side of the rack post using four M5 screws and four washers. For figures of screws, see About rack mounting kits. Ensure that you:

– Use the included washers as they have the shape of a funnel that fits in the square hole.
