Rack Mounting 2U xx80 and 9800 Appliances

Rack Mounting 2U xx80 and 9800 Appliances
This chapter describes how to install the SteelHead CX 5080, CX 7080, and SteelHead Interceptor 9800 2U appliances in a standard 19-inch four-post rack. It includes these sections:
• Appliances included in this chapter
• Before you begin
• Mounting 2U xx80 and 9800 appliances
Appliances included in this chapter
This chapter describes how to rack mount the following 2U appliances:
• SteelHead CX 5080 and CX 7080
• SteelHead Interceptor 9800
Before you begin
Before you begin the installation process:
• Unplug the AC power cords.
• Remove all external devices and connectors.
Mounting 2U xx80 and 9800 appliances
This section describes how to mount the 2U xx80 appliances in a standard 19-inch, four-post rack.
2U xx80 sliding rail kit
• 2 sliding rails
• 1 sliding rail screw kit: 8 M5 screws, 8 M5 washers, 2 M5 black screws

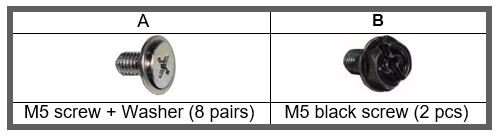

Sliding rail screws
Four M5 screws with washers are included in the rail kit. Do not lose the M5 washers. When you attach the outer rails to a square hole rack, you must use the M5 screws and the washers. The outer rails are installed behind the rail posts with square holes. You must use the provided washers as they have a funnel shape that fits perfectly in the square hole rack.
Mounting 2U appliances
To mount the 2U appliance
1. Screw the mounting ears to both sides of the appliance using the screws from the mounting-ears screw kit.

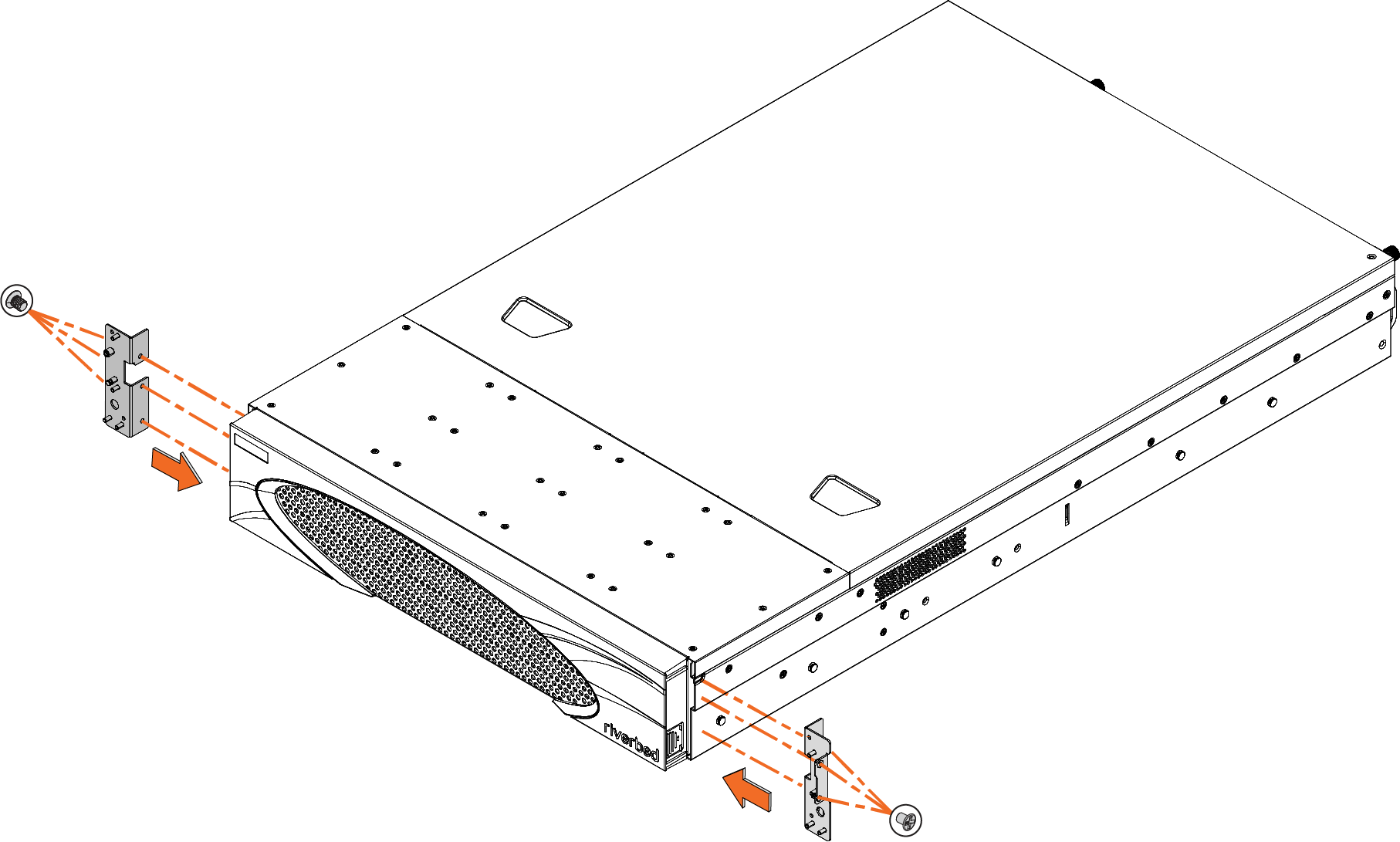

Attaching the mounting ears to the appliance
2. Pull out the inner rail from the rail assembly. When the rail comes to a stop, pull the tab to release the latch and completely extend the inner rail to its full length.

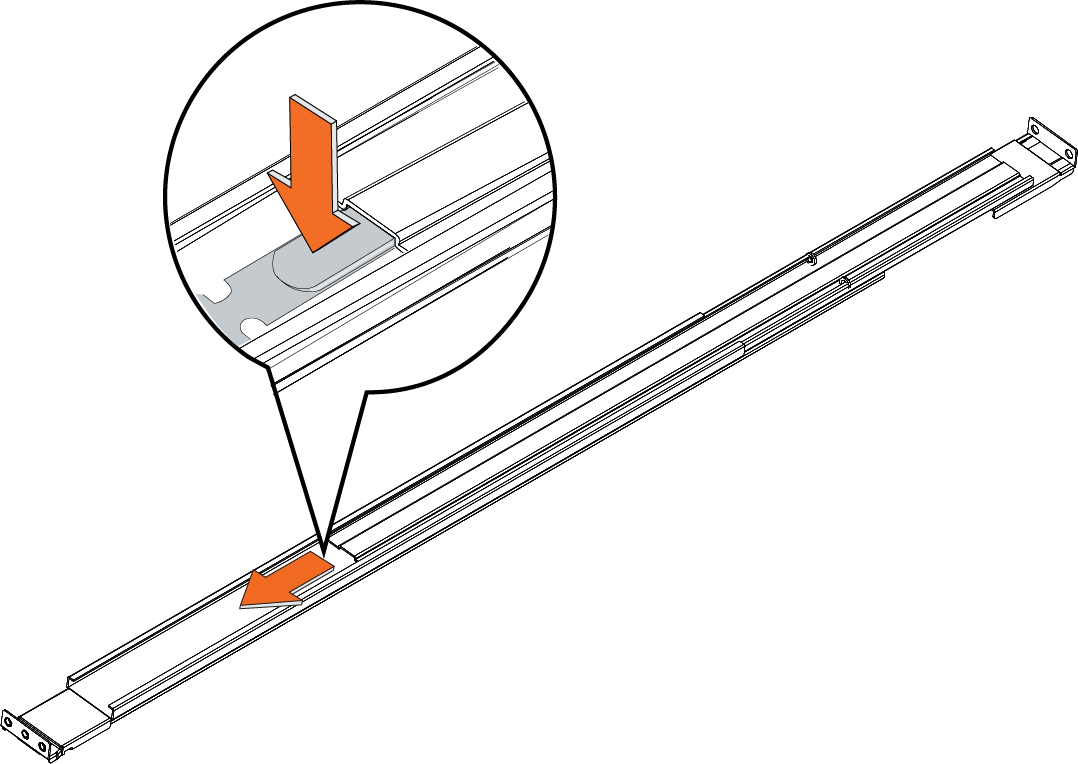

Extending the inner rail from the rail assembly
3. Align the inner sliding rail on the side of the appliance and pull it towards the arrow as shown in Figure: Aligning the inner sliding rail to secure the hooks.

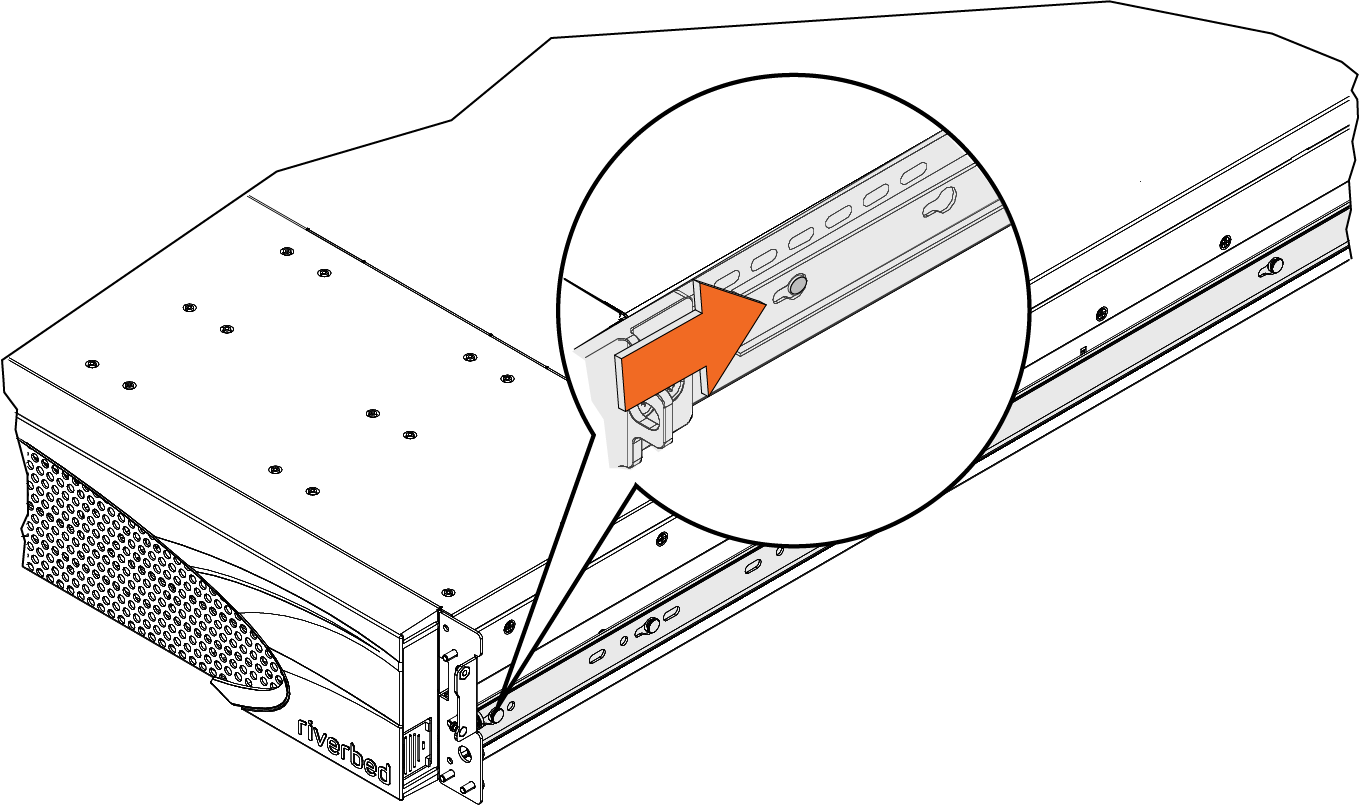

Aligning the inner sliding rail
4. Repeat Step 2 and Step 3 to attach the sliding rail to the other side of the appliance.

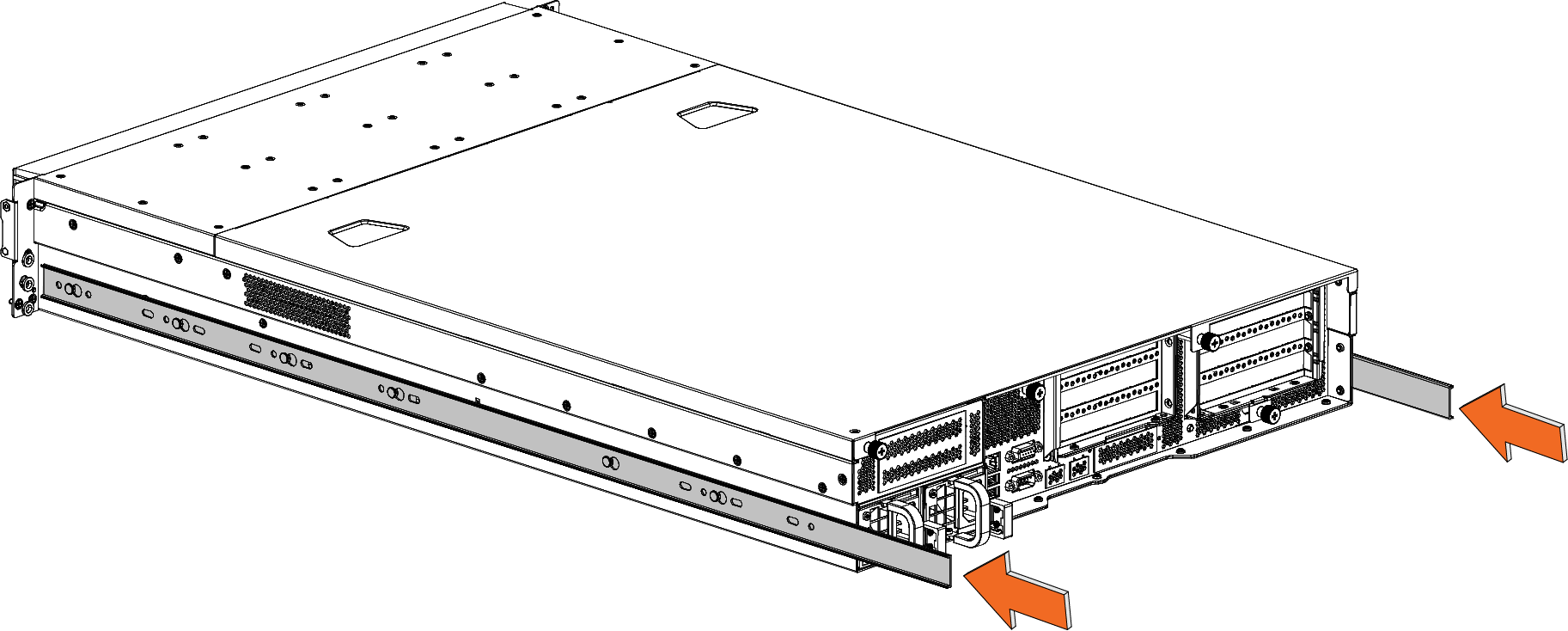

Attaching the sliding rail to the other side of the appliance
5. Attach the outer rails to the inner side of the rack post using four M5 screws and four washers:
– Install the outer rails from BEHIND the posts with square holes.
– Use the provided washers as they have the shape of a funnel that fits in the square hole.
– Secure the screws to the threaded rails.

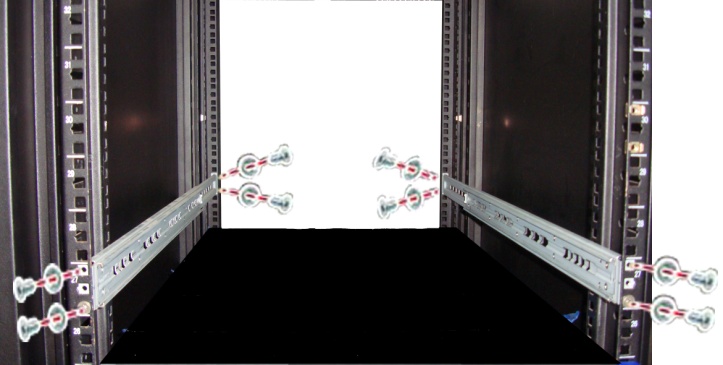

Securing the outer rails to the rack
6. When the inner rails come to a stop, pull the tab to release the latch and push the appliance in. (See Figure: Extending the inner rail from the rail assembly for the tab location.)

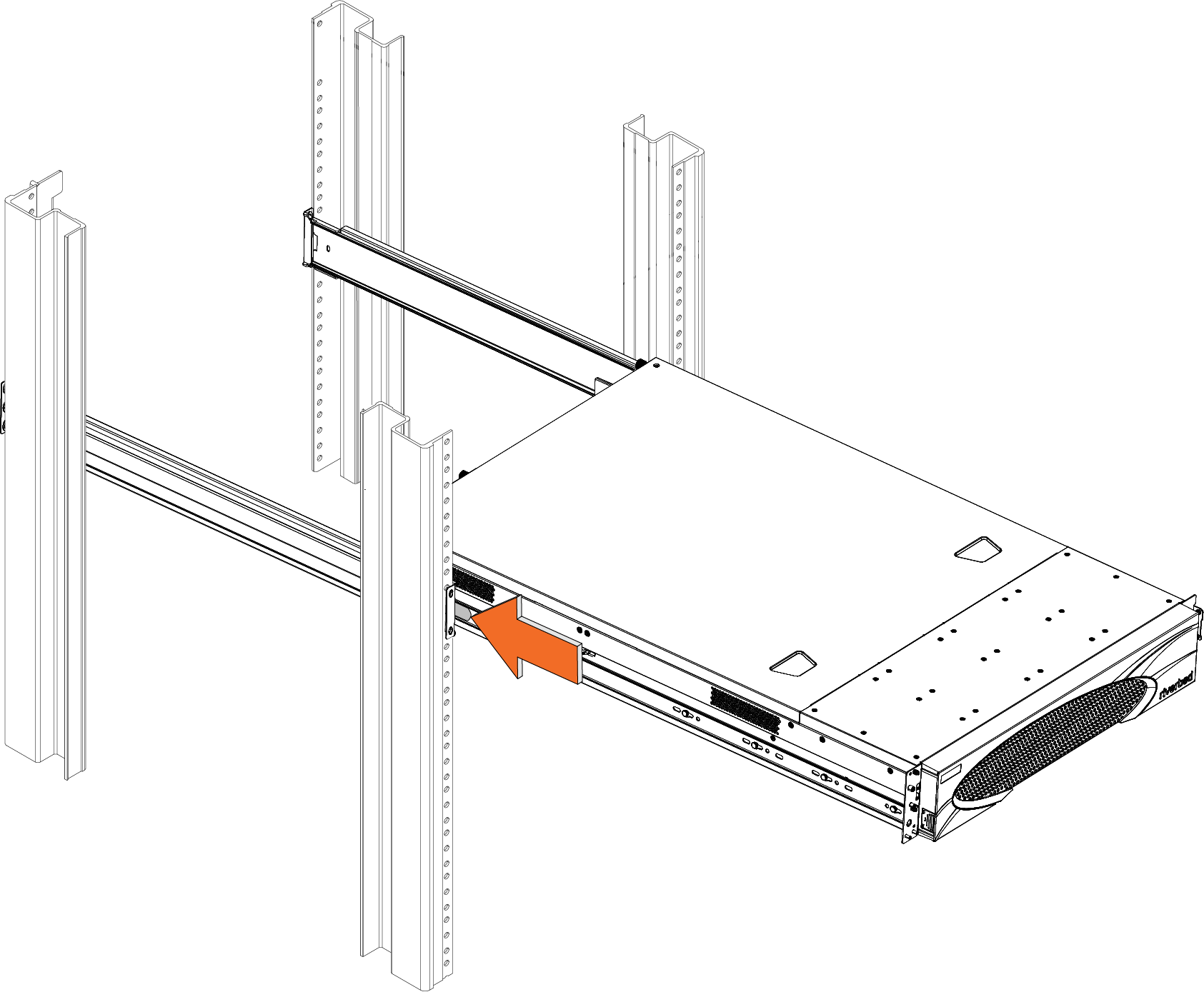

Pulling the tab to release the latch
7. Insert the appliance into the rack.
8. Attach the mounting ears of the appliance to the rack using two M5 x 20L screws. For screw types, see Figure: Sliding rail screws.

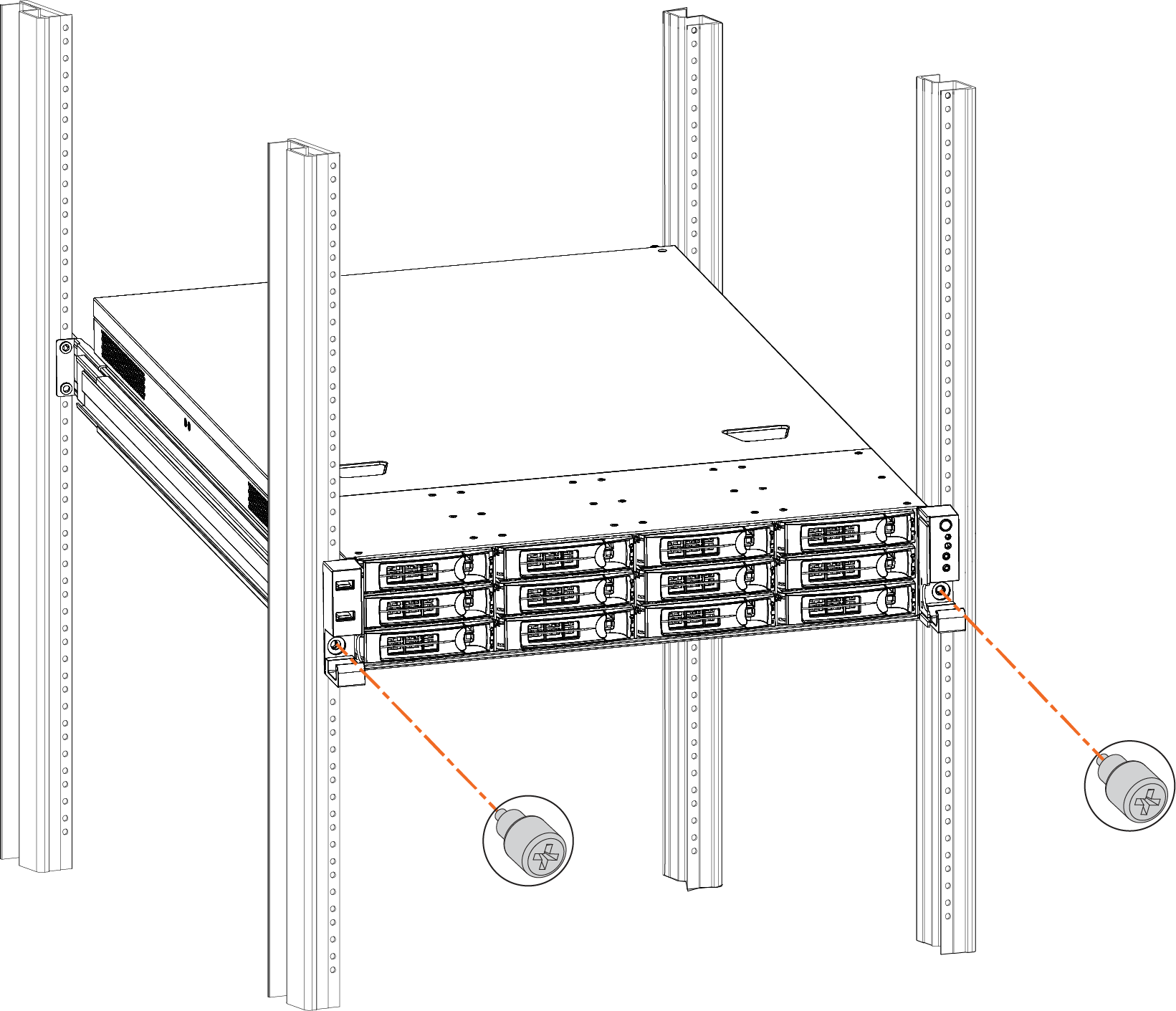

Attaching the mounting ears to the rack
