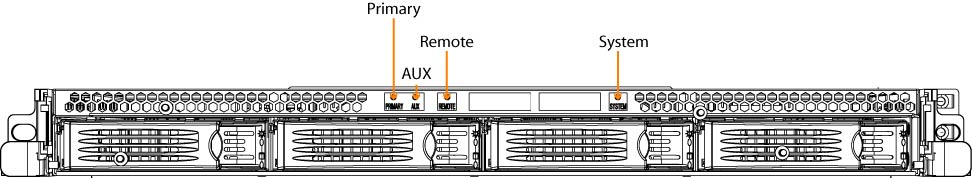

Figure: Front panel
Specification | Model 8150 | Model 1000 |
Form Factor | 1 U | Desktop |
Height, Width, and Depth | 1.71 x 17.2 x 25.41 in. (4.35 x 43.6 x 64.54 cm) | 13 x 8 x 1.73 in. (33.02 x 20.32 x 4.4 cm) |
Weight | 30 lbs. (13.6 kg) | 6 lb (2.7 kg) |
Voltage | 110-220 V | 100-240 V 50-60 Hz |
Frequency | 50-60 Hz | 50 W |
Power (Watts) | 151 W | 50 W |
Amps | 1.8 A | 1.3 A |
VA | 153 V | — |
BTU | 515 BTU (per hour maximum) | 165 BTU |
Hard Disk | 1 TB | 1 x 500 GB HDD 1 x 480 GB SSD |
Data Store | 400 GB | — |
Power Requirement | 151 W | 50 W |
Power Supply | Single 650 W The dual power supplies are optional. | I/P: 100-240 VAC, 1.3 A, 50-60 Hz O/P: 12 VAC, 7 A, max |
Specification | Model 8150 | Model 1000 |
Temperature (Operating) (outside, ambient) | 10°-40°C 50°-95°F | 0º-45ºC 32°-113°F |
Temperature (Storage) (outside, ambient) | -40°-65°C -40°-149°F | -40°-65°C -40°-149°F |
Relative Humidity | 20%-80% noncondensing | 20%-80% noncondensing |
Storage Humidity | 5%-95% noncondensing | 5%-95% noncondensing |
Operating Altitude | Up to 10,000 ft | Up to 10,000 ft |
Operating Acoustic | 45 dBA Sound pressure (Typical) | 45 dBA Sound pressure (Typical) |
LED | Status |

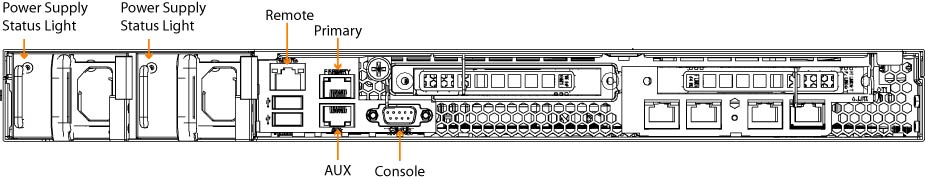

SYSTEM LEDs | Healthy = Blue Degraded = Yellow Critical = Red System Boot = Yellow |

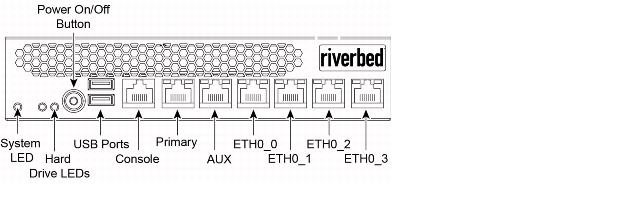

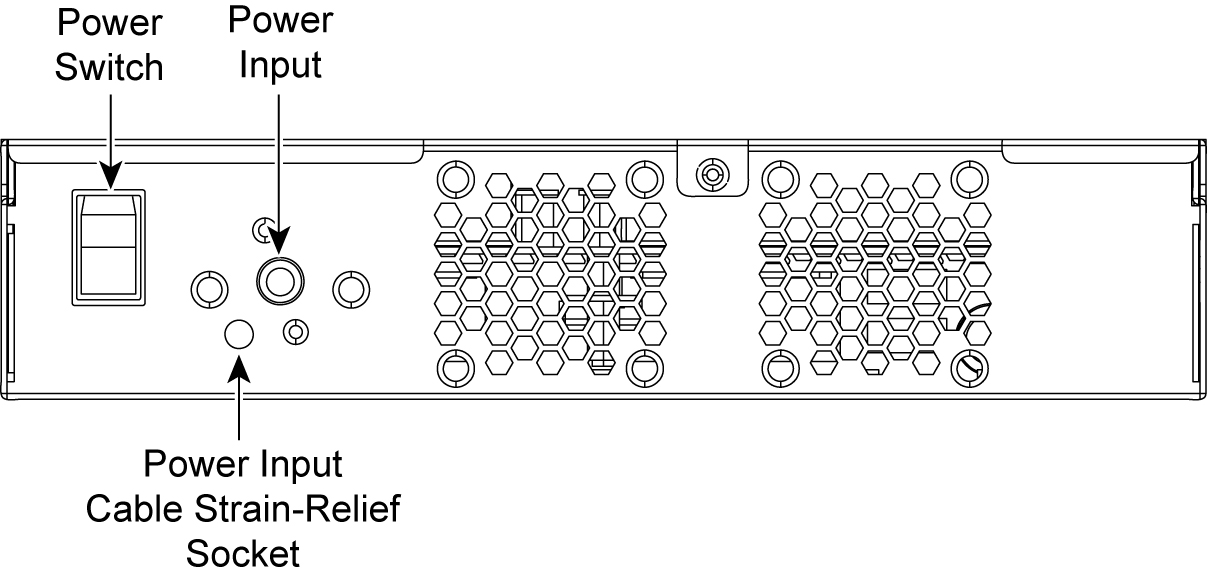

NETWORK STATUS LEDs (Front LAN-WAN LEDs) | Link = Blue Activity = Blinks Blue |
BYP/BLK (Bypass or Block (Disconnect) Mode) | Normal = No Light Bypass or Block (Disconnect) = Orange |
HDD LEDs | Disk Connected = Blue Read/Write Activity = Blinks Blue Failed Disk = Orange |
LAN-WAN LEDs | Left LED Link = Green Activity = Blinks Green Right LED GB = Orange 100-MB = Green 10-MB = No Light |
LED | Condition |
Solid Green | Healthy power supply with AC power connected. |
Blinks Green | Unit is halted, but the power supplies are still connected to AC power. |
Solid Orange | AC power isn’t connected to this power supply, but the unit is still powered on due to the other power supply. Occurs when the power supply automatically shuts off due to some error condition, such as an overheat. |
Blinks Orange | Indicates a power supply predictive-fail condition, such as a fan failure. The power supply may then shut itself off, which changes the LED to solid orange. A log entry of this predictive-fail can be viewed using the show hardware error-log all command in the Riverbed command-line interface. |
No LED | No AC power connected. |
LED | Status |
System | Healthy = Blue Degraded = Yellow Critical = Red Power Off = None |
Power Button LED | System Off = No Light Standby Mode = Yellow Power On = Blue |
Hard Drive LED | Activity = Blinks Blue Failed Disk = Orange |
Primary LED | Left LED Link = Green Activity = Blinks Green Right LED GB = Yellow 100 MB = Green 10 MB = No Light (with link on left LED) |
LAN/WAN LEDs | Left LED Link = Green Activity = Blinks Green Bypass/Disconnect = Yellow Right LED GB = Yellow 100 MB = Green 10 MB = No Light (with link on left LED) |
