About the Outbound QoS report
The Outbound QoS report is under Reports > Networking: Outbound QoS.

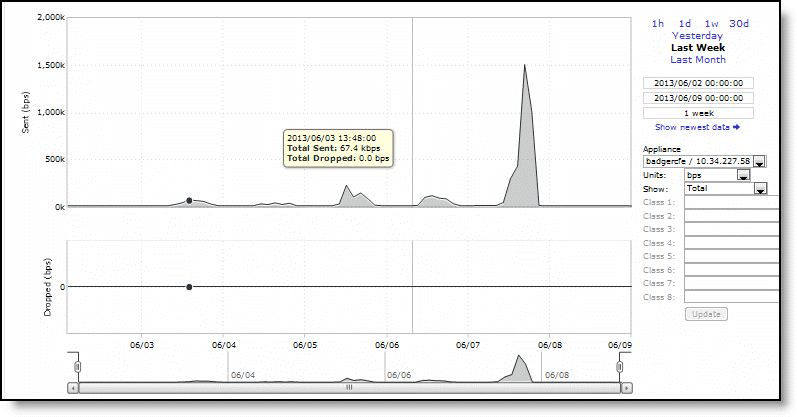

Outbound QoS report
The Outbound QoS report summarizes the number of bits per second or packets per second transmitted for either a set of QoS classes (up to seven) or an aggregate total of all classes for the time period specified. You view Time Interval, Units, Classes, and other options are available to customize the report.
The Outbound QoS report answers these questions:
• Is outbound QoS working correctly?
• How many bits or packets per second were transmitted over the WAN for the QoS classes?
• How many bits or packets per second were sent and dropped for the QoS classes?
If you choose a SteelHead running RiOS 9.0.x or later, these reports will not display data. SCC 9.0.x and later don’t support QoS reports for SteelHeads running RiOS 9.0.x or later. Log in to the SteelHead to view QoS data.
