Technical Specifications

Technical Specifications
This chapter summarizes the SteelHead Interceptor technical specifications, status lights, and status beeps. This chapter includes the following sections:
•  SteelHead Interceptor 9600 specifications
•  SteelHead Interceptor 9350 specifications
SteelHead Interceptor 9600 specifications
This section describes the status lights, ports, and technical and environmental specifications.
Status lights and ports
Figure: SteelHead Interceptor 9600 front panel with LEDs and buttons and Figure: SteelHead Interceptor 9600 back panel show the status light and port locations.

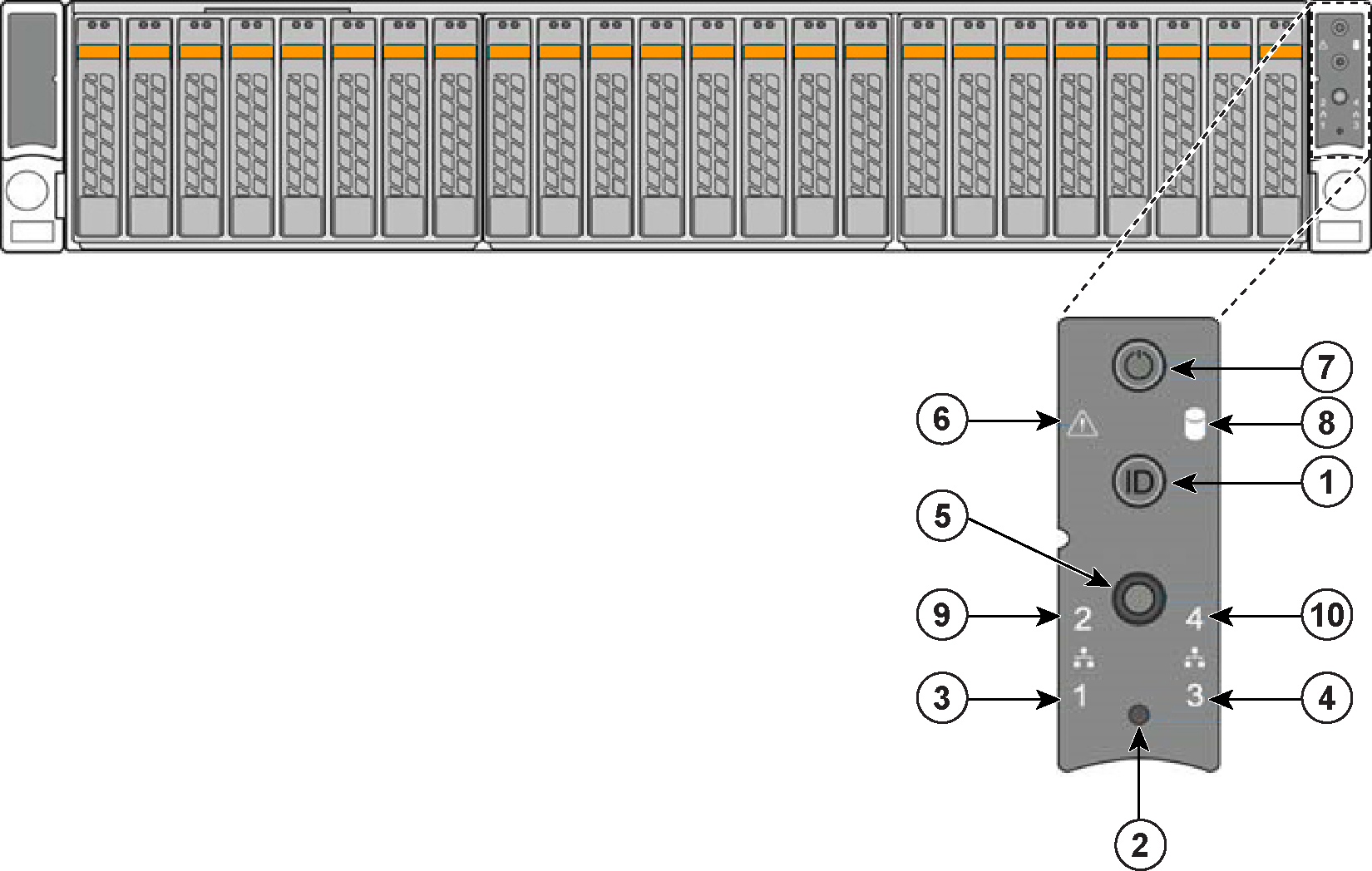

Figure: SteelHead Interceptor 9600 front panel with LEDs and buttons

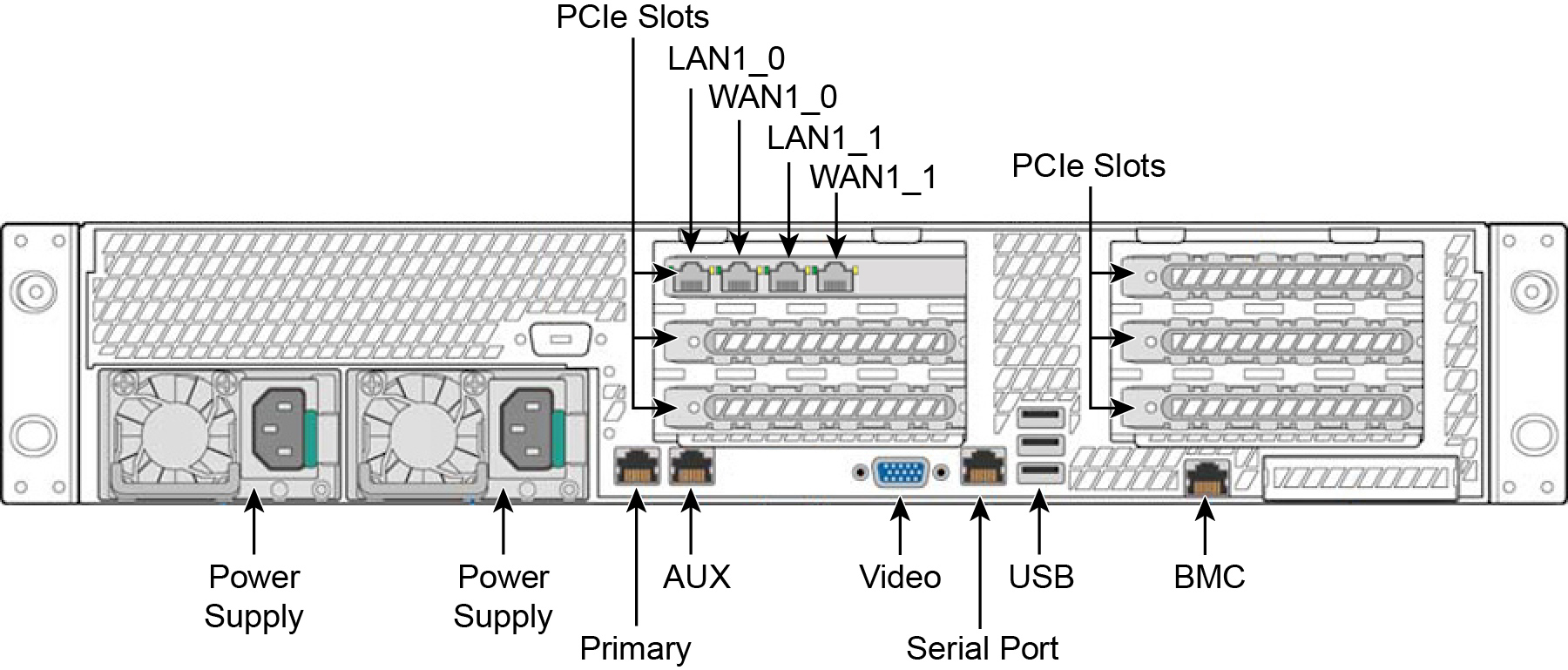

Figure: SteelHead Interceptor 9600 back panel
Note: By default, the SteelHead Interceptor 9600 ships with a bypass card in slot 1. The default interface names are LAN1_0, WAN1_0, LAN1_1, and WAN1_1. This appliance doesn’t have an inpath0_0 interface as found on earlier appliances and by default the SteelHead Interceptor 9600 uses inpath1_0 and inpath1_1.
The following table summarizes the appliance LEDs and buttons.
Reference
LED/button
Description
1
System ID Button with Integrated LED

Maintenance = Blue
Toggles the integrated ID LED and the blue server board ID LED on and off. The System ID LED identifies the system for maintenance when installed in a rack of similar server systems. You can also remotely turn on and turn off the System ID LED using the Intelligent Platform Management Interface (IPMI) ipmitool chassis identify command, which causes the LED to blink for 15 seconds.
A duplicate System ID LED is on the back of the appliance to the left of the video port.
2
NMI Button

Pressing the NMI button puts the appliance in a halt state and issues a nonmaskable interrupt (NMI). This helps when performing diagnostics for a given issue where a memory download is necessary to determine the cause of the problem. To prevent an inadvertent system halt, the NMI button is located behind the Front Control Panel faceplate and is only accessible with the use of a small tipped tool such as a pin or paper clip.


3
10
Network Activity LED

Primary
Auxiliary
Link = Green
Activity = Blinks green. The blink rate is consistent with the amount of network activity.
The appliance doesn’t use the LEDs 4 and 9 shown in Figure: SteelHead Interceptor 9600 front panel with LEDs and buttons.
5
System Cold Reset Button
Pressing this button reboots the appliance.
6
System Status LED
The System Status LED shows the current health of the server system.
Healthy = Green
Degraded = Yellow
Critical = Blinks yellow
7
Power Button with Integrated LED
System On = Green
System Off = No light
8
Drive Activity
Activity = Blinks green

LEDs on Disk Drives
Activity LED
Read/Write Activity = Blinks green
Disk Fault LED
Failed Disk = Orange
RAID Rebuild = Blinks orange

LEDs on Primary and AUX Ports

Left LED
Link = Green
Activity = Blinks green
Right LED
10 MBps data rate = No light (with link on left LED)
100 MBps data rate = Green
1000 MBps data rate = Yellow

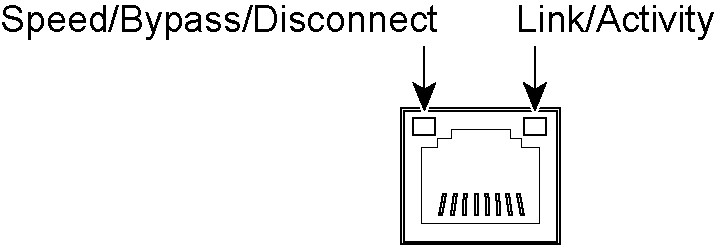

LEDs on Default Four-Port Copper Bypass Card

Link/Activity LED
Link = Green
Activity = Blinks green
Speed/Bypass/Disconnect LED
1000Mbit/s = Yellow
100Mbit/s = Green
10Mbit/s = Off
Bypass = Blinks green
Disconnect = Blinks yellow

LEDs on Power Supply

Power On and Healthy = Green
Power Off = Off
Standby = Blinks green
Power Lost But Second Power Supply Has Power = Amber
Power On With Warning Events (high temperature, high power, high current, slow fan) = Blinks amber
Technical specifications
The following table summarizes the technical specifications for the systems.

SteelHead Interceptor 9600
Form Factor
2U
Hard Disk
2 x 1000 GB HDD
Dimensions (LxWxH)
27.87 x 17.24 x 3.45 in.
707.8 x 438 x 87.6 mm
Weight (without packaging)
42 lb (19.05 kg)
Voltage Frequency
100–127 V, 200–240 V
PSU

2 x
770 W
100–127 VAC/8.2 A, 50/60 Hz
200–240 VAC/4.4 A, 50/60 Hz
PCI Slots
6
Included Bypass Ports/Max # Ports
4/20
Power requirements and consumption
The following table summarizes the power specifications for the systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
Interceptor 9600
Interceptor 9600
Configuration
All (L/M/H)
All (L/M/H)
PSU Type
2 x 770 W
2 x 770 W
AC Input
120 V
230 V
Max. Amps.
2.86
1.45
Max. Watts
284
276
Typical Watts
221
221
Max VA
278
278
Power Factor
99.16
99.16
BTU (Typical)
774
753
Environmental specifications
The following table summarizes the environmental requirements for the systems.

SteelHead Interceptor 9600
Operating
Acoustic
7.0 BA Sound Pressure (Typical)
Temperature (Operating)
10º–35ºC
50°–95ºF
Temperature (Storage)
-40º–70ºC
-40º–158ºF
Relative Humidity
50% to 90%, noncondensing with a maximum wet bulb of 28ºC (at temperatures from 25 to 35ºC)
SteelHead Interceptor 9350 specifications
This section describes the status lights, ports, and technical specifications for the 9350 appliance.
Status lights and ports
This section shows the status lights and interface names for the SteelHead Interceptor 9350 appliance.
Figure: Front panel SteelHead Interceptor 9350 appliance, Figure: Disk drive numbers SteelHead Interceptor 9350, and Figure: Back panel SteelHead Interceptor 9350 appliance show the status lights and interface names for the SteelHead Interceptor 9350 appliance.

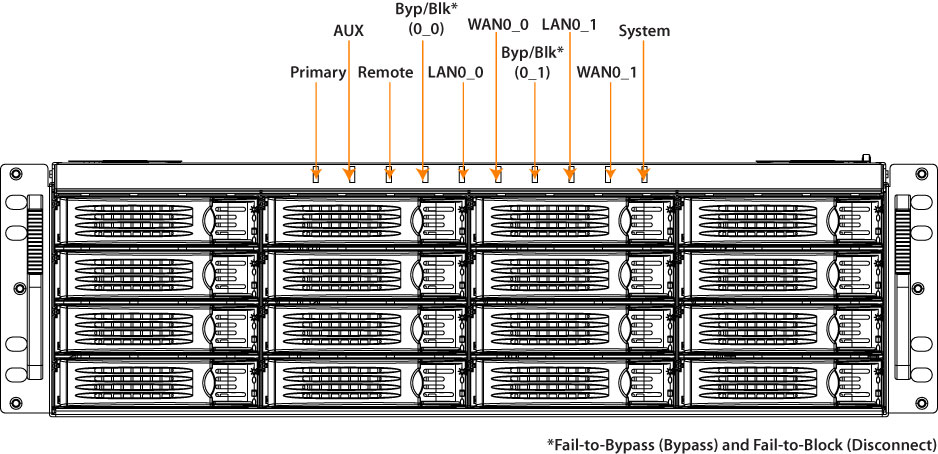

Figure: Front panel SteelHead Interceptor 9350 appliance

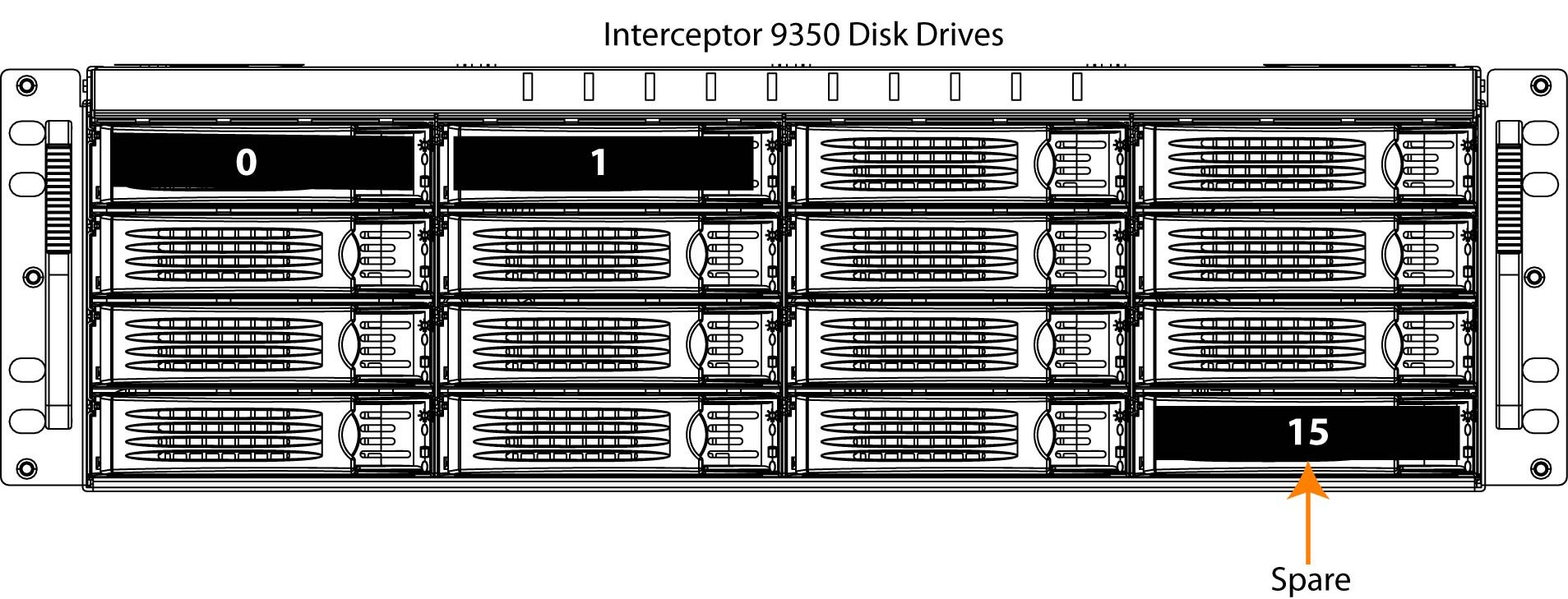

Figure: Disk drive numbers SteelHead Interceptor 9350

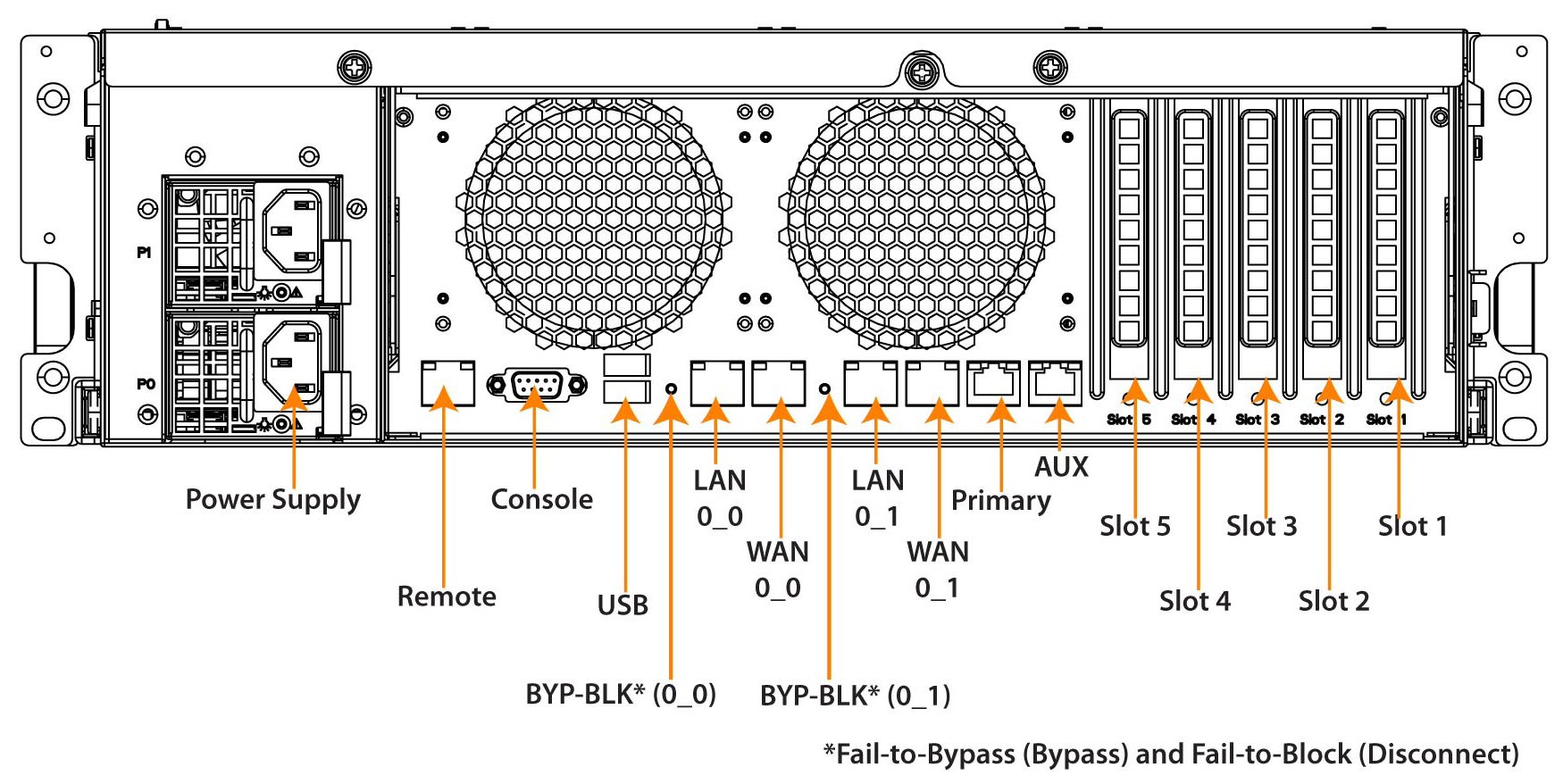

Figure: Back panel SteelHead Interceptor 9350 appliance
The following table describes the four-port onboard bypass LEDs for the SteelHead Interceptor 9350.
LED
Condition
Bypass/Block (Disconnect)
Solid orange in bypass or block (disconnect) mode
Right LED
GB = Orange
100 MB = Green
10 MB = No light
Left LED
Solid green on link, blinks green for activity
SteelHead Interceptor status beeps
In the event of fan failure or power supply failure, the Interceptor emits three beeps.
Technical specifications
The following table summarizes the technical specifications for the SteelHead Interceptor.
Specification
SteelHead Interceptor 9350
Form Factor
3U
Dimensions (height x width x depth)
5.2 x 17 x 25.72 in.
131.9 x 431.6 x 653.4 mm
Gross Weight
51 lb (23.2 kg)
AC Voltage
100–240 V, 50–60 Hz, 4.9 A
Power Redundancy
Double
Power-Watts
320 W
Power-Amps @ 110 V (load) (watts/110 V)
3.2
Heat-BTUs (per hour max)
1091
RAID
Yes
Front Swappable Disks
3
CPU
2 x AMD Opteron 2346HE 1.8 GHz Quad Core
RAM
8 GB ECC (4 x 2 GB)
Extra PCI Slots
4 PCI-E
Onboard Bypass Ports (Copper)
4
4.1.x WAN Link Support
8 Gbps
5.x WAN Link Support
8 Gbps
Connections
1,000,000
License Upgrade
No
