The procedure for configuring bypass support for ESXi 5.0 and later is documented in the Network and Storage Card Installation Guide.
Configuring the bpvm0 interface (ESX/ESXi 4.1)
During the installation of your Riverbed NIC, you install an ESX driver of the file type .vib. Installation of the ESX driver is described in the Network and Storage Card Installation Guide. After you install the ESX driver, a network adapter device named bpvm0 appears in the vSphere client. If this device is not displayed after you install your ESX driver, reboot your machine. This device is not a real network adapter; it is used as a communication channel between the SteelHead-v guest and the ESX or ESXi host. The normal speed setting displayed for the bpvm0 adapter is 0 Half in the Network adapters tab.
To create virtual switches and port groups for the bpvm0 interface
1. In vSphere, connect to the ESX or ESXi host.
2. Select the ESX or ESXi host in the left Inventory pane.
3. Select the Configuration tab.
4. In the Hardware menu, select Network adapters.
5. In the Hardware menu, select Networking.
6. Select Add Networking in the upper right of the main pane.
7. Select the Connection Type Virtual Machine.
8. Click Next.
9. Select Create a virtual switch.
10. Select the box next to the bpvm0 network adapter.
11. Click Next.
12. Enter pg-bpvm for the name of the network label.
13. Click Next.
14. Verify that the diagram displayed in vSphere shows the pg-bpvm port group wired to the bpvm0 adapter.
15. Click Finish.
Configuring Riverbed NIC interfaces (ESX/ESXi 4.1)
Before you install SteelHead-v, you must create a separate virtual switch and port label for each interface on the Riverbed NIC.
To create virtual switches and port groups for Riverbed NICs
1. In vSphere, connect to the ESX or ESXi host.
2. Select the ESX or ESXi host in the left Inventory pane.
3. Select the Configuration tab.
4. In the Hardware menu, select Network Adapters.

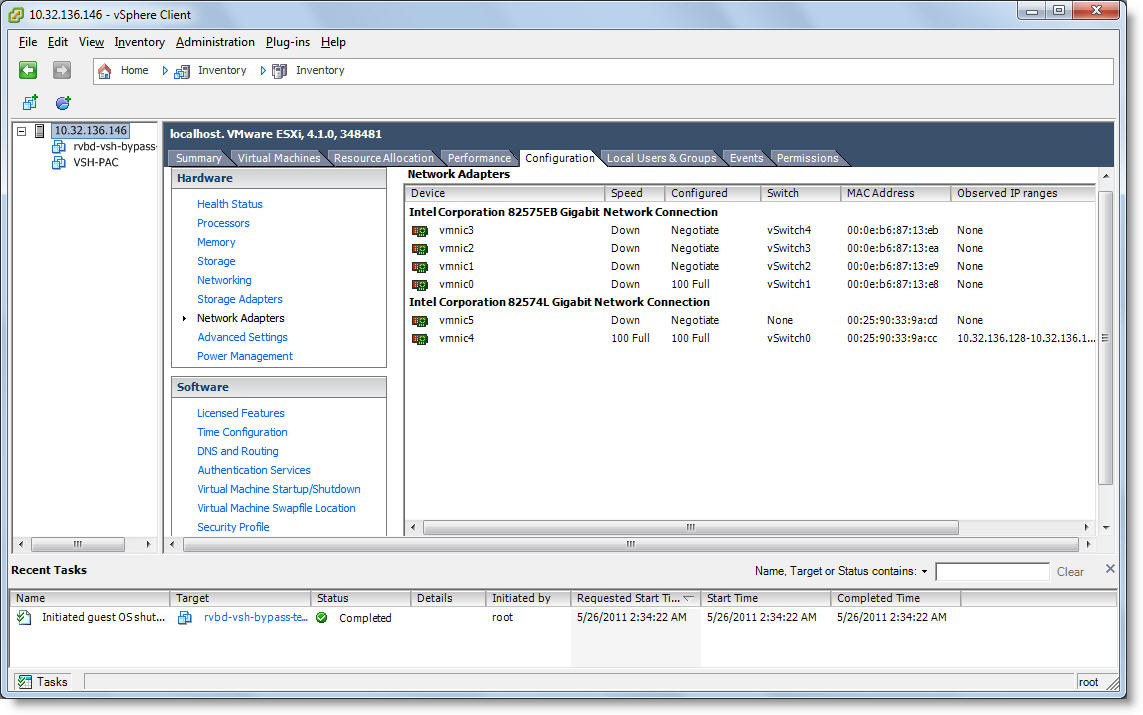

In the vSphere client, the interfaces for the Riverbed NIC appear as two or four vmnic interfaces, under Intel Corporation 82575EB Gigabit Network Connection.
Figure: Interfaces in vSphere
5. Under the heading “Intel Corporation 82575EB Gigabit Network Connection,” find and write down the names of the two or four vmnic adapters.
6. In the Hardware menu, select Networking.
7. Select Add Networking in the upper right of the main pane.
8. Select the Connection Type Virtual Machine.
9. Click Next.
10. Select Create a virtual switch.
11. Select the box next to the adapter with the lowest number.
Select only one of the adapters you noted in Step 5.
12. Click Next.
13. Use this table to match your adapter to the correct network label and enter it.
ESX NIC Name
Network Label
Interface on SteelHead-v
vmnic0
pg-vmnic0
wan1_0
vmnic1
pg-vmnic1
lan1_0
vmnic2
pg-vmnic2
wan0_0
vmnic3
pg-vmnic3
lan0_0
14. Click Next.
15. Verify that the diagram displayed in vSphere shows the correct port group wired to the adapter.
16. Click Finish.
17. On the virtual switch you just created, click Properties.
18. On the Ports tab in the Properties dialog box, select the interface.
19. Click Edit.
20. Select the Security tab.
21. In the Security tab, select Accept for Promiscuous Mode.
22. Click OK.
23. Repeat this procedure for each of the remaining three interfaces.
Note: Deploying Riverbed NICs requires some additional steps, noted in the standard installation procedure.
Configuring MAC Spoofing (Windows Server 2008 R2 and Hyper‑V Server 2008 R2)
In Windows Server 2008 R2 Hyper-V and Hyper-V Server 2008 R2, there is an option—Enable Spoofing Of MAC Addresses—in the virtual network adapter settings to enable the spoofing of MAC addresses.
Note: The configuration of a virtual network adapter, including the NetworkAddress key that contains the MAC address value, is found under HKEY_LOCAL_MAChINE\System\CurrentControlSet\Control\Class\{ 4D36e972-e325-11Ce-BFC1-08002Be10318} key. Each of the four-digit numbers (0000, 0001, and so on) in the subkey tree represents a particular network adapter that you can easily identify through its DriverDesc value.
If you do not enable MAC address spoofing, the following rules are enforced:
•  The virtual switch port that connects the virtual network adapter sends and receives packets that contain any valid MAC address.
•  The virtual network adapter MAC address cannot be moved or associated with another virtual switch port.
•  The virtual switch port does not forward unicast flooded packets (packets that are forwarded to all switch ports if the destination MAC address is not found in the switch forwarding table) to the virtual network adapter.
•  You cannot override the virtual network adapter MAC address configuration using the NetworkAddress key in the virtual machine registry.
If you enable MAC address spoofing, the MAC address can be learned on other ports, and the following actions are allowed:
•  The virtual switch port that connects the virtual network adapter can send and receive packets that contain any MAC address.
•  The virtual switch port dynamically learns of new MAC addresses and the virtual switch can add them in its forwarding table.
•  The virtual switch port will receive and forward unicast flooded packets to the virtual network adapter.
•  You can override the virtual network adapter MAC address configuration using the NetworkAddress key in the virtual machine registry.
