Knowing what status lights indicate, where the appliance ports are located, and the appliance’s physical specifications can help you understand how to properly connect your appliance to a network, keep it running optimally, and when it needs maintenance. Use this reference to understand your appliance’s lights, ports, and specifications.
2U xx80 appliances
This section describes the status lights, port locations, and technical and environmental specifications for the 2U 5080 and 7080 appliances.
Status lights and port locations
This section provides front and back views of the 2U xx80 appliances and describes the status lights, port locations and buttons.

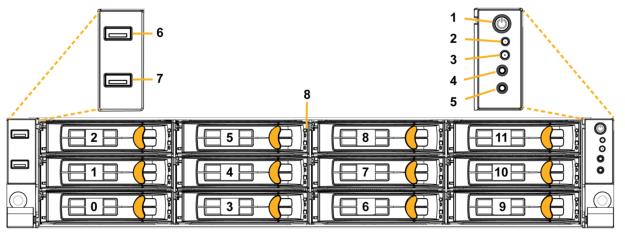

Front panel 2U xx80 appliance
This table summarizes the LEDs and buttons on the front of the appliance.
Reference
LED or button
Description
1
Power On/Off Button and Integrated LED
On = Green (System is turned on.)
Sleep State = Green (System is in S1 or S3 sleep state.)
Off = No light (Power is off.)
2
IPMI Warning LED
The IPMI Warning LED shows the current health of the server system.
Normal = Green (No failures)
Degraded/Warning = Amber (Indicates fan failure, high temperature, over voltage, or power supply failure.)
Critical = Blinking Amber and Green (Indicates a problem that needs attention, such as optimization service down, no license, or in_path is not enabled for optimization service.)
3
ID LED
On = Blue (System identified remotely on the server.)
Off = Off (System not identified.)
4
Reset Button
Press to reboot the appliance.
5
System ID Button
Press the system ID button when the system AC (Alternating Current) is on. A blue LED light identifies the system. Users from a remote site can activate the ID LED by inputting commands in IPMI. For details, contact Support at https://support.riverbed.com.
6, 7
USB Ports v2.0

8
HDD/SSD LEDs
Activity LED (lower light)
Link = Green (Drive present, with no activity.)
Activity = Blinks green (Drive present, with activity.)

Status LED (upper light)
Failed Disk = Solid Red
This figure illustrates the back of the appliance, including the ports.

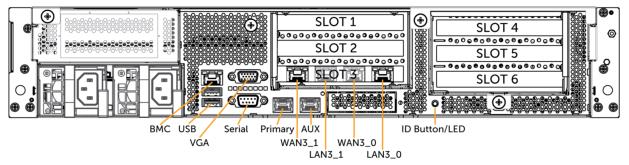

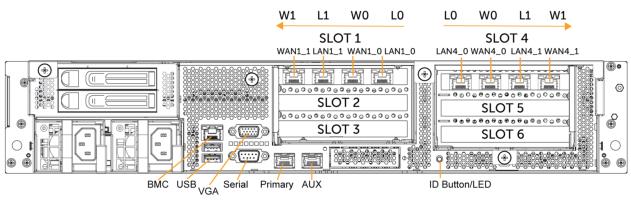

Back panel 2U xx80 appliance
By default, the SteelHead CX 5080 and CX 7080 ship with a bypass card in slot 3. The default interface names are WAN3_1, LAN3_1, WAN3_0, LAN3_0.
For slots 4, 5, and 6, the interface ports are reversed. For example, for slot 4 the interface ports would be LAN4_0, WAN4_0, LAN4_1, WAN4_1.
This table summarizes the status lights and ID button on the back of the appliance.
LED or button
Description
ID LED/Button
On = Blue (System identified remotely on the server.)
Off = Off (System not identified.)
Press the system ID button when the system AC (Alternating Current) is on. A blue LED light identifies the system. Users from a remote site can activate the ID LED by inputting commands in IPMI. For details, contact Support at https://support.riverbed.com.
Primary and AUX Port LEDs
Left LED
Link = Green
Activity = Blinks green
No Link = Off

Right LED
10 Mbps = Off
100 Mbps = Green
1000 Mbps = Amber
Four-Port 1 GbE Copper Bypass Card LEDs (preinstalled)
Link/Activity LED
Link = Green
Activity = Blinks green

Speed/Bypass/Disconnect LED
1000 Mbps = Yellow
100 Mbps = Green
10 Mbps = Off
Bypass = Blinks green
Disconnect = Blinks yellow
Power Supply LEDs
Power On and Healthy = Green
Standby = Blinks green
Power Off = Off
Unplugged or power lost but second power supply has power = Amber (for about 5 seconds) then turns Off
Power on with warning = Blinks amber (indicates high temperature, high power, high current, or slow fan)
Hardware specifications
This table summarizes the hardware specifications for the systems.
Specification
5080
7080
Form factor
2U
2U
Memory
32 GB (4 x 8 GB)
B010 = 64 GB (8 x 8 GB)
B020 = 96 GB (12 x 8 GB)
B030 = 192 GB (12 x1 6 GB)
HDD
2 x 1 TB
2 x 1 TB
SSD
6 x 240 GB
B010 = 6 x 480 GB
B020 = 8 x 480 GB
B030 = 8 x 960 GB
Data store
1.4 TB
B010 = 2.8 TB
B020 = 3.8 TB
B030 = 7.6 TB
Dimensions (LxWxH)
27.56 x 17.32 x 3.43 in. (700 x 440 x 87 mm)
27.56 x 17.32 x 3.43 in. (700 x 440 x 87 mm)
Weight (without packaging)
51 lb (23 kg)
51 lb (23 kg)
Voltage
100-127 V, 200-240 V
100-127 V, 200-240 V
PSU

2 x 770 W
100-127 VAC/10 A, 50/60 Hz
200-240 VAC/5 A, 50/60 Hz
2 x 770 W
100-127 VAC/10 A, 50/60 Hz
200-240 VAC/5 A, 50/60 Hz
PCI slots
6
6
Included bypass ports/max no. ports
4/20
4/20
Power consumption specifications
This table summarizes the power specifications for the systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
CX 5080
CX 7080
CX 7080
Configuration
B010
B010, B020
B030
PSU type
2 x 770 W
2 x 770 W
2 x 770 W
AC input
120 V
230 V
120 V
230 V
120 V
230 V
Max. amps.
3.2 A
1.7 A
3.9 A
2.0 A
5.0 A
2.6 A
Max. watts
372 W
363 W
467 W
455 W
598 W
574 W
Typical watts
298 W
290 W
374 W
364 W
478 W
459 W
Max. volt-ampere
383 VA
395 VA
477 VA
473 VA
604 VA
592 VA
Power factor
97 W/VA
92 W/VA
98 W/VA
96 W/VA
99 W/VA
97 W/VA
BTU (typical)
1015 BTU
991 BTU
1275 BTU
1240 BTU
1632 BTU
1566 BTU
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
5080
7080
Operating acoustic
56 dB (typical)
56 dB (typical)
Temperature (operating)
32°F to 104°F (0°C to 40°C)
32°F to 104°F (0°C to 40°C)
Temperature (storage)
-40°F to 140°F (-40°C to 60°C)
40°F to 140°F (-40°C to 60°C)
Relative humidity
40% to 90%, noncondensing at 40°C
40% to 90%, noncondensing at 40°C
2U 9800 appliances
This section describes the status lights, port locations, and buttons on the front and back of the 2U 9800 appliance. The technical, power consumption, and environmental specifications for the 2U 9800 are the same as the specifications for 2U xx80 appliances (see 2U xx80 appliances).
Status lights and port locations
This section provides front and back views of the 2U 9800 appliances and describes the status lights, port locations and buttons.

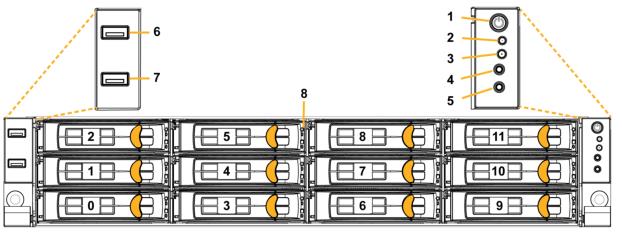

Front panel 2U 9800 appliances
This table summarizes the LEDs and buttons on the front of the Interceptor 9800 appliance.
Reference
LED or button
Description
1
Power On/Off Button and Integrated LED
On = Green (System is turned on.)
Sleep State = Green (System is in S1 or S3 sleep state.)
Off = No light (Power is off.)
2
IPMI Warning LED
The IPMI Warning LED shows the current health of the server system.
Normal = Green (No failures)
Degraded/Warning = Amber (Indicates fan failure, high temperature, over voltage, or power supply failure.)
Critical = Blinking Amber and Green (Indicates a problem that needs attention, such as optimization service down, no license, or in_path is not enabled for optimization service.)
3
ID LED
On = Blue (System identified remotely on the server.)
Off = Off (System not identified.)
4
Reset Button
Press to reboot the appliance.
5
System ID Button
Press the system ID button when the system AC (Alternating Current) is on. A blue LED light identifies the system. Users from a remote site can activate the ID LED by inputting commands in IPMI. For details, contact Support at https://support.riverbed.com.
6, 7
USB Ports v2.0

8
HDD/SSD LEDs
Activity LED (lower light)
Link = Green (Drive present, with no activity.)
Activity = Blinks green (Drive present, with activity.)

Status LED (upper light)
Failed Disk = Solid Red
Figure: Back panel 2U 9800 appliances shows the back panel status lights and port locations on the Interceptor 9800 appliance.
Back panel 2U 9800 appliances
This table summarizes the status lights and ports on the back of the Interceptor 9800 appliance.
LED or button
Description
ID LED/Button
On = Blue (System identified remotely on the server.)
Off = Off (System not identified.)
Press the system ID button when the system AC (Alternating Current) is on. A blue LED light identifies the system. Users from a remote site can activate the ID LED by inputting commands in IPMI. For details, contact Support at https://support.riverbed.com.
Primary and AUX Port LEDs
Left LED
Link = Green
Activity = Blinks green
No Link = Off

Right LED
10 Mbps = Off
100 Mbps = Green
1000 Mbps = Amber
Four-Port 1 GbE Copper Bypass Card LEDs (preinstalled)
Link/Activity LED
Link = Green
Activity = Blinks green

Speed/Bypass/Disconnect LED
1000 Mbps = Yellow
100 Mbps = Green
10 Mbps = Off
Bypass = Blinks green
Disconnect = Blinks yellow
Power Supply LEDs
Power On and Healthy = Green
Standby = Blinks green
Power Off = Off
Unplugged or power lost but second power supply has power = Amber for about 5 seconds, and then turns Off
Power on with warning = Blinks amber to indicate high temperature, high power, high current, or slow fan.
1U 3080 appliances
This section describes the status lights, port locations, buttons, and technical and environmental specifications for the SteelHead 1U 3080 appliance.
Status lights and port locations
This section provides front and back views of the status lights, port locations, and buttons on the 1U 3080 appliance. Figure: Front panel 3080 appliance illustrates the front of the appliance.
Front panel 3080 appliance
This table summarizes the LEDs and buttons on the front of the appliance.
LED or button
Description
Power On/Off Button and Integrated LED
On = Blue (System is turned on.)
Sleep State = Yellow (System is in S5 sleep state.)
Off = No light (Power is off.)
System LEDs
The combination of LED 1 and LED 2 defines the system state:
LED 1 = Yellow, LED 2 = Yellow, System State = Critical
LED 1 = Yellow, LED 2 = Green, System State =Degraded
LED 1 = Green, LED 2 = Green, System State = Healthy
LED 3 - Not used; default is off
LED 4 - Not used; default is off
Reset Button
Press to restore factory defaults.
Console port
RJ45 port
USB Ports v3.0
1 - USB Type A port
1 - USB Type C port
Port 1 PRI = Primary port
Left LED
Link = Green
Activity = Blinks green
Right LED
10 Mbps data rate = No light (with link on left LED)
100 Mbps data rate = Green
1000 Mbps data rate = Yellow
Port 2 AUX = Auxiliary port
Left LED
Link = Green
Activity = Blinks green
Right LED
10 Mbps data rate = No light (with link on left LED)
100 Mbps data rate = Green
1000 Mbps data rate = Yellow
Ports 3-6 LAN/WAN ports
Left LED
Link = Green
Activity = Blinks green
Bypass/Disconnect = Yellow
Right LED
10 Mbps data rate = No light (with link on left LED)
100 Mbps data rate = Green
1000 Mbps/1 Gbps = Yellow
Ports 7-8 (on-board)
Not used.
Figure: Back panel 3080 appliance illustrates the back of the appliance, including the ports.

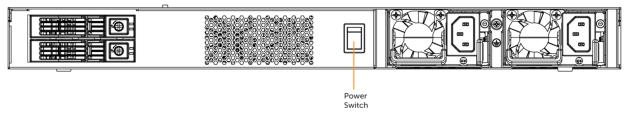

Back panel 3080 appliance
This table summarizes the status lights and ID button on the back of the appliance.
LED or button
Description
HDDs
Activity LED (upper light)
Activity = Blinks green (drive present, with activity.
Status LED (lower light)
Failed Disk = Solid amber
Power Supply LEDs
Power On and Healthy = Green
Standby = 1 Hz blinks green
Power Off = Off
Unplugged or power lost but second power supply has power = Amber (for about 5 seconds) then turns Off
Power on with warning = 1 Hz blinks amber (Indicates high temperature, high power, high current, or slow fan.)
Hardware specifications
This table summarizes the hardware specifications for the systems.
Specification
1U 3080
Form factor
1U rack mountable unit
RAM
24 GB
HDD
2 x 1 TB
SSD
1 x 32 GB (for boot)
Data store
400 GB
Dimensions (LxWxH)
15.25 x 17.24 x1.73 in (387.35 x 483 x 44 mm)
Weight (without packaging)
27 lb (12.25 kg)
Power (Typical)
70 W
BTU
242
Voltage
100-240 V
PSU
2 x hot-swappable/redundant, 550W
W = 100-240 VAC/7.1/3.4A, 47-63 Hz
PCIe slots
1 FHFL (full height/full length)
Bypass ports/maximum no.
4 (on-board)/8 (with add-on card)
Power consumption specifications
This table summarizes the power specifications for the systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
1U 3080
PSU type
2 x 550 W
AC input
120 V
240 V
Max. watts
88.7 W
73.8 W
Max. amps.
0.9144 A
0.488 A
Power factor
98.58 W/VA
95.6 W/VA
Max. volt-ampere
89.97 VA
77.19 VA
Typical watts
70.96 W
59.04 W
BTU (typical)
241.97 BTU
201.32 BTU
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
CX 3080
Operating acoustic
45 dB (typical)
Temperature (operating)
32°F to 113°F (0°C to 45°C)
Temperature (storage)
-40°F to 149°F (-40°C to 65°C)
Relative humidity
20% to 80%, noncondensing (Operating)
10% to 95%, noncondensing (Storage)
Desktop x80 appliances
This section describes the ports, LEDs, technical and environmental specifications for the desktop x80 appliances.
Status lights and port locations
These figures illustrate the port locations, LEDs, and buttons.

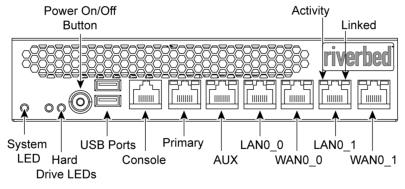

Front panel desktop x80

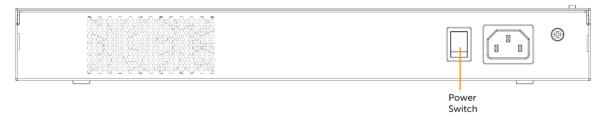

Back panel desktop x80
This table summarizes the front port locations, status lights, and buttons.
Front LEDs and buttons
Status
Power Button LED
On = Blue (System is turned on.)
Sleep State = Yellow (System is in a sleep state.)
Off = No light (Power is off.)
System LEDs
The combination of LED 1 and LED 2 defines the system state:
LED 1 = Yellow, LED 2 = Yellow, System State = Critical
LED 1 = Yellow, LED 2 = Green, System State =Degraded
LED 1 = Green, LED 2 = Green, System State = Healthy
LED 3 - Not used; default is off
LED 4 - Not used; default is off
Reset button
Restores system to factory defaults.
Console port
RJ45 port
USB ports v3.0
1 - USB Type A port
1 - USB Type C port
Port 1 PRI
Left LED = Link/Bypass
Link = On (Solid green)
Activity =Blinks green
Right LED= Speed
10 Mbps data rate = Off
100 Mbps data rate = Green
1000 Mbps data rate = Amber
Port 2 AUX
Left LED = Link/Bypass
Link = On (Solid green)
Activity =Blinks green
Right LED = Speed
10 Mbps data rate = Off
100 Mbps data rate = Green
1000 Mbps data rate = Amber
Ports 3-6: LAN/WAN LEDs
Left LED
Link = Green
Activity = Blinks green
Bypass/Disconnect = Yellow
Right LED
10 Mbps data rate = No light (with link on left LED)
100 Mbps data rate = Green
1000 Mbps/1 Gbps = Yellow
Ports 7-8 (on-board)
Not used.
This table summarizes the status lights and ID button on the back of the appliance.
LED or button
Description
Power Supply LEDs
Power On and Healthy = Green
Standby = 1 Hz blinks green
Power Off = Off
Power lost but second power supply has power = Amber
Power on with warning = 1 Hz blinks amber (indicates high temperature, high power, high current, or slow fan)
Hardware specifications
This table summarizes the hardware specifications for the systems.
Specification
580 desktop
780 desktop
Power Watt
(typical)
37 W
60 W
BTU
128 BTU
205 BTU
RAM
16 GB
16 GB
HDD
1 x 1 TB
1 x 1 TB
SSD
1 x 32 GB (for boot)
1 x 32 GB (for boot)
Data store
200 GB
200 GB
Dimensions (LxWxH)
12.25 x 13.75 x 1.73 in.
311.15 x 349.25 x 44 mm
12.25 x 13.75 x 1.73 in.
311.15 x 349.25 x 44 mm
Weight (without packaging)
6 lb (2.7 kg)
6 lb (2.7 kg)
Voltage frequency
100-240 V/2.5 A
50/60 Hz
100-240 V/2.5 A
50/60 Hz
PSU
1 x Internal, 200 W
100-240 VAC/2.5 A, 50/60 Hz
1 x Internal, 200 W
100-240 VAC/2.5 A, 50/60 Hz
Onboard bypass ports/max no. ports
4
4
Power consumption specifications
This table summarizes the power specifications for the desktop systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
CX 780
PSU type
2 x 550 W
AC input
120 V
240 V
Max. watts
75.1 W
60.7 W
Max. amps.
0.7692 A
0.39 A
Power factor
99 W/VA
95.2 W/VA
Max. volt-ampere
75.85 VA
63.76 VA
Typical watts
60.08 W
48.56 W
BTU (typical)
204.87 BTU
165.58 BTU
System
CX 580
PSU type
2 x 550 W
AC input
120 V
240 V
Max. watts
46.8 W
33.2 W
Max. amps.
0.486 A
0.22 A
Power factor
97.71 W/VA
94.8 W/VA
Max. volt-ampere
47.89 VA
35.02 VA
Typical watts
37.44 W
26.56 W
BTU (typical)
127.67 BTU
90.56 BTU
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
CX580 desktop
CX780 desktop
Operating acoustic
45 dBA Sound pressure (Typical)
45 dBA Sound pressure (Typical)
Temperature (operating)
0°C to 45°C
32°F to 113°F
0°C to 45°C
32°F to 113°F
Temperature (storage)
-40°C to 65°C
-40°F to 149°F
-40°C to 65°C
-40°F to 149°F
Relative humidity
20% to 80% noncondensing
20% to 80% noncondensing
Storage humidity
5% to 95% noncondensing
5% to 95% noncondensing
2U xx70 appliances
This section describes the status lights, port locations, buttons, and technical and environmental specifications for the SteelHead 2U 5070 and 7070 appliances.
Status light and port locations
These figures illustrate the port locations and LEDs.
CX 5070 and CX 7070 front panel with LEDs and buttons
Disks 0 and 23 are HDD. Disks 1 through 22 are SSD.
This table summarizes the appliance LEDs and buttons.
Reference
LED or button
Description
1
System ID Button with Integrated LED
Maintenance = Blue
Toggles the integrated ID LED and the blue server board ID LED on and off. The System ID LED identifies the system for maintenance when installed in a rack of similar server systems. You can also remotely turn on and turn off the System ID LED using the IPMI chassis-identify command, which causes the LED to blink for 15 seconds.
A duplicate System ID LED is on the back of the appliance to the left of the video port.
2
NMI Button
Pressing the NMI button puts the appliance in a halt state and issues a non-maskable interrupt (NMI). This helps when performing diagnostics for a given issue where a memory download is necessary to determine the cause of the problem. To prevent an inadvertent system halt, the NMI button is located behind the Front Control Panel faceplate and is only accessible with the use of a small-tipped tool such as a pin or paper clip.


3
10
Network Activity LED

Primary
Auxiliary
Link = Green
Activity = Blinks Green. The blink rate is consistent with the amount of network activity.
The appliance doesn’t use the LEDs 4 and 9 shown in Figure: Front panel desktop x80.
5
System Cold Reset Button
Pressing this button reboots the appliance.
6
System Status LED
The System Status LED shows the current health of the server system.
Healthy = Green
Degraded = Yellow
Critical = Blinks Yellow
7
Power Button with Integrated LED
System On = Green
System Off = No Light
8
Drive Activity
Activity = Blinks Green

LEDs on Disk Drives
Activity LED
Read/Write Activity = Blinks Green
Disk Fault LED
Failed Disk = Orange
RAID Rebuild = Blinks Orange

LEDs on Primary and AUX Ports

Left LED
Link = Green
Activity = Blinks Green
Right LED
10 MB/sec data rate = No Light (with link on left LED)
100 MB/sec data rate = Green
1000 MB/sec data rate = Yellow

LEDs on Default Four-Port Copper Bypass Card

Link/Activity LED
Link = Green
Activity = Blinks Green
Speed/Bypass/Disconnect LED
1000Mbit/s = Yellow
100Mbit/s = Green
10Mbit/s = Off
Bypass = Blinks Green
Disconnect = Blinks Yellow

LEDs on Power Supply

Power On and Healthy = Green
Power Off = Off
Standby = Blinks Green
Power Lost But Second Power Supply Has Power = Amber
Power On With Warning Events (high temperature, high power, high current, slow fan) = Blinks Amber

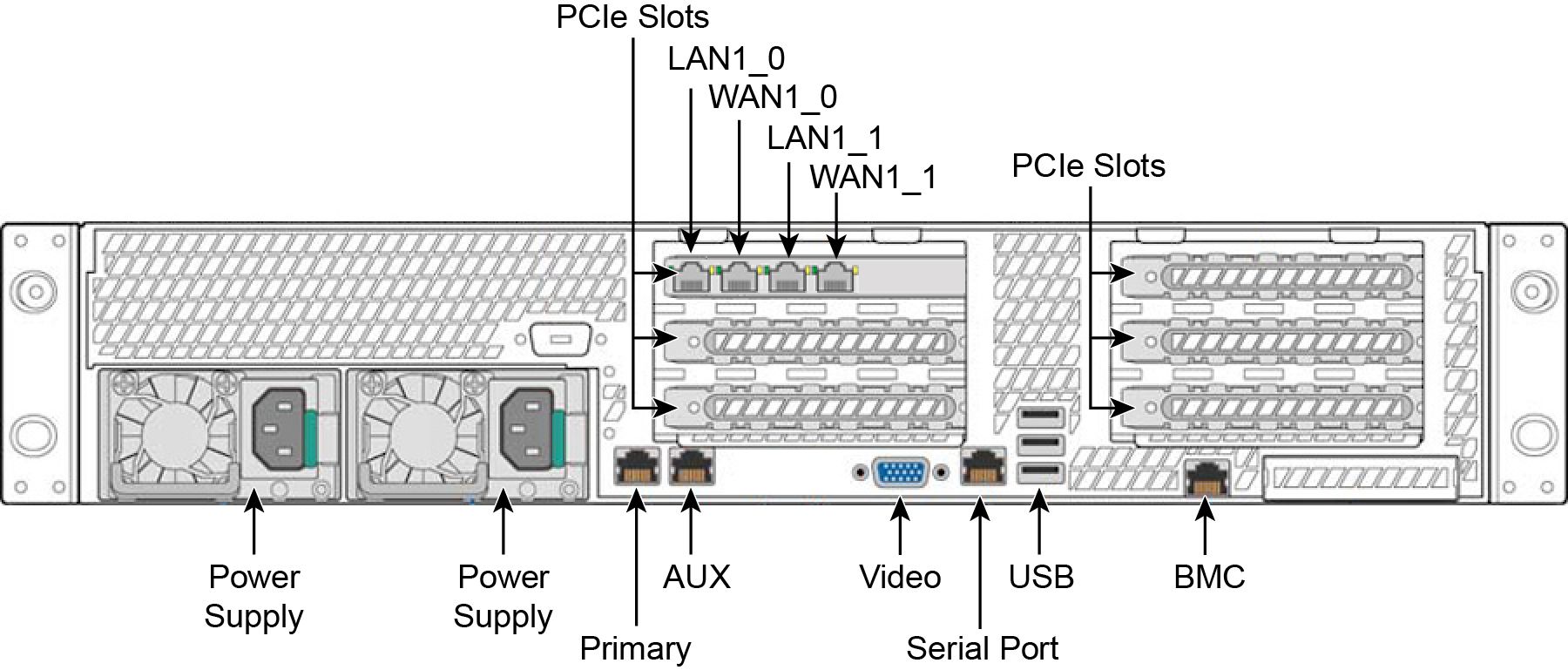

CX5070 and CX 7070 back panel
By default, the SteelHead CX 5070 and CX 7070 ship with a bypass card in slot 1. The default interface names are LAN1_0, WAN1_0, LAN1_1, and WAN1_1. This appliance doesn’t have an inpath0_0 interface as found on earlier appliances and by default the CX 5070 and CX 7070 use inpath1_0 and inpath1_1.
Technical specifications
This table summarizes the technical specifications for the systems.

CX5070 M/H
CX7070 L
CX7070 M
CX7070 H
Form factor
2U
2U
2U
2U
Hard disk/SSD
2 x 1000 GB HDD
6 x 160 GB SSDs
2 x 1000 GB HDD
6 x 300 GB SSDs
2 x 1000 GB HDD
8 x 300 GB SSD
2 x 1000 GB HDD
16 x 300 GB SSD
Data Store
960 GB SSD
1.8 TB SSD
2.4 TB SSD
4.8 TB SSD
Dimensions (LxWxH)
27.87 x 17.24 x 3.45 in.
707.8 x 438 x 87.6 mm
27.87 x 17.24 x 3.45 in.
707.8 x 438 x 87.6 mm
27.87 x 17.24 x 3.45 in.
707.8 x 438 x 87.6 mm
27.87 x 17.24 x 3.45 in.
707.8 x 438 x 87.6 mm
Weight (without packaging)
41 lb/18.6 kg
41 lb/18.6 kg
41 lb/18.6 kg
42 lb/19.05 kg
Voltage frequency
100-127 V, 200-240 V
100-127 V, 200-240 V
100-127 V, 200-240 V
100-127 V, 200-240 V
PSU

2 x
770 W
100-127 VAC/8.2 A, 50/60 Hz
200-240 VAC/4.4 A, 50/60 Hz
2 x
770 W
100-127 VAC/8.2 A, 50/60 Hz
200-240 VAC/4.4 A, 50/60Hz
2 x
770 W
100-127VAC/8.2A, 50/60Hz
200-240VAC/4.4A, 50/60Hz
2 x
770 W
100-127 VAC/8.2 A,
50/60 Hz
200-240 VAC/4.4 A,
50/60 Hz
PCI slots
6
6
6
6
Included bypass ports/max no. ports
4/20
4/20
4/20
4/20
Power consumption specifications
This table summarizes the power specifications for the systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
CX5070
CX7070
Configuration
All (M/H)
All (L/M/H)
PSU type
2 x 770W
2 x 770W
AC input
120V
230V
120V
230V
Max. amps.
3.0
1.5
5.3
2.7
Max. watts
298
291
527
520
Typical watts
238
232
422
416
Max VA
301
293
533
524
Power factor
98.96
99.16
98.96
99.16
BTU (typical)
814
794
1439
1418
Environmental specifications
This table summarizes the environmental requirements for the systems.

CX5070
CX7070
Operating acoustic
7.0 BA sound power (Typical)
55 dBa sound pressure
7.0 BA sound power (Typical)
55 dBa sound pressure
Temperature (operating)
10°C to 35°C
50°F to 95°F
10°C to 35°C
50°F to 95°F
Temperature (storage)
-40°C to 70°C
-40°F to 158°F
-40°C to 70°C
-40°F to 158°F
Relative humidity
50% to 90%, noncondensing with a maximum wet bulb of 28°C (at temperatures from 25°C to 35°C)
50% to 90%, noncondensing with a maximum wet bulb of 28°C (at temperatures from 25°C to 35°C)
1U xx70 appliances
This section describes the status lights, port locations, buttons, and technical and environmental specifications for the SteelHead 1U 3070 appliance.
Status lights and port locations
These figures illustrate the port locations, LEDs, and buttons.
CX 3070 front panel with LEDs and buttons
This table summarizes the appliance LEDs and buttons.
Reference
LED or button
Description
1
System ID Button with Integrated LED
Maintenance = Blue
Toggles the integrated ID LED and the blue server board ID LED on and off. The System ID LED identifies the system for maintenance when installed in a rack of similar server systems. You can also remotely turn on and turn off the System ID LED using the IPMI chassis-identify command, which causes the LED to blink for 15 seconds.
A duplicate System ID LED is on the back of the appliance to the left of the video port.
2
NMI Button
Pressing the NMI button puts the appliance in a halt state and issues a non-maskable interrupt (NMI). This helps when performing diagnostics for a given issue where a memory download is necessary to determine the cause of the problem. To prevent an inadvertent system halt, the NMI button is located behind the Front Control Panel faceplate and is only accessible with the use of a small-tipped tool such as a pin or paper clip.


3
10
Network Activity LED

Primary
Auxiliary
Link = Green
Activity = Blinks Green. The blink rate is consistent with the amount of network activity.
The appliance doesn’t use the LEDs 4 and 9 shown in Figure: Front panel desktop x80.
5
System Cold Reset Button
Pressing this button reboots the appliance.
6
System Status LED
The System Status LED shows the current health of the server system.
Healthy = Green
Degraded = Yellow
Critical = Blinks Yellow
A duplicate System ID LED is on the back of the appliance to the right of the AUX port.
7
Power Button with Integrated LED
System On = Green
System Off = No Light
8
Drive Activity
Activity = Blinks Green

LEDs on Disk Drives
Activity LED
Read/Write Activity = Blinks Green
Disk Fault LED
Failed Disk = Orange
RAID Rebuild = Blinks Orange

LEDs on Primary and AUX Ports
Left LED
Link = Green
Activity = Blinks Green
Right LED
10 Mbps data rate = No Light (with link on left LED)
100 Mbps data rate = Green
1000 Mbps data rate = Yellow

LEDs on Default Four-Port Copper Bypass Card
Link/Activity LED
Link = Green
Activity = Blinks Green
Speed/Bypass/Disconnect LED
1000 Mbps = Yellow
100 Mbps = Green
10 Mbps = Off
Bypass = Blinks Green
Disconnect = Blinks Yellow

LEDs on Power Supply
Power On and Healthy = Green
Power Off = Off
Standby = Blinks Green
Power Lost But Second Power Supply Has Power = Amber
Power On With Warning Events (high temperature, high power, high current, slow fan) = Blinks Amber

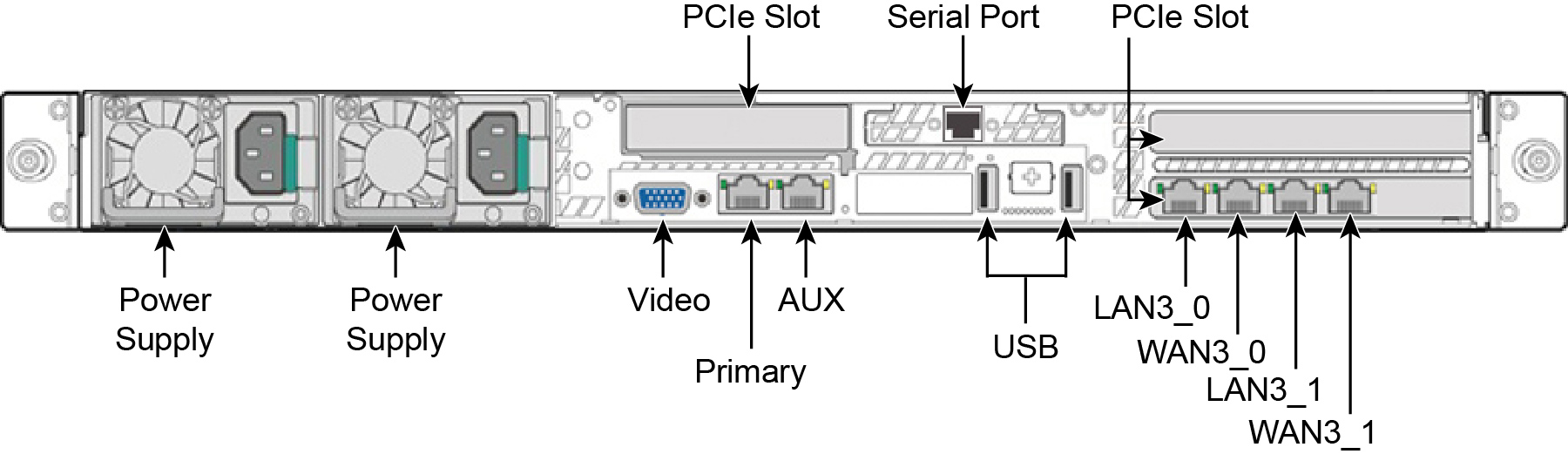

CX 3070 back panel
By default, the SteelHead CX3070 ships with a bypass card in slot 3. The default interface names are LAN3_0, WAN3_0, LAN3_1, and WAN3_1. This appliance doesn’t have an inpath0_0 interface as found on earlier appliances and by default the CX3070 uses inpath3_0 and inpath3_1.
Technical Specifications
This table summarizes the technical specifications for the systems.

CX3070 L/M/H
Form factor
1U
Hard disk
2 x 1000 GB, 2 SSD x 160
Data store
320 GB SSD
Dimensions (LxWxH)
25.21 x 17.24 x 1.7 in
640.4 x 438 x 43.2 mm
Weight (without packaging)
27 lb / 12.2 kg
Voltage frequency
100-127 V, 200-240 V
PSU
2 x 450 W
100-127 VAC/8 A, 50/60 Hz
200-240 VAC/4 A, 50/60 Hz
PCI slots
3
Included bypass ports/max no. ports
4/12
Power consumption specifications
This table summarizes the power specifications for the systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
CX3070
CX3070
Configuration
All (L/M/H)
All (L/M/H)
PSU type
2 x 450 W
2 x 450 W
AC input
120 V
230 V
Max. amps.
1.54
.76
Max. watts
152.8
145.4
Typical watts
122
116
Max VA
154
147
Power factor
98.96
99.16
BTU (typical)
417
397
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
Description
Operating acoustic
7.0 BA sound power (Typical)
52 dBa sound pressure
Temperature (operating)
10°C to 35°C
50°F to 95°F
Temperature (storage)
-40°C to70°C
-40°F to 158°F
Relative humidity
50% to 90% noncondensing with a maximum wet bulb of 28°C (at temperatures from 25°C to 35°C)
Desktop x70 appliances
This section describes the status lights, port locations, buttons, and technical and environmental specifications for the desktop x80 appliance.
Port location and LEDs

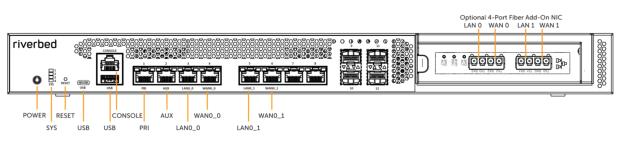

These figures illustrate the port locations and LEDs.

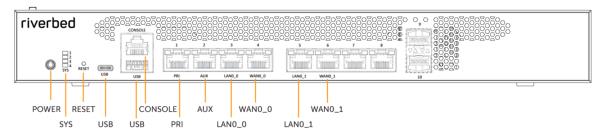

Front panel

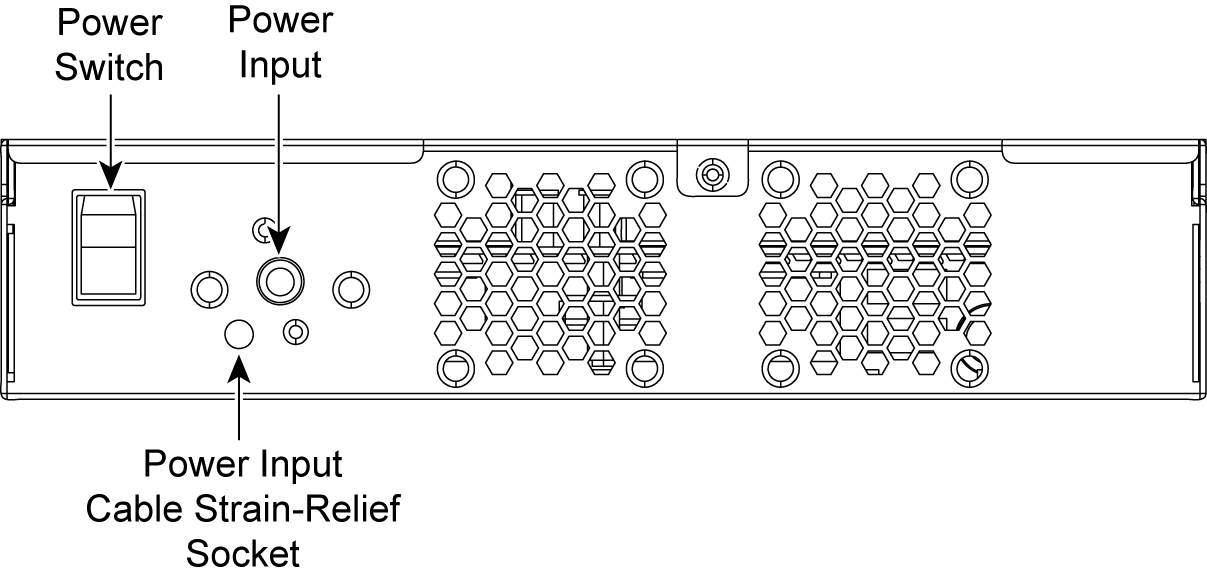

Back panel
This table summarizes the system LEDs.
LED
Status
System
Healthy = Blue
Degraded = Yellow
Critical = Red
Power Off = None
Power Button LED
System Off = No Light
Standby Mode = Yellow
Power On = Blue
Hard Drive LED
Activity = Blinks Blue
Failed Disk = Orange
Primary LED
Left LED
Link = Green
Activity = Blinks Green
Right LED
GB = Yellow
100 MB = Green
10 MB = No Light (with link on left LED)
LAN/WAN LEDs
Left LED
Link = Green
Activity = Blinks Green
Bypass/Disconnect = Yellow
Right LED
GB = Yellow
100 MB = Green
10 MB = No Light (with link on left LED)
Technical specifications
This table summarizes the technical specifications for the systems.
Specification
CX570 desktop L/M/H
CX770 desktop L/M/H
Power
(typical)
45 W
50 W
VA
(max)
63.8
66.8
BTU
145 BTU
165 BTU
Hard disk
1 x 320 GB 2.5” HDD
1 x 80 GB SSD
1 x 320 GB 2.5” HDD
1 x 160 GB SSD
Data store
70 GB SSD
150 GB SSD
Dimensions (LxWxH)
13 x 8x 1.73 in.
330 x 204 x 44 mm
13 x 8 x 1.73 in.
330 x 204 x 44 mm
Weight (without packaging)
5.5 lb
2.4 kg
5.5 lb
2.4 kg
Voltage frequency
100-240 V
50-60 Hz
100-240 V
50-60 Hz
PSU
Single 84 W
External
100-240 VAC, 50/60 Hz,
2-1 A
Single 84 W
External
100-240 VAC, 50/60 Hz,
2-1 A
Onboard bypass ports/max no. ports
4
4
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
CX570 desktop L/M/H
CX770 desktop L/M/H
Operating acoustic
45 dBA Sound pressure (Typical)
45 dBA Sound pressure (Typical)
Temperature (operating)
0°C to45°C
32°F to 113°F
0°C to 45°C
32°F to 113°F
Temperature (storage)
-40°C to 65°C
-40°C to 149°F
-40°C to 65°C
-40°F to 149°F
Relative humidity
20% to 80% noncondensing
20% to 80% noncondensing
Storage humidity
5% to 95% noncondensing
5% to 95% noncondensing
