1

System ID button with integrated LED

Maintenance = blue

Toggles the integrated ID LED and the blue server board ID LED on and off. The system ID LED identifies the system for maintenance when installed in a rack of similar server systems. You can also remotely turn on and turn off the System ID LED using the IPMI “Chassis Identify” command, which causes the LED to blink for 15 seconds.

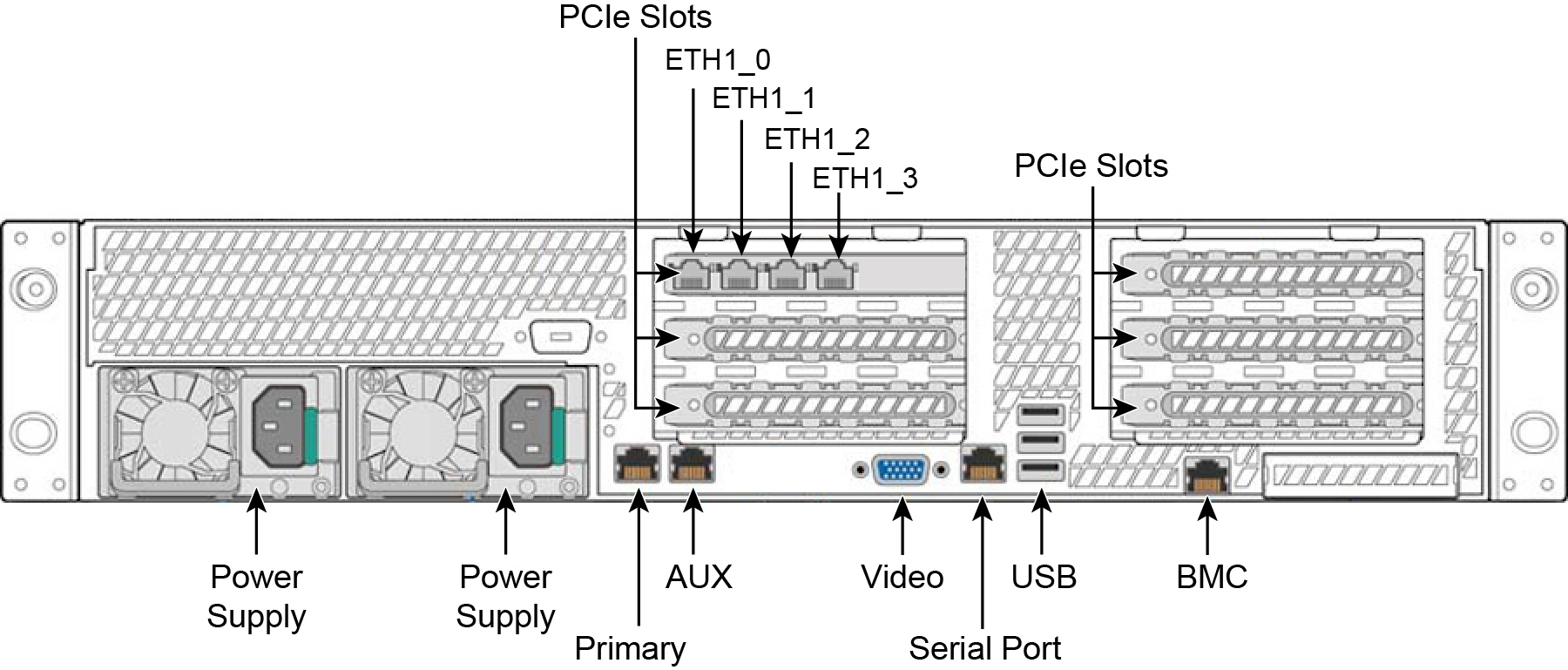

A duplicate system ID LED is on the back of the appliance to the left of the video port.

2

NMI button

Pressing the NMI button puts the appliance in a halt state and issues a nonmaskable interrupt (NMI). This process helps when performing diagnostics for a given issue where a memory download is necessary to determine the cause of the problem. To prevent an inadvertent system halt, the NMI button is located behind the front control panel faceplate and is only accessible with the use of a small tipped tool such as a pin or paper clip.

3
10

Network activity LED

Primary
Auxiliary

Link = green
Activity = blinks green. The blink rate is consistent with the amount of network activity.

4



The appliance does not use this LED.

5

System cold reset button

Pressing this button reboots the appliance.

6

System status LED

The system status LED shows the current health of the server system.

Healthy = green
Degraded = yellow
Critical = blinks yellow

Power button with integrated LED

System on = green
System off = no light

8

Drive activity

Activity = blinks green

9



The appliance does not use this LED.



LEDs on disk drives

Activity LED
Read/write activity = blinks green

Disk fault LED
Failed disk = orange
RAID rebuild = blinks orange



LEDs on primary and AUX ports

Left LED
Link = green
Activity = blinks green

Right LED
10 MBps data rate = no light (with link on left LED)
100 MBps data rate = green
1000 MBps data rate = yellow



LEDs on power supply

Power on and healthy = green
Power off = off
Standby = blinks green
Power lost but second power supply has power = amber
Power on with warning events (high temperature, high power, high current, slow fan) = blinks amber

Form factor

2 U

Hard disk/SSD

4 x 1000 GB HDD

2 x 80 GB SSD

Dimensions (LxWxH)

27.87 x 17.24 x 3.45 in. (708 x 438 x 88 mm)

Weight (without packaging)

42 lb (19.05 kg)

Voltage frequency

100–127 V – 200–240 V

PSU

2 x

770 W

100–127 VAC/8.2 A, 50/60 Hz

200–240 VAC/4.4 A, 50/60 Hz

PCI slots

6

Included ports/max # ports

6/26

Configuration

All

All

PSU type

2 x 770 W

2 x 770 W

AC input

120 V

230 V

Max. amps

3.12

1.5

Max. watts

310

302

Typical watts

248

242

Max VA

313

305

Power factor

98.96

99.16

BTU (typical)

845

825

Operating acoustic

7.0 BA sound pressure (typical)

Temperature (operating)

50°–95ºF (10º–35ºC)

Temperature (storage)

-40º–158ºF (-40º–70ºC)

Relative humidity

50% to 90% noncondensing with a maximum wet bulb of 82ºF (28ºC) (at temperatures from 77ºF [25ºC] to 95ºF [35ºF])

2U

SFCR3500C1

256 GB

12

25 TB

150

2U

SFCR3500C2

256 GB

12

50 TB

200

2U

SFCR3500C3

256 GB

12

100 TB

300

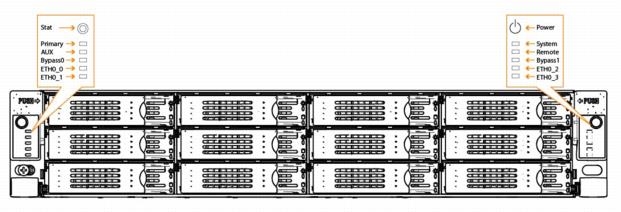

SYSTEM

Normal = blue
System Boot = red

PRI = primary
AUX = auxiliary
REM = remote

Link and traffic = blinks blue

ETH

Link and traffic = blinks blue

HDDs/SSDs

Disk connected = blue
Read/write activity = blinks blue
Failed disk = orange

Back panel

ETH0_0, ETH0_1

Left LED
Link = green
Activity = blinks green

Right LED
GB = orange
100 MB = green
10 MB = no light

Power amps

400 W

VA (max)

415 VA

BTU

1368 BTU

HDD/SSD

2 x 1 TB 2.5 in.

Dimensions (L x W x H)

17.56 x 25.37 x 3.42 in. (446 x 644 x 88 mm)

Weight (without packaging)

58 lb (26.31 kg)

Voltage

100–127 VAC/8 A, 50/60 Hz

200–240 VAC/4 A, 50/60 Hz

PSU

2 x 770 W

PCIe Slots

4

Configuration

All (L-M-H)

PSU Type

2 x 770W

AC Input

230 V

Max. amps.

3.2

Max. watts

430

Typical watts

400

Max. VA

515

Power factor

94

BTU (typical)

1368

Operating acoustic

65.5 dBa sound pressure (typical)

Temperature (operating)

50°–104ºF (10º–40ºC)

Temperature (storage)

-40º–149ºF (-40º–65ºC)

Relative humidity

20–80% noncondensing

Storage humidity

5–95% noncondensing

Operating altitude

-50–10,000 ft (-15.24–3048 m)

2U

SFCR3000L

128 GB

16

50 TB

200

2U

SFCR3000M

128 GB

16

75 TB

250

2U

SFCR3000H

128 GB

16

100 TB

300

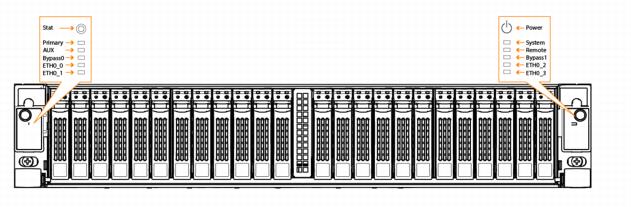

SYSTEM

Normal = blue
System boot = red

PRI = primary
AUX = auxiliary
REM = remote

Link and traffic = blinks blue

ETH

Link and traffic = blinks blue

BYP/BLK
BYP = bypass
BLK = block (disconnect)

Normal = no light
Bypass or block (disconnect) = orange

HDDs/SSDs

Disk connected = blue
Read/write activity = blinks blue
Failed disk = orange

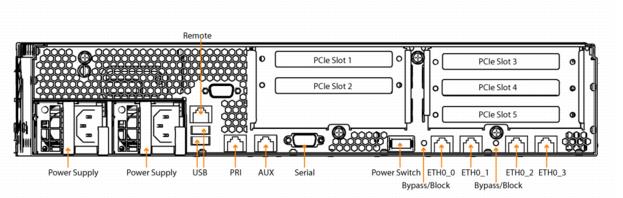

Back panel

ETH0_0, ETH0_1

Left LED
Link = green
Activity = blinks green

Right LED
GB = orange
100 MB = green
10 MB = no light

Power amps

355 W

VA (max)

415 VA

BTU

1215 BTU

HDD

2 x 500 GB 3.5 in.

Dimensions (L x W x H)

17.56 x 25.37 x 3.42 in. (446 x 644 x 87 mm)

Weight (without packaging)

58 lb (23.31 kg)

Voltage

100–127 VAC/8 A, 50/60 Hz

200–240 VAC/4 A, 50/60 Hz

PSU

2 x 770 W

PCIe slots

4

Configuration

All (L/M/H/VH)

PSU type

2 x 770 W

AC input

230 V

Max. amps

3.2

Max. watts

430

Typical watts

345

Max. VA

515

Power factor

94

BTU (typical)

1175

Operating
acoustic

65.5 dBa sound pressure (typical)

Temperature (operating)

50º–104ºF (10º–40ºC)

Temperature (storage)

-40º–149ºF (-40º–65ºC)

Relative humidity

20–80%
noncondensing

Storage humidity

5–95%
noncondensing

Operating altitude

-50–10,000 ft. (-15.24–3048 m)

2U

SFCR2000L

24 GB

4

5 TB

20

2U

SFCR2000M

24 GB

4

10 TB

40

2U

SFCR2000H

24 GB

4

20 TB

80

2U

SFCR2000VH

24 GB

4

35 TB

160
