WinSec Controller 780 Appliance Specifications

WinSec Controller 780 Appliance Specifications
This appendix describes the WinSec Controller 780 appliance technical specifications, power requirements, and environmental specifications.
WinSec Controller 780 specifications
This section describes the ports, LEDs, and technical and environmental specifications for the WinSec Controller 780 appliances.
Port location and LEDs
These figures illustrate the port locations, LEDs, and buttons.

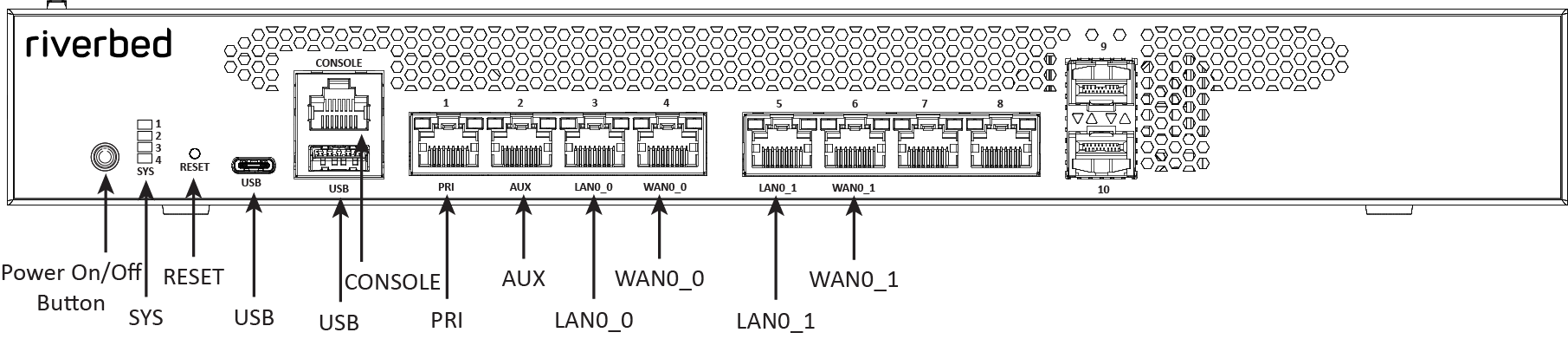

Front panel

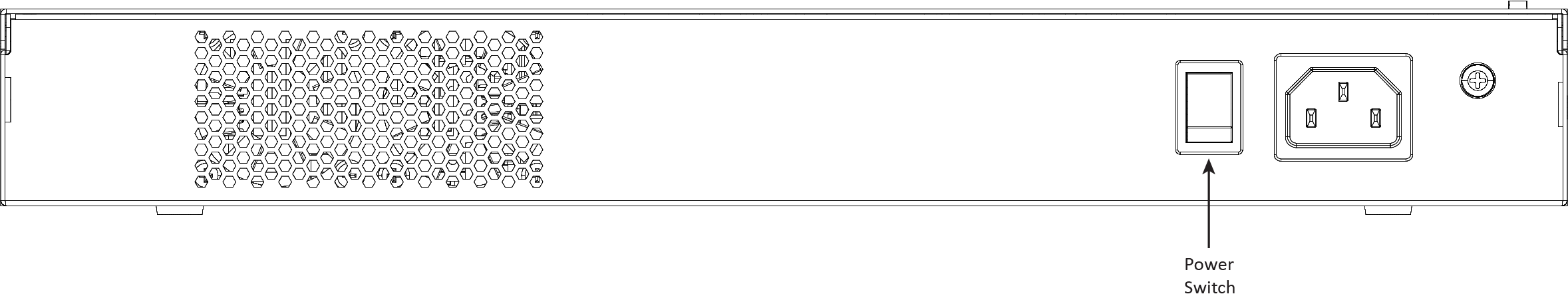

Back panel with LEDs and buttons
This table summarizes the front LEDs, ports, and buttons.
Front LEDs and buttons
Status
Power Button LED
On = Blue (system is turned on)
Sleep State = Yellow (system is in S5 sleep state)
Off = No light (power is off)
System LEDs
The combination of LED 1 and LED 2 defines the system state:
LED 1 = Yellow, LED 2 = Yellow, System State = Critical
LED 1 = Yellow, LED 2 = Green, System State =Degraded
LED 1 = Green, LED 2 = Green, System State = Healthy
LED 3 - Not used; default is off
LED 4 - Not used; default is off
Reset button
Restores system to factory defaults.
Console port
RJ45 port
USB ports v3.0
1 - USB Type A port
1 - USB Type C port
Port 1 PRI
Left LED = Link/Bypass
• Link = On (Solid green)
• Activity = Blinks green
Right LED = Speed
• 10 Mbps data rate = Off
• 100 Mbps data rate = Green
• 1000 Mbps data rate = Amber
Port 2 AUX
Left LED = Link/Bypass
• Link = On (Solid green)
• Activity = Blinks green
Right LED = Speed
• 10 Mbps data rate = Off
• 100 Mbps data rate = Green
• 1000 Mbps data rate = Amber
Ports 3-6: LAN/WAN LEDs
Left LED
• Link = Green
• Activity = Blinks green
• Bypass/Disconnect = Yellow
Right LED
• 10 Mbps data rate = No light (with link on left LED)
• 100 Mbps data rate = Green
• 1000 Mbps/1 Gbps = Yellow
Ports 7-8 (on-board)
Not used.
This table summarizes the status lights and ID button on the back of the appliance.
LED/button
Description
Power Supply LEDs
Power On and Healthy = Green
Standby = 1 Hz blinks green
Power Off = Off
Power lost but second power supply has power = Amber
Power on with warning = 1 Hz blinks amber (indicates high temperature, high power, high current, or slow fan)
Technical specifications
This table summarizes the technical specifications for the systems.
Specification
CX780 Desktop
Power Watt
(typical)
60 W
BTU
205 BTU
RAM
16 GB
HDD
1 x 1 TB
SSD
1 x 32 GB (for boot)
Data store
200 GB
Dimensions (LxWxH)
12.25 x 13.75 x 1.73 in.
311.15 x 349.25 x 44 mm
Weight (without packaging)
6 lb (2.7 kg)
Voltage frequency
100-240 V/2.5 A
50-60 Hz
PSU
1 x Internal, 200 W
100-240 VAC/ 2.5 A, 50-60 Hz
Onboard bypass ports/max # ports
4
Power consumption specifications
This table summarizes the power specifications for the desktop systems. The systems are rated at the following power characteristics when operating at nominal AC input voltages (120 V and 230 V).
System
CX 780
PSU type
2 x 550 W
AC input
120 V
240 V
Max. watts
75.1 W
60.7 W
Max. amps.
0.7692 A
0.39 A
Power factor
99 W/VA
95.2 W/VA
Max. volt-ampere
75.85 VA
63.76 VA
Typical watts
60.08 W
48.56 W
BTU (typical)
204.87 BTU
165.58 BTU
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
780
Operating acoustic
45 dBA Sound pressure (Typical)
Temperature (operating)
0°-45°C
32°-113°F
Temperature (storage)
-40°-65°C
-40°-149°F
Relative humidity
20%-80% noncondensing
Storage humidity
5%-95% noncondensing
