Viewing Diagnostic Reports and Logs : Viewing appliance memory paging reports

Viewing appliance memory paging reports
The Memory Paging report provides the total number of memory pages, per second, utilized by the SCC in the time period specified.
For details about operating report controls, see Overview.
The Memory Page report includes these statistics that describe memory paging activity for the time period you specify.
Data Series
Description
Page Swap Out Rate
Specifies the total number of pages swapped per second. If 100 pages are swapped approximately every two hours the SteelHead is functioning properly. If thousands of pages are swapped every few minutes, contact Support at https://support.riverbed.com
What this report tells you
The Memory Paging report answers this question:
• How many memory pages are swapping out?
About report graphs
Mouse over a specific data point to see the y values and exact time stamp.
The CPU Utilization and Memory Paging report pages expect the SCC to receive data from any SteelHead every five minutes. If the report displays some discontinuities in the graph, it is because the two data points (five minutes after and ten minutes after the previous data sample) are missing from the SCC's perspective.
To view the Memory Paging report
1. Choose Diagnostics > Appliance System: Memory Paging to display the Memory Paging page.

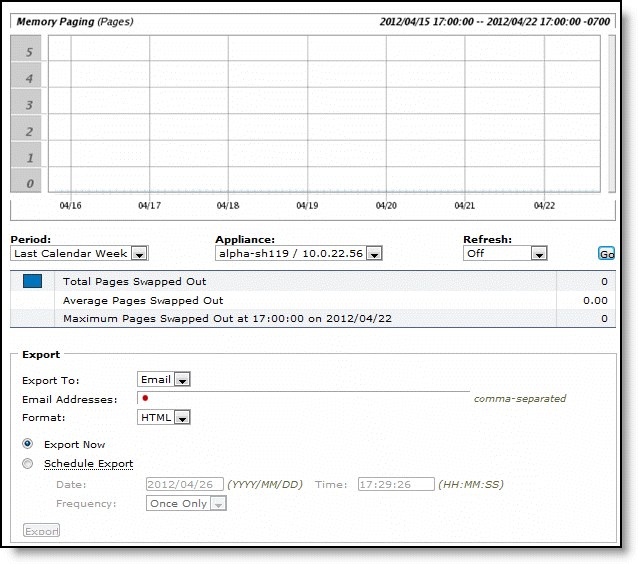

Memory Paging report
2. Use the controls to customize the report as described in this table.
Control
Description
Time Interval
Select a report time interval of 1 hour (1h), 1 day (1d), 1 week (1w), All, or type a custom date. All includes statistics for the last 30 days.
Time intervals that don’t apply to a particular report are dimmed.
For a custom time interval, enter the start time and end time using this format:
yyyy/mm/dd hh:mm:ss
You can quickly see the newest data and see data points as they’re added to the chart dynamically. To display the newest data, click Show newest data.
Appliance
Select an appliance from the drop-down list.
Force best granularity
Select the check box to force the data.
3. Under Export, complete the configuration as described in this table.
Control
Description
Export To
Select either the Email or URL option from the drop-down list.
Email Addresses
(Only displays when Email is selected.) Specify the email address of the recipient.
Email Subject
(Only displays when Email is selected.) Specify the subject.
Destination URL
(Only displays when URL is selected.) Specify the URL.
Format
Select HTML, CSV, or PDF from the drop-down list.
Per Appliance Report
Enables appliance report settings.
Generates graphs per appliance for HTML/PDF reports.
Generates one CSV per appliance for CSV reports.
Export Now
Select Export Now and click Export to start the export immediately.
Schedule Export
Select Schedule Export and specify the start date, time, and frequency of the export. Use this format: yyyy/mm/dd hh:mm:ss
Export
Click Export to export the configuration.
