SteelHead CX x70 Desktop Appliance Specifications

SteelHead CX x70 Desktop Appliance Specifications
This appendix describes the ports, LEDs, and the technical and environmental specifications for the x70 desktop systems.
CX570 and CX770 specifications
This section describes the ports, LEDs, technical and environmental specifications.
Port location and LEDs
These figures illustrate the port locations and LEDs.

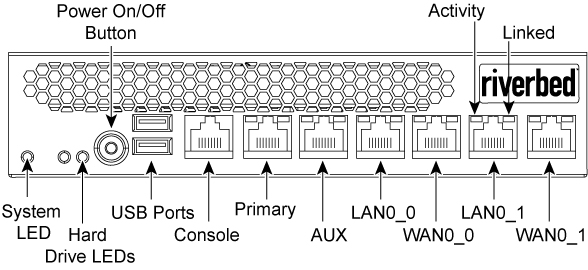

Figure: Front panel
Figure: Back panel
This table summarizes the system LEDs.
LED
Status
System
Healthy = Blue
Degraded = Yellow
Critical = Red
Power Off = None
Power Button LED
System Off = No Light
Standby Mode = Yellow
Power On = Blue
Hard Drive LED
Activity = Blinks Blue
Failed Disk = Orange
Primary LED
Left LED
Link = Green
Activity = Blinks Green
Right LED
GB = Yellow
100 MB = Green
10 MB = No Light (with link on left LED)
LAN/WAN LEDs
Left LED
Link = Green
Activity = Blinks Green
Bypass/Disconnect = Yellow
Right LED
GB = Yellow
100 MB = Green
10 MB = No Light (with link on left LED)
Technical specifications
This table summarizes the technical specifications for the systems.
Specification
CX570 Desktop L/M/H
CX770 Desktop L/M/H
Power
(typical)
45 W
50 W
VA
(max)
63.8
66.8
BTU
145 BTU
165 BTU
Hard disk
1 x 320 GB 2.5” HDD
1 x 80 GB SSD
1 x 320 GB 2.5” HDD
1 x 160 GB SSD
Data store
70 GB SSD
150 GB SSD
Dimensions (LxWxH)
13x8x1.73 in
330x204x44mm
13x8x1.73 in
330x204x44mm
Weight (without packaging)
5.5 lbs
2.4 kg
5.5 lbs
2.4 kg
Voltage frequency
100-240V
50 - 60 Hz
100-240V
50 - 60 Hz
PSU
Single 84 W
External
100-240VAC, 50/60Hz,
2-1 A
Single 84 W
External
100-240VAC, 50/60Hz,
2-1 A
Onboard bypass ports/max # ports
4
4
Environmental specifications
This table summarizes the environmental requirements for the systems.
Specification
CX570 Desktop L/M/H
CX770 Desktop L/M/H
Operating acoustic
45 dBA Sound pressure (Typical)
45 dBA Sound pressure (Typical)
Temperature (operating)
0° - 45° C
32° - 113° F
0° - 45° C
32° - 113° F
Temperature (storage)
-40° - 65° C
-40° - 149° F
-40° - 65° C
-40° - 149° F
Relative humidity
20% - 80% noncondensing
20% - 80% noncondensing
Storage humidity
5% - 95% noncondensing
5% - 95% noncondensing
