Control | Description |

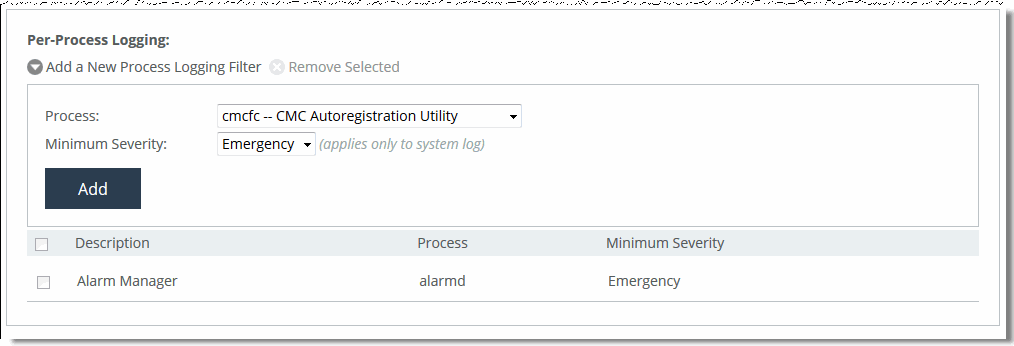

Add a New Process Logging Filter | Displays the controls for adding a process level logging filter. |
Process | Select a process to include in the log from the drop-down list: • alarmd - Alarm Manager • cmcfc - SCC Autoregistration Utility • rgpd - SCC Connection Manager • rgp - SCC Connector • cli - Command-Line Interface • mgmtd - Device Control and Management, which directs the entire device management system. It handles messages passing between various management daemons, managing system configuration and general application of system configuration on the hardware underneath through the Hardware Abstraction Layer Daemon (HALD). • hald - Hardware Abstraction Layer Daemon, which handles access to the hardware. • pm - Process Manager, which handles launching of internal system daemons and keeps them running. • sched - Process Scheduler, which handles one-time scheduled events. • statsd - Statistics Collector, which handles queries and storage of system statistics. • wdt - Watchdog Timer, the motherboard watchdog daemon. • webasd - Web Application Process, which handles the web user interface. |
Minimum Severity | Select the minimum severity level for the log messages. The log contains all messages with this severity level or higher. Select one of the following levels from the drop-down list: • Emergency - The system is unusable. • Alert - Action must be taken immediately. • Critical - Conditions that affect the functionality of the Core. • Error - Conditions that probably affect the functionality of the Core. • Warning - Conditions that could affect the functionality of the Core, such authentication failures. • Notice - Normal but significant conditions, such as a configuration change. • Info - Messages that provide general information about system operations. |
Add | Adds the filter to the list, after which the process logs at the selected severity and higher levels. |
Remove Selected | Select the check box next to the name and click Remove Selected to remove the filter. |
