Configuring Optimization Settings : Configuring in-path rules

Configuring in-path rules
You configure in-path rules in the Optimization > In-Path Rules page. The SteelHead Interceptor evaluates rules in numerical order, starting with Rule 1. If the conditions set in the rule match, then the rule is applied and the system moves on to the next packet. If the conditions set in the rule do not match, the system consults the next rule. For example, if the conditions of Rule 1 do not match, Rule 2 is consulted. If Rule 2 matches the conditions, it is applied, and no further rules are consulted.

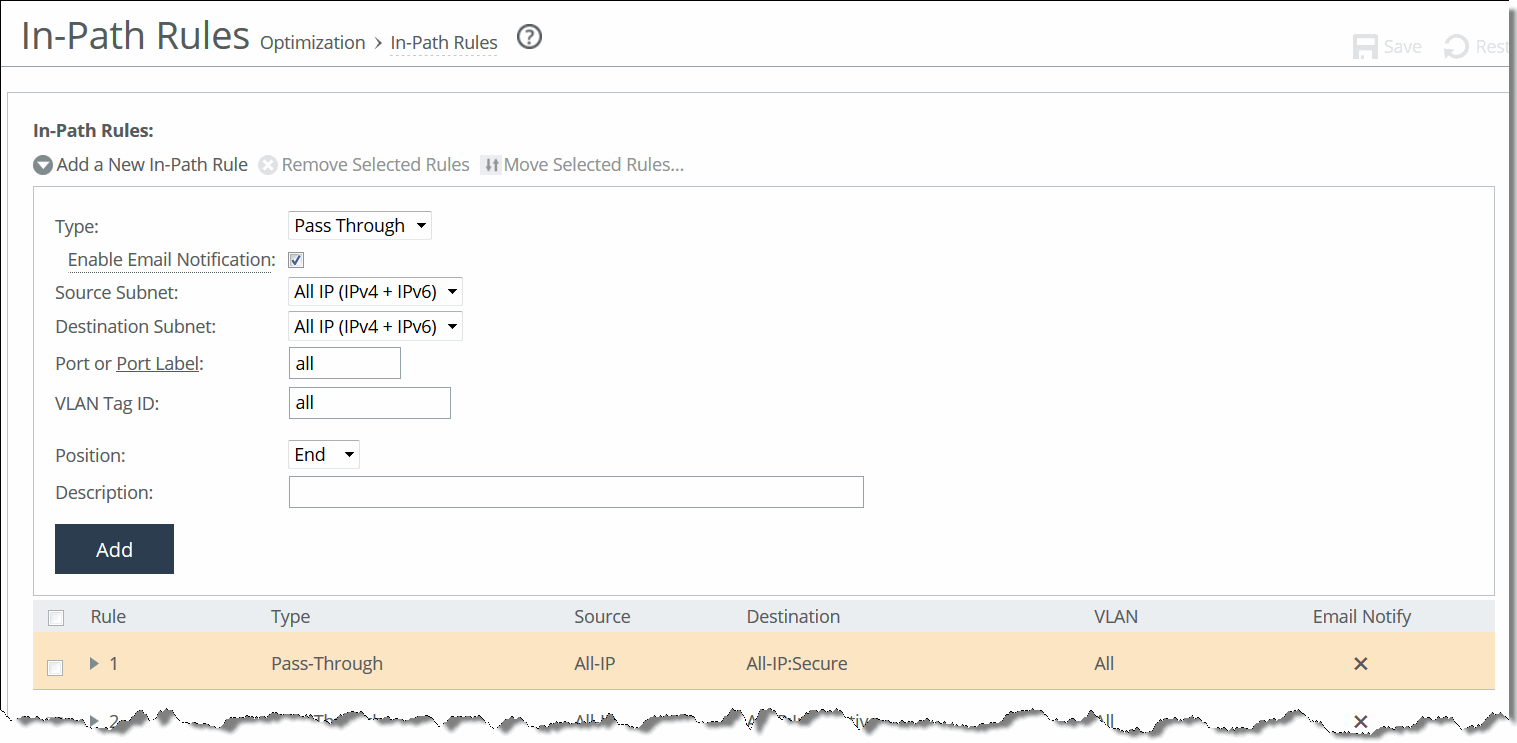

In-Path Rules page (standard mode)
In-Path Rules page (VLAN segregation mode)
When the SteelHead Interceptor intercepts a SYN request to a server, the in-path rules you configure determine the subnets and ports for traffic to be optimized. You can specify in-path rules to pass through, discard, or deny traffic; or to redirect and optimize it.
In the case of a data center, the SteelHead Interceptor intercepts SYN requests when a data center server establishes a connection with a client that resides outside the data center.
To configure in-path rules
1. Display the In-Path Rules page in either standard mode or VLAN segregation mode.
The location of the In-Path Rules page depends on whether the SteelHead Interceptor is running in standard mode or VLAN segregation mode:
– Standard mode—Choose Optimization > Optimization: In-Path Rules to display the In-Path Rules page.
– VLAN segregation mode—In-path rules are configured on a per-instance basis. From the instance dashboard for a given instance, choose In-Path Rules in the Optimization section of the navigation bar.
2. Complete the configuration as described in this table.
Control
Description
Add a New In-Path Rule
Displays the controls to add a new rule.
Type
Select one of these rule types:
When traffic matches the pass-through rules, the traffic will also be matched to service rules if path selection is enabled.
• Redirect—Redirect rules select traffic that might be redirected. Typically, you configure a redirect rule for source and destination addresses and ports you want to optimize with the Riverbed system. A separate set of load-balancing rules determines the SteelHead Interceptor to which the connection is to be redirected.
• Pass Through—Pass-through rules identify traffic that is passed through the network unoptimized. For example, you might choose to pass through traffic on interactive or secure ports.
• Discard—Packets for connections that match the rule are dropped silently. Essentially, the SteelHead Interceptor filters out traffic that matches the discard rules. For example, you might choose to drop connections from an unauthorized source or to an unauthorized target subnet.
• Deny—If packets for connections match the deny rule, the SteelHead Interceptor actively tries to reset the connection. For example, you might choose to deny connections from an unauthorized source or to an unauthorized target subnet.
Enable Email Notification

This option enables email notification of pass-through rules every 15 days. In addition to selecting this check box, you must also select the Report Events via Email check box and specify an email address in the Email > System Settings: Email page.
You can select or more pass-through rules for notification. However, notifications are sent only for those rules that have this check box selected.
This option is available for pass-through rules only and is enabled by default. This option is disabled for the other rule types.
To change the frequency of reminder emails, enter the email notify passthrough rule notify-timer command. To disable reminder emails for pass-through rules, clear this check box or enter the no email notify passthrough rule command. For more information, see the Riverbed Command-Line Interface Reference Manual.
Source Subnet
Specify the subnet IP address and netmask for the source network.
• All IP (IPv4 + IPv6)—Maps to all IPv4 and IPv6 networks.
• All IPv4—Maps to 0.0.0.0/0.
• All IPv6—Maps to ::/0.
• IPv4—Prompts you for a specific IPv4 subnet address. Use this format for an individual subnet IP address and netmask: xxx.xxx.xxx.xxx/xx
• IPv6—Prompts you for a specific IPv6 subnet address. Use this format for an individual subnet IP address and netmask: x:x:x::x/xxx
Destination Subnet
Specify the subnet IP address and netmask for the destination network.
• All IP (IPv4 + IPv6)—Maps to all IPv4 and IPv6 networks.
• All IPv4—Maps to 0.0.0.0/0.
• All IPv6—Maps to ::/0.
• IPv4—Prompts you for a specific IPv4 subnet address. Use this format for an individual subnet IP address and netmask: xxx.xxx.xxx.xxx/xx
• IPv6—Prompts you for a specific IPv6 subnet address. Use this format for an individual subnet IP address and netmask: x:x:x::x/xxx
Port or Port Label
Specify the destination port number, port label, or All. Click Port Label to go to the Networking > Network Services: Port Labels page for reference. For details about managing port labels, see Setting port labels.
If you order rules so that traffic that is passed through, discarded, or denied is filtered first, All represents all remaining ports.
VLAN Tag ID
Specify a VLAN identification number from 0 to 4094, enter all to apply the rule to all VLANs, or enter untagged to apply the rule to nontagged connections.
Pass-through traffic maintains any preexisting VLAN tagging between the LAN and WAN interfaces.
To complete the implementation of VLAN tagging, you must set the VLAN tag IDs for the in‑path interfaces that the SteelHead Interceptor uses to communicate with other SteelHead Interceptors.
Position
Select Start, End, or a rule number from the drop-down list. SteelHead Interceptors evaluate rules in numerical order starting with rule 1. If the conditions set in the rule match, then the rule is applied, and the system moves on to the next packet. If the conditions set in the rule do not match, the system consults the next rule: for example, if the conditions of rule 1 do not match, rule 2 is consulted. If rule 2 matches the conditions, it is applied, and no further rules are consulted.
In general, list rules in this order:
1. Deny 2. Discard 3. Pass-through 4. Redirect
Description
Describe the rule.
Add
Adds the newly defined rule to the list and applies the settings to the running configuration.
Remove Selected Rules
Select the check box next to the name and click Remove Selected Rules. This action applies the settings to the running configuration.
The default rule cannot be removed and is always listed last.
Move Selected Rules
Click the arrow next to the desired rule position; the rule moves to the new position.
The default rule cannot be reordered and is always listed last.
3. Click Save to save your changes to the running configuration.
