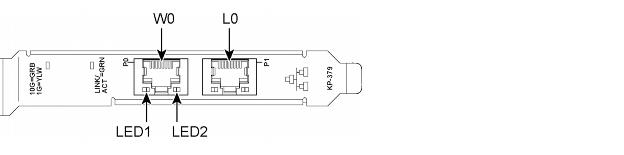

Figure: Two-Port 10-GbE TX Copper (NIC-1-010G-2TX)
Port | Description |
P0, P1 | Provides access to 10/100/1000 Base-TX |
LED | Description |
10G=GRN 1G=YLW (LED1) | 10 G = Green 1 G = Yellow 100 M = Off |
LINK/ACT=GRN (LED2) | Link = Green Activity = Blinking green |
Specification | Description |
Connectors | Two shielded RJ-45 |
Cables and operating distance | 100 Base-Tx Category 5 maximum 100 m 1000 Base-T Category 5E maximum 100 m 10G Base-T Category 6A maximum 100 m |
