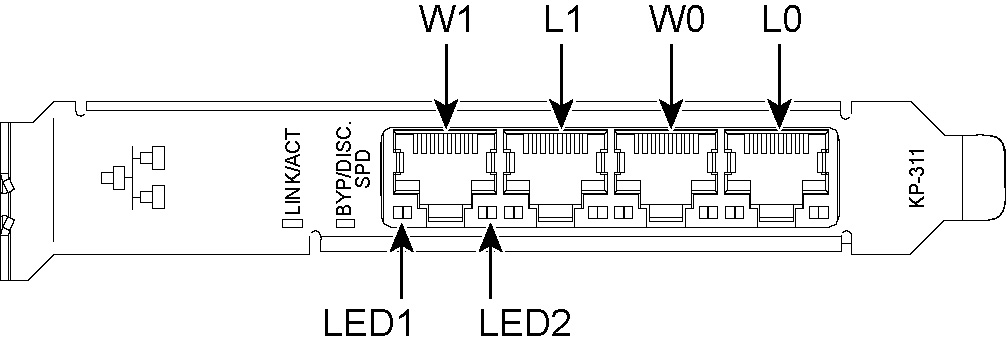

Figure: Four-Port Copper Bypass Card (NIC-1-001G-4TX-BP)
Port | Description |
L0, W0, L1, W1 | Provides access to 10/100/1000 Base-TX |
LED | Definitions |
LINK/ACT (LED1) | Link = Green Activity = Blinking green |
BYP/DISC SPD (LED2) | 1000 Mbit/s = Yellow 100 Mbit/s = Green 10 Mbit/s = Off Bypass = Blinks green Disconnect = Blinks yellow |
Specification | Descriptions |
Connectors | Four shielded RJ-45 |
Cables and Operating distance | 10 Base-T Category 3, 4, or 5 maximum 50m * 100 Base-Tx Category 5 maximum 50m * 1000 Base-T Category 5E maximum 50m * *Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard |
