Configuring Security Settings : Configuring TACACS+ access

Configuring TACACS+ access
You set up TACACS+ server authentication in the TACACS+ page. TACACS+ is an authentication protocol that allows a remote access server to forward a login password for a user to an authentication server to determine whether access is allowed to a given system. Enabling this feature is optional.
You can prioritize local, RADIUS, and TACACS+ authentication methods for the system and set the authorization policy and default user for RADIUS and TACACS+ authorization systems in the Security > General Settings page.
For details about configuring RADIUS and TACACS+ servers to accept login requests from the SteelHead, see the SteelHead Deployment Guide.
You set a TACACS server under Administration > Security: TACACS+.

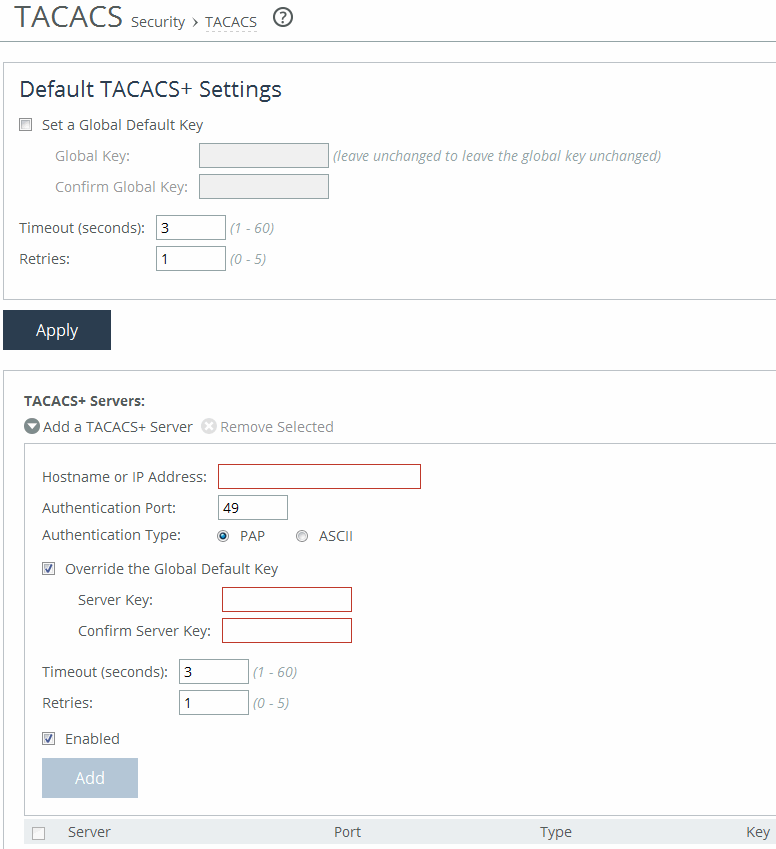

Setting TACACS+ and adding TACACS+ servers
These configuration options are available under Default TACACS+ Settings:
Set a Global Default Key
Enables a global server key for the server.
Global Key
Specifies the global server key.
Confirm Global Key
Confirms the global server key.
Timeout
Specifies the time-out period in seconds (1 to 60). The default value is 3.
Retries
Specifies the number of times you want to allow the user to retry authentication. Valid values are from 0 to 5. The default is 1.
Add a TACACS+ Server
Displays the controls for adding a TACACS+ server.
Hostname or IP Address
Specifies the hostname or server IP address.
Authentication Port
Specifies the port for the server. The default value is 49.
Authentication Type
Specifies either PAP or ASCII as the authentication type. The default value is PAP.
Override the Global Default Key
Overrides the global server key for the server.
Server Key
Specifies the override server key.
Confirm Server Key
Confirms the override server key.
Timeout
Specifies the time-out period in seconds (1 to 60). The default is 3.
Retries
Specifies the number of times you want to allow the user to retry authentication. Valid values are from 0 to 5. The default is 1.
Enabled
Enables the new server.
Add
Adds the TACACS+ server to the list.
