About peering rules settings

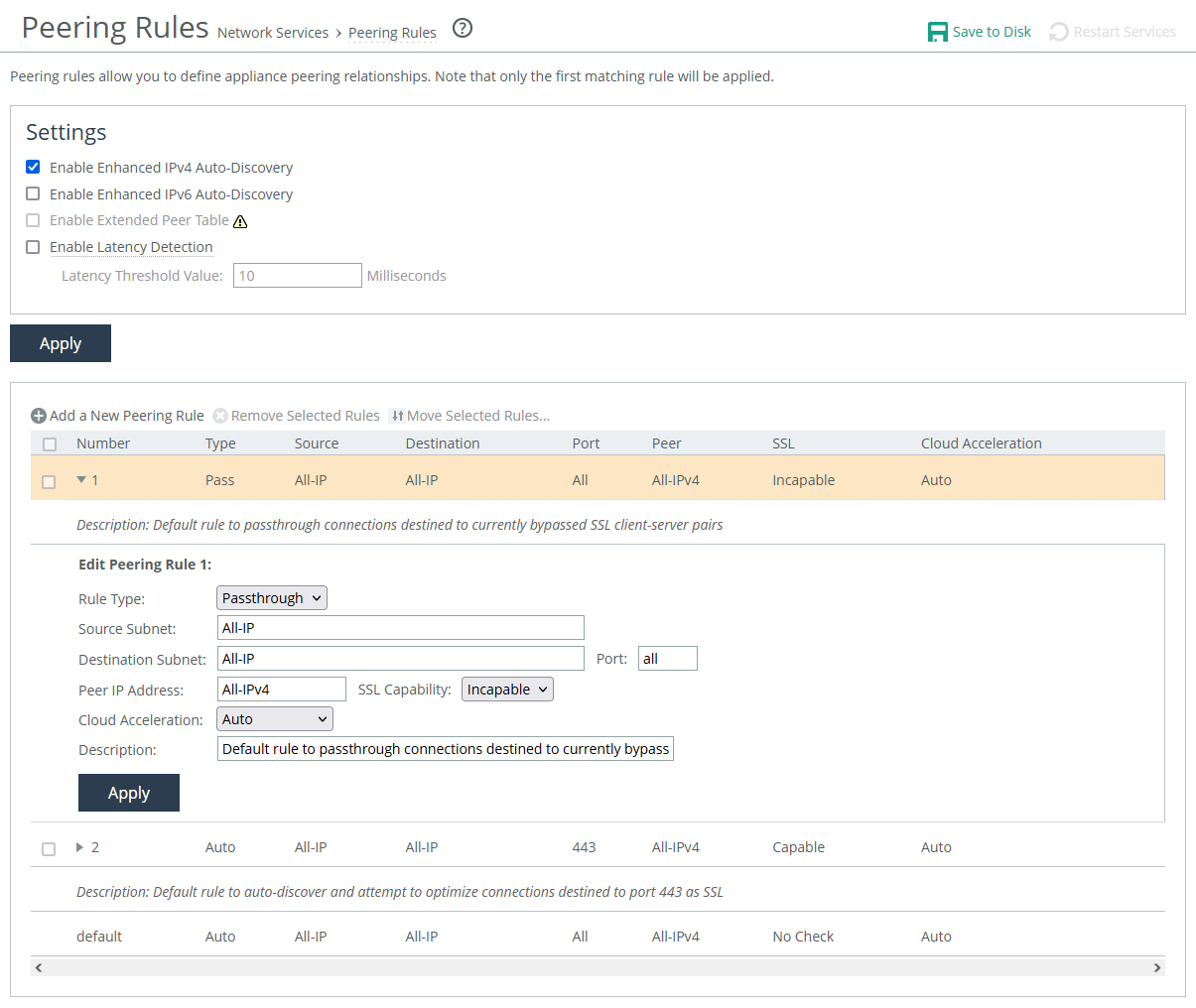

Peering rules settings are under Optimization > Network Services: Peering Rules.
Peering Rules settings
Rule Type
Determines the action the appliance takes on the connection:
• Auto automatically decides the best peering action. If autodiscovery isn’t used, this is the same as "Accept." If autodiscovery is enabled, the appliance will only become the optimization peer if it's the last appliance in the path to the server.
• Accept accepts peering requests that match the source-destination-port pattern. The receiving appliance responds and establishes the peer connection.
• Passthrough allows peering requests that match the source and destination port pattern to pass through. The receiving appliance doesn’t reply to the probe and lets the SYN+probe packet to continue through the network.
Insert Rule At
Determines the order in which the system evaluates the rule.
Source Subnet and Destination Subnet
Specify IP addresses and subnet masks for traffic sources and destinations. Wildcards are supported.
Port
Specifies the destination port number, port label, or All.
Peer IP Address
Specifies the in-path IP address of the probing appliance. If more than one in-path interface is present on the probing appliance, apply multiple peering rules, one for each in-path interface. You can also specify wildcards.
SSL Capability
Enables an SSL capability flag, which specifies criteria for matching an incoming connection with one of the rules in the peering rules table. This flag is typically set on a server-side appliance.
• No Check performs no check to determine whether the server-side appliance is present at the specified destination IP address and port combination.
• Capable determines that the connection is SSL-capable if the destination port is 443 (irrespective of the destination port value on the rule) and the destination IP and port don’t appear on the bypassed servers list. The appliance accelerates SSL for traffic meeting those conditions.
• Incapable determines that the connection is SSL-incapable if the destination IP and port appear in the bypassed servers list. The service adds a server to the bypassed servers list when there’s no SSL certificate for the server or for any other SSL handshake failure. The appliance passes the connection through unoptimized without affecting connection counts.
Cloud Acceleration
Determines which connections from a client-side appliance (with the Legacy Cloud Accelerator enabled but with redirect disabled) should be optimized with the Legacy Cloud Accelerator. Use cloud acceleration in peering rules on a server-side SteelHead in a back-hauled deployment.
• Auto indicates the server-side SteelHead redirects connections to the cloud for acceleration.
• Pass Through indicates the server-side SteelHead doesn’t redirect connections to the cloud.
If the client-side SteelHead doesn’t have cloud acceleration enabled or isn’t trying to optimize cloud connections, the value of this setting on the server-side SteelHead doesn't matter.
Description
Enter a description to help you identify the peering relationship.
