Reference: Figures for Rack Mounting 2U Appliances

Reference: Figures for Rack Mounting 2U Appliances
If you are having trouble following the written procedures for rack mounting your hardware, the figures in this reference can help you visualize the process by showing you the hardware involved and how it is assembled.
Figures for rack mounting with RMK-5-2U kits

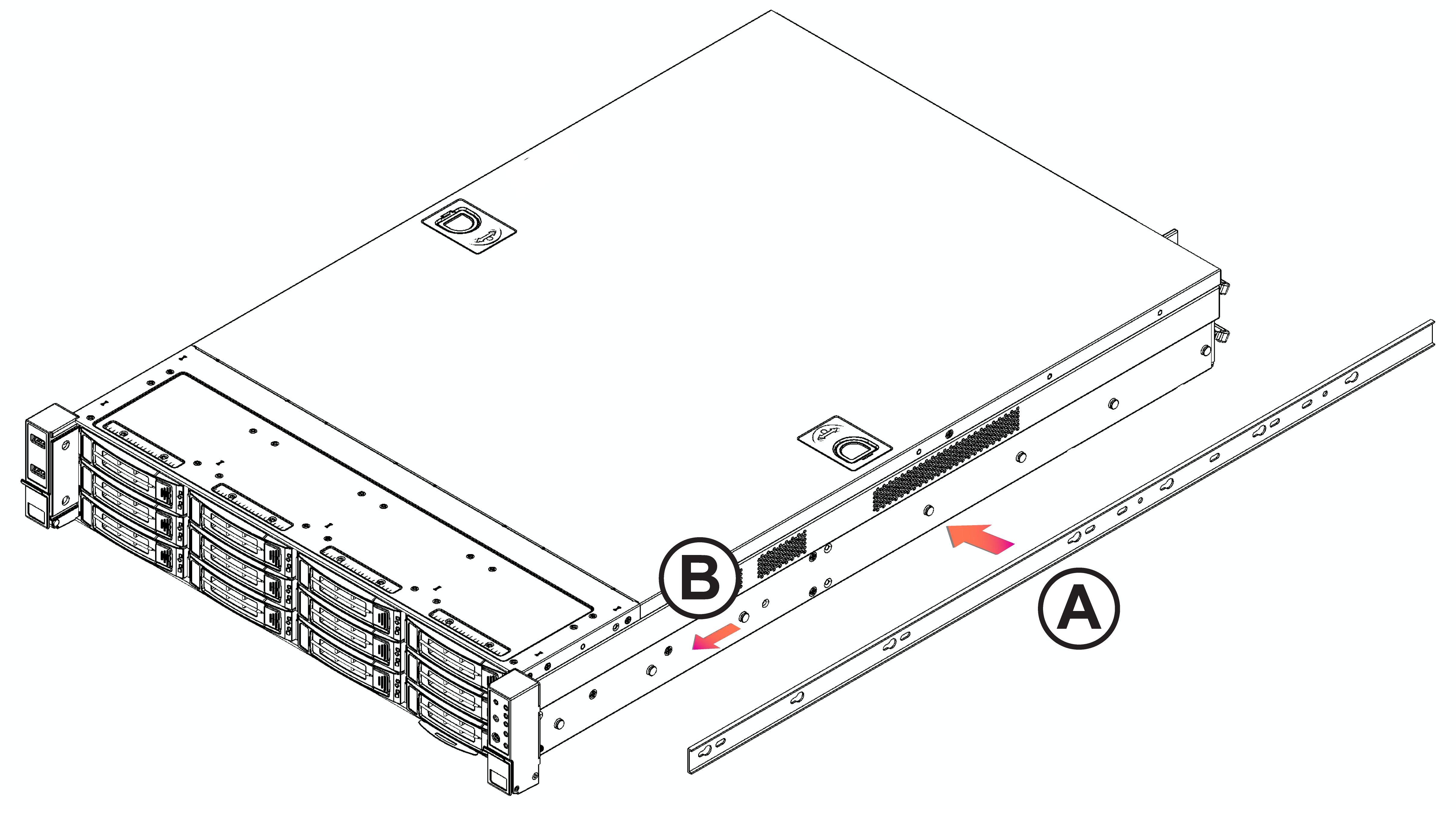

Attaching inner sliding rails to the appliance

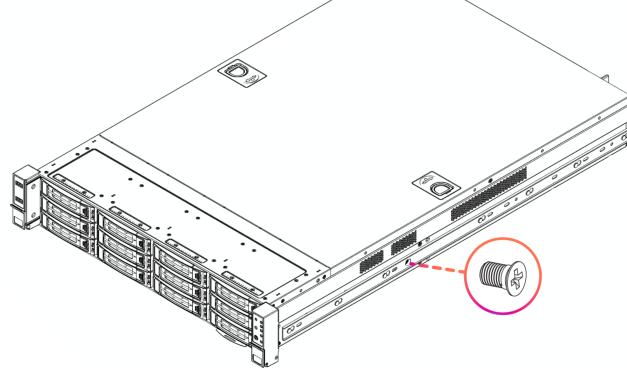

Securing the inner rail to the 2U xx90 chassis with a screw

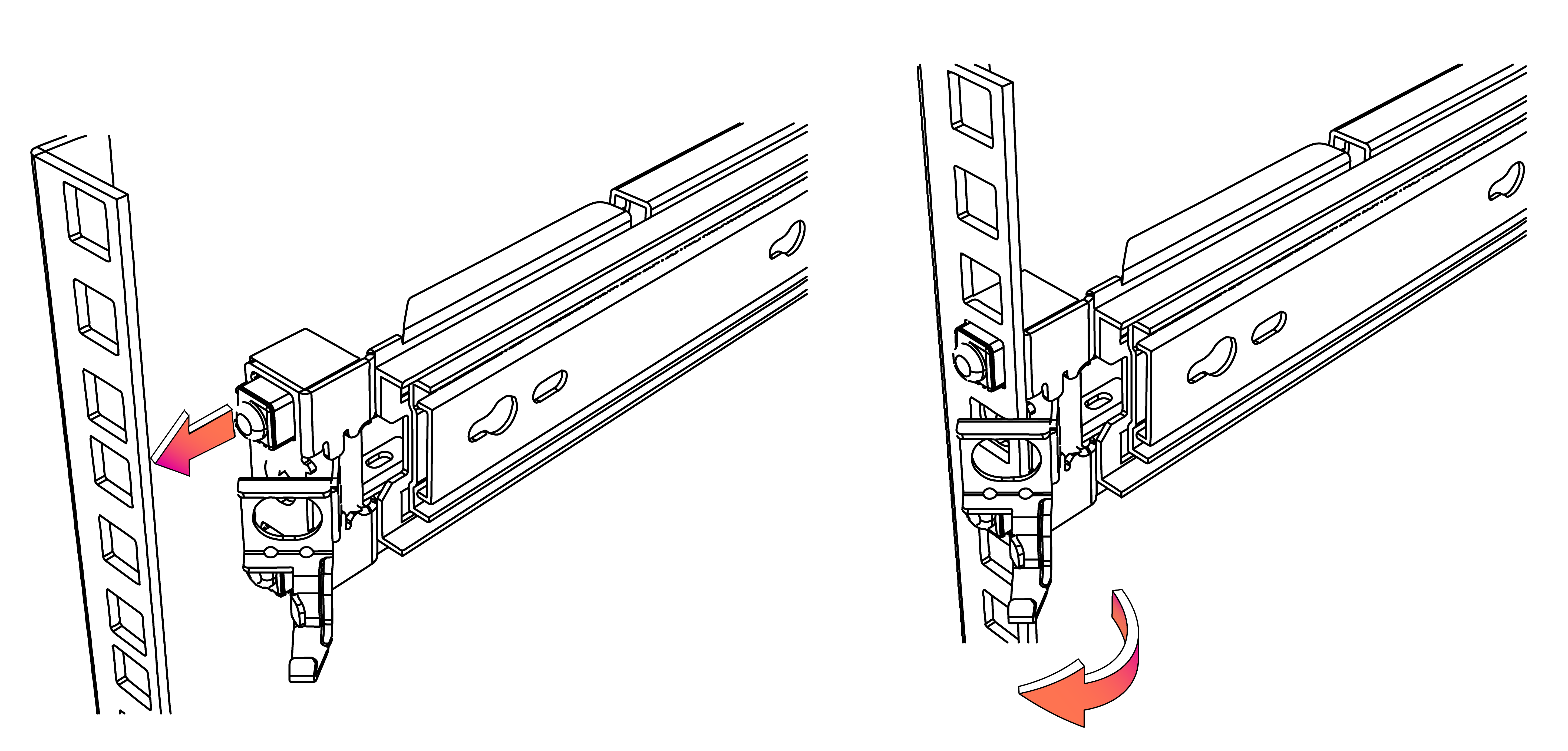

Attaching the RMK-5-2U outer rails to the rack

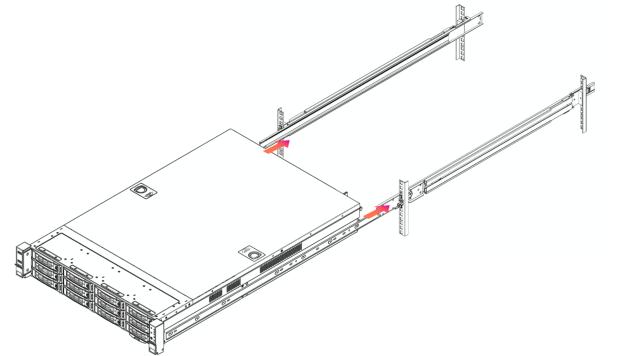

Inserting the 2U xx90 appliance into the rack

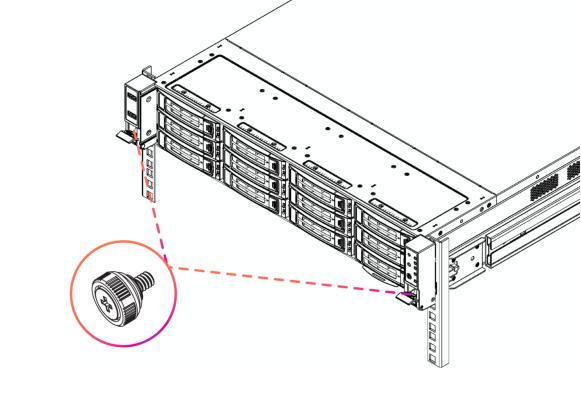

Securing the 2U xx90 appliance to the rack with captive screws
Figures for rack mounting with RMK-4-2U kits

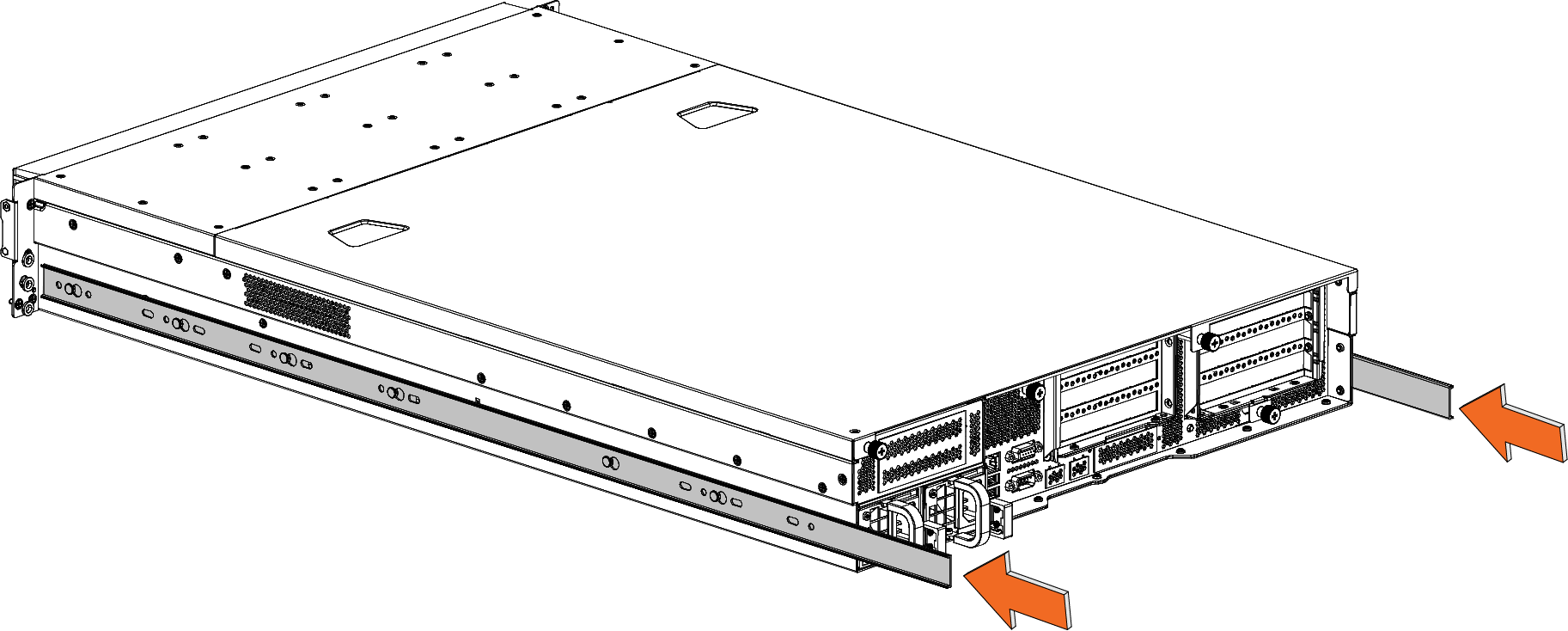

Attaching inner sliding rails to the appliance
Pulling the tab on the rail to release the latch

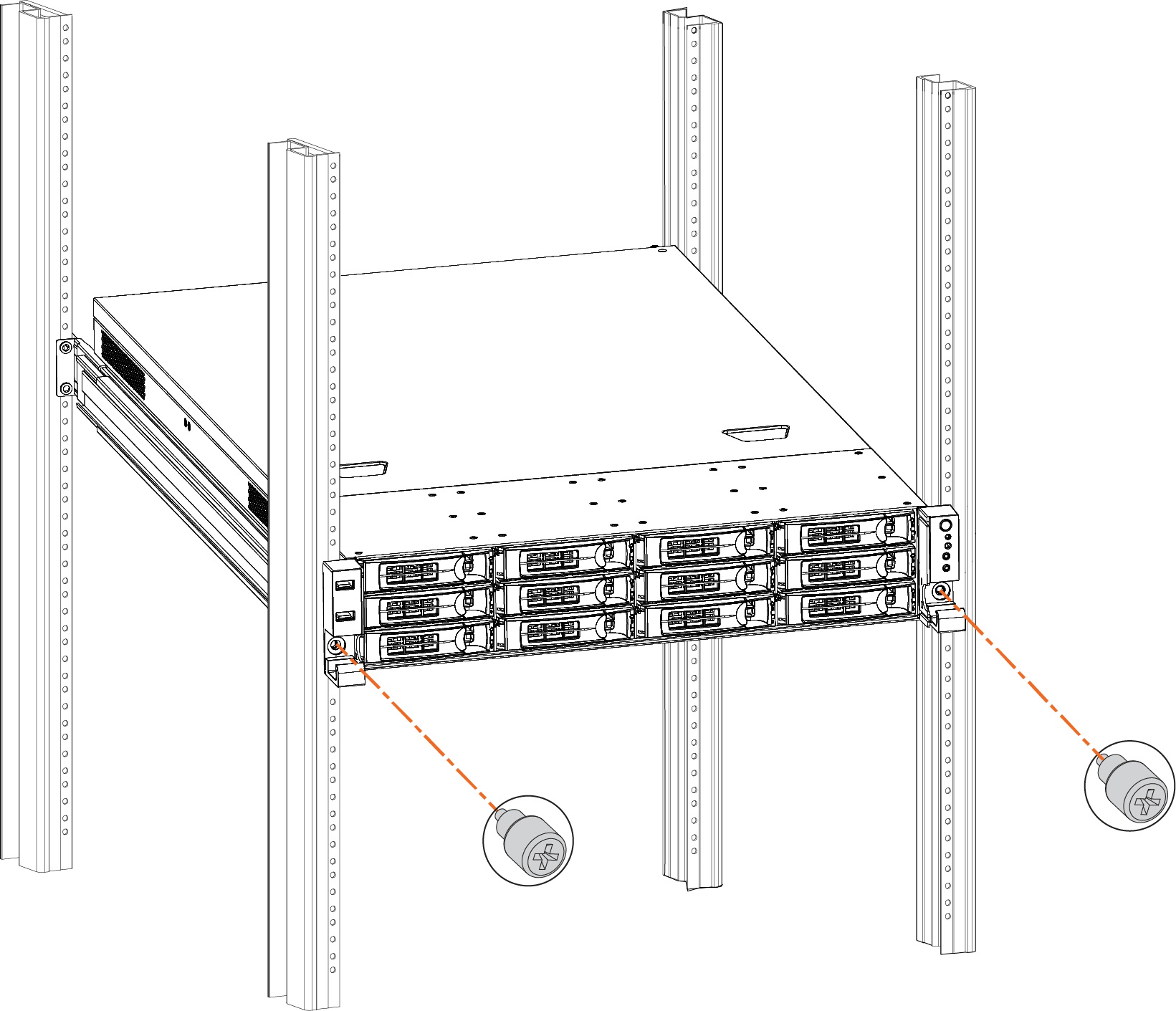

Securing the appliance to the rack
