Reference: Figures for Rack Mounting 1U Appliances

Reference: Figures for Rack Mounting 1U Appliances
If you are having trouble following the written procedures for rack mounting your hardware, the figures in this reference can help you visualize the process by showing you the hardware involved and how it is assembled.
Rack mounting with RMK-5-1U kits

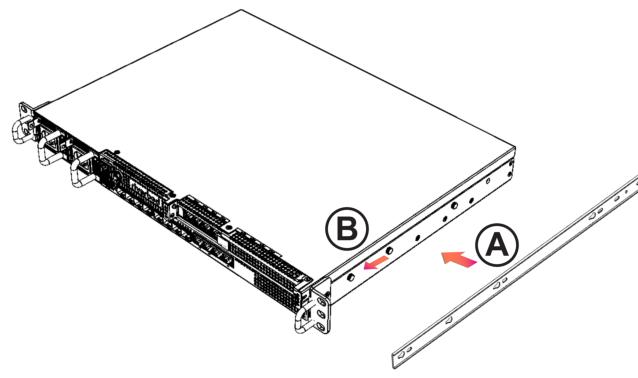

Attaching the inner sliding rail to the 1U xx90 appliance

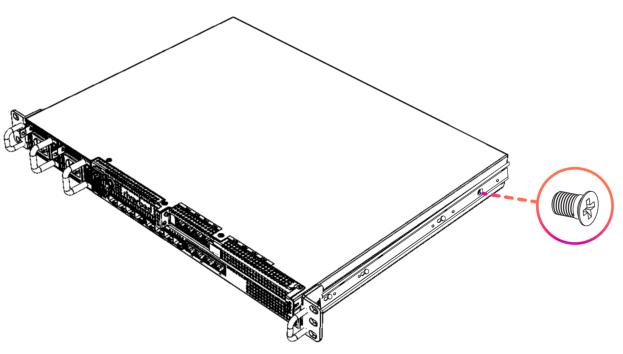

Securing the inner rail to the 1U xx90 chassis with a screw

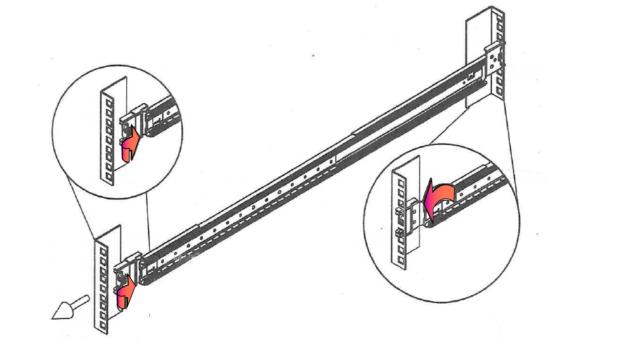

Attaching the RMK-5-1U outer rails to the rack

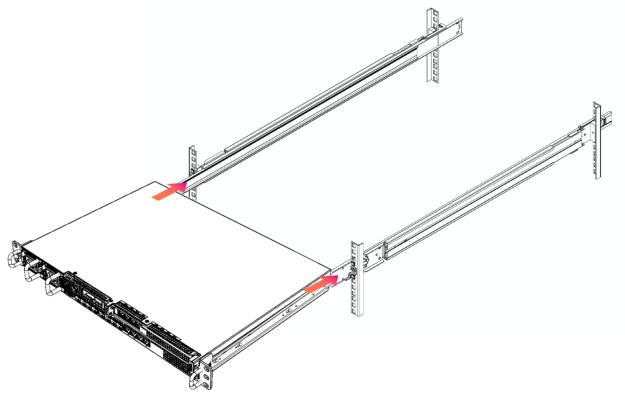

Inserting the 1U xx90 appliance into the outer rails

Rack mounting with RMK-4-1U kits

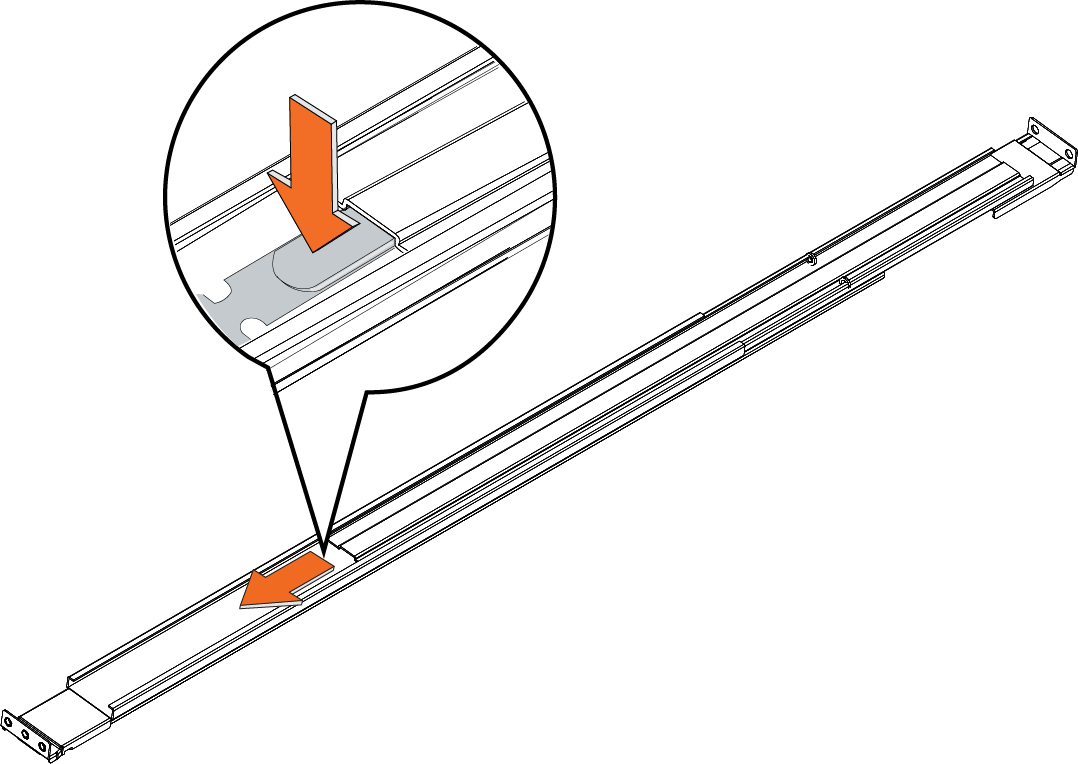

Extending the inner rail of the rail assembly

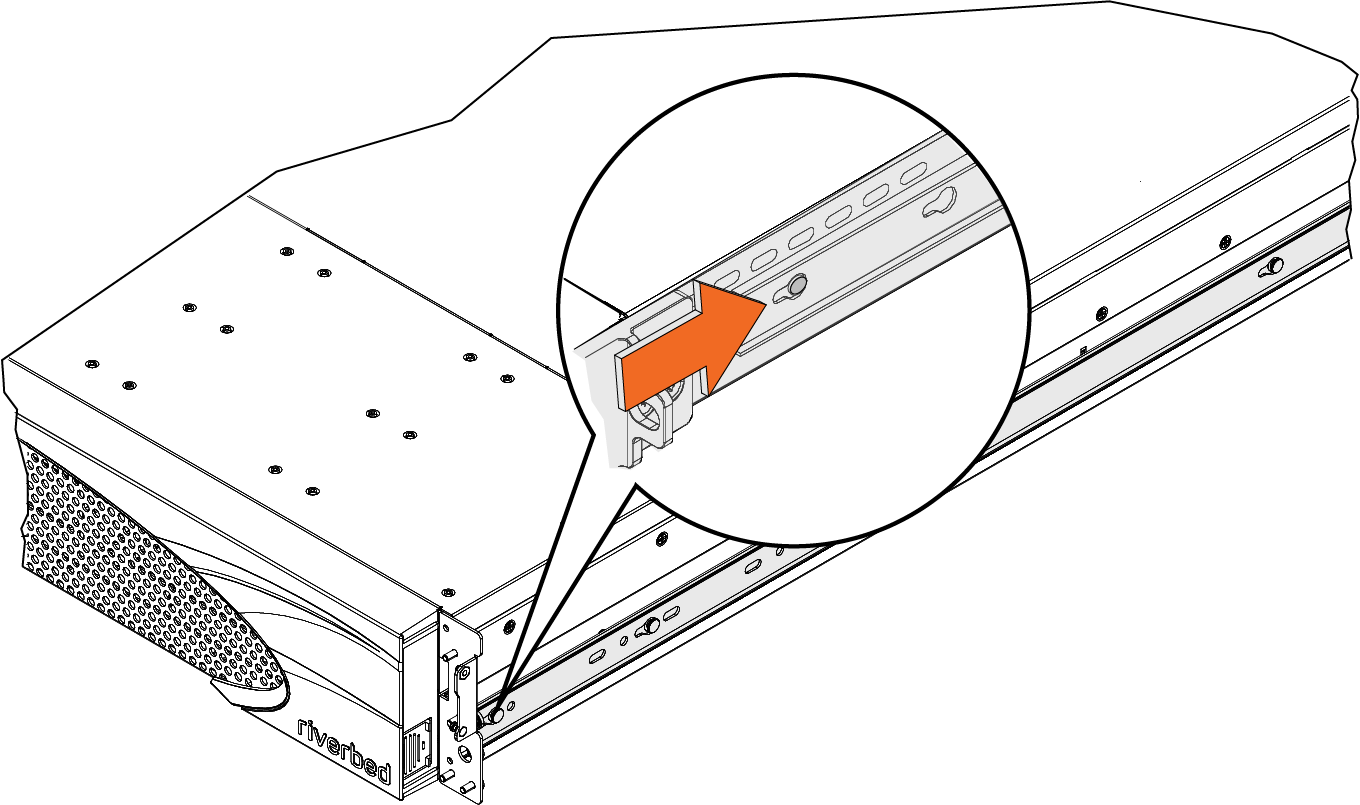

Aligning the inner sliding rail to the appliance

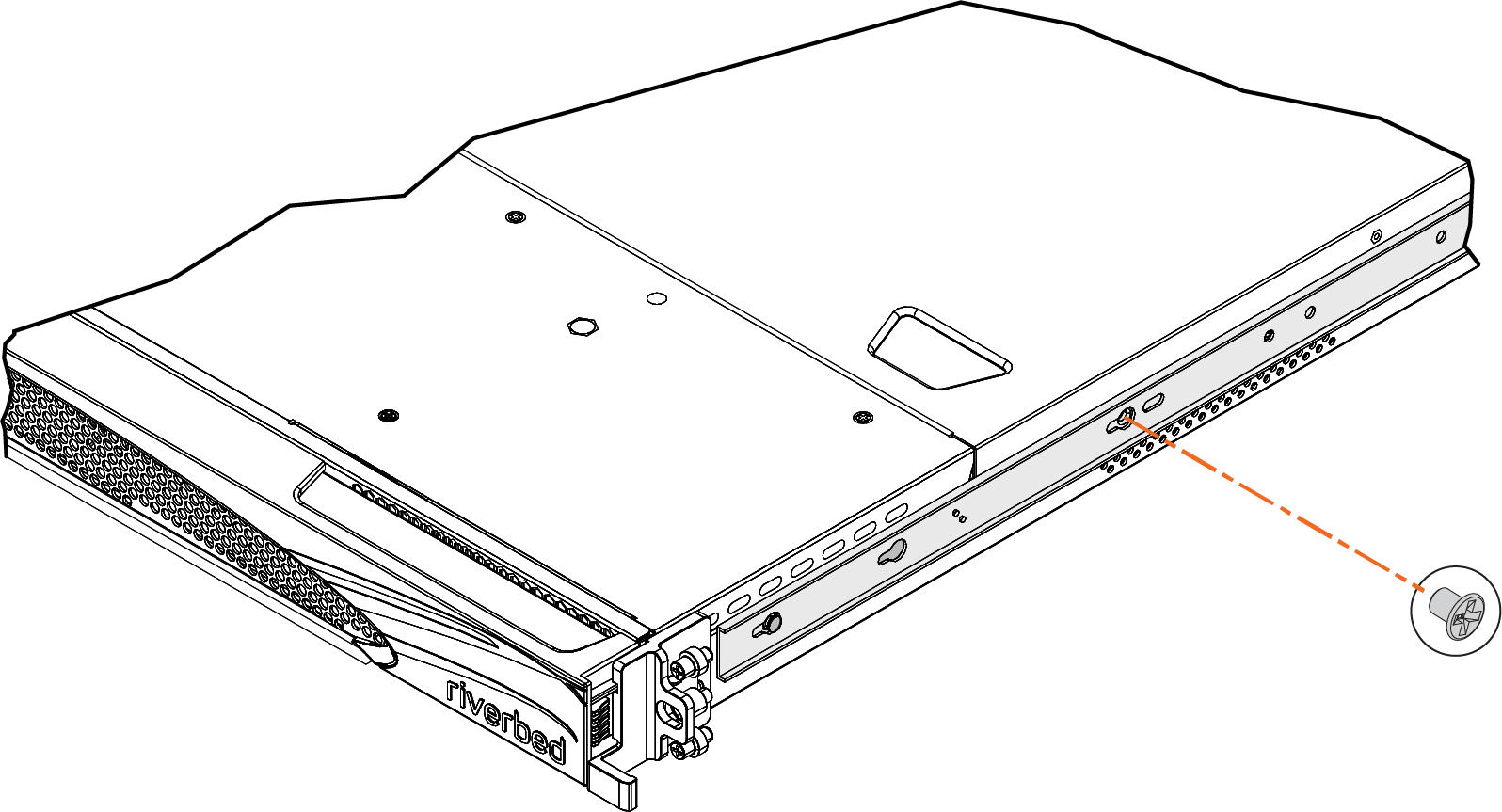

Attaching the inner sliding rail to the appliance

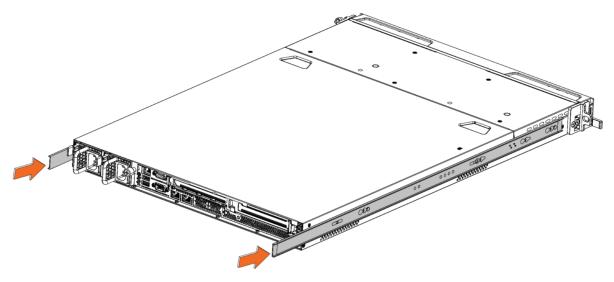

Attaching the second rail to the other side of the appliance

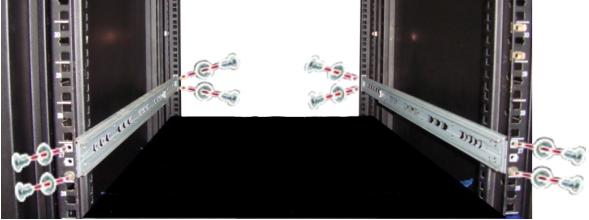

Securing the outer rails to the rack

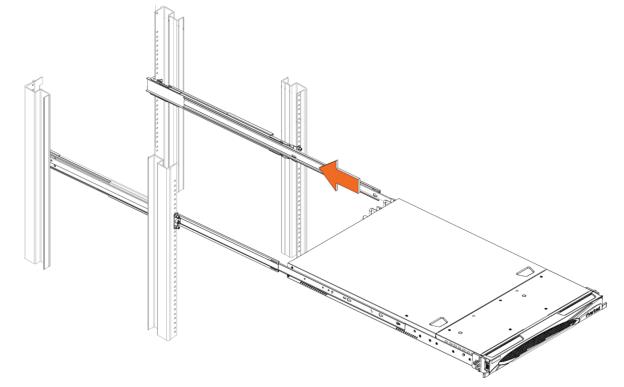

Inserting the appliance into the outer rails
Rack mounting with RMK-4-3080 kits

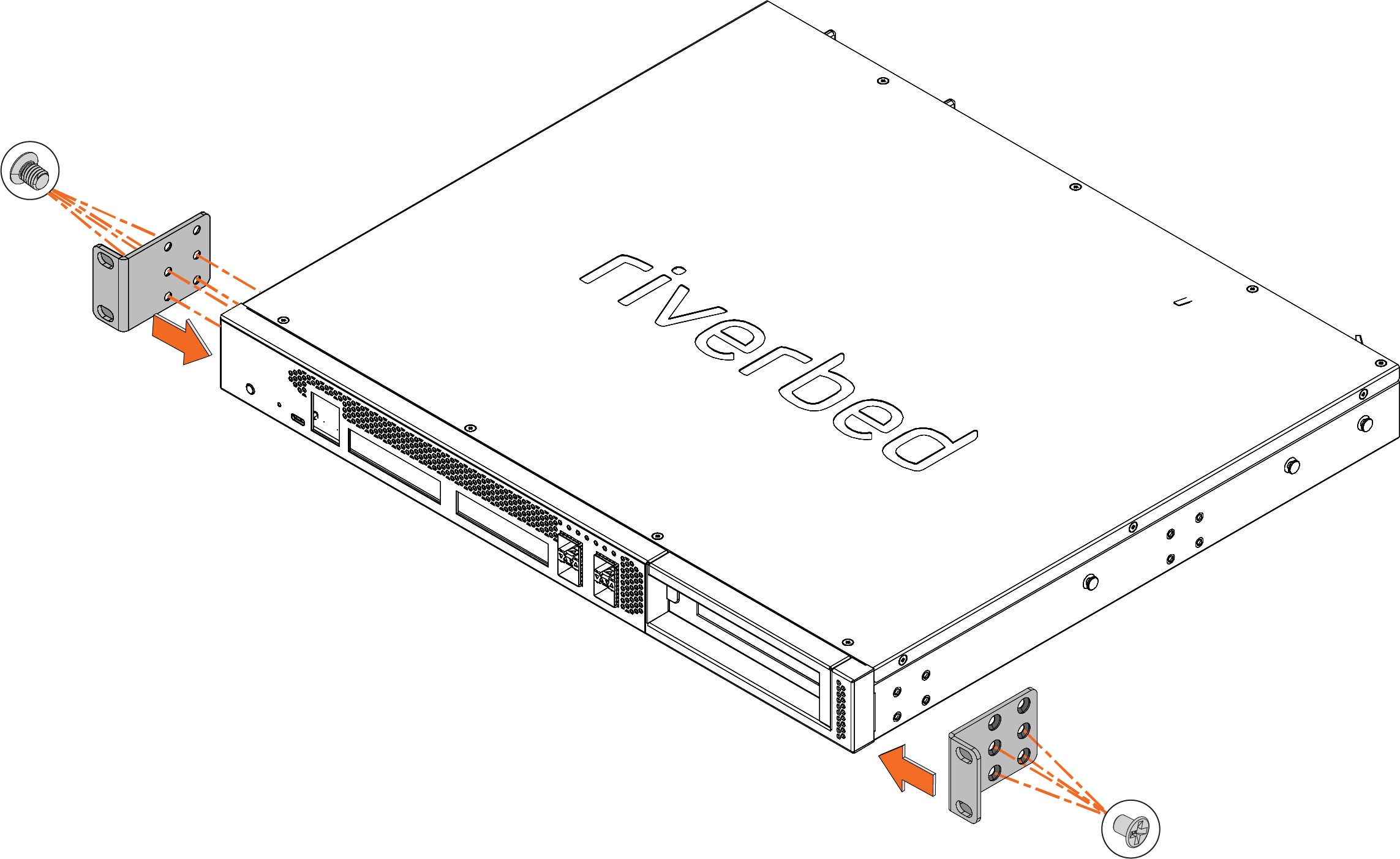

Attaching the ear brackets to the 1U 3080 appliance

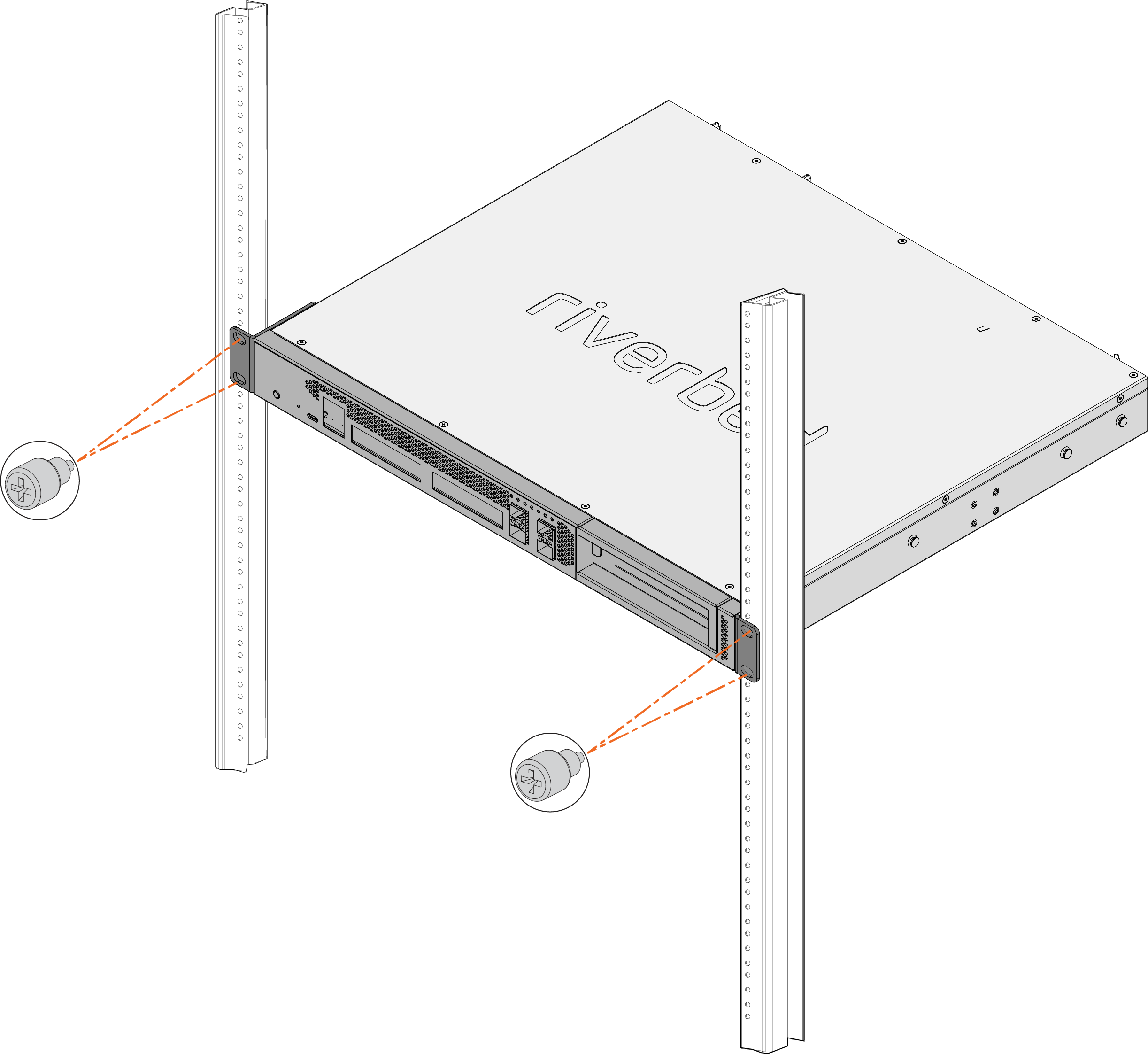

Securing the 1U 3080 appliance to the rack

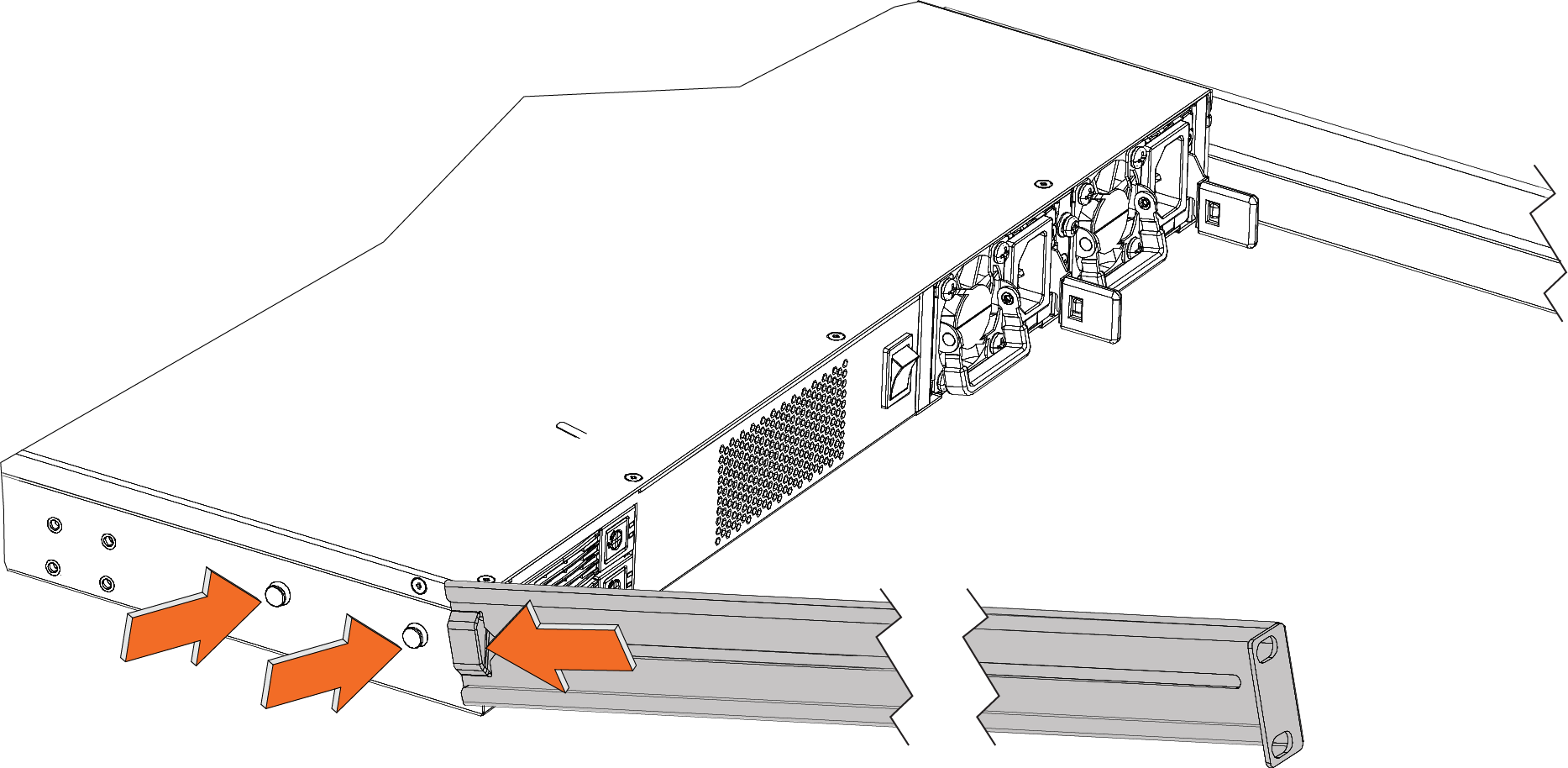

Attaching the rear brackets to the 1U 3080 appliance

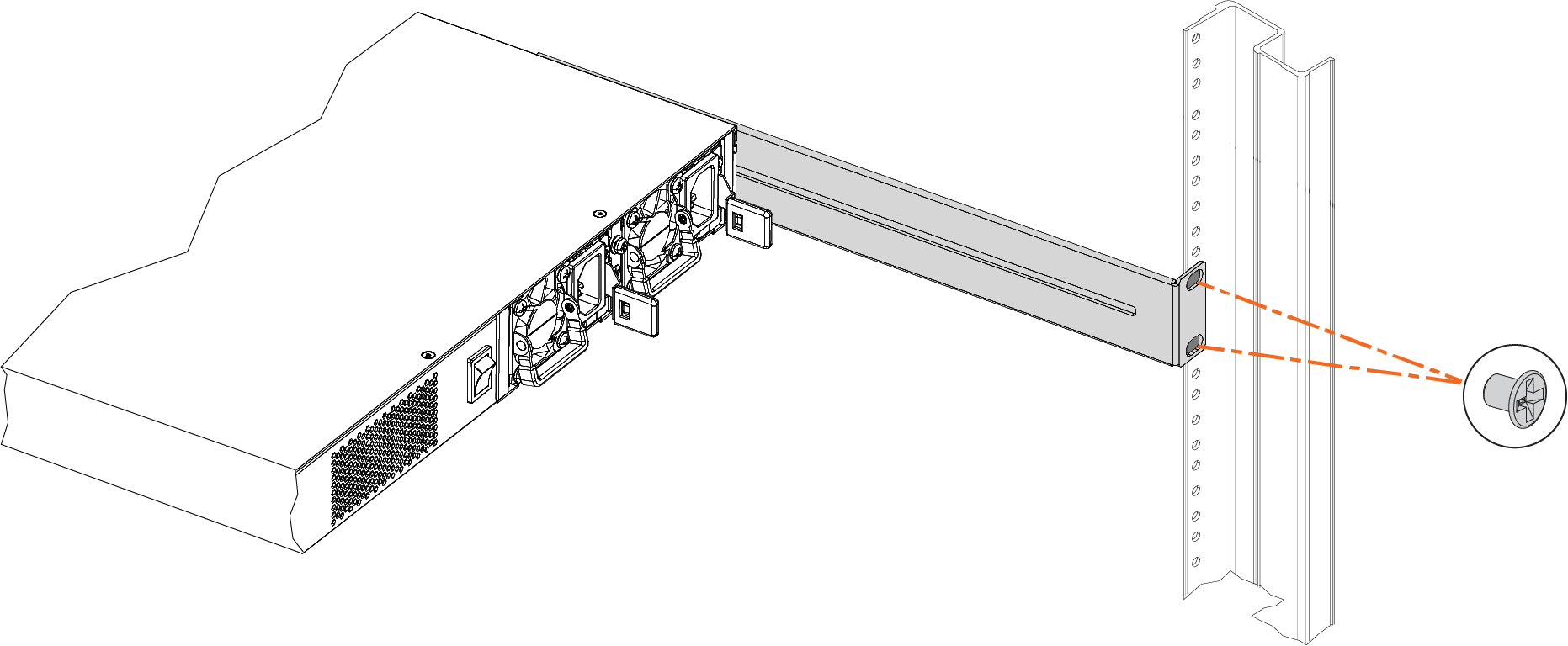

Securing the rear bracket the rack for the 1U 3080 appliance
